Remove/Install Rear Axle Level Sensor - AR82.10-P-0005LW

Model 205

Model 213

Model 238

Model 253

Model 293

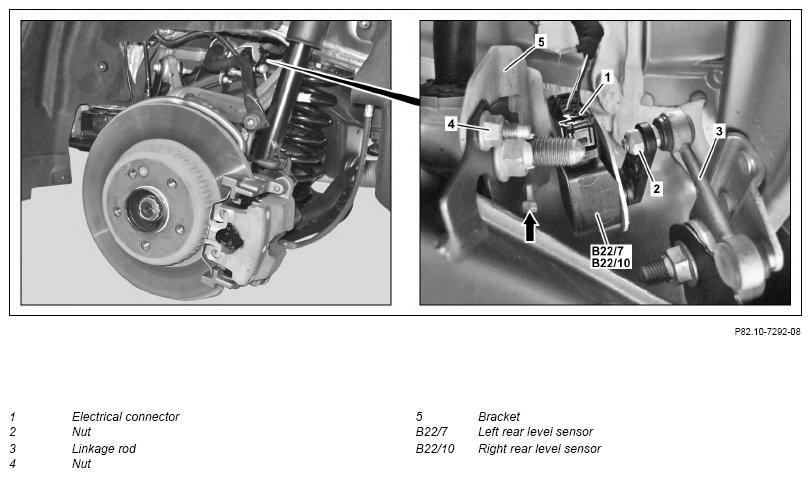

Fig 1: Rear Axle Level Sensor Components Location - Model 253 (Shown On Model 205)

Courtesy of MERCEDES-BENZ USA

Shown on rear wheel removed on model 205

Courtesy of MERCEDES-BENZ USA

Notice	Notes on self-locking nuts and bolts		AH00.00-P-0001-01KOA
	Notes on repair work on suspension components		AH00.00-P-0100-01A
	Remove/install
1	Raise vehicle.		AR00.60-P-1006A
2	Disconnect electrical connector (1) from left rear level sensor (B22/7) or from right rear level sensor (B22/10).
3	Unclip mount of electric line from holder (5).	Model 205.386/387/486/487 Model 253 Model 293
4	Unscrew nut (2) and unhook linkage (3) from left rear level sensor (B22/7) or right rear level sensor (B22/10).	Do not twist left rear level sensor (B22/7) or right rear level sensor (B22/10).
		Pay attention to installation position.
5	Unscrew nut (4) and remove left rear level sensor (B22/7) or right rear level sensor (B22/10) together with the holder (5).	Ensure that pin (arrow) at bracket (5) is seated correctly in corresponding opening in rear axle carrier.

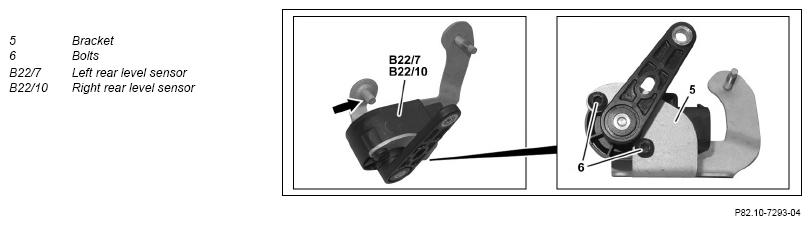

6	Remove screws (6) and remove left rear level sensor (B22/7) or right rear level sensor (B22/10) from holder (5).	When replacing left rear level sensor (B22/7) or right rear level sensor (B22/10).
7	Install in the reverse order.
8	Calibrate left rear level sensor (B22/7) or right rear level sensor (B22/10) using vehicle diagnosis system.	When replacing left rear level sensor (B22/7) or right rear level sensor (B22/10).
		Model 293	AD00.00-P-2000-06FR
		Model 205, 213, 253	AD00.00-P-2000-04B
		Model 238	AD00.00-P-2000-06LWO
	Check
9	Check and correct headlamp adjustment.	When replacing left rear level sensor (B22/7) or right rear level sensor (B22/10).
		Model 293	AP82.10-P-8260KA
		Model 205, 253	AP82.10-P-8260E
		Model 213, 238	AP82.10-P-8260J
