Remove/Install NFC Antenna - AR82.62-P-0004EQ
Model 253
as of model year 2020
with code 897 (Front wireless telephone charging)
Model 253
as of model year 2020
with code 899 (Multifunction telephony)
Model 293
with code 897 (Front wireless telephone charging)
Model 293
with code 899 (Multifunction telephony)
Shown on model 253

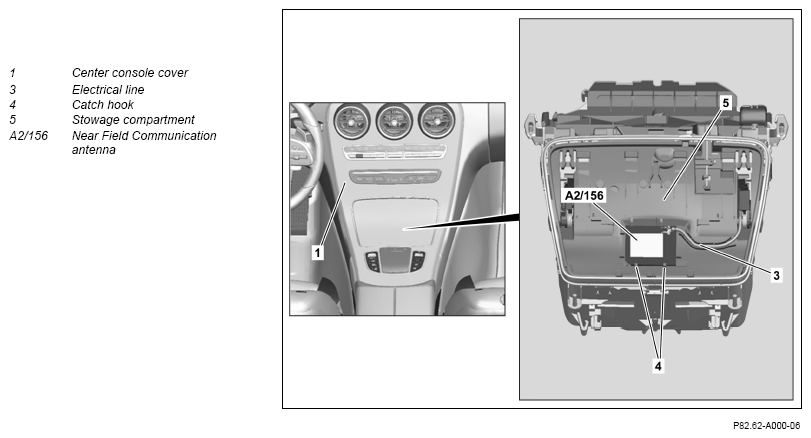

Fig 1: Near-Field Communication/NFC Antenna Components Location - Model 253 As Of Model Year 2020 With Codes 897 And 899
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Remove stowage compartment (5) from cover of center console (1). | Model 293 with code 897 (Front wireless telephone charging) Model 293 with code 899 (Multifunction telephony) |
AR68.20-P-0901EQ |
| Model 253 as of model year 2020 with code 897 (Front wireless telephone charging) Model 253 as of model year 2020 with code 899 (Multifunction telephony) |
AR68.20-P-0901LWM | ||
| 2 | Unclip cap of stowage compartment (5) towards rear, in the opposite direction of travel, from stowage compartment (5) and remove. | Do not use sharp-edged tools. Otherwise, the cap may be damaged. |
|
Check for correct positioning of the cap before clipping it into place. Otherwise, the fasteners and the cap may be damaged. |
|||
| 3 | Disconnect electrical connector from mobile phone cradle control unit and expose electric line (3). | ||
| 4 | Release catch hooks (4) and guide near-field communication antenna (A2/156) with electric line (3) outwards and remove. | ||
| 5 | Install in the reverse order. |
