Remove/Install License Plate Lamps - AR82.10-P-5161LWX
Model 253.3
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Notes on sensor system for trunk lid opening/closing | Model 253.3 with code 871 (HANDS-FREE ACCESS) with code 889 (KEYLESS-GO) |
AH80.61-P-0001-01A | |
| Remove/install | |||

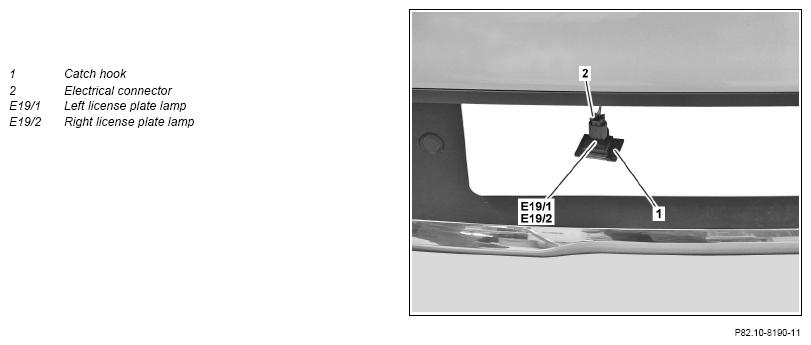

| 1 | Unclip left license plate lamp (E19/1) or right license plate lamp (E19/2) from the rear bumper with a suitable tool | Carefully unclip left license plate lamp (E19/1) or right license plate lamp (E19/2). Otherwise the catch hook (1) on the left license plate lamp (E19/1) or right license plate lamp (E19/2) may be damaged. |
|
| 2 | Disconnect electrical connector (2) and remove left license plate lamp (E19/1) or right license plate lamp (E19/2) | ||
| 3 | Install in the reverse order |
