Remove/Install Front Sound Generator - AR82.27-P-0003LXM

Model 253.311/353/911/953

Courtesy of MERCEDES-BENZ USA

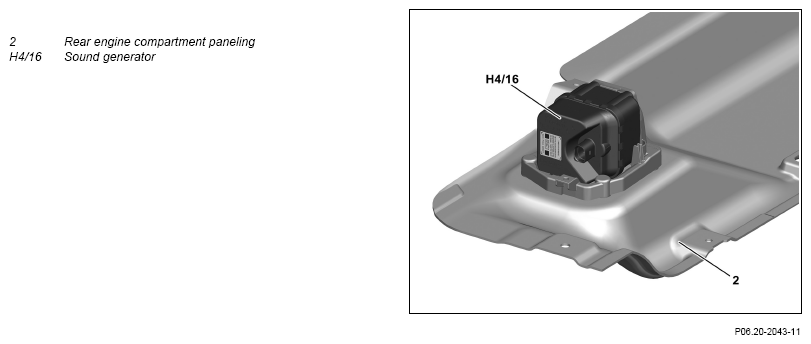

Fig 1: Front Sound Generator Components Location - Model 253.953

Courtesy of MERCEDES-BENZ USA

Notice	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Remove rear engine compartment lining (2).		AR61.20-P-1105LW

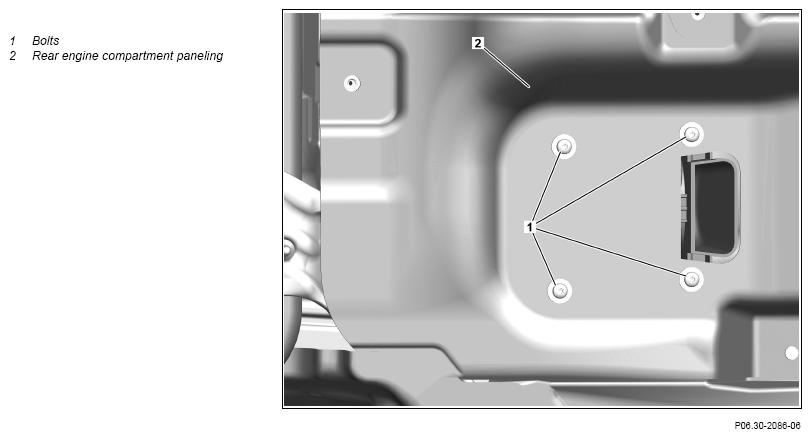

2	Remove bolts (1).
3	Remove sound generator (H4/16) from the rear engine compartment lining (2).
4	Install in the reverse order.
5	Perform commissioning of sound generator (H4/16).	When replacing the sound generator (H4/16).
			AD00.00-P-2000-04B
