Remove/Install Front Passenger Side WLAN Antenna On Instrument Panel - AR82.85-P-0024LW
Model 253
as of model year 2020

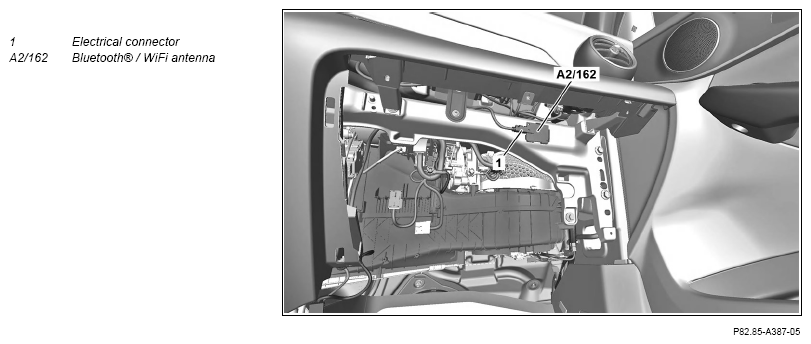

Fig 1: Front Passenger Side WLAN/WiFi Antenna On Instrument Panel Components Location - Model 253 As Of Model Year 2020
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Remove glove box. | AR68.10-P-1400LW | |
| 2 | Release electrical connector (1) and disconnect. | ||
| 3 | Release Bluetooth®/WiFi antenna (A2/162) from holder and remove. | ||
| 4 | Install in the reverse order. |
