Remove/Install Emergency Call System Antenna - AR82.95-P-0017LWG

Model 253.1/9

with code 362 (HERMES communications module LTE)

Model 253.9

with code 348 (Emergency call/assistant system)

Model 253.9

with code 360 (HERMES UMTS)

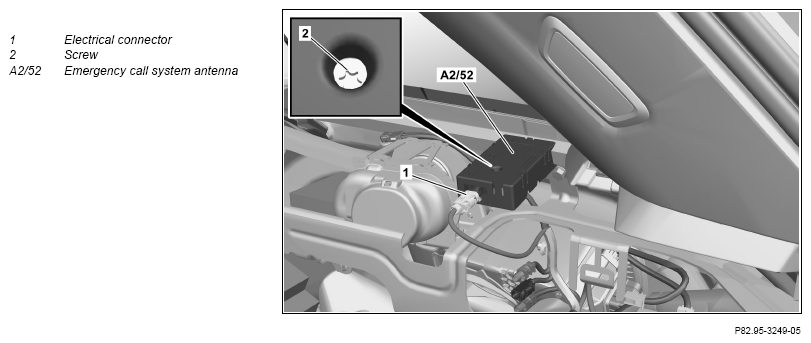

Fig 1: Emergency Call System Antenna Components Location - Model 253.9 With Code 362; 348; 360

Courtesy of MERCEDES-BENZ USA

	Risk of injury  caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof.	No parts of the body or limbs should be within the operating area when the components are moving.	AS00.00-Z-0011-01A
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Notes on HANDS-FREE ACCESS		AH80.61-P-0001-01A
	Remove/install
1	Remove right side load compartment trim.	Model 253.992/993 with code 348 (Emergency call/assistant system) Model 253.992/993 with code 360 (HERMES UMTS) Model 253.992/993 with code 362 (HERMES communications module LTE)	AR68.30-P-1180RFW
		Model 253.1, 253.9 (except 253.992/993) with code 362 (HERMES communications module LTE) Model 253.9 (except 253.992/993) with code 348 (Emergency call/assistant system) Model 253.9 (except 253.992/993) with code 360 (HERMES UMTS)	AR68.30-P-1180LWG
2	Disconnect electrical connector (1).
3	Loosen screw (2).	Screw/bolt (2) remains at the emergency call system antenna (A2/52).
4	Remove emergency call system antenna (A2/52).
5	Install in the reverse order.
