Remove/Install Driving Lights Actuation Module - AR82.10-P-4650LWG

Model 253

with code 640 (High-performance LED)

Model 253

with code 641 (Dynamic LED headlamps, left-hand traffic)

Model 253

with code 642 (Dynamic LED headlamps, right-hand traffic)

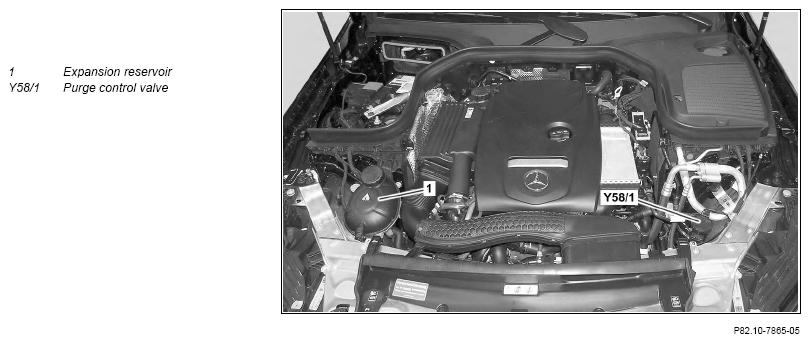

Engine 274, 276 shown on engine 274

Courtesy of MERCEDES-BENZ USA

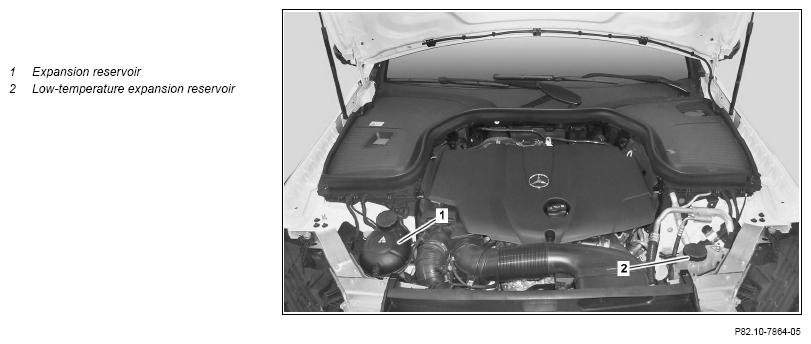

Engine 642, 651 shown on engine 651

Courtesy of MERCEDES-BENZ USA

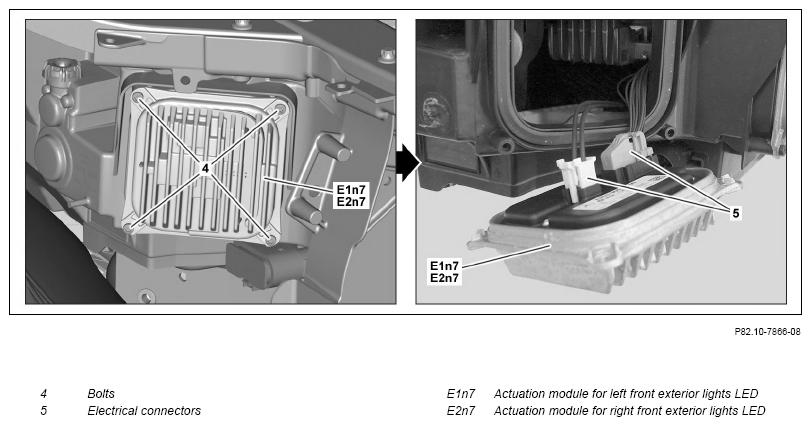

Fig 1: Driving Lights Actuation Module Components Location - Model 253 With Codes 640, 641 And 642

Courtesy of MERCEDES-BENZ USA

Shown on left side of vehicle

	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Perform initial startup of left front actuation module, LED exterior lighting (E1n7) or right front actuation module, LED exterior lighting (E2n7)
			AD00.00-P-2000-04B
2	Switch off ignition and store transmitter key outside of transmission range (min. 2 m)
3	Remove expansion reservoir (1) and place to one side	When removing right front actuation module, LED exterior lighting (E2n7).
4.1	Remove purging switchover valve (Y58/1) and place to one side	Model 253 with engine 274, 276 with code 640 (High-performance LED) Model 253 with engine 274, 276 with code 641 (Dynamic LED headlamps, left-hand traffic) Model 253 with engine 274, 276 with code 642 (Dynamic LED headlamps, right-hand traffic) When removing left front actuation module, LED exterior lighting (E1n7).
4.2	Remove low-temperature expansion reservoir (2) and place to one side	Model 253 with engine 642, 651 with code 640 (High-performance LED) Model 253 with engine 642, 651 with code 641 (Dynamic LED headlamps, left-hand traffic) Model 253 with engine 642, 651 with code 642 (Dynamic LED headlamps, right-hand traffic) When removing left front actuation module, LED exterior lighting (E1n7)
5	Remove screws/bolts (4) at left front actuation module, LED exterior lighting (E1n7) or right front actuation module, LED exterior lighting (E2n7)
6	Pull out left front actuation module, LED exterior lighting (E1n7) or right front actuation module, LED exterior lighting (E2n7) until electrical connectors (5) can be disconnected	Ensure that the seal is seated correctly on left front actuation module, LED exterior lighting (E1n7) or right front actuation module, LED exterior lighting (E2n7).
7	Disconnect electrical connectors (5) and remove left front actuation module, LED exterior lighting (E1n7) or right front actuation module, LED exterior lighting (E2n7)
8	Install in the reverse order
