(Component Description For Emergency Call System Control Unit - GF82.95-P-3212RFU)
Model 205, 253 up to model year 2017 with code 348 (Emergency call/assistant system)

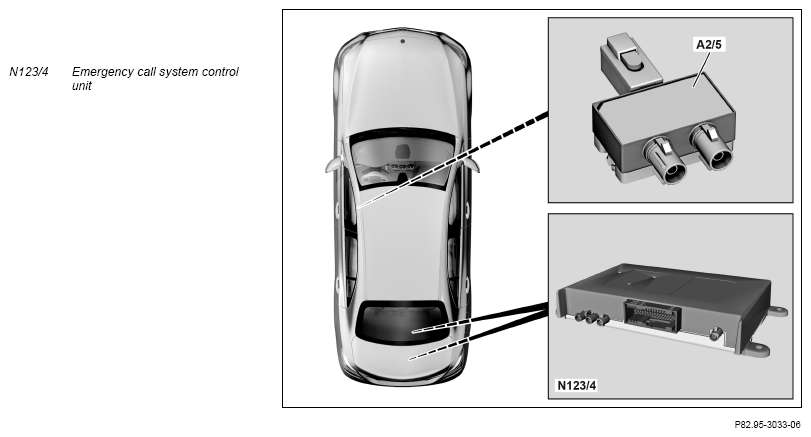

Shown: Model 205.0

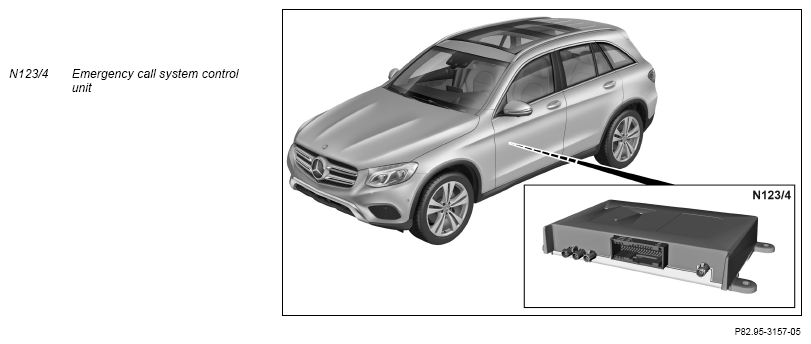

Shown: Model 253.9
Location
In model 205.0/2/3 except hybrid vehicles, the emergency call system control unit is located beneath the paneling in the trunk, in the front area behind the rear bench seat. On the model 205.047 hybrid vehicles, the emergency call system control unit is installed on a major assembly carrier in a recess under the paneling of the trunk in the rear area slightly to the right of center.
On model 253.9 vehicles, the emergency call system control unit is installed in the center console.
Tasks
- Realization of vehicle-related services
- Implementation of specific services for hybrid vehicles
- Regulation of priorities via integrated priority management
- Communication management between vehicle and service center
- Audio management
- Display management
- Error handling
- Receive signals
- Transmitting signals
Realization of vehicle-related services
The emergency call system control unit enables the following vehicle-related services to be realized:
- Authorization ("provisioning")
- Manual or automatic emergency call
- MB information call
- Roadside assistance
- Notification in the event of anti-theft alarm ("Anti Theft Notification")
- Vehicle tracking
- Vehicle remote unlocking
- Vehicle remote locking
- Remote diagnosis ("Remote Diagnosis")
- Transmission of vehicle position ("Vehicle Locator")
- Notification of a certain speed being exceeded ("Speed Alert")
- Notification if a certain area has been reached or left ("Geo Fencing")
- Transmission of information (e.g. map data) to the vehicle ("Remote Information Feed")
- Transmission of updates to vehicle ("Remote Update")
- Visual and acoustic vehicle recognition ("Flash Lights and Sound Horn")
- Internet connection
The Internet connection is not controlled through the emergency call system control unit, but through the head unit (A26/17).
The emergency call system control unit is not used for regular telephone calls.
Via the mobile radio connection to the Service Center the emergency call system control unit also receives the trigger signal for the "Remote Start" function (for pre-entry climate control) which the customer transmits via the mobile phone to the service provider. The "Remote Start" function starts the engine on a parked and locked vehicle (windows and doors closed), and after a limited period it switches it off again, to enable the "Load Mode" to achieve a pre-entry climate control of the A/C system. The emergency call system control unit forwards the triggering signal via the diagnostic CAN (CAN D) to the electronic ignition lock control unit (N73).
Implementation of specific services for hybrid vehicles
The emergency call system control unit enables the following vehicle-related services to be realized:
- The services for electric vehicles summarized in the vehicle-specific "Vehicle Homepage"
Regulation of priorities via integrated priority management
The emergency call system control unit can manage a voice or data connection and an SMS connection at the same time. The data connection can be used by several services simultaneously by means of transmitting data packets at staggered times. The priority management is based on the following principles:
- Services with short message service (SMS) capability are executed by SMS if one of the four services with the highest priority is activated and the remaining connection resources are released for the prioritized service.
- Services without SMS capability or an Internet connection are terminated if one of the four services with the highest priority is activated and the connection resources are released for the prioritized service.
- The remote diagnosis has its own data channel, and can also be carried out for every other service.
- The four services with the highest priority are executed if no service with a higher priority is active.
Services with SMS capability are:
- Vehicle tracking
- Vehicle remote unlocking
- Vehicle remote locking
- Notification of a certain speed being exceeded ("Speed Alert")
- Notification if a certain area has been reached or left ("Geo Fencing")
- Visual and acoustic vehicle recognition ("Flash Lights and Sound Horn")
The four services with the highest priority are listed in the following table.
| Priority | Service |
|---|---|
| 1 | Automatic emergency call |
| 2 | Manual emergency call |
| 3 | Roadside assistance |
| 4 | MB Info |
Communication management between vehicle and service center
The emergency call system control unit controls communication between the vehicle and the Service Center via the integrated communication module and the mobile telephone network, and establishes a voice connection with the driver if necessary. In many cases (e.g. breakdown assistance, MB Info call) the connection setup with the Service Center also includes the transmission of an SMS containing the vehicle position, identification data and other vehicle data ("Initial Summary").
Audio management
- Output of audio signals through center instrument panel speaker (H4/27)
- Muting of audio sources (mute function)
Display management
Management of function-related displays on audio/COMAND display (A40/8), in the instrument cluster (A1), in the SOS button (N70s11), in the breakdown assistance button (N70s12) and in the MB-Info button (N70s13).
Error handling
After activation of circuit 15R, the emergency call system control unit performs a self-diagnosis. If the self-diagnosis test is successful, the emergency call system is then operational. In the event of a fault, a fault message is displayed on the instrument cluster depending on the fault type, and the two red light-emitting diodes (LED) in the SOS button are permanently actuated. Depending on the fault type, the fault is also stored in the emergency call system control unit's fault memory.
Receive signals
- Direct lines
- Seat occupied recognition LIN (LIN E2)
- CAN
- Radio interface for wireless local area network (WLAN) (with CODE 531 (COMAND APS))
- Integrated Bluetooth® interface (except CODE 531 (COMAND APS))
Direct lines
The emergency call system control unit receives the following signals over direct lines:
- Power supply via circuit 30 and circuit 31
- Signal from hands-free system microphone (A67b1) over the head unit
- Mobile radio and Internet signals from the telephone antenna splitter (A2/109) over a coaxial cable
- GPS signals (global navigation system) from GPS antenna (A2/23), in vehicles with code 531 (COMAND APS) over the global positioning system antenna splitter (A2/5)
- Mobile radio and Internet signals from emergency call system antenna (A2/52)
Seat occupied recognition LIN
The emergency call system control unit receives the crash signal over the seat occupancy LIN from the supplemental restraint system control unit (N2/10).
CAN
The emergency call system control unit is a diagnostic CAN subscriber. The emergency call system control unit receives the following signals, for example, via the diagnostic CAN from the electronic ignition lock control unit:
- Circuit 15R ON
- Crash information from the Supplemental Restraint System control unit (redundant), including crash level
- Operation of the SOS button, the MB-Info button and the breakdown assistance button
- RPM signals from the Electronic Stability Program control unit (N30/4)
- Vehicle data (for "Initial Summary")
- Diagnostic data (with remote diagnosis)
Radio interface for wireless local area network (WLAN) (with CODE 531 (COMAND APS))
The emergency call system control unit receives radio signals for Internet communication, which the head unit transmits over the WLAN antenna (A2/83).
Integrated Bluetooth® interface (except CODE 531 (COMAND APS))
The emergency call system control unit receives Bluetooth® signals for Internet communication that the head unit transmits via the Bluetooth® antenna (A2/91).
Transmitting signals
- Direct lines
- CAN
- Integrated radio interface for wireless local area network (WLAN) (with CODE 531 (COMAND APS))
- Integrated Bluetooth® interface (except CODE 531 (COMAND APS))
Direct lines
The emergency call system control unit transmits the following signals:
- Voice output via center instrument panel speaker
- Audio muting (mute function) to the sound system amplifier control unit (N40/3) (with code 810 (Sound system)) or to the head unit (except code 810 (Sound system))
- Mobile radio signals to the telephone antenna splitter over a coaxial cable
- Mobile phone signals to emergency call system antenna
CAN
The emergency call system control unit transmits the following signals:
- Actuation signal for LEDs in the SOS button, the MB Info button and the breakdown assistance button
- Navigation and miscellaneous data sent by the Service Center ("Remote Information Feed") to the head unit
- Triggering signal for "Remote Start"
- Status signals to the head unit
- Status signals to the instrument cluster
Integrated radio interface for wireless local area network (WLAN) (with CODE 531 (COMAND APS))
The emergency call system control unit transmits Internet data as radio signals to the WLAN antenna.
Integrated Bluetooth® interface (except CODE 531 (COMAND APS))
The emergency call system control unit transmits Internet data as Bluetooth® signals to the Bluetooth® antenna.
Body
- Integrated Internet-compatible communications module with Bluetooth® interface and radio interface for wireless local area network (WLAN)
- Integrated locating module
- Integrated GPS receiver for position finding (date, time, history and last-known location) for the listed vehicle-related services
- Memory for vehicle-specific data
- Buffer for navigation and other data that is transmitted to the vehicle
- Plastic housing
Function
The emergency call system control unit centrally processes all the vital data for the listed vehicle-related services. The emergency call system control unit has its own microprocessor. A distinction is made between the following subareas:
- Position finding module
- Communications module
Position finding module
The emergency call system control unit uses the installed positioning module to calculate the position of the vehicle and, if necessary, generates a message to the Service Center or a data telegram ("Initial Summary") in the form of an SMS.
Communications module
The communication module integrated into the emergency call system control unit is a mobile phone transceiver enabling voice and data communication with the Service Center via mobile phone frequencies.
Communication takes place via the digital Code Division Multiple Access (CDMA) network. Other functions of the communications module are:
- Four day transmission and reception capability: As soon as an SMS is received, the emergency call system control unit is also activated (wake-up); after four days the emergency call system goes into "sleep mode".
- After circuit 15 ON a self-diagnosis is performed.
If reception is poor or if the left telephone antenna (A2/102) and right telephone antenna (A2/103) fail (e.g. they are defective due to a rollover or side impact), the emergency call system control unit automatically uses the emergency call system antenna for receiving and sending mobile radio signals.
| Wiring diagram for emergency call system control unit | PE82.95-P-2101-97FBA |
