Wiring Diagram Of Starter, Alternator, Battery - PE15.00-P-2101-97IDA
Model 247 except code B01 (48V technology)
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 64L |
| B95 | Battery sensor | 24L |
| Code L | LEFT-HAND DRIVE | 14E |
| Code M139 | Inline 4-cylinder SPARK-IGNITION ENGINE M139 - AMG | 6G |
| Code M139 | Inline 4-cylinder SPARK-IGNITION ENGINE M139 - AMG | 7G |
| Code M139 | Inline 4-cylinder SPARK-IGNITION ENGINE M139 - AMG | 33D |
| Code M139 | Inline 4-cylinder SPARK-IGNITION ENGINE M139 - AMG | 40G |
| Code M260 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M260 | 40H |
| Code M282 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M282 | 40H |
| Code M608 | 4-CYLINDER INLINE DIESEL ENGINE OM608 | 40G |
| Code M654 | 4-CYLINDER INLINE DIESEL ENGINE OM654 | 40H |
| Code ME08 | Hybrid drive 75kW-84kW variant (incl. plug-in) | 33D |
| Code ME08 | Hybrid drive 75kW-84kW variant (incl. plug-in) | 57G |
| Code ME08 | Hybrid drive 75kW-84kW variant (incl. plug-in) | 41J |
| Code R | RIGHT-HAND DRIVE | 14E |
| F15/1 | Starter battery prefuse box | 35L |
| F15/1f2 | Fuse 2 | 35J |
| F15/1f3 | Fuse 3 | 36J |
| F15/1k1 | Battery disconnect switch relay | 32L |
| F15/3 | Engine compartment prefuse box | 36A |
| F15/3 | Engine compartment prefuse box | 44A |
| F15/3 | Engine compartment prefuse box | 52A |
| F15/3 | Engine compartment fuse and relay module | 28A |
| F15/3 | Engine compartment fuse and relay module | 5A |
| F15/3 | Engine compartment fuse and relay module | 12A |
| F15/3 | Engine compartment fuse and relay module | 19A |
| F15/3f73 | Fuse 73 | 7A |
| F15/3f75 | Fuse 75 | 20A |
| F15/3kG | Engine compartment terminal 15 relay | 28A |
| F15/3kH | Circuit 50 relay | 4A |
| F15/4 | Vehicle interior fuse and relay module | 42L |
| F39 | Battery terminal pyrofuse | 16L |

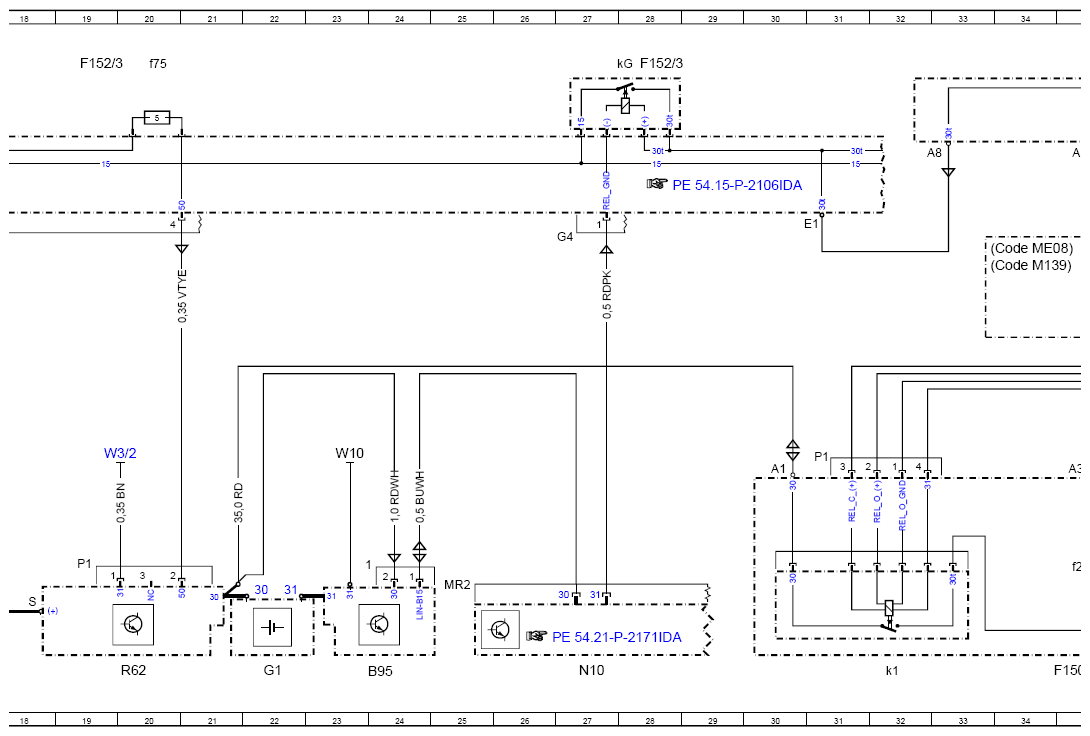

| G1 | On-board electrical system battery | 22L |

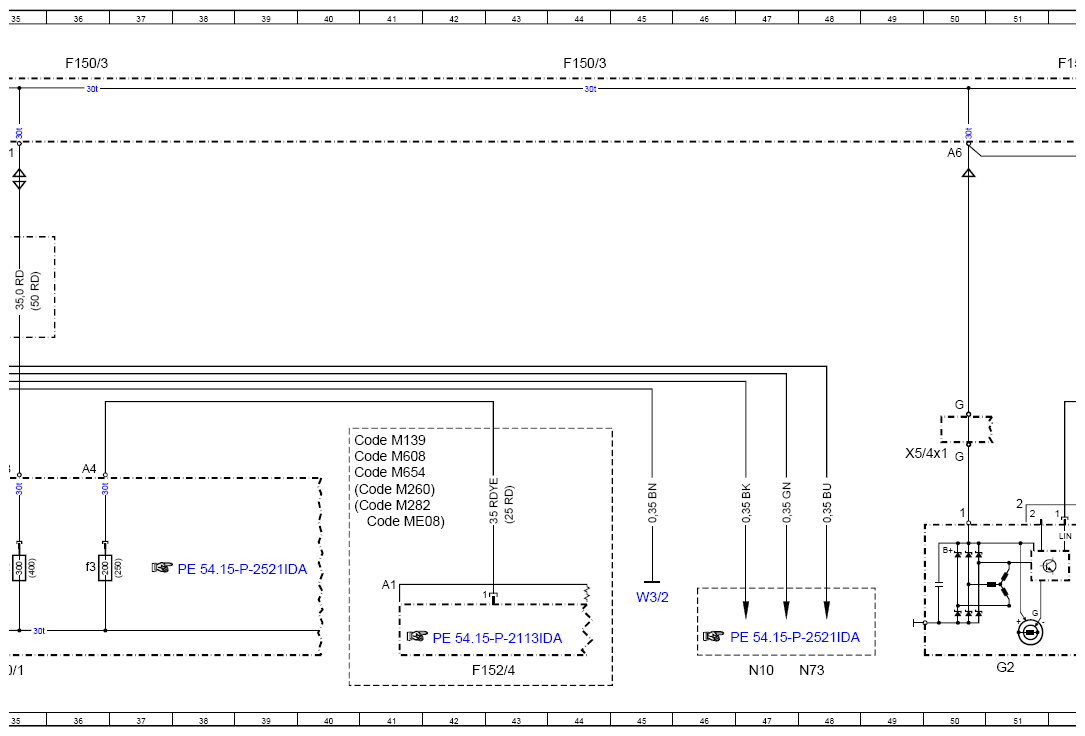

| G2 | Alternator | 51L |

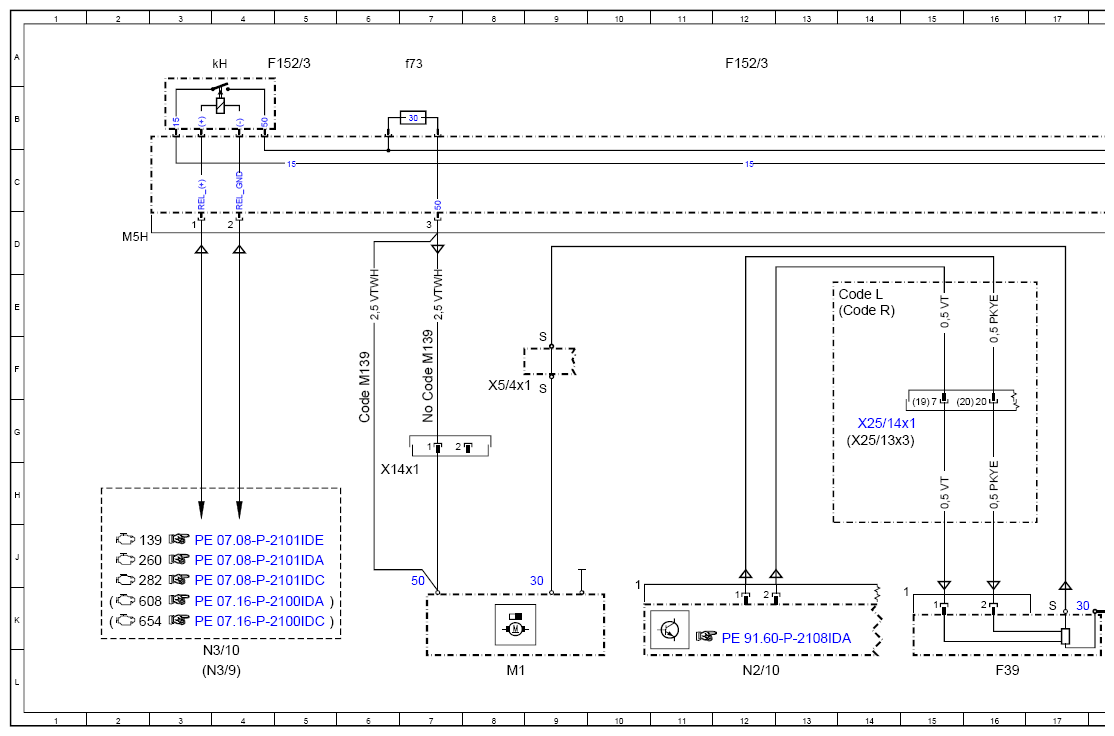

| M1 | Starter | 8L |
| N10 | Central control module | 47L |
| N10 | Central control module | 27L |

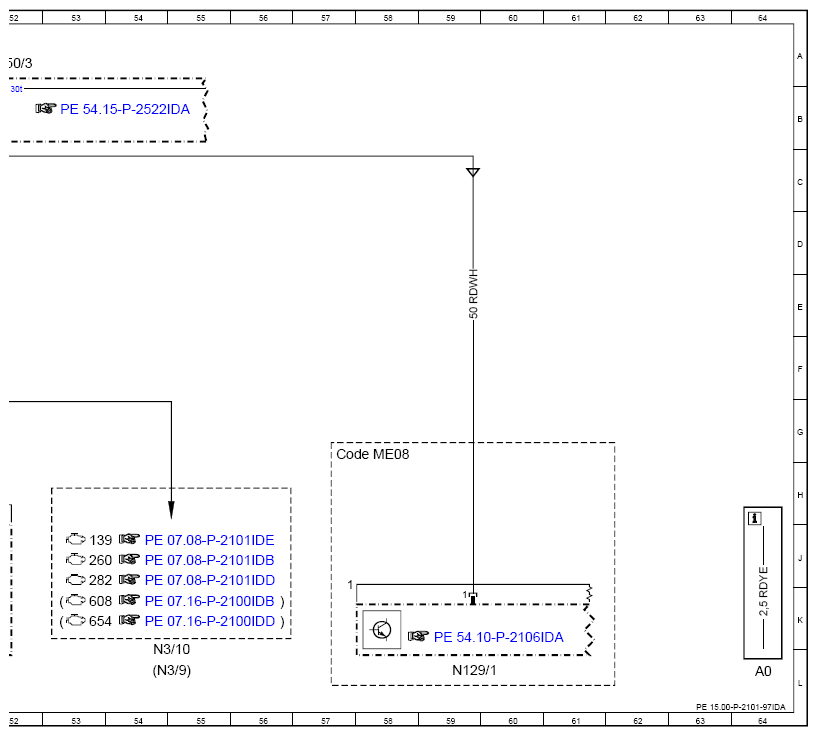

| N12/1 | Power electronics control unit | 59L |
| N/10 | Supplemental restraint system control unit | 12L |
| N3/10 | ME-SFI [ME] control unit | 4L |
| N/10 | ME-SFI [ME] control unit | 54L |
| N/9 | CDI control unit | 3L |
| N/9 | CDI control unit | 54L |
| N73 | Electronic ignition switch control unit | 48L |
| R62 | Voltage dip limiter | 20L |
| W10 | Ground point (starter battery) | 23G |
| W/2 | Left front wheel arch ground point | 19G |
| W/2 | Left front wheel arch ground point | 45K |
| X14x1 | Circuit 50 electrical connector | 7H |
| X2/13x3 | Left engine compartment/vehicle interior electrical connector | 14G |
| X2/14x1 | Right engine compartment/vehicle interior electrical connector | 14G |
| X/4x1 | Starter and alternator cable connector | 8F |
| X/4x1 | Starter and alternator cable connector | 50G |
