Connector Separation Point Wiring Diagram - PE54.18-P-2300-97IDB
Model 247

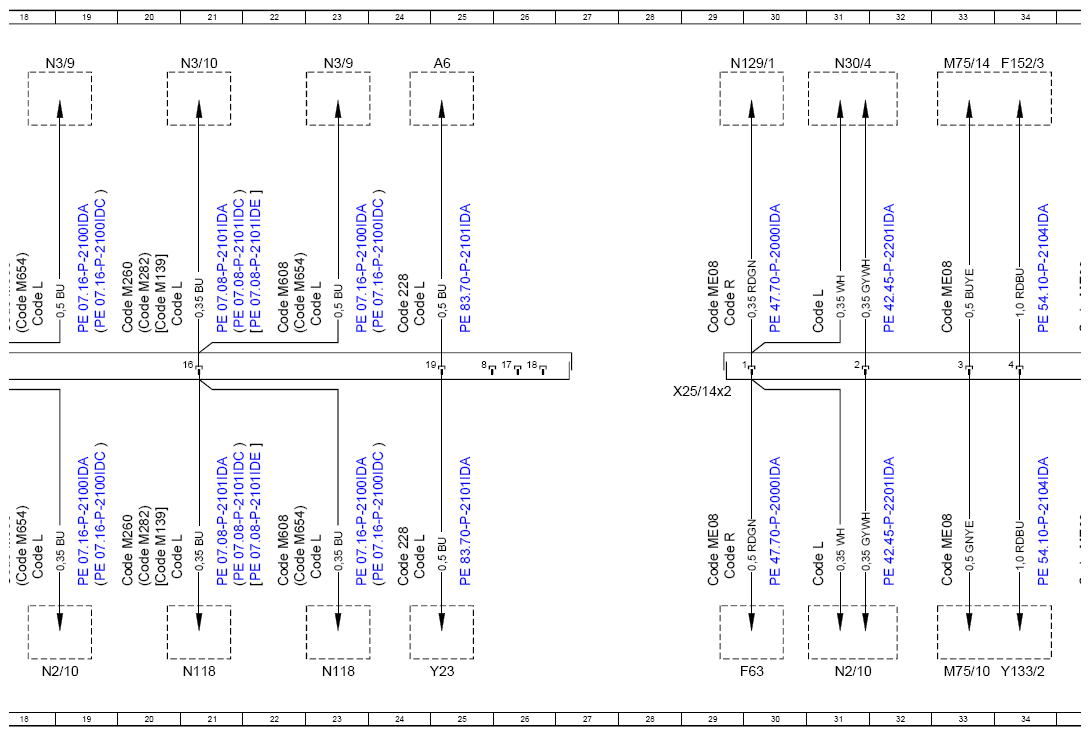

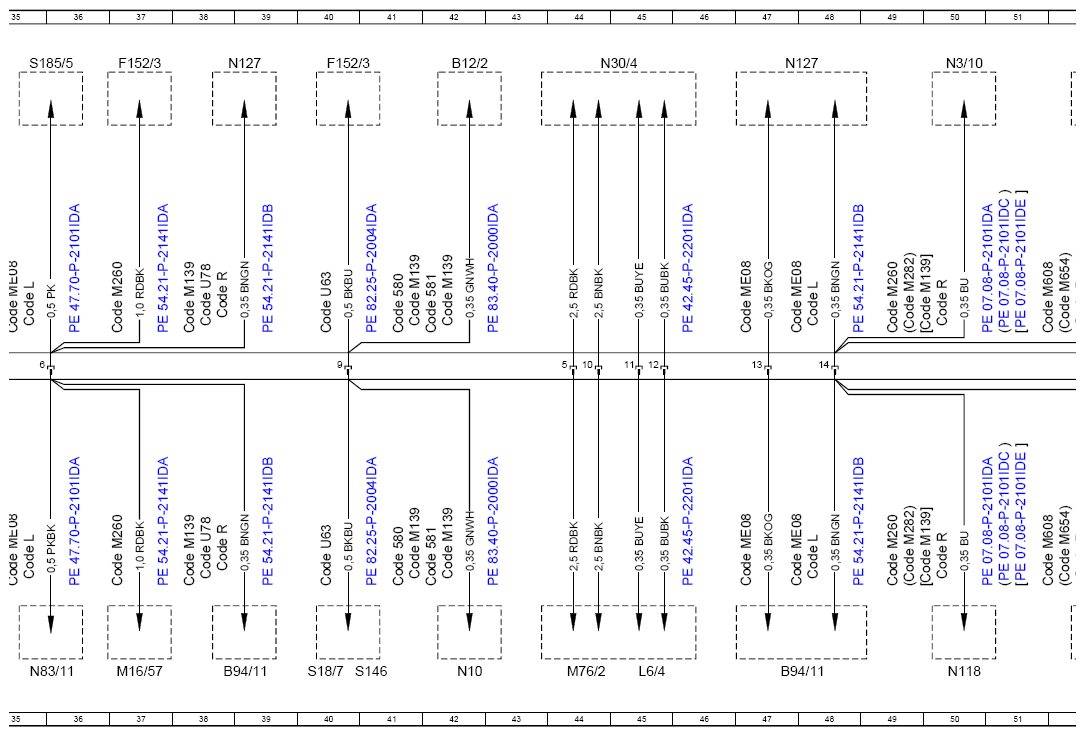

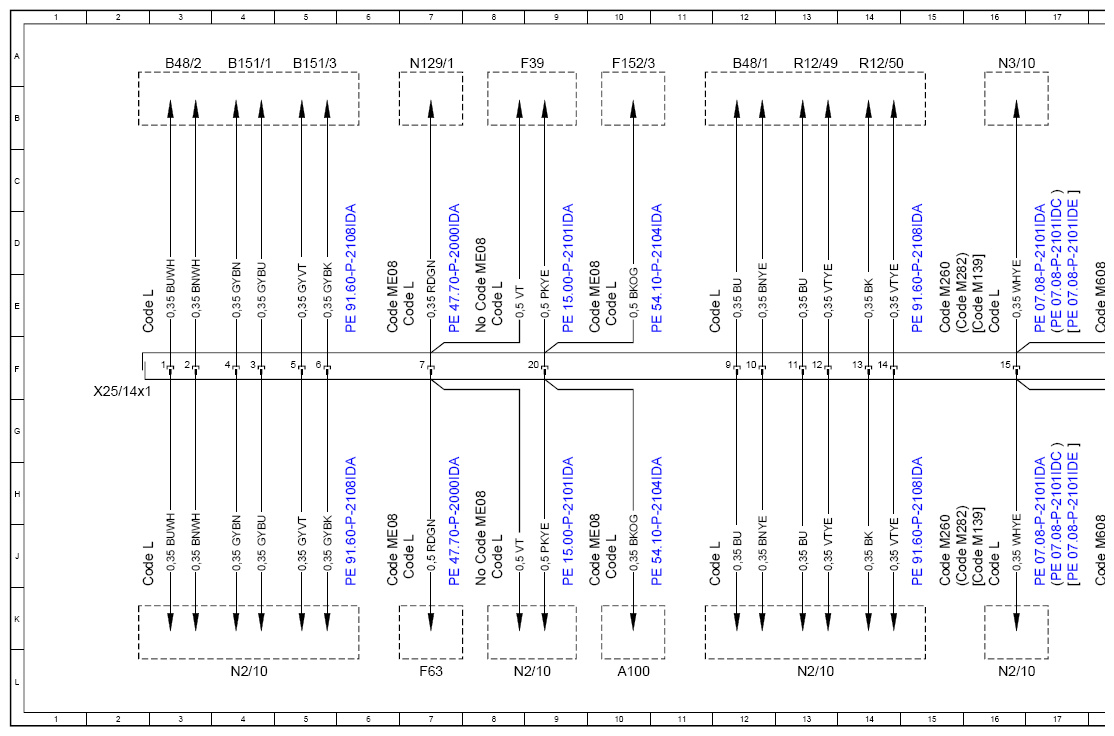

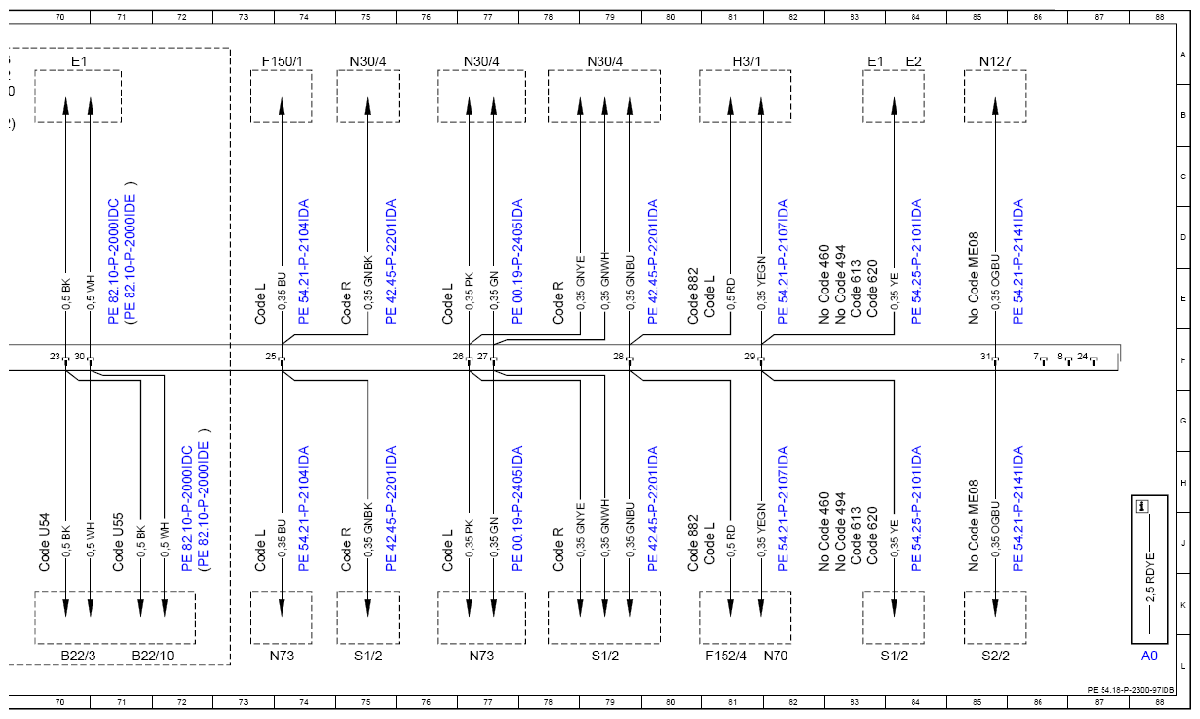

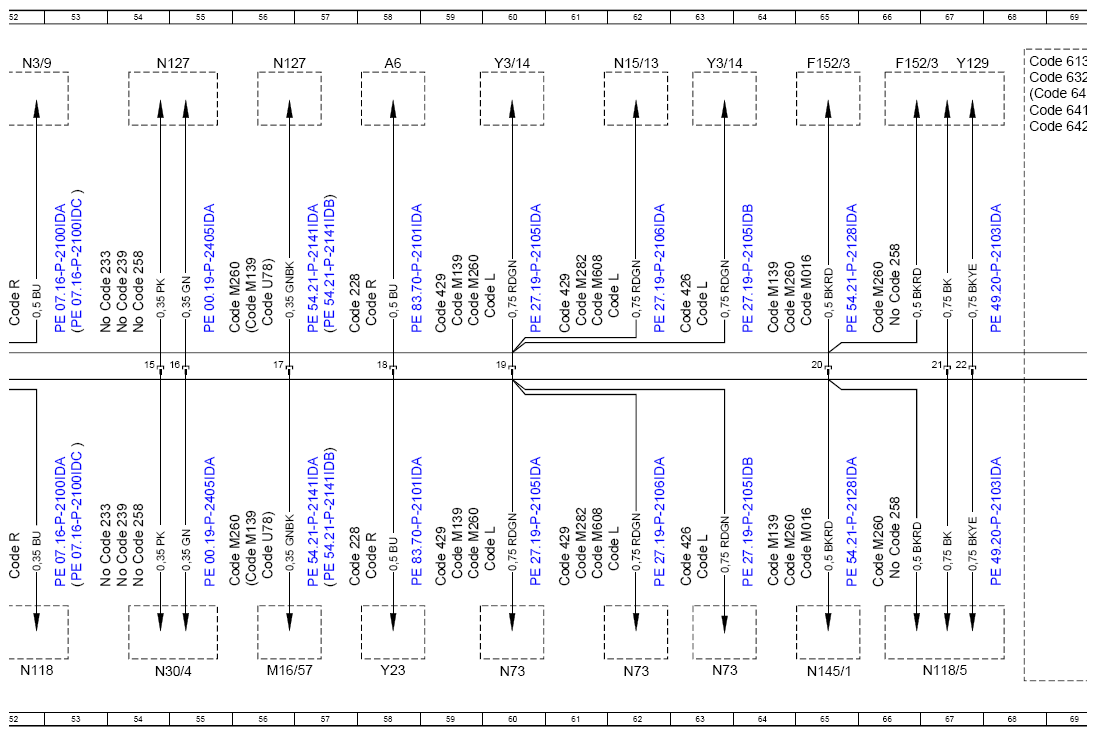

Connecting points X25/14x1, X25/14x2
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 88L |
| A100 | High-voltage battery module | 10L |
| AG | Stationary heater unit | 25A |
| A6 | stationary heater unit | 58A |
| B12/2 | Refrigerant pressure sensor | 42A |
| B151/1 | Left front bumper pedestrian protection sensor | 4A |
| B151/3 | Right front bumper pedestrian protection sensor | 5A |
| B22/10 | Right rear level sensor | 71L |
| B22/3 | Rear axle level sensor | 70L |
| B48/1 | Left frontal acceleration sensor | 12A |
| B48/2 | Right frontal acceleration sensor | 3A |
| B94/11 | Coolant temperature sensor upstream of high-voltage battery | 38L |
| B94/11 | Coolant temperature sensor upstream of high-voltage battery | 47L |
| Code 228 | Stationary heater | 24E |
| Code 228 | Stationary heater | 24J |
| Code 228 | Stationary heater | 58J |
| Code 228 | Stationary heater | 58E |
| Code 233 | Adaptive cruise control Plus (DISTRONIC PLUS) | 54E |
| Code 233 | Adaptive cruise control Plus (DISTRONIC PLUS) | 54J |
| Code 239 | Active Distance Assist DISTRONIC | 54E |
| Code 239 | Active Distance Assist DISTRONIC | 54J |
| Code 258 | Active Brake Assist | 54E |
| Code 258 | Active Brake Assist | 54J |
| Code 258 | Active Brake Assist | 66E |
| Code 258 | Active Brake Assist | 66J |
| Code 426 | 8G-DCT | 63E |
| Code 426 | 8G-DCT | 63J |
| Code 429 | 7G-DCT | 59E |
| Code 429 | 7G-DCT | 59J |
| Code 429 | 7G-DCT | 61E |
| Code 429 | 7G-DCT | 61J |
| Code 460 | Canada version | 83J |
| Code 460 | Canada version | 83E |
| Code 494 | USA version | 83J |
| Code 494 | USA version | 83E |
| Code 580 | Air conditioning | 41J |
| Code 580 | Air conditioning | 41E |
| Code 581 | Automatic air conditioning | 42J |
| Code 581 | Automatic air conditioning | 42E |
| Code 613 | Left-hand traffic headlamps | 83J |
| Code 613 | Left-hand traffic headlamps | 83E |
| Code 613 | Left-hand traffic headlamps | 68A |
| Code 620 | Right-hand traffic headlamps | 83J |
| Code 620 | Right-hand traffic headlamps | 83E |
| Code 632 | Static LED headlamp, right-hand traffic | 68A |
| Code 640 | Dynamic LED headlamps, SAE, right-hand traffic | 68B |
| Code 641 | Dynamic LED headlamps, left-hand traffic | 68B |
| Code 642 | Dynamic LED headlamps, right-hand traffic | 68B |
| Code 882 | Interior monitoring | 80E |
| Code 882 | Interior monitoring | 80J |
| Code L | LEFT-HAND DRIVE | 16J |
| Code L | LEFT-HAND DRIVE | 16E |
| Code L | LEFT-HAND DRIVE | 21J |
| Code L | LEFT-HAND DRIVE | 21E |
| Code L | LEFT-HAND DRIVE | 23E |
| Code L | LEFT-HAND DRIVE | 23J |
| Code L | LEFT-HAND DRIVE | 18E |
| Code L | LEFT-HAND DRIVE | 18J |
| Code L | LEFT-HAND DRIVE | 7E |
| Code L | LEFT-HAND DRIVE | 7J |
| Code L | LEFT-HAND DRIVE | 8E |
| Code L | LEFT-HAND DRIVE | 8J |
| Code L | LEFT-HAND DRIVE | 10E |
| Code L | LEFT-HAND DRIVE | 10J |
| Code L | LEFT-HAND DRIVE | 24E |
| Code L | LEFT-HAND DRIVE | 24J |
| Code L | LEFT-HAND DRIVE | 12E |
| Code L | LEFT-HAND DRIVE | 12J |
| Code L | LEFT-HAND DRIVE | 3J |
| Code L | LEFT-HAND DRIVE | 3E |
| Code L | LEFT-HAND DRIVE | 63E |
| Code L | LEFT-HAND DRIVE | 63J |
| Code L | LEFT-HAND DRIVE | 60E |
| Code L | LEFT-HAND DRIVE | 60J |
| Code L | LEFT-HAND DRIVE | 62E |
| Code L | LEFT-HAND DRIVE | 62J |
| Code L | LEFT-HAND DRIVE | 76J |
| Code L | LEFT-HAND DRIVE | 76E |
| Code L | LEFT-HAND DRIVE | 31E |
| Code L | LEFT-HAND DRIVE | 31J |
| Code L | LEFT-HAND DRIVE | 35E |
| Code L | LEFT-HAND DRIVE | 35J |
| Code L | LEFT-HAND DRIVE | 73J |
| Code L | LEFT-HAND DRIVE | 73E |
| Code L | LEFT-HAND DRIVE | 81E |
| Code L | LEFT-HAND DRIVE | 81J |
| Code L | LEFT-HAND DRIVE | 48E |
| Code L | LEFT-HAND DRIVE | 48J |
| Code M016 | Uprated high-performance engine | 65E |
| Code M016 | Uprated high-performance engine | 65J |
| Code M139 | Inline 4-cylinder SPARK-IGNITION ENGINE M139 - AMG | 16E |
| Code M139 | Inline 4-cylinder SPARK-IGNITION ENGINE M139 - AMG | 16J |
| Code M139 | Inline 4-cylinder SPARK-IGNITION ENGINE M139 - AMG | 20E |
| Code M139 | Inline 4-cylinder SPARK-IGNITION ENGINE M139 - AMG | 20J |
| Code M139 | Inline 4-cylinder SPARK-IGNITION ENGINE M139 - AMG | 59E |
| Code M139 | Inline 4-cylinder SPARK-IGNITION ENGINE M139 - AMG | 59J |
| Code M139 | Inline 4-cylinder SPARK-IGNITION ENGINE M139 - AMG | 50E |
| Code M139 | Inline 4-cylinder SPARK-IGNITION ENGINE M139 - AMG | 50J |
| Code M139 | Inline 4-cylinder SPARK-IGNITION ENGINE M139 - AMG | 64E |
| Code M139 | Inline 4-cylinder SPARK-IGNITION ENGINE M139 - AMG | 64J |
| Code M139 | Inline 4-cylinder SPARK-IGNITION ENGINE M139 - AMG | 56J |
| Code M139 | Inline 4-cylinder SPARK-IGNITION ENGINE M139 - AMG | 56E |
| Code M139 | Inline 4-cylinder SPARK-IGNITION ENGINE M139 - AMG | 38J |
| Code M139 | Inline 4-cylinder SPARK-IGNITION ENGINE M139 - AMG | 38E |
| Code M139 | Inline 4-cylinder SPARK-IGNITION ENGINE M139 - AMG | 42E |
| Code M139 | Inline 4-cylinder SPARK-IGNITION ENGINE M139 - AMG | 42J |
| Code M139 | Inline 4-cylinder SPARK-IGNITION ENGINE M139 - AMG | 41E |
| Code M139 | Inline 4-cylinder SPARK-IGNITION ENGINE M139 - AMG | 41J |
| Code M260 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M260 | 15J |
| Code M260 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M260 | 15E |
| Code M260 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M260 | 20J |
| Code M260 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M260 | 20E |
| Code M260 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M260 | 59E |
| Code M260 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M260 | 59J |
| Code M260 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M260 | 49J |
| Code M260 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M260 | 49E |
| Code M260 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M260 | 66E |
| Code M260 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M260 | 66J |
| Code M260 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M260 | 64E |
| Code M260 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M260 | 64J |
| Code M260 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M260 | 37J |
| Code M260 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M260 | 37E |
| Code M260 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M260 | 56J |
| Code M260 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M260 | 56E |
| Code M282 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M282 | 16J |
| Code M282 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M282 | 16E |
| Code M282 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M282 | 20J |
| Code M282 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M282 | 20E |
| Code M282 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M282 | 61E |
| Code M282 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M282 | 61J |
| Code M282 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M282 | 49J |
| Code M282 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M282 | 49E |
| Code M608 | 4-CYLINDER INLINE DIESEL ENGINE 0M608 | 22E |
| Code M608 | 4-CYLINDER INLINE DIESEL ENGINE 0M608 | 22J |
| Code M608 | 4-CYLINDER INLINE DIESEL ENGINE 0M608 | 18E |
| Code M608 | 4-CYLINDER INLINE DIESEL ENGINE 0M608 | 18J |
| Code M608 | 4-CYLINDER INLINE DIESEL ENGINE 0M608 | 61E |
| Code M608 | 4-CYLINDER INLINE DIESEL ENGINE 0M608 | 61J |
| Code M608 | 4-CYLINDER INLINE DIESEL ENGINE 0M608 | 52E |
| Code M608 | 4-CYLINDER INLINE DIESEL ENGINE 0M608 | 52J |
| Code M654 | 4-CYLINDER INLINE DIESEL ENGINE 0M654 | 22E |
| Code M654 | 4-CYLINDER INLINE DIESEL ENGINE 0M654 | 22J |
| Code M654 | 4-CYLINDER INLINE DIESEL ENGINE 0M654 | 18E |
| Code M654 | 4-CYLINDER INLINE DIESEL ENGINE 0M654 | 18J |
| Code M654 | 4-CYLINDER INLINE DIESEL ENGINE 0M654 | 52E |
| Code M654 | 4-CYLINDER INLINE DIESEL ENGINE 0M654 | 52J |
| Code ME08 | Hybrid drive 75kW-84kW variant (incl. plug-in) | 6E |
| Code ME08 | Hybrid drive 75kW-84kW variant (incl. plug-in) | 6J |
| Code ME08 | Hybrid drive 75kW-84kW variant (incl. plug-in) | 8E |
| Code ME08 | Hybrid drive 75kW-84kW variant (incl. plug-in) | 8J |
| Code ME08 | Hybrid drive 75kW-84kW variant (incl. plug-in) | 10E |
| Code ME08 | Hybrid drive 75kW-84kW variant (incl. plug-in) | 10J |
| Code ME08 | Hybrid drive 75kW-84kW variant (incl. plug-in) | 85E |
| Code ME08 | Hybrid drive 75kW-84kW variant (incl. plug-in) | 85J |
| Code ME08 | Hybrid drive 75kW-84kW variant (incl. plug-in) | 29E |
| Code ME08 | Hybrid drive 75kW-84kW variant (incl. plug-in) | 29J |
| Code ME08 | Hybrid drive 75kW-84kW variant (incl. plug-in) | 35E |
| Code ME08 | Hybrid drive 75kW-84kW variant (incl. plug-in) | 35J |
| Code ME08 | Hybrid drive 75kW-84kW variant (incl. plug-in) | 33J |
| Code ME08 | Hybrid drive 75kW-84kW variant (incl. plug-in) | 33E |
| Code ME08 | Hybrid drive 75kW-84kW variant (incl. plug-in) | 47E |
| Code ME08 | Hybrid drive 75kW-84kW variant (incl. plug-in) | 47J |
| Code ME08 | Hybrid drive 75kW-84kW variant (incl. plug-in) | 48E |
| Code ME08 | Hybrid drive 75kW-84kW variant (incl. plug-in) | 48J |
| Code R | RIGHT-HAND DRIVE | 50J |
| Code R | RIGHT-HAND DRIVE | 52E |
| Code R | RIGHT-HAND DRIVE | 52J |
| Code R | RIGHT-HAND DRIVE | 29E |
| Code R | RIGHT-HAND DRIVE | 29J |
| Code R | RIGHT-HAND DRIVE | 75E |
| Code R | RIGHT-HAND DRIVE | 75J |
| Code R | RIGHT-HAND DRIVE | 78E |
| Code R | RIGHT-HAND DRIVE | 78J |
| Code R | RIGHT-HAND DRIVE | 38J |
| Code R | RIGHT-HAND DRIVE | 38E |
| Code R | RIGHT-HAND DRIVE | 50E |
| Code R | RIGHT-HAND DRIVE | 58J |
| Code R | RIGHT-HAND DRIVE | 58E |
| Code U54 | Torsion-beam axle | 70J |
| Code U55 | Multi-link axle | 71J |
| Code U63 | Driving school package | 40E |
| Code U63 | Driving school package | 40J |
| Code U78 | AMG Sport exhaust system | 56J |
| Code U78 | AMG Sport exhaust system | 56E |
| Code U78 | AMG Sport exhaust system | 38J |
| Code U78 | AMG Sport exhaust system | 38E |
| E1 | Left front lamp unit | 83A |
| E1 | Left front lamp unit | 70A |
| E2 | Right front lamp unit | 84A |
| F150/1 | Starter battery pre-fuse box | 73A |
| F152/3 | Engine compartment fuse and relay module | 10A |
| F152/3 | Engine compartment fuse and relay module | 66A |
| F152/3 | Engine compartment fuse and relay module | 34A |
| F152/3 | Engine compartment fuse and relay module | 65A |
| F152/3 | Engine compartment fuse and relay module | 37A |
| F152/3 | Engine compartment fuse and relay module | 40A |
| F152/4 | Vehicle interior fuse and relay module | 81L |
| F39 | Battery terminal pyrofuse | 9A |
| F63 | Pyrofuse | 7L |
| F63 | Pyrofuse | 30L |
| H3/1 | Alarm siren | 81A |
| L6/4 | Right rear axle rpm sensor | 45L |
| M16/57 | Exhaust flap controller | 37L |
| M16/57 | Exhaust flap controller | 56L |
| M75/10 | High-voltage battery coolant pump | 33L |
| M75/14 | Power electronics/transmission coolant pump | 33A |
| M76/2 | Right electric parking brake actuator motor | 44L |
| N10 | Central control module | 42L |
| N118 | Fuel pump control unit | 21L |
| N118 | Fuel pump control unit | 23L |
| N118 | Fuel pump control unit | 50L |
| N118 | Fuel pump control unit | 52L |
| N118/5 | AdBlue® control unit | 67L |
| N127 | Drivetrain control unit | 85A |
| N127 | Drivetrain control unit | 54A |
| N127 | Drivetrain control unit | 56A |
| N127 | Drivetrain control unit | 39A |
| N127 | Drivetrain control unit | 47A |
| N129/1 | Power electronics control unit | 7A |
| N129/1 | Power electronics control unit | 29A |
| N145/1 | Drive unit control unit | 65L |
| N15/13 | Double clutch transmission control unit | 62A |
| N2/10 | Supplemental restraint system control unit | 16L |
| N2/10 | Supplemental restraint system control unit | 18L |
| N2/10 | Supplemental restraint system control unit | 8L |
| N2/10 | Supplemental restraint system control unit | 4L |
| N2/10 | Supplemental restraint system control unit | 13L |
| N2/10 | Supplemental restraint system control unit | 31L |
| N3/10 | ME-SFI [ME] control unit | 16A |
| N3/10 | ME-SFI [ME] control unit | 21A |
| N3/10 | ME-SFI [ME] control unit | 50A |
| N3/9 | CDI control unit | 23A |
| N3/9 | CDI control unit | 18A |
| N3/9 | CDI control unit | 52A |
| N30/4 | Electronic Stability Program control unit | 77A |
| N30/4 | Electronic Stability Program control unit | 54L |
| N30/4 | Electronic Stability Program control unit | 31A |
| N30/4 | Electronic Stability Program control unit | 75A |
| N30/4 | Electronic Stability Program control unit | 79A |
| N30/4 | Electronic Stability Program control unit | 44A |
| N70 | Overhead control panel control unit | 82L |
| N73 | Electronic ignition switch control unit | 60L |
| N73 | Electronic ignition switch control unit | 63L |
| N73 | Electronic ignition switch control unit | 62L |
| N73 | Electronic ignition switch control unit | 74L |
| N73 | Electronic ignition switch control unit | 77L |
| N83/11 | Alternating current charger for high-voltage battery | 35L |
| R12/49 | Left active engine hood squib | 13A |
| R12/50 | Right active engine hood squib | 14A |
| S1/2 | Exterior lights and electric parking brake switch group | 75L |
| S1/2 | Exterior lights and electric parking brake switch group | 79L |
| S1/2 | Exterior lights and electric parking brake switch group | 84L |
| S146 | Pedal operation monitor switch | 41L |
| S18/7 | Footwell illumination switch | 40L |
| S185/5 | Interlock circuit cover panel open circuit switch | 35A |
| S2/2 | Start/stop button with ECO start/stop function button | 85L |
| X25/14x1 | Right engine compartment/vehicle interior electrical connector | 2F |
| X25/14x2 | Right engine compartment/vehicle interior electrical connector | 29F |
| Y129 | AdBlue® metering valve | 67A |
| Y133/2 | Battery coolant pump switchover valve | 34L |
| Y23 | Stationary heater fuel pump | 25L |
| Y23 | Stationary heater fuel pump | 58L |
| Y3/14 | Dual clutch transmission fully integrated transmission control electrohydraulic controller unit | 60A |
| Y3/14 | Dual clutch transmission fully integrated transmission control electrohydraulic controller unit | 63A |
