Remove/Install 115V/230V Socket - AR54.10-P-1002MFA

Model 118, 177, 243, 247

with code U80 (115 V socket)

Model 118, 177, 247

with code U67 (230 V socket in rear passenger compartment)

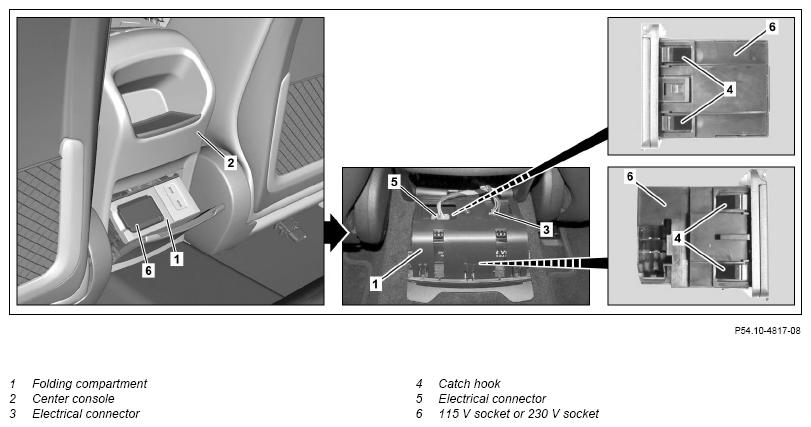

Fig 1: 115V/230V Socket Components Location - Model 247 With Code U80; U67

G14689142

Courtesy of MERCEDES-BENZ USA

	Risk of death when working on component parts and systems with U >= 30 V alternating voltage (AC) or U >= 60 V direct voltage (DC)	Do not touch damaged or defective live component parts and lines or non-insulated electrical connections and lines.	AS00.00-Z-0035-01A
Topical note	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Notes on safety-relevant components		AH00.00-Z-0019-01A
	Remove/install
1	Clamp off ground line of on-board electrical system battery (G1).		AR54.10-P-0003MFA
2	Open folding compartment (1) in rear passenger compartment.
3	Unclip folding compartment (1) using suitable tool and remove from center console (2) until electrical connectors (3, 5) are accessible.	Do not crush or kink or subject lines to tension This will result in damage to the lines which may impair their functional capability.
4	Release and disconnect electrical connector (5).
5	Release and disconnect electrical connection (3).
6	Unclip 115 V socket or 230 V socket (6) by pressing the catch hooks (4) from the folding compartment (1) and remove.
7	Install in the reverse order.
