Cavity Preservation Following Repair Work - Ar97.20-P-1500MFA
Model 118
Model 177
Model 247
Differences in cavity preservation

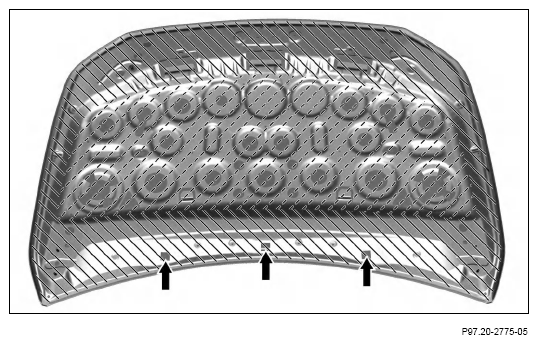

Cavity preservation on hood, shown on model 177.0

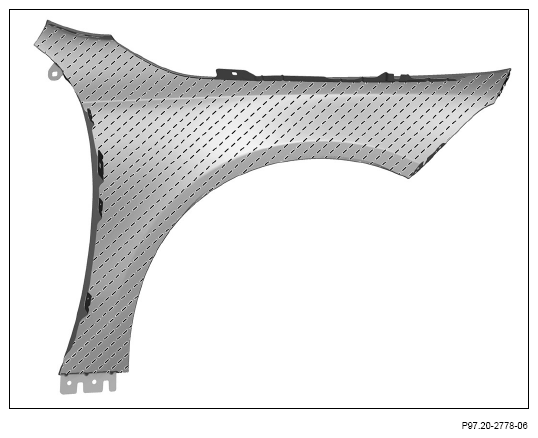

Cavity preservation on fender, shown on model 177.0

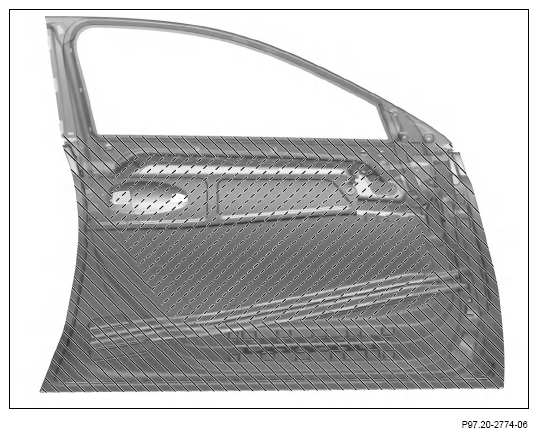

Cavity preservation on front door, shown on model 177.0

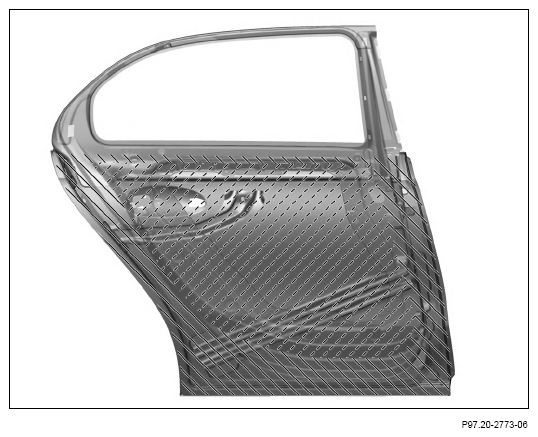

Cavity preservation on rear door, shown on model 177.0

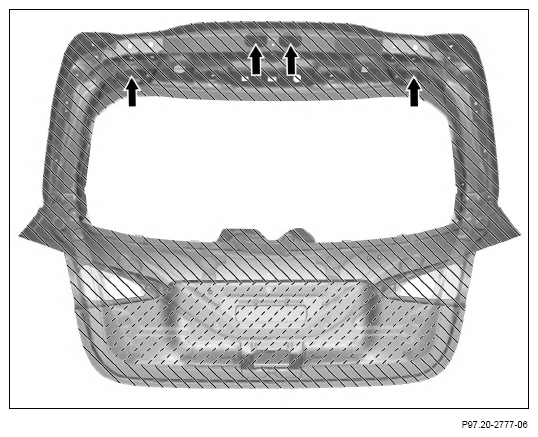

Cavity preservation on the liftgate, shown on model 177.0

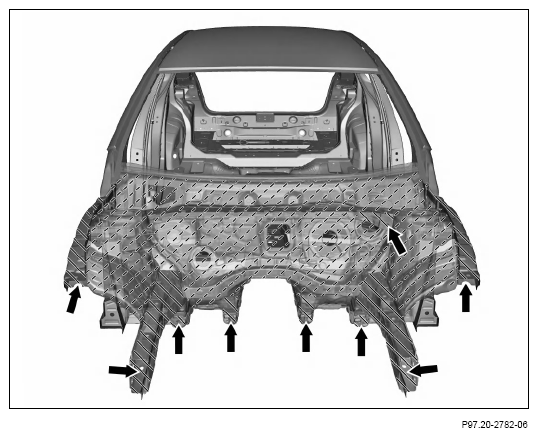

Cavity preservation on front end-assembly at the front, shown on model 177.0
Cavity preservation on the side front-end assembly on the inside and outside, shown on model 177.0

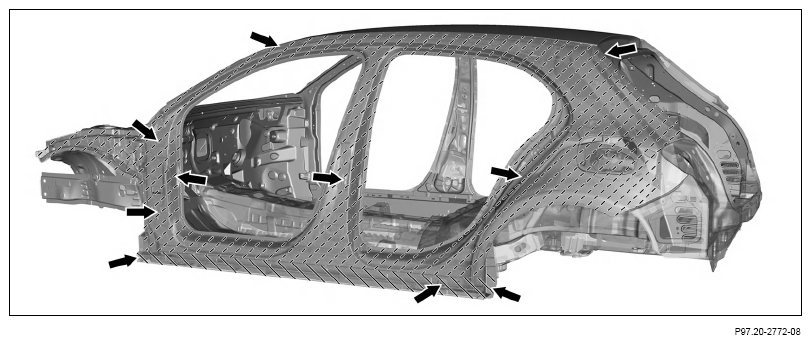

Cavity preservation on front top longitudinal member, A-pillar, B-pillar, sidewall paneling, and on side longitudinal member, shown on model 177.0

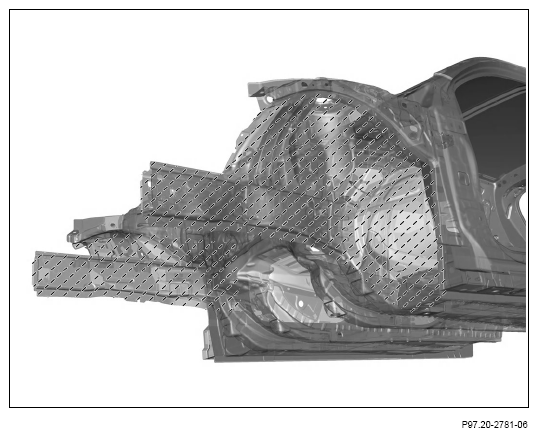

Cavity preservation on rear wheel well and on rear bottom longitudinal member, shown on model 177.0
Cavity preservation on rear area, shown on model 177.0

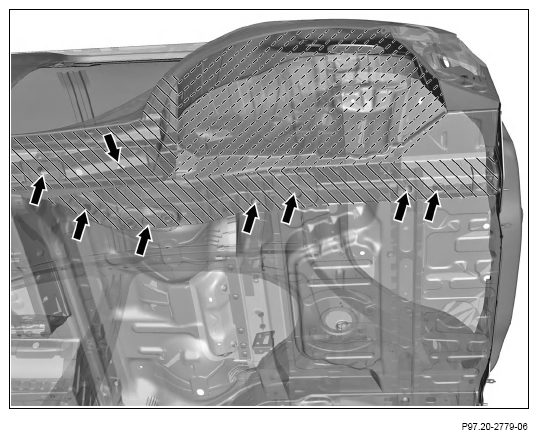

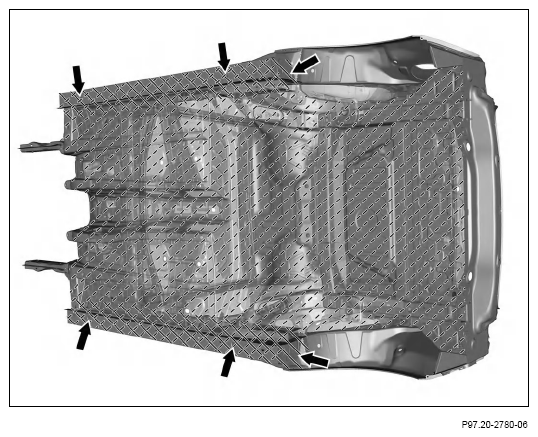

Cavity preservation on underbody, shown on model 177.0
| Picture no., etc. | Work notes | ||
| Risk of explosion and poisoning caused by solvent vapors and gasses. Risk of injury to skin and eyes when working with anticorrosion agents | Never spray corrosion protection on flames or hot, glowing objects and keep them well away from all potential sources of ignition. Use them only in well-ventilated rooms; wear respiratory protection. | AS97.00-Z-0001-01A | |
| Topical note | Notes on cavity preservation | AH97.20-P-0001-01B | |
| A | Cavity preservation in folding areas and hollow cavities. | ||
| GF98.00-P-2045A | |||
Pressure spray gun |
|||
| Cavity preservation (free of solvents), 1 liter | *BR00.45-Z-1003-05A | ||
| B | Cavity preservation for inner areas and gaps. | ||
| GF98.00-P-2045A | |||
Pressure spray gun |
|||
| Cavity preservation (free of solvents), 1 liter | *BR00.45-Z-1003-05A |
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1003-05A | Cavity preservation (free of solvents), 1 liter | A 000 986 72 70 10 |
