Front Longitudinal Member Section Preparation - Ar62.20-P-1260-05MFX

Model 247.6/7

The next steps are shown on the left side of the vehicle on model 247.6. In case of damage on the right side of the vehicle, these steps must be performed analogously.

The superordinate service document as well as the safety information in the service document must be observed.

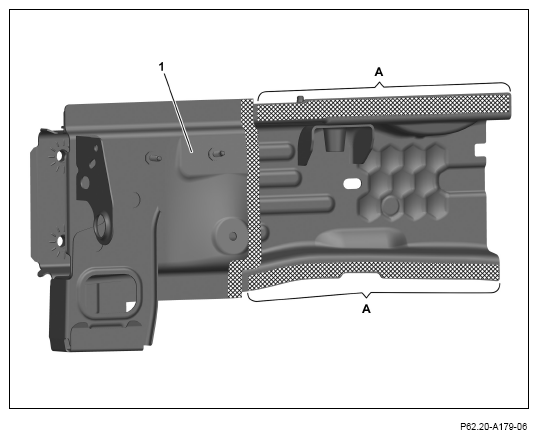

1. Grind mating surfaces on longitudinal member front section (1) down to bare metal in crosshatched areas.

   Sand down spot weld flanges to bare metal on both sides.

   Observe pretreatment of bonding surfaces (areas A).

2. Remove grinding dust.
