Connecting Carrier On Firewall For Installation Preparation - Ar62.25-P-1140-02MFX

Model 247.6/7

The next steps are shown on model 247.6.

The superordinate service document as well as the safety information in the service document must be observed.

Courtesy of MERCEDES-BENZ USA

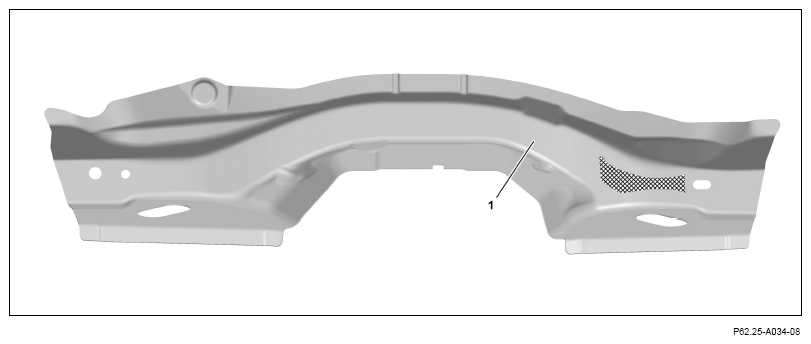

1. Grind mating surfaces on connecting carrier (1) down to bare metal in cross-hatched areas.

   Observe pretreatment of bonding surfaces.

2. Grind mating surfaces on reinforcement (2) down to bare metal in cross-hatched areas.

   Observe pretreatment of bonding surfaces.
