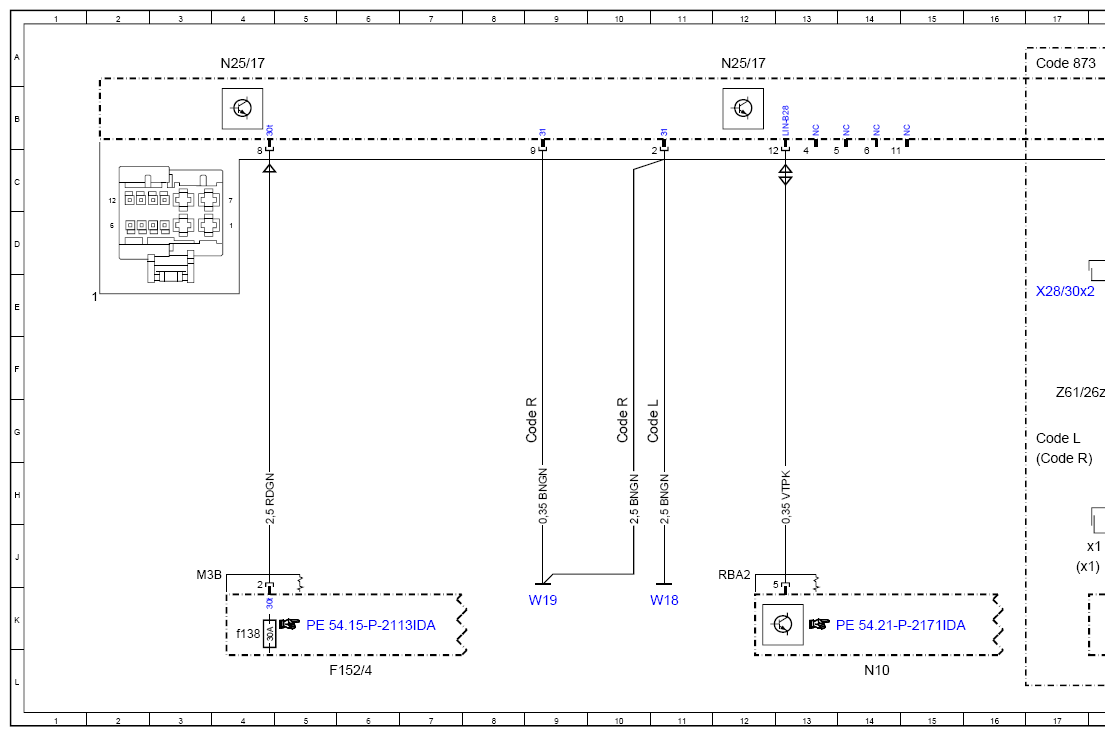

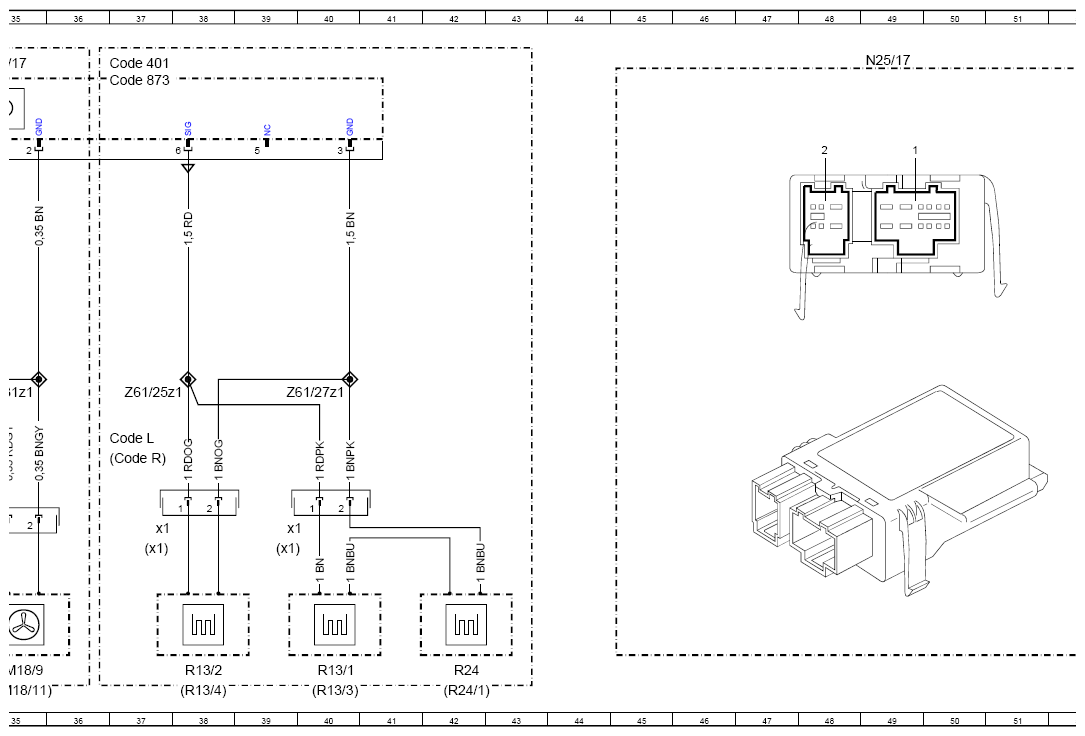

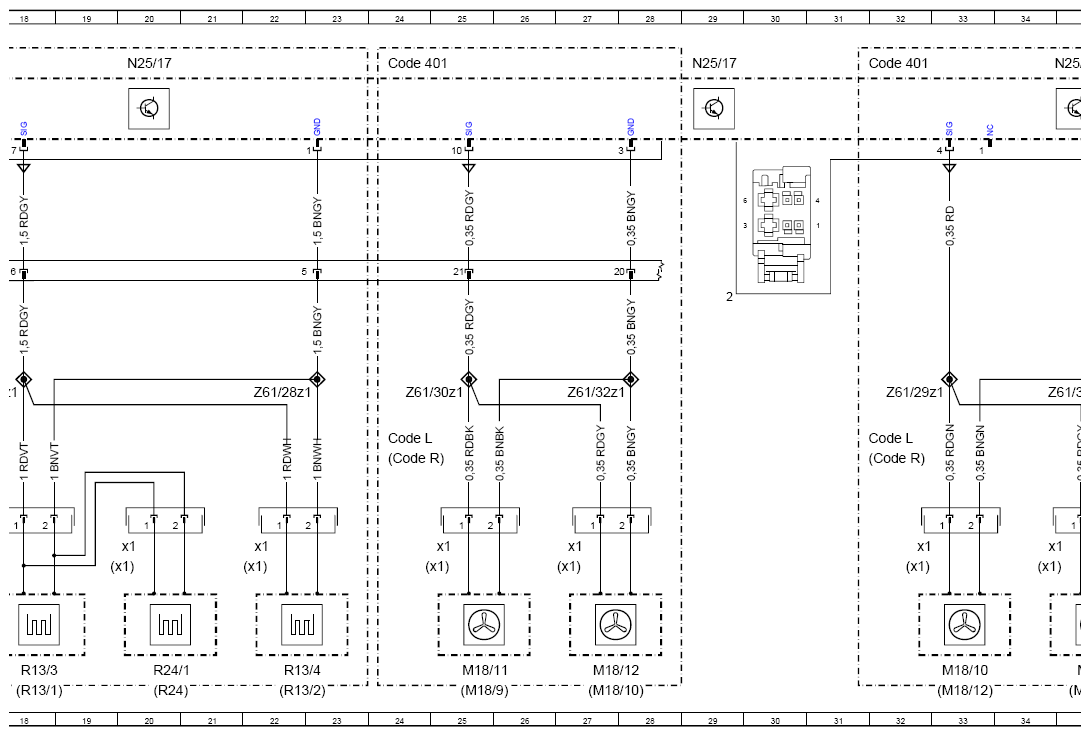

Wiring Diagram For Seat Heater and Seat Ventilation Control Unit - PE91.30-P-2102-97IDA
Model 247
with code 401 (Climatised front seats)
with code 873 (Left and right drivers seat heating)
except code 275 (Drivers seat, electrically adjustable with memory function)
Control unit N25/17
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 64L |
| Code 401 | Seat climate control for driver and front passenger | 24A |
| Code 401 | Seat climate control for driver and front passenger | 31A |
| Code 401 | Seat climate control for driver and front passenger | 36A |
| Code 873 | Seat heater for driver and front passenger | 17A |
| Code 873 | Seat heater for driver and front passenger | 36A |
| Code L | LEFT-HAND DRIVE | 53J |
| Code L | LEFT-HAND DRIVE | 11G |
| Code L | LEFT-HAND DRIVE | 17G |
| Code L | LEFT-HAND DRIVE | 24G |
| Code L | LEFT-HAND DRIVE | 31G |
| Code L | LEFT-HAND DRIVE | 36G |
| Code R | RIGHT-HAND DRIVE | 53G |
| Code R | RIGHT-HAND DRIVE | 9G |
| Code R | RIGHT-HAND DRIVE | 10G |
| Code R | RIGHT-HAND DRIVE | 17H |
| Code R | RIGHT-HAND DRIVE | 24H |
| Code R | RIGHT-HAND DRIVE | 31H |
| Code R | RIGHT-HAND DRIVE | 36H |
| F152/4 | Vehicle interior fuse and relay module | 6L |
| F152/4f138 | Fuse 138 | 4K |
| M18/10 | Left front backrest seat ventilation motor | 33L |
| M18/10 | Left front backrest seat ventilation motor | 27L |
| M18/10x1 | Left front backrest seat ventilation motor electrical connector | 32J |
| M18/10x1 | Left front backrest seat ventilation motor electrical connector | 27J |
| M18/11 | Right front seat cushion seat ventilation motor | 25L |
| M18/11 | Right front seat cushion seat ventilation motor | 35L |
| M18/11x1 | Right front seat cushion seat ventilation motor electrical connector | 34J |
| M18/11x1 | Right front seat cushion seat ventilation motor electrical connector | 25J |
| M18/12 | Right front backrest seat ventilation motor | 27L |
| M18/12 | Right front backrest seat ventilation motor | 33L |
| M18/12x1 | Right front backrest seat ventilation motor electrical connector | 32J |
| M18/12x1 | Right front backrest seat ventilation motor electrical connector | 27J |
| M18/9 | Left front seat cushion seat ventilation motor | 35L |
| M18/9 | Left front seat cushion seat ventilation motor | 25L |
| M18/9x1 | Left front seat cushion seat ventilation motor electrical connector | 34J |
| M18/9x1 | Left front seat cushion seat ventilation motor electrical connector | 25J |
| N10 | Central control module | 14L |

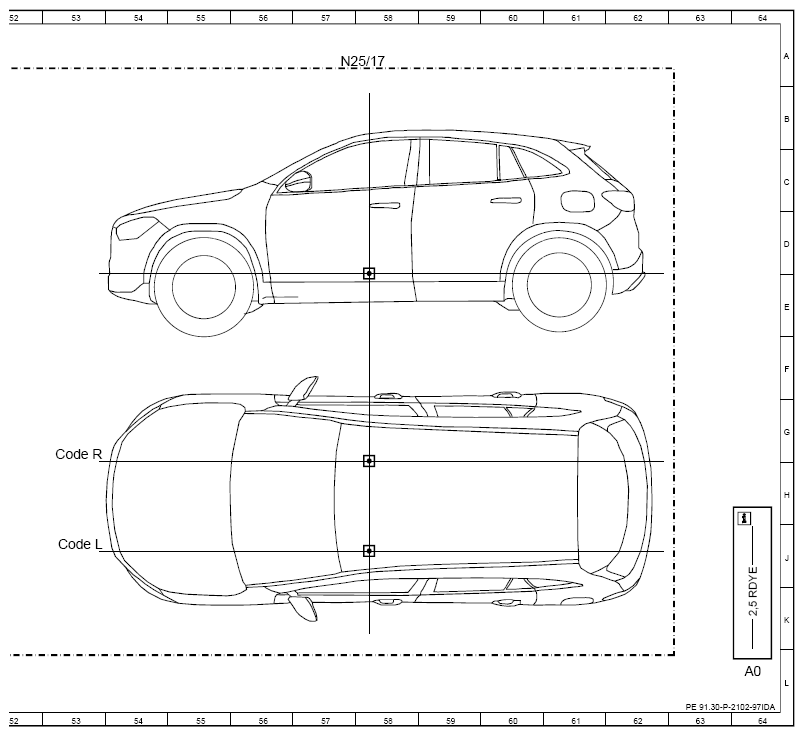

| N25/17 | Front seat heater/seat ventilation control unit | 49A |
| N25/17 | Front seat heater/seat ventilation control unit | 57A |
| N25/17 | Front seat heater/seat ventilation control unit | 4A |
| N25/17 | Front seat heater/seat ventilation control unit | 12A |
| N25/17 | Front seat heater/seat ventilation control unit | 20A |
| N25/17 | Front seat heater/seat ventilation control unit | 29A |
| N25/17 | Front seat heater/seat ventilation control unit | 35A |
| RI 3/1 | Left front seat cushion heater pad | 40L |
| R13/1 | Left front seat cushion heater pad | 18L |
| R13/1x1 | Left front seat surface heater pad electrical connector | 39J |
| R13/1x1 | Left front seat surface heater pad electrical connector | 17J |
| R13/2 | Left front seat backrest heater pad | 38L |
| R13/2 | Left front seat backrest heater pad | 22L |
| R13/2x1 | Left front seat backrest heater pad electrical connector | 37J |
| R13/2x1 | Left front seat backrest heater pad electrical connector | 22J |
| R13/3 | Right front seat cushion heater pad | 18L |
| R13/3 | Right front seat cushion heater pad | 40L |
| R13/3x1 | Right front seat surface heater pad electrical connector | 39J |
| R13/3x1 | Right front seat surface heater pad electrical connector | 18J |
| R13/4 | Right front seat backrest heater pad | 22L |
| R13/4 | Right front seat backrest heater pad | 38L |
| R13/4x1 | Right front seat backrest heater pad electrical connector | 37J |
| R13/4x1 | Right front seat backrest heater pad electrical connector | 22J |
| R24 | Adjustable seat cushion length heater pad, left front seat | 42L |
| R24 | Adjustable seat cushion length heater pad, left front seat | 20L |
| R24/1 | Adjustable seat cushion length heater pad, right front seat | 42L |
| R24/1 | Adjustable seat cushion length heater pad, right front seat | 20L |
| R24/1x1 | Adjustable seat cushion length heater pad electrical connector, right front seat | 20J |
| R24x1 | Adjustable seat cushion length heater pad electrical connector, left front seat | 20J |
| W18 | Left front seat crossmember ground point | 11K |
| W19 | Right front seat crossmember ground point | 9K |
| X28/30x2 | Frame floor assembly/front passenger seat electrical connector | 17E |
| Z61/25z1 | Voltage supply connector sleeve | 37F |
| Z61/26z1 | Voltage supply connector sleeve | 17F |
| Z61/27z1 | Ground connection connector sleeve | 40F |
| Z61/28z1 | Ground connection connector sleeve | 22F |
| Z61/29z1 | DC motor connector sleeve (potential according to rotation direction) | 32F |
| Z61/30z1 | DC motor connector sleeve (potential according to rotation direction) | 25F |
| Z61/31z1 | DC motor connector sleeve (potential according to rotation direction) | 35F |
| Z61/32z1 | DC motor connector sleeve (potential according to rotation direction) | 27F |
