Wiring Diagram For Reversible Emergency Tensioning Retractor - PE91.40-P-2200-97IDA
Model 247 with code 299 (PRE-SAFE®) Seat belt tensioner A76, A76/1
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 48L |

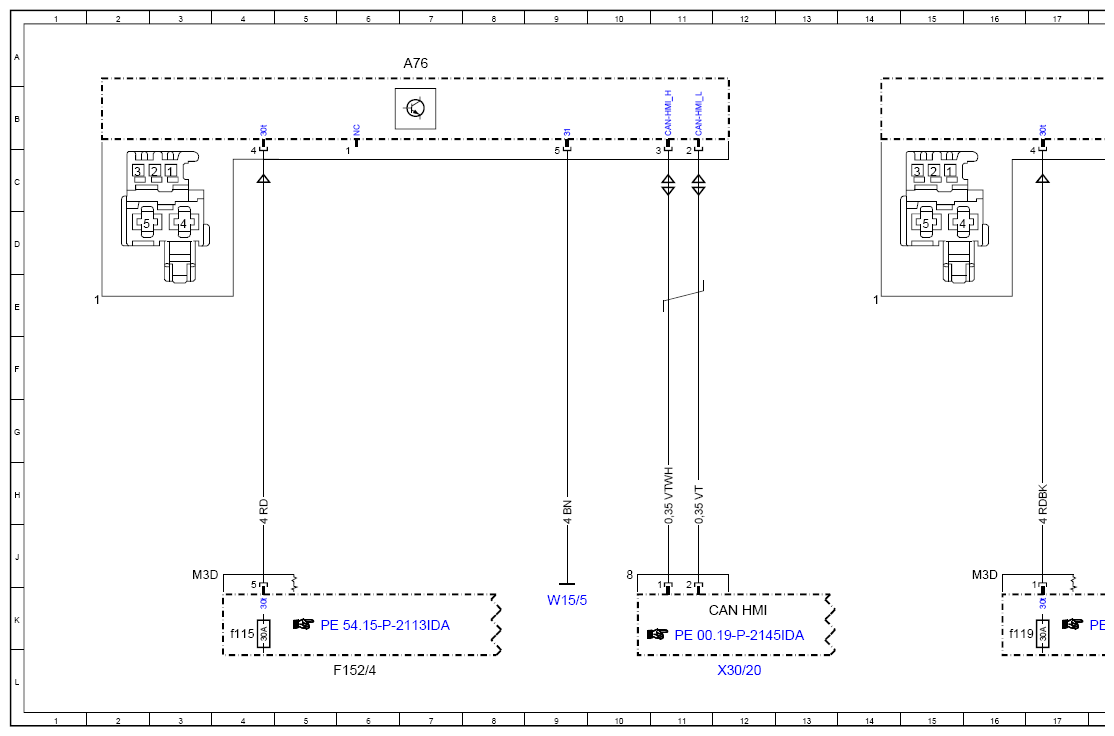

| A76 | Left front reversible emergency tensioning retractor | 7A |
| A76 | Left front reversible emergency tensioning retractor | 33A |

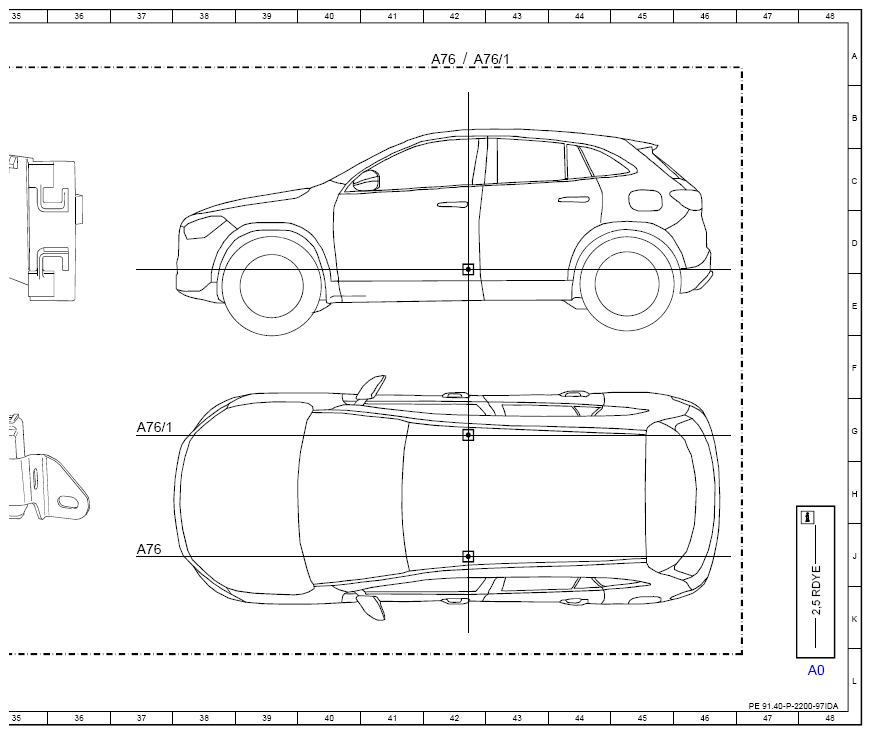

| A76 | Left front reversible emergency tensioning retractor | 42A |
| A76 | Left front reversible emergency tensioning retractor | 37J |

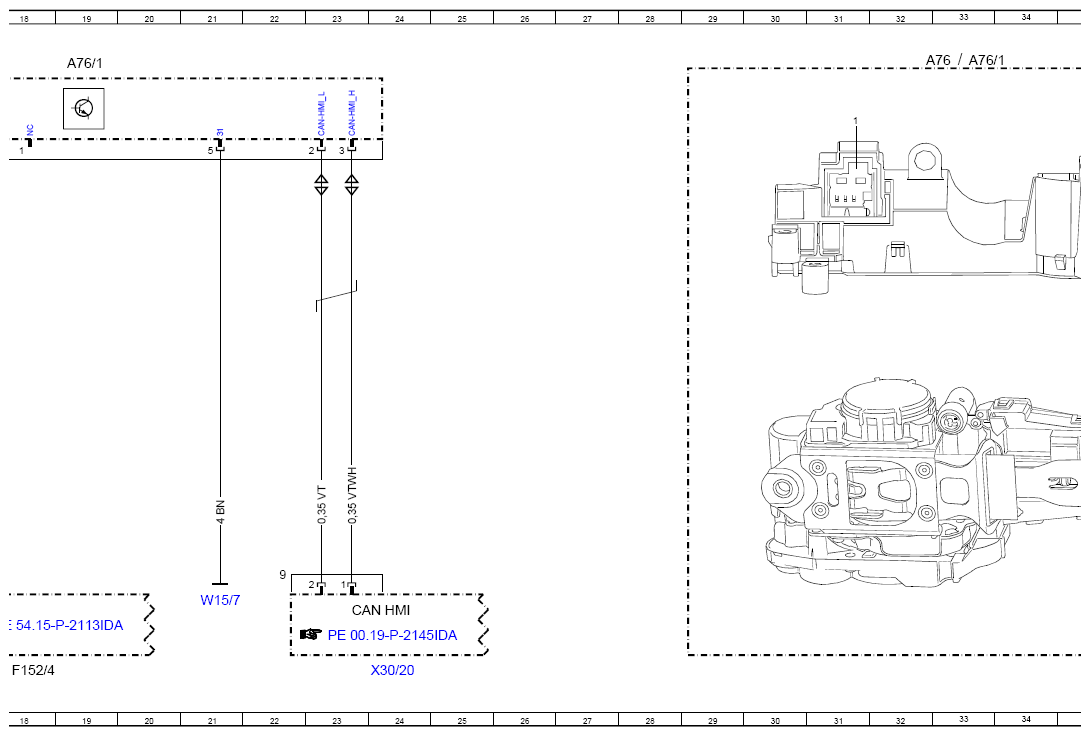

| A76/1 | Right front reversible emergency tensioning retractor | 19A |
| A76/1 | Right front reversible emergency tensioning retractor | 33A |
| A76/1 | Right front reversible emergency tensioning retractor | 42A |
| A76/1 | Right front reversible emergency tensioning retractor | 37G |
| CAN HMI | User interface CAN | 11K |
| CAN HM1 | User interface CAN | 23K |
| F152/4 | Vehicle interior fuse and relay module | 6L |
| F152/4 | Vehicle interior fuse and relay module | 18L |
| F152/4f115 | Fuse 115 | 4K |
| F152/4f119 | Fuse 119 | 16K |
| W15/5 | Left front footwell ground point | 9K |
| W15/7 | Right front footwell ground point | 21K |
| X30/20 | User interface CAN (CAN HMD potential distributor | 12L |
| X30/20 | User interface CAN (CAN HMD potential distributor | 24L |
