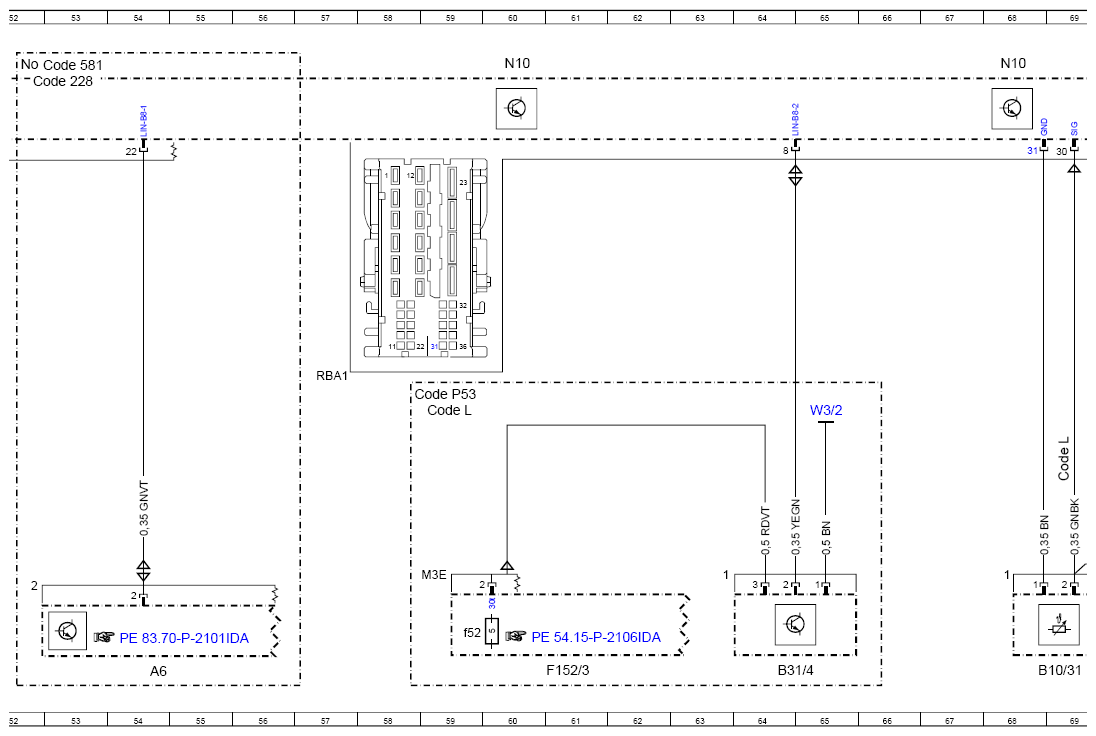

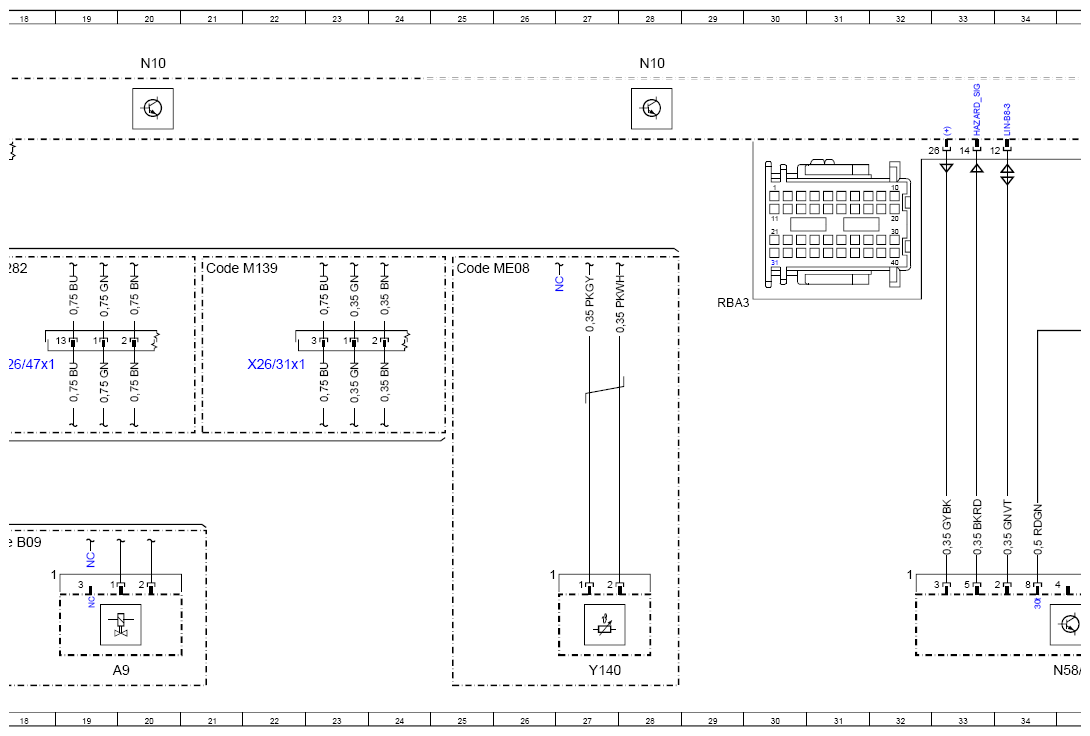

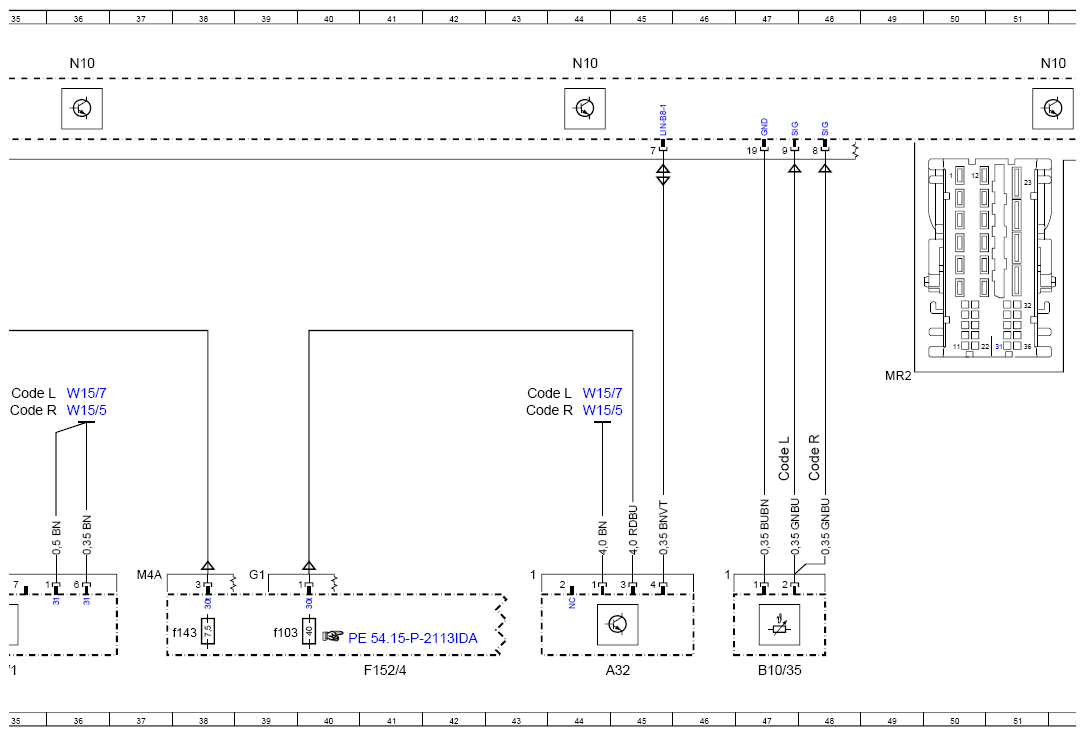

Wiring Diagram For Automatic Air Conditioning (AAC (KLA)) - PE83.40-P-2000-97IDA
Model 247 with code 580 (Air-conditioning system) Model 247 with code 581 (Automatic climate control)
| Code: | Designation: | Position: |
|---|---|---|

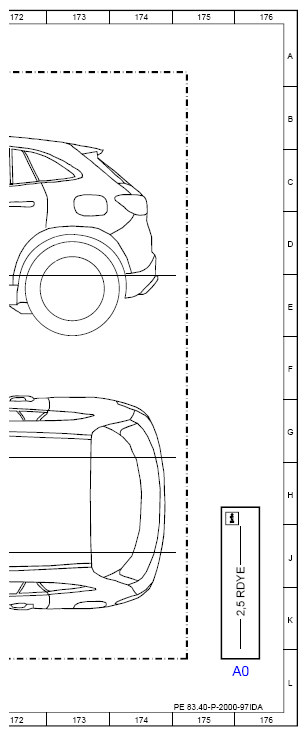

| AO | Use of wiring diagrams | 176L |
| A32 | AC housing | 45L |
| A6 | Stationary heater unit | 54L |
| A6 | Stationary heater unit | 85L |
| A9 | Refrigerant compressor | 19L |
| A9/5 | Electric refrigerant compressor | 81L |

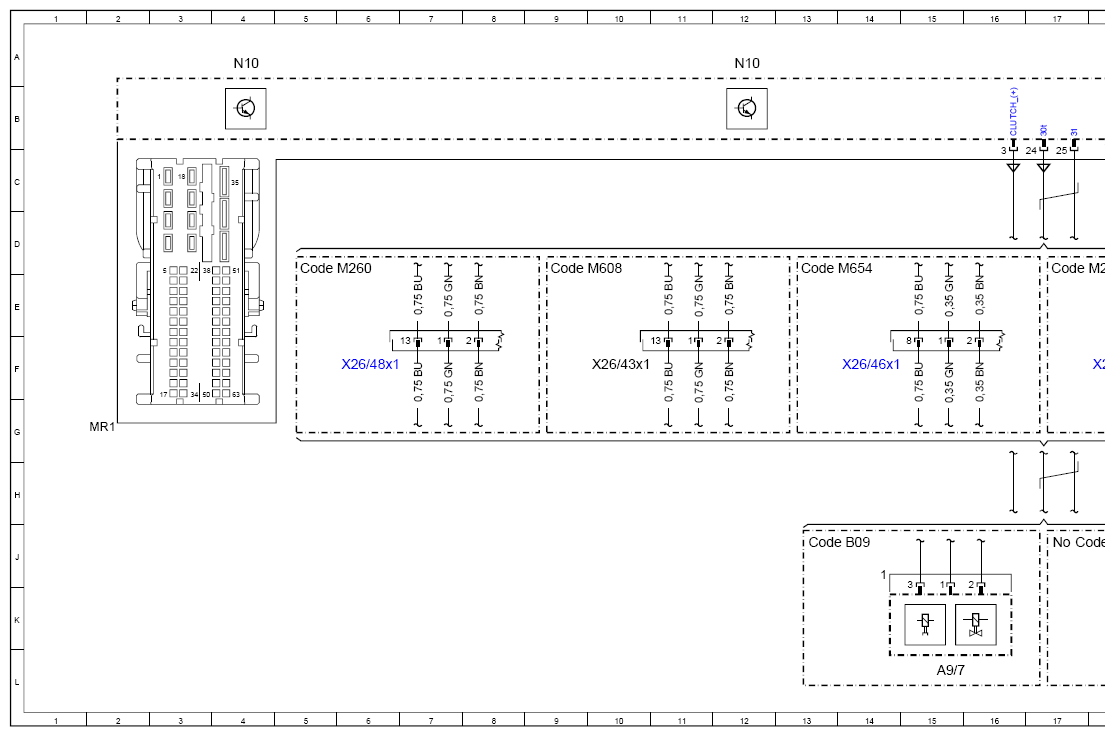

| A9/7 | Refrigerant compressor with magnetic clutch | 15L |
| B10/31 | Left side air vent air outlet temperature sensor | 69L |

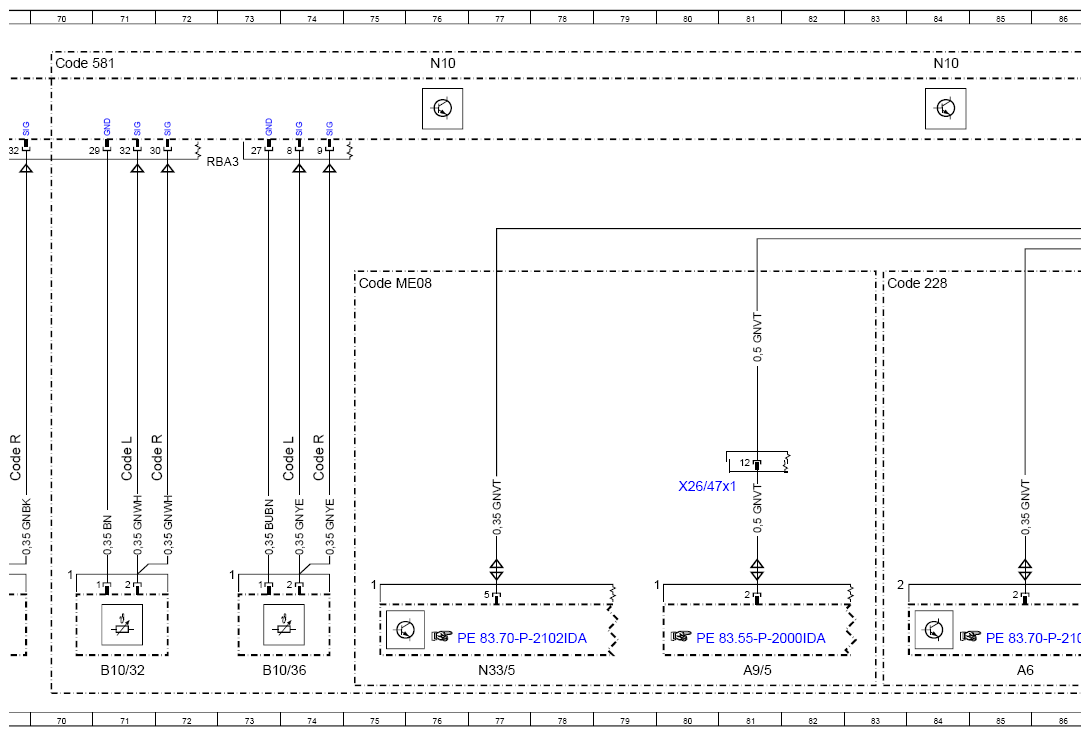

| B10/32 | Right side air vent air outlet temperature sensor | 71L |
| B10/35 | Left footwell vent air outlet temperature sensor | 47L |
| B10/36 | Right footwell vent air outlet temperature sensor | 73L |

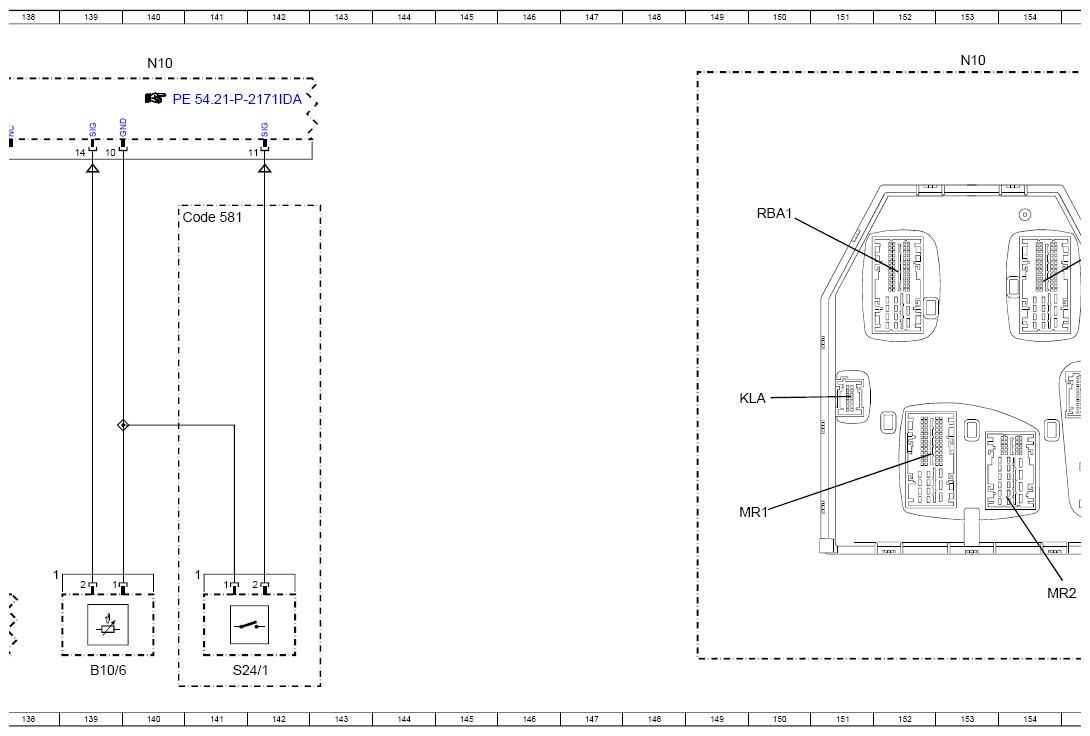

| B10/6 | Evaporator temperature sensor | 139L |
| B12/2 | Refrigerant pressure sensor | 101L |
| B12/2 | Refrigerant pressure sensor | 97L |
| B12/2 | Refrigerant pressure sensor | 106L |

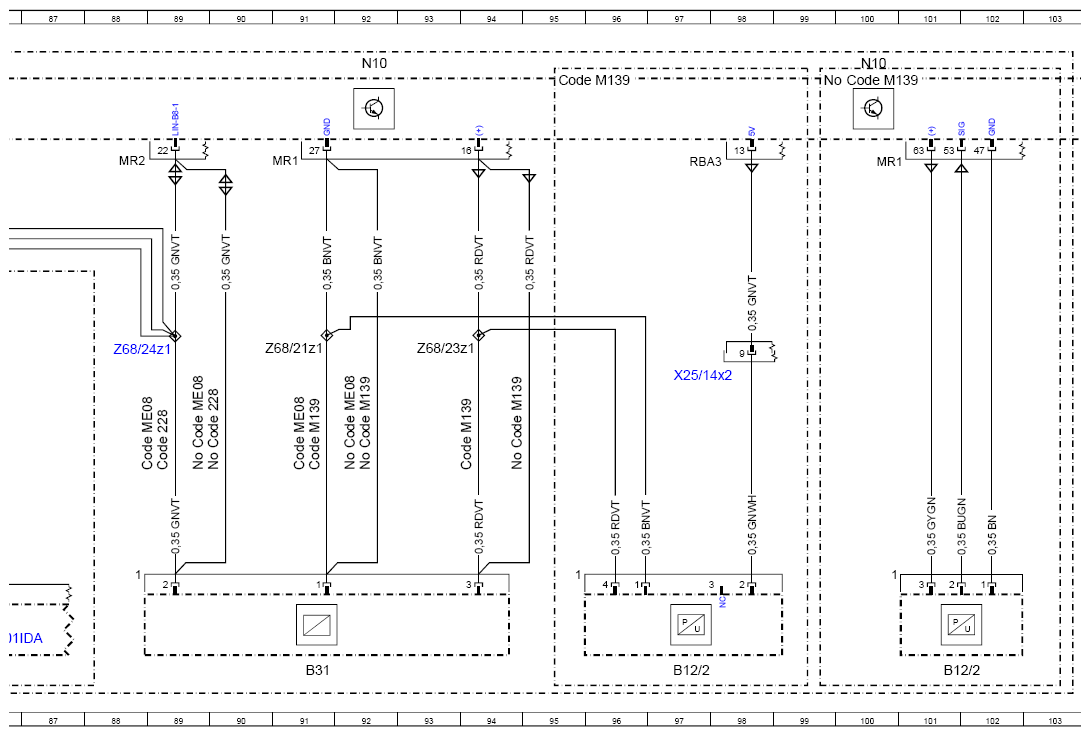

| B31 | Air quality sensor | 91L |
| B31/4 | Fine particle sensor | 64L |
| Code 228 | Stationary heater | 89H |
| Code 228 | Stationary heater | 90G |
| Code 228 | Stationary heater | 83E |
| Code 228 | Stationary heater | 52A |
| Code 228 | Stationary heater | 112E |
| Code 494 | USA version | 113D |
| Code 581 | Automatic air conditioning | 70A |
| Code 581 | Automatic air conditioning | 52A |
| Code 581 | Automatic air conditioning | 112D |
| Code 581 | Automatic air conditioning | 140D |
| Code 581 | Automatic air conditioning | 116D |
| Code 581 | Automatic air conditioning | 104A |
| Code B09 | Refrigerant compressor with magnetic clutch | 17J |
| Code B09 | Refrigerant compressor with magnetic clutch | 13J |
| Code L | LEFT-HAND DRIVE | 47 H |
| Code L | LEFT-HAND DRIVE | 69H |
| Code L | LEFT-HAND DRIVE | 71H |
| Code L | LEFT-HAND DRIVE | 74H |
| Code L | LEFT-HAND DRIVE | 59G |
| Code L | LEFT-HAND DRIVE | 35F |
| Code L | LEFT-HAND DRIVE | 43F |
| Code M139 | Inline 4-cylinder SPARK-IGNITION ENGINE M139 - AMG | 91H |
| Code M139 | Inline 4-cylinder SPARK-IGNITION ENGINE M139 - AMG | 92G |
| Code M139 | Inline 4-cylinder SPARK-IGNITION ENGINE M139 - AMG | 94H |
| Code M139 | Inline 4-cylinder SPARK-IGNITION ENGINE M139 - AMG | 94G |
| Code M139 | Inline 4-cylinder SPARK-IGNITION ENGINE M139 - AMG | 21D |
| Code M139 | Inline 4-cylinder SPARK-IGNITION ENGINE M139 - AMG | 95A |
| Code M139 | Inline 4-cylinder SPARK-IGNITION ENGINE M139 - AMG | 100A |
| Code M139 | Inline 4-cylinder SPARK-IGNITION ENGINE M139 - AMG | 109D |
| Code M139 | Inline 4-cylinder SPARK-IGNITION ENGINE M139 - AMG | 104A |
| Code M260 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M260 | 5D |
| Code M282 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M282 | 17D |
| Code M608 | 4-CYLINDER INLINE DIESEL ENGINE 0M608 | 9D |
| Code M608 | 4-CYLINDER INLINE DIESEL ENGINE 0M608 | 112D |
| Code M654 | 4-CYLINDER INLINE DIESEL ENGINE 0M654 | 13D |
| Code M654 | 4-CYLINDER INLINE DIESEL ENGINE 0M654 | 112E |
| Code ME08 | Hybrid drive 75kW-84kW variant (incl. plug-in) | 89H |
| Code ME08 | Hybrid drive 75kW-84kW variant (incl. plug-in) | 89G |
| Code ME08 | Hybrid drive 75kW-84kW variant (incl. plug-in) | 92G |
| Code ME08 | Hybrid drive 75kW-84kW variant (incl. plug-in) | 91H |
| Code ME08 | Hybrid drive 75kW-84kW variant (incl. plug-in) | 25D |
| Code ME08 | Hybrid drive 75kW-84kW variant (incl. plug-in) | 75E |
| Code ME08 | Hybrid drive 75kW-84kW variant (incl. plug-in) | 113D |
| Code P53 | Air purification package | 58F |
| Code R | RIGHT-HAND DRIVE | 48H |
| Code R | RIGHT-HAND DRIVE | 69H |
| Code R | RIGHT-HAND DRIVE | 72H |
| Code R | RIGHT-HAND DRIVE | 74H |
| Code R | RIGHT-HAND DRIVE | 35G |
| Code R | RIGHT-HAND DRIVE | 43G |
| F152/3 | Engine compartment fuse and relay module | 61L |
| F152/3f52 | Fuse 52 | 59K |
| F152/4 | Vehicle interior fuse and relay module | 41L |
| F152/4 | Vehicle interior fuse and relay module | 136L |
| F152/4f102 | Fuse 102 | 134K |
| F152/4f103 | Fuse 103 | 39K |
| F152/4f143 | Fuse 143 | 38K |

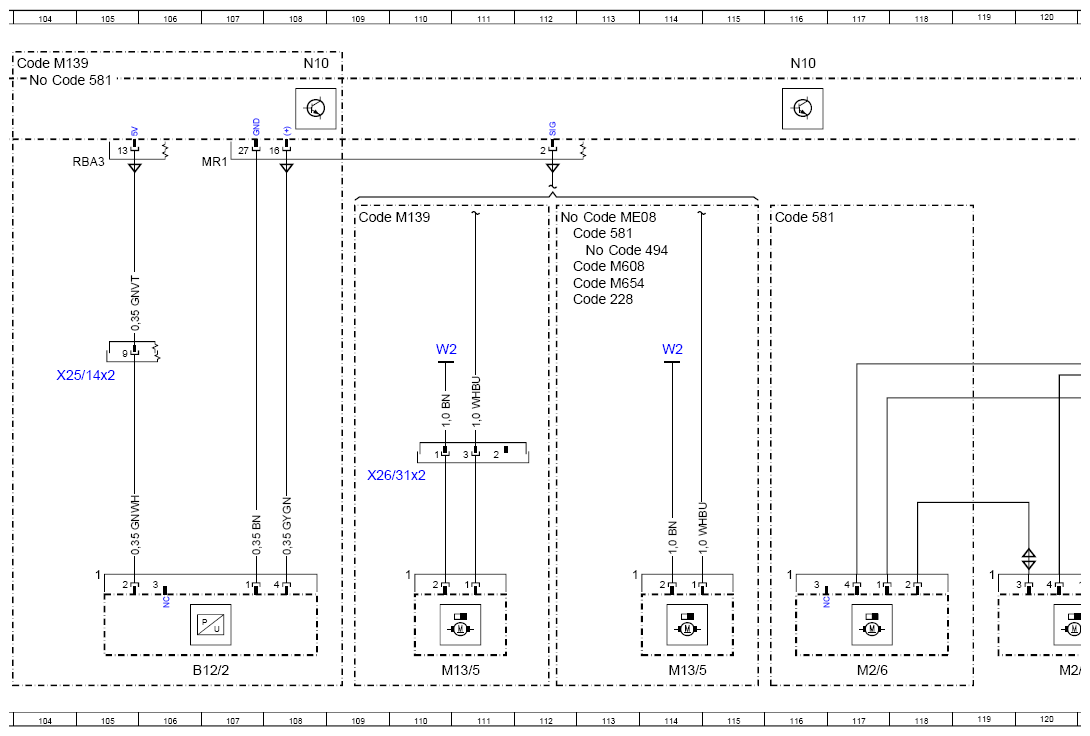

| M13/5 | Coolant circulation pump | 114L |
| M13/5 | Coolant circulation pump | 110L |

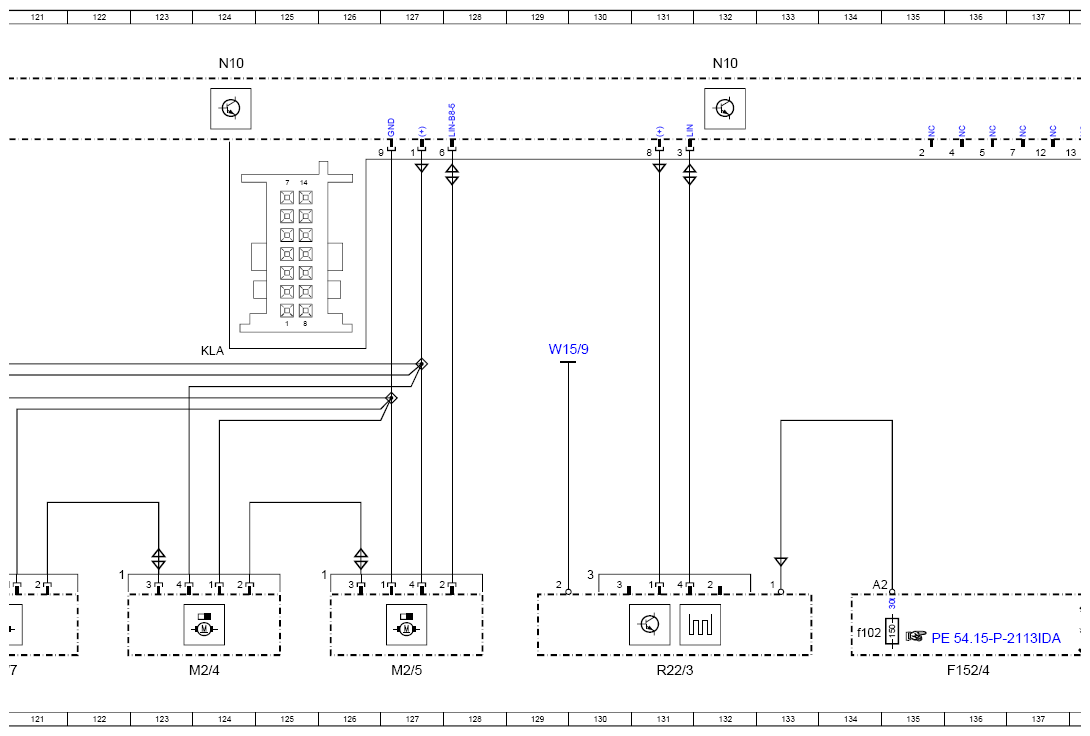

| M2/4 | Central air distribution actuator motor | 124L |
| M2/5 | Fresh air/air recirculation flap actuator motor | 127L |
| M2/6 | Left blending air flap actuator | 117L |
| M2/7 | Right blending air flap actuator | 120L |

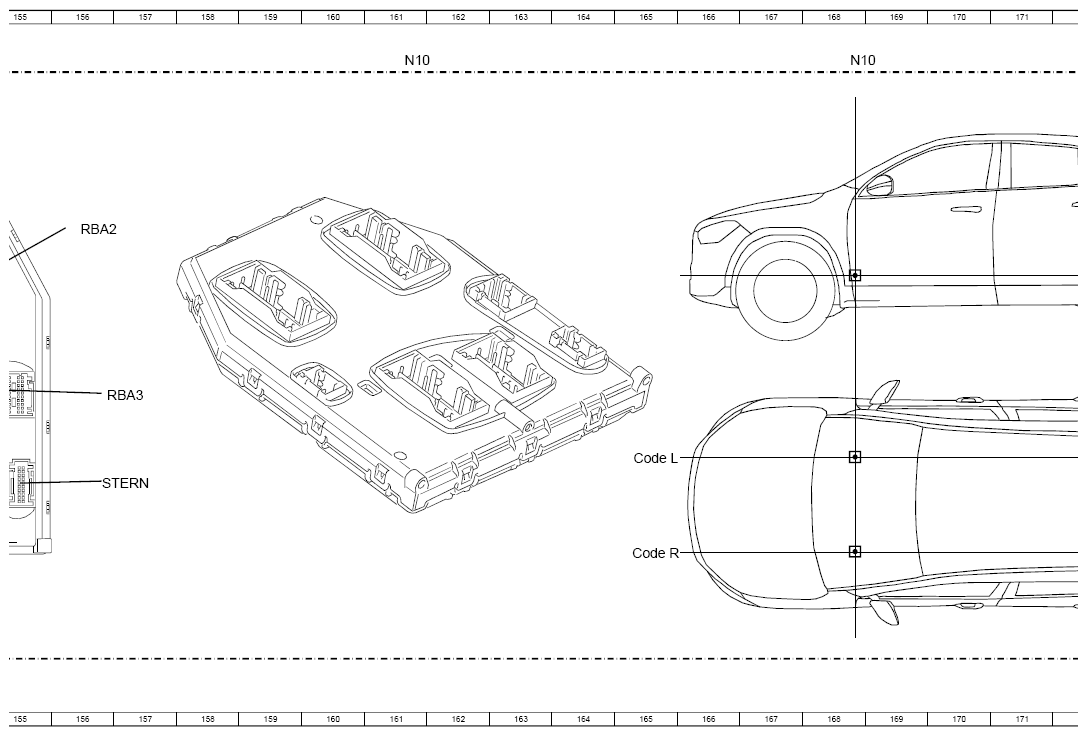

| N10 | Central control module | 161A |
| N10 | Central control module | 168A |
| N10 | Central control module | 153A |
| N10 | Central control module | 4A |
| N10 | Central control module | 12A |
| N10 | Central control module | 20A |
| N10 | Central control module | 28A |
| N10 | Central control module | 36A |
| N10 | Central control module | 44A |
| N10 | Central control module | 51A |
| N10 | Central control module | 60A |
| N10 | Central control module | 68A |
| N10 | Central control module | 76A |
| N10 | Central control module | 84A |
| N10 | Central control module | 92A |
| N10 | Central control module | 100A |
| N10 | Central control module | 108A |
| N10 | Central control module | 116A |
| N10 | Central control module | 124A |
| N10 | Central control module | 132A |
| N10 | Central control module | 140A |
| N33/5 | High-voltage PTC heater | 77L |
| N58/1 | Climate control operating unit | 35L |
| R22/3 | PTC heater booster | 131L |
| S24/1 | Central air distribution position detection microswitch | 141L |
| W15/5 | Left front footwell ground point | 36G |
| W15/5 | Left front footwell ground point | 44G |
| W15/7 | Right front footwell ground point | 36F |
| W15/7 | Right front footwell ground point | 44F |
| W15/9 | Ground point/PTC heater booster | 129F |
| W2 | Right front engine compartment ground point | 114F |
| W2 | Right front engine compartment ground point | 110F |
| W3/2 | Left front wheel arch ground point | 65G |
| X25/14x2 | Right engine compartment/vehicle interior electrical connector | 97F |
| X25/14x2 | Right engine compartment/vehicle interior electrical connector | 105F |
| X26/31x1 | Engine/engine compartment electrical connector | 22F |
| X26/31x2 | Engine wiring harness/engine compartment electrical connector | 110H |
| X26/43x1 | Engine wiring harness/engine compartment electrical connector | 10F |
| X26/46x1 | Engine wiring harness/engine compartment electrical connector | 14F |
| X26/47x1 | Engine wiring harness/engine compartment electrical connector | 80H |
| X26/47x1 | Engine wiring harness/engine compartment electrical connector | 18F |
| X26/48x1 | Engine wiring harness/engine compartment electrical connector | 6F |
| Y140 | High-voltage battery cooling system switchover valve | 27L |
| Z68/21z1 | Front air conditioning control LIN ground connection end sleeve | 91F |
| Z68/23z1 | 12 V air conditioning control LIN 2 (LIN B8-2) end sleeve | 93F |
| Z68/24z1 | LIN B8-1 connector sleeve | 88F |
