Wiring Diagram, Hybrid CAN - PE00.19-P-2130-97IDA
Model 247
with code ME08 (Hybrid drive 75-84 kW VARIANT (INCLUDING PLUGIN))

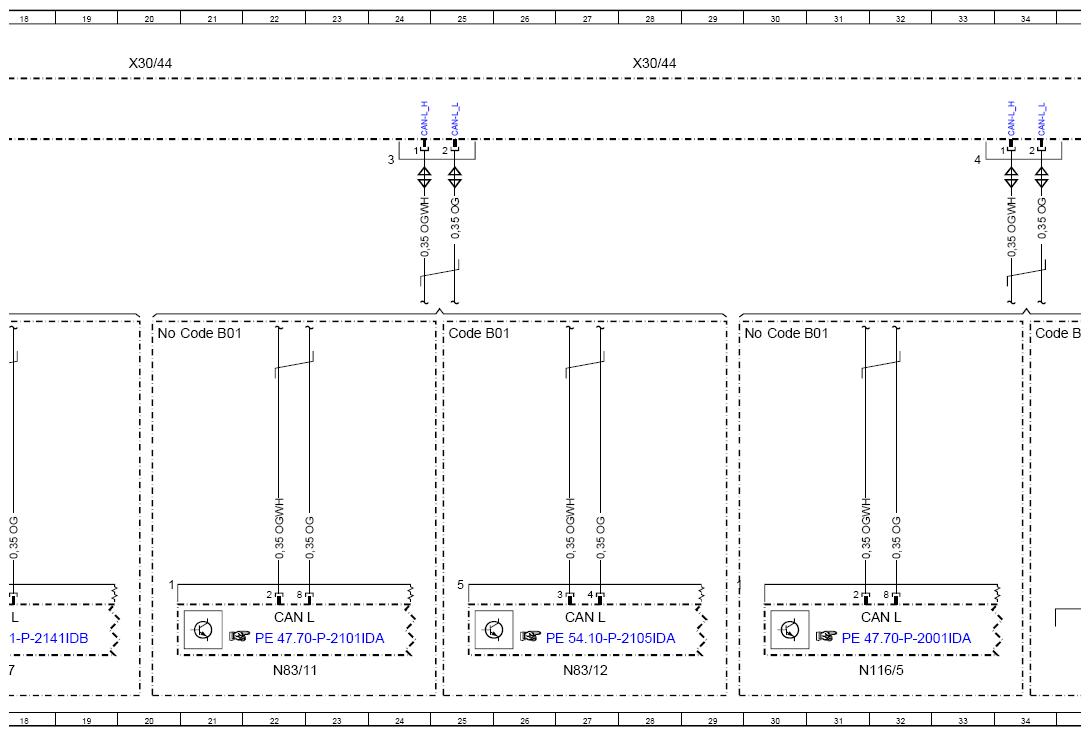

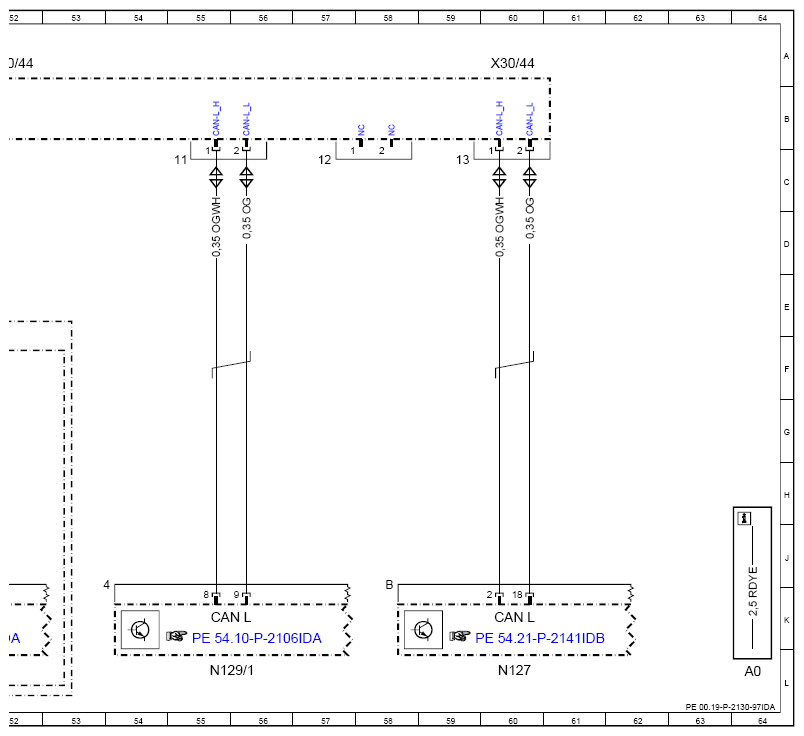

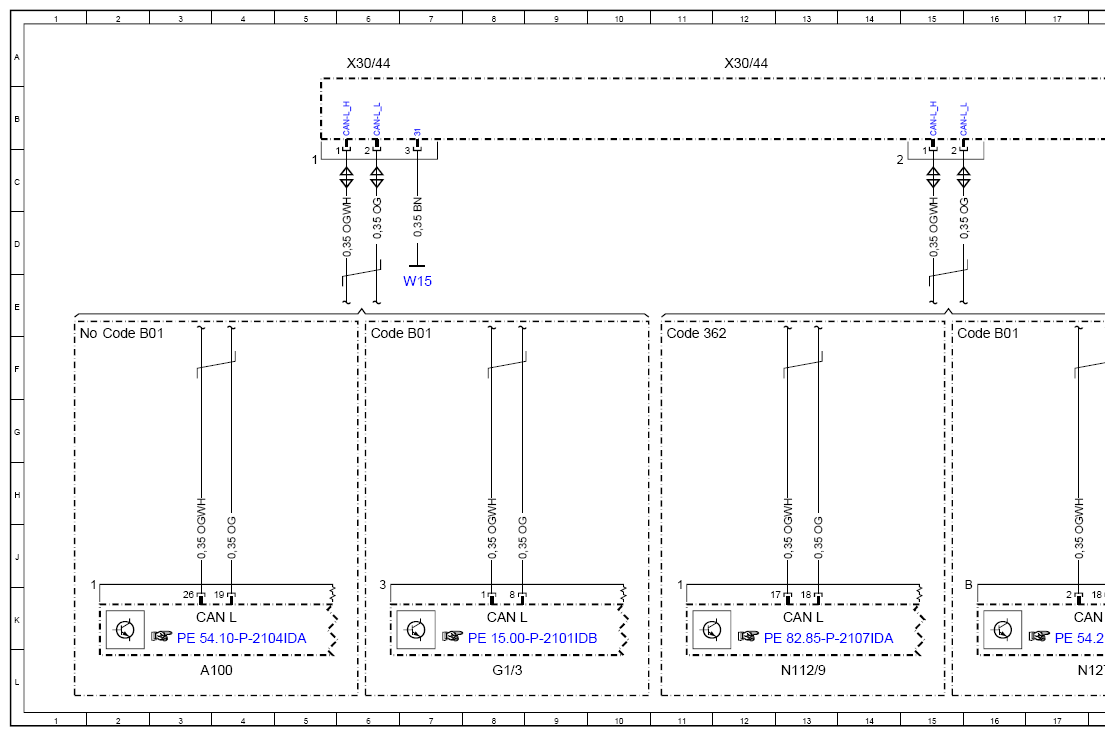

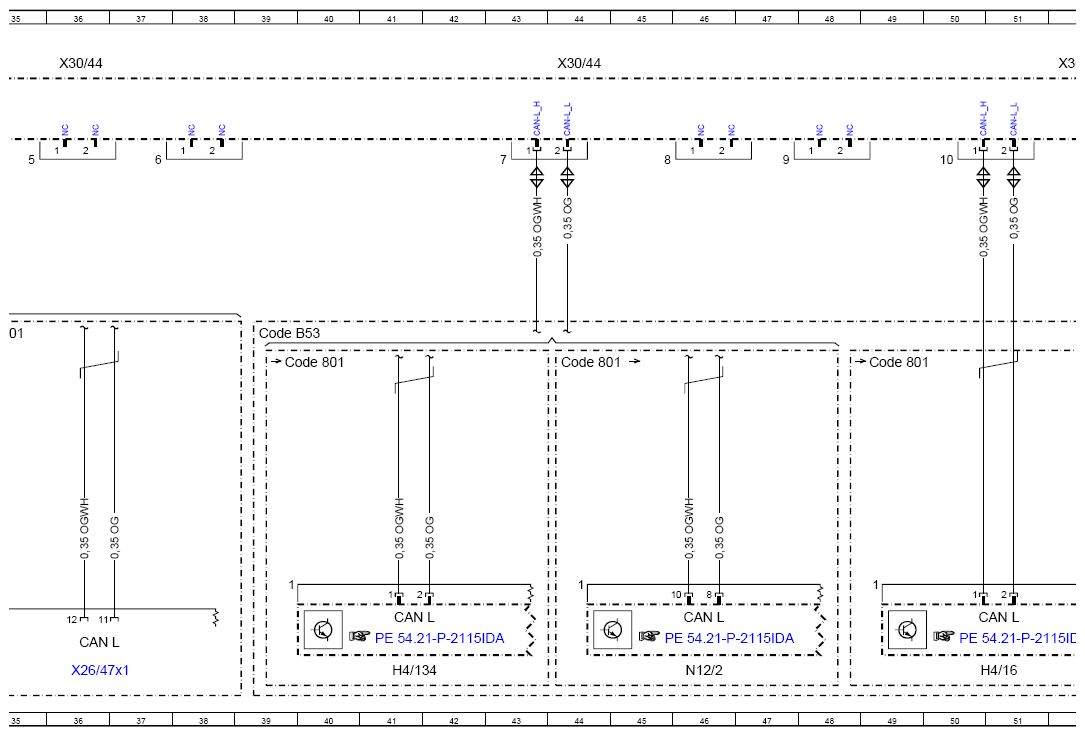

Potential distributor X30/44 (CAN L)
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 64L |
| A100 | High-voltage battery module | 3L |
| CAN L | Hybrid CAN | 3K |
| CAN L | Hybrid CAN | 13K |
| CAN L | Hybrid CAN | 22K |
| CAN L | Hybrid CAN | 32K |
| CAN L | Hybrid CAN | 41K |
| CAN L | Hybrid CAN | 51K |
| CAN L | Hybrid CAN | 55K |
| CAN L | Hybrid CAN | 60K |
| CAN L | Hybrid CAN | 8K |
| CAN L | Hybrid CAN | 27K |
| CAN L | Hybrid CAN | 36K |
| CAN L | Hybrid CAN | 17K |
| CAN L | Hybrid CAN | 46K |
| Code 362 | HERMES LTE | 11F |
| Code B01 | 48V technology | 6F |
| Code B01 | 48V technology | 2F |
| Code B01 | 48V technology | 25F |
| Code B01 | 48V technology | 20F |
| Code B01 | 48V technology | 34F |
| Code B01 | 48V technology | 30F |
| Code B01 | 48V technology | 15F |
| Code B53 | Acoustic ambient protection | 39F |
| G1/3 | 48 V on-board electrical system battery | 8L |
| H4/134 | Sound generator 2 | 41L |
| H4/16 | Sound generator | 51L |
| N112/9 | HERMES control unit | 13L |
| N116/5 | DC/DC converter charger | 32L |
| N12/2 | Sound generator control unit | 46L |
| N127 | Drivetrain control unit | 60L |
| N127 | Drivetrain control unit | 17L |
| N129/1 | Power electronics control unit | 55L |
| N83/11 | Alternating current charger for high-voltage battery | 22L |
| N83/12 | 48 V on-board electrical system DC/DC converter control unit | 27L |
| W15 | Right front footwell ground point | 7E |
| X26/47x1 | Engine wiring harness/engine compartment electrical connector | 36L |
| X30/44 | Hybrid CAN (CAN L) potential distributor electrical connector | 12A |
| X30/44 | Hybrid CAN (CAN L) potential distributor electrical connector | 20A |
| X30/44 | Hybrid CAN (CAN L) potential distributor electrical connector | 28A |
| X30/44 | Hybrid CAN (CAN L) potential distributor electrical connector | 36A |
| X30/44 | Hybrid CAN (CAN L) potential distributor electrical connector | 44A |
| X30/44 | Hybrid CAN (CAN L) potential distributor electrical connector | 52A |
| X30/44 | Hybrid CAN (CAN L) potential distributor electrical connector | 60A |
| X30/44 | Hybrid CAN (CAN L) potential distributor electrical connector | 6A |
