Wiring Diagram Of Telematics CAN - PE00.19-P-2180-97IDA
Model 247

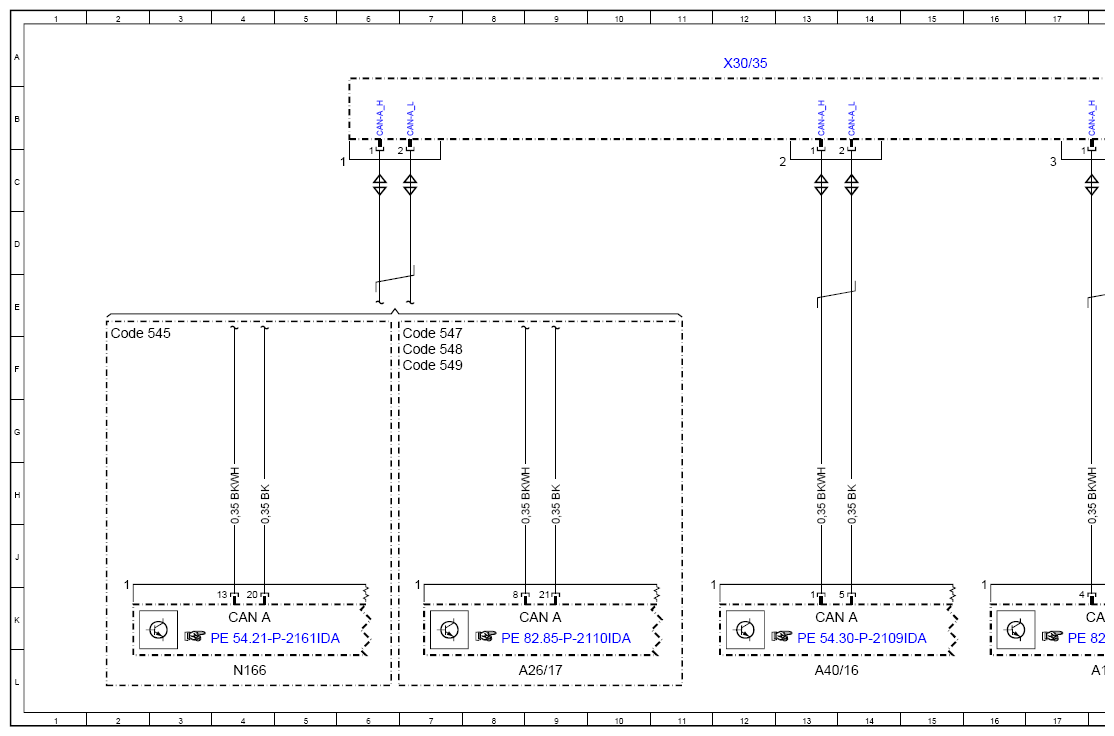

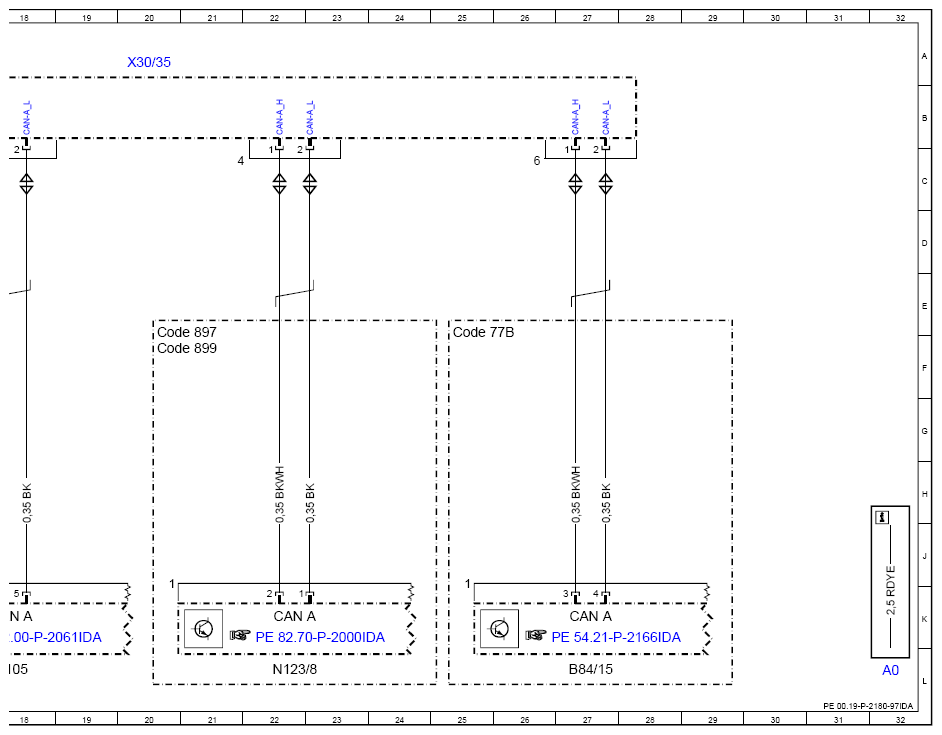

Potential distributor X30/35 (CAN A)
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 32L |
| A105 | Touchpad | 18L |
| A26/17 | Head unit | 9L |
| A40/16 | Head unit/instrument cluster display cluster | 13L |
| B84/15 | Hand motion sensor | 27L |
| CAN A | Telematics CAN | 4K |
| CAN A | Telematics CAN | 9K |
| CAN A | Telematics CAN | 13K |
| CAN A | Telematics CAN | 18K |
| CAN A | Telematics CAN | 22K |
| CAN A | Telematics CAN | 27K |
| Code 545 | Connect 5 (NTG6) | 2F |
| Code 547 | Connect 20 Entry (NTG6) | 7F |
| Code 548 | Connect 20 MID (NTG6) | 7F |
| Code 549 | Connect 20 HIGH (NTG6) | 7F |
| Code 77B | Contactless gesture control at front | 25F |
| Code 897 | Wireless mobile phone charging | 20F |
| Code 899 | Wireless phone charging at front and antenna | 20F |
| N123/8 | Mobile phone cradle control unit | 22L |
| N166 | Head unit/instrument cluster control unit | 4L |
| X30/35 | Telematics CAN potential distributor (CAN A) | 12A |
| X30/35 | Telematics CAN potential distributor (CAN A) | 20A |
