Wiring Diagram of Soldered Points/Z Connector Sleeves - PE00.19-P-2600-97IDC
Model 247 Z end sleeves Z142z1, Z185/2z1, Z194/10z1, Z194/11z1, Z232/119z2, Z232/54z1, Z232/60z1, Z241z1
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 104L |
| Code 2U1 | Radiator shutters | 11J |
| Code 2U1 | Radiator shutters | 9J |
| Code 2U1 | Radiator shutters | 13J |
| Code 2U1 | Radiator shutters | 16J |
| Code 2U1 | Radiator shutters | 22J |
| Code 2U1 | Radiator shutters | 25J |
| Code 426 | 8G-DCT | 13J |
| Code 426 | 8G-DCT | 16J |
| Code 426 | 8G-DCT | 18J |
| Code 426 | 8G-DCT | 22J |
| Code 426 | 8G-DCT | 27J |
| Code 426 | 8G-DCT | 25J |
| Code 429 | 7G-DCT | 13J |
| Code 429 | 7G-DCT | 16J |
| Code 429 | 7G-DCT | 19J |
| Code 429 | 7G-DCT | 23J |
| Code 429 | 7G-DCT | 28J |
| Code 429 | 7G-DCT | 25J |
| Code 640 | Dynamic LED headlamps, SAE, right-hand traffic | 57J |
| Code 640 | Dynamic LED headlamps, SAE, right-hand traffic | 58J |
| Code 640 | Dynamic LED headlamps, SAE, right-hand traffic | 61J |
| Code 640 | Dynamic LED headlamps, SAE, right-hand traffic | 63J |
| Code 640 | Dynamic LED headlamps, SAE, right-hand traffic | 65J |
| Code 640 | Dynamic LED headlamps, SAE, right-hand traffic | 67J |
| Code 641 | Dynamic LED headlamps, left-hand traffic | 57J |
| Code 641 | Dynamic LED headlamps, left-hand traffic | 59J |
| Code 641 | Dynamic LED headlamps, left-hand traffic | 61J |
| Code 641 | Dynamic LED headlamps, left-hand traffic | 63J |
| Code 641 | Dynamic LED headlamps, left-hand traffic | 65J |
| Code 641 | Dynamic LED headlamps, left-hand traffic | 67J |
| Code 642 | Dynamic LED headlamps, right-hand traffic | 57J |
| Code 642 | Dynamic LED headlamps, right-hand traffic | 59J |
| Code 642 | Dynamic LED headlamps, right-hand traffic | 61J |
| Code 642 | Dynamic LED headlamps, right-hand traffic | 64J |
| Code 642 | Dynamic LED headlamps, right-hand traffic | 66J |
| Code 642 | Dynamic LED headlamps, right-hand traffic | 68J |
| Code 847 | 3rd seat row | 52J |
| Code 847 | 3rd seat row | 53J |
| Code 847 | 3rd seat row | 55J |
| Code 877 | Ambiance illumination | 70J |
| Code 877 | Ambiance illumination | 71J |
| Code 877 | Ambiance illumination | 73J |
| Code 877 | Ambiance illumination | 74J |
| Code 877 | Ambiance illumination | 76J |
| Code 877 | Ambiance illumination | 78J |
| Code 877 | Ambiance illumination | 79J |
| Code 877 | Ambiance illumination | 80J |
| Code 877 | Ambiance illumination | 82J |
| Code 877 | Ambiance illumination | 83J |
| Code 877 | Ambiance illumination | 85J |
| Code 877 | Ambiance illumination | 87J |
| Code 877 | Ambiance illumination | 88J |
| Code 877 | Ambiance illumination | 90J |
| Code 877 | Ambiance illumination | 91J |
| Code 877 | Ambiance illumination | 93J |
| Code 98B | Upper radiator shutters | 9J |
| Code 98B | Upper radiator shutters | 14J |
| Code 98B | Upper radiator shutters | 16J |
| Code 98B | Upper radiator shutters | 23J |
| Code 98B | Upper radiator shutters | 26J |
| Code M016 | Uprated high-performance engine | 32J |
| Code M016 | Uprated high-performance engine | 33J |
| Code M016 | Uprated high-performance engine | 38J |
| Code M139 | Inline 4-cylinder SPARK-IGNITION ENGINE M139 - AMG | 23J |
| Code M139 | Inline 4-cylinder SPARK-IGNITION ENGINE M139 - AMG | 26J |
| Code M139 | Inline 4-cylinder SPARK-IGNITION ENGINE M139 - AMG | 2J |
| Code M139 | Inline 4-cylinder SPARK-IGNITION ENGINE M139 - AMG | 3J |
| Code M139 | Inline 4-cylinder SPARK-IGNITION ENGINE M139 - AMG | 5J |
| Code M139 | Inline 4-cylinder SPARK-IGNITION ENGINE M139 - AMG | 35J |
| Code M139 | Inline 4-cylinder SPARK-IGNITION ENGINE M139 - AMG | 36J |
| Code M139 | Inline 4-cylinder SPARK-IGNITION ENGINE M139 - AMG | 38J |
| Code M139 | Inline 4-cylinder SPARK-IGNITION ENGINE M139 - AMG | 39J |
| Code M139 | Inline 4-cylinder SPARK-IGNITION ENGINE M139 - AMG | 41J |
| Code M139 | Inline 4-cylinder SPARK-IGNITION ENGINE M139 - AMG | 42J |
| Code M260 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M260 | 14J |
| Code M260 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M260 | 17J |
| Code M260 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M260 | 19J |
| Code M260 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M260 | 18J |
| Code M260 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M260 | 29J |
| Code M260 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M260 | 28J |
| Code M260 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M260 | 31J |
| Code M260 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M260 | 33J |
| Code M282 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M282 | 29J |
| Code M282 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M282 | 28J |
| Code M608 | 4-CYLINDER INLINE DIESEL ENGINE OM608 | 21J |
| Code M608 | 4-CYLINDER INLINE DIESEL ENGINE OM608 | 13J |
| Code M608 | 4-CYLINDER INLINE DIESEL ENGINE OM608 | 15J |
| Code M608 | 4-CYLINDER INLINE DIESEL ENGINE OM608 | 19J |
| Code M608 | 4-CYLINDER INLINE DIESEL ENGINE OM608 | 19J |
| Code ME08 | Hybrid drive 75kW-84kW variant (incl. plug-in) | 30J |
| Code ME08 | Hybrid drive 75kW-84kW variant (incl. plug-in) | 23J |
| Code ME08 | Hybrid drive 75kW-84kW variant (incl. plug-in) | 26J |
| Code ME08 | Hybrid drive 75kW-84kW variant (incl. plug-in) | 6J |
| Code ME08 | Hybrid drive 75kW-84kW variant (incl. plug-in) | 8J |
| Code ME08 | Hybrid drive 75kW-84kW variant (incl. plug-in) | 95J |
| Code ME08 | Hybrid drive 75kW-84kW variant (incl. plug-in) | 96J |
| Code ME08 | Hybrid drive 75kW-84kW variant (incl. plug-in) | 97J |
| Code U62 | Light and vision package | 44J |
| Code U62 | Light and vision package | 46J |
| Code U62 | Light and vision package | 47J |
| Code U62 | Light and vision package | 49J |
| Code U62 | Light and vision package | 50J |
| Code U62 | Light and vision package | 53H |
| E1 | Left front lamp unit | 57L |
| E1 | Left front lamp unit | 64L |
| E15/12 | Left rear interior/reading lamp | 47L |
| E15/13 | Right rear interior/reading lamp | 46L |
| E15/3 | Rear dome lamp | 49L |
| E15/3 | Rear dome lamp | 53L |
| E15/4 | Central load compartment dome lamp | 50L |
| E15/4 | Central load compartment dome lamp | 55L |
| E17/57 | Left rear door handle ambiance illumination | 71L |
| E17/57 | Left rear door handle ambiance illumination | 79L |
| E17/57 | Left rear door handle ambiance illumination | 88L |
| E17/58 | Right rear door handle ambiance illumination | 74L |
| E17/58 | Right rear door handle ambiance illumination | 83L |
| E17/58 | Right rear door handle ambiance illumination | 93L |
| E2 | Right front lamp unit | 61L |
| E2 | Right front lamp unit | 68L |
| E23/3 | Left rear door stowage compartment illumination | 70L |
| E23/3 | Left rear door stowage compartment illumination | 77L |
| E23/3 | Left rear door stowage compartment illumination | 87L |
| E23/4 | Right rear door stowage compartment illumination | 72L |
| E23/4 | Right rear door stowage compartment illumination | 82L |
| E23/4 | Right rear door stowage compartment illumination | 91L |
| F152/3 | Engine compartment fuse and relay module | 59L |
| F152/3 | Engine compartment fuse and relay module | 65L |
| F63 | Pyrofuse | 97L |
| M13/7 | Transmission oil cooling coolant circulation pump | 20L |
| M13/7 | Transmission oil cooling coolant circulation pump | 29L |
| M2/38 | Upper radiator trim flap actuator motor | 9L |
| M2/39 | Lower radiator trim flap actuator motor | 11L |
| M4/2 | Coolant fan motor | 41L |
| M4/7 | Fan motor | 17L |
| M4/7 | Fan motor | 26L |
| M4/7 | Fan motor | 39L |
| M43/10 | High-temperature circuit coolant pump | 3L |
| M44 | Charge air cooler circulation pump | 33L |
| M45/5 | Low-temperature circuit circulation pump | 36L |
| M75/10 | High-voltage battery coolant pump | 6L |
| M75/14 | Power electronics/transmission coolant pump | 8L |
| M75/14 | Power electronics/transmission coolant pump | 30L |
| N116/5 | DC/DC converter charger | 96L |
| N127 | Drivetrain control unit | 14L |
| N127 | Drivetrain control unit | 23L |
| N127 | Drivetrain control unit | 2L |
| N127 | Drivetrain control unit | 32L |
| N127 | Drivetrain control unit | 35L |
| N69/3 | Left rear door control unit | 76L |
| N69/3 | Left rear door control unit | 85L |
| N69/4 | Right rear door control unit | 80L |
| N69/4 | Right rear door control unit | 90L |
| N70 | Overhead control panel control unit | 44L |
| N70 | Overhead control panel control unit | 52L |
| N83/11 | Alternating current charger for high-voltage battery | 95L |
| Y140/1 | Cooling switchover valve | 38L |
| Y19/15 | Regulation valve (AMG) | 42L |
| Y73/2 | Low-temperature circuit switchover valve 2 | 5L |

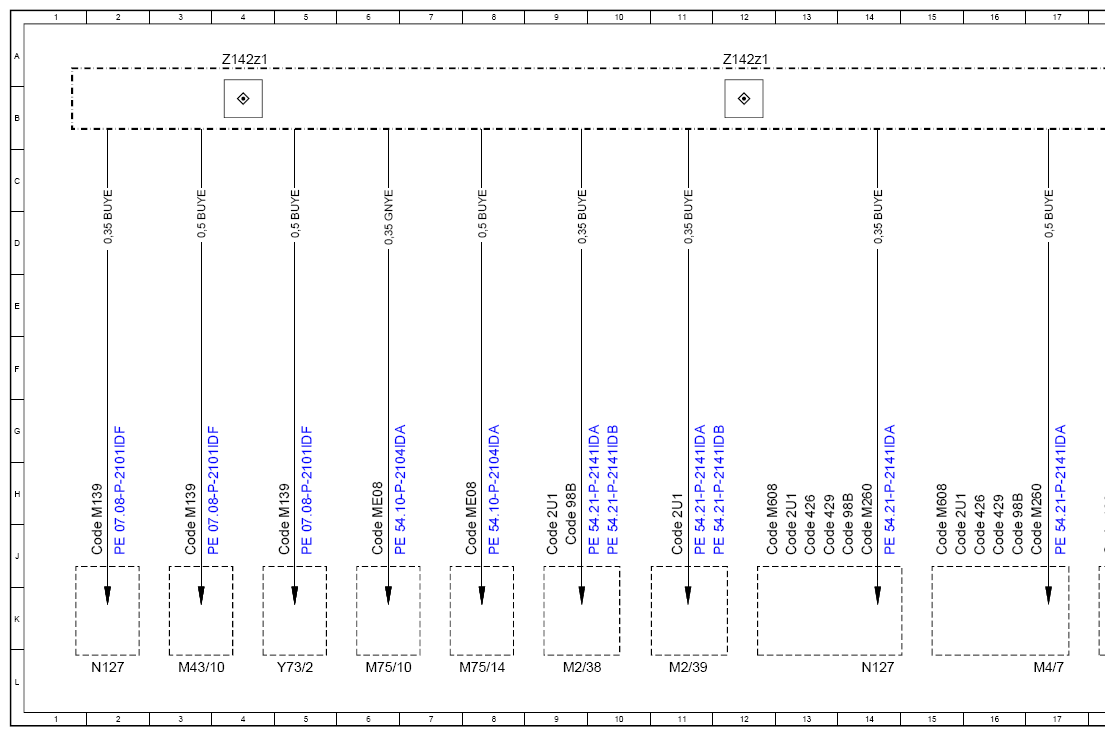

| Z142z1 | LIN C3 connector sleeve | 4A |
| Z142z1 | LIN C3 connector sleeve | 12A |

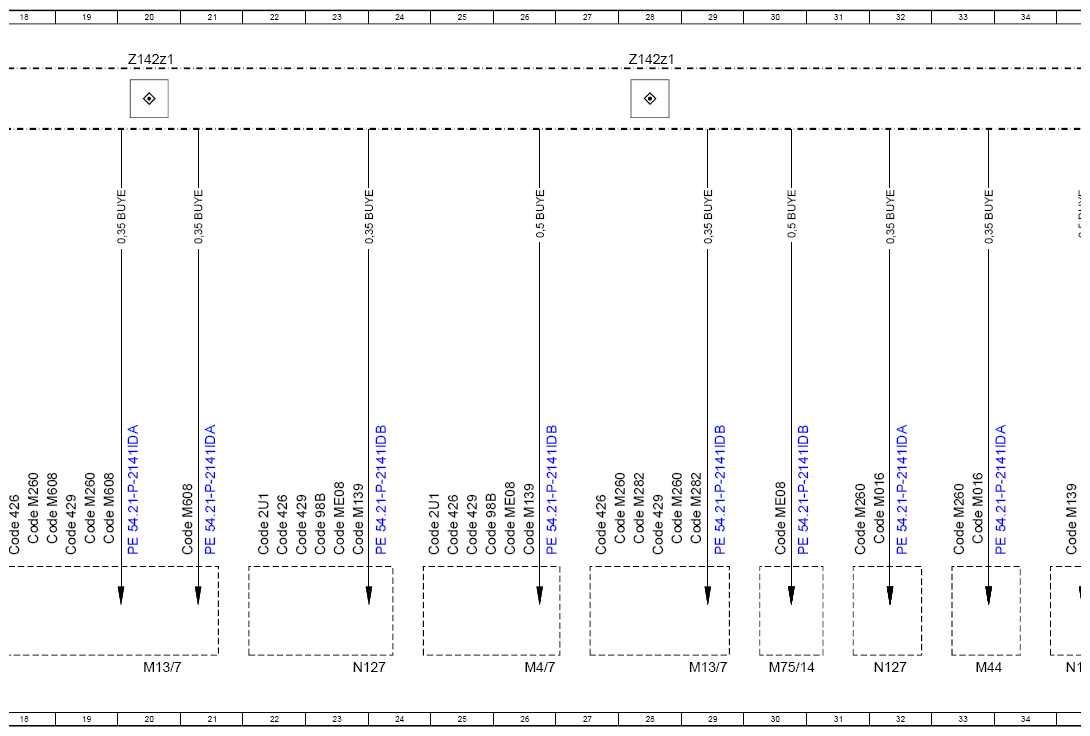

| Z142z1 | LIN C3 connector sleeve | 20A |
| Z142z1 | LIN C3 connector sleeve | 28A |

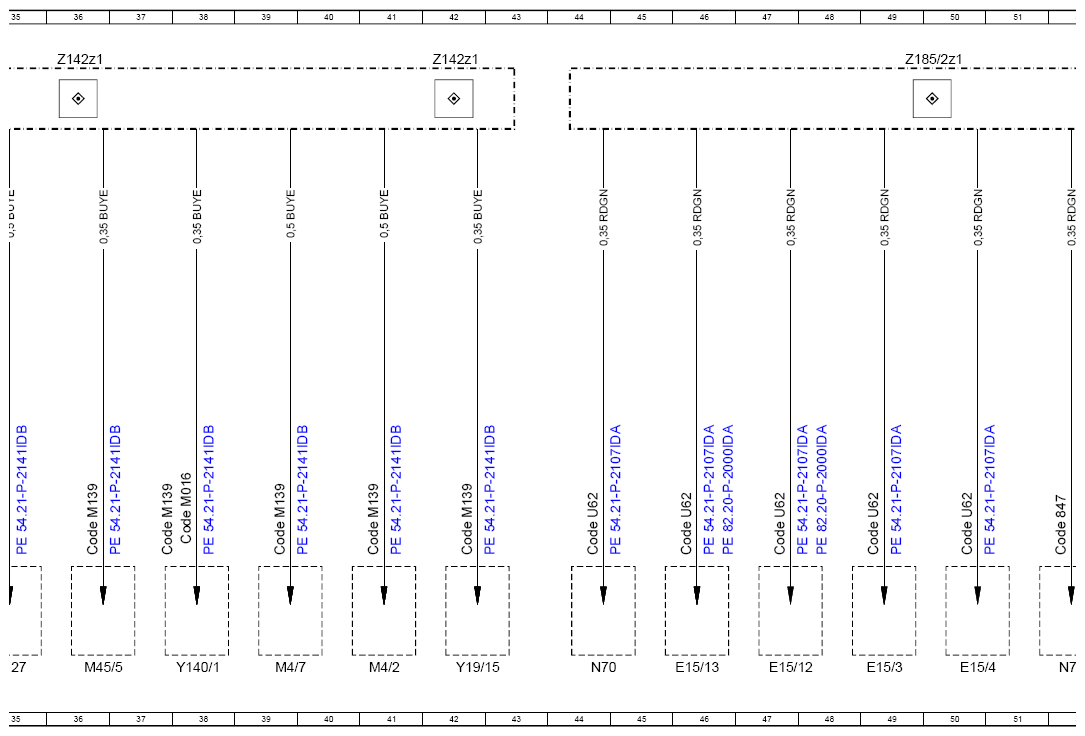

| Z142z1 | LIN C3 connector sleeve | 36A |
| Z142z1 | LIN C3 connector sleeve | 42A |
| Z185/2z1 | Voltage supply connector sleeve | 49A |

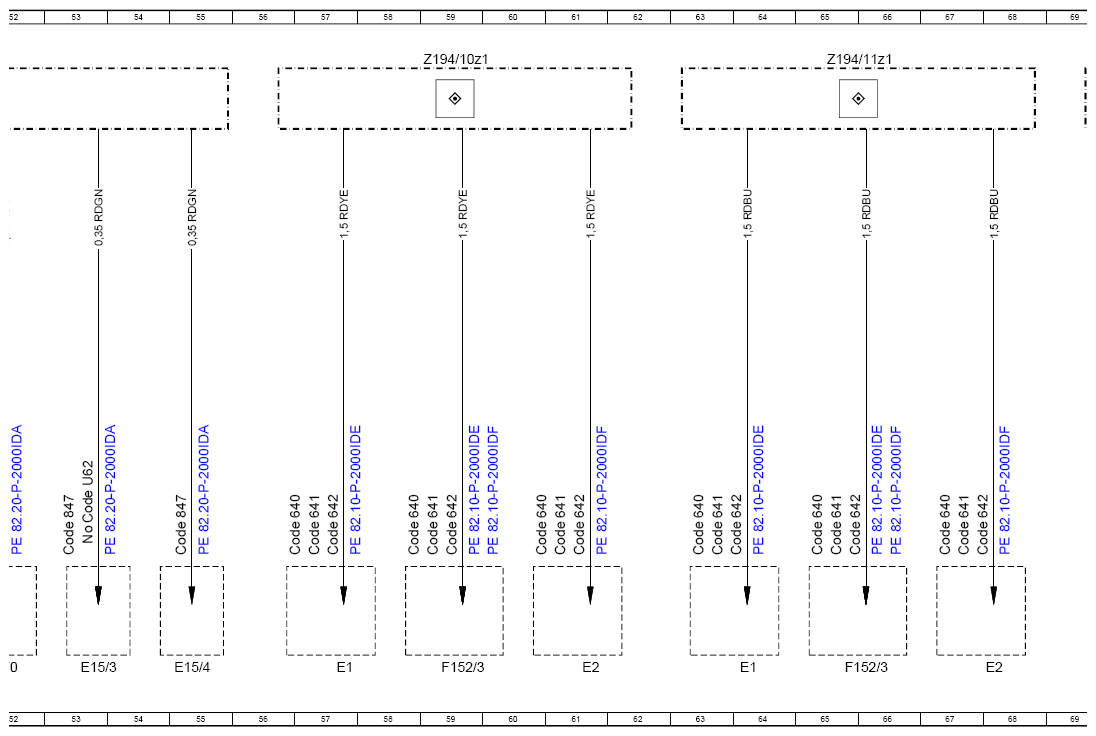

| Z194/10z1 | Terminal 30t connector sleeve | 59A |
| Z194/11z1 | Terminal 30t connector sleeve | 65A |

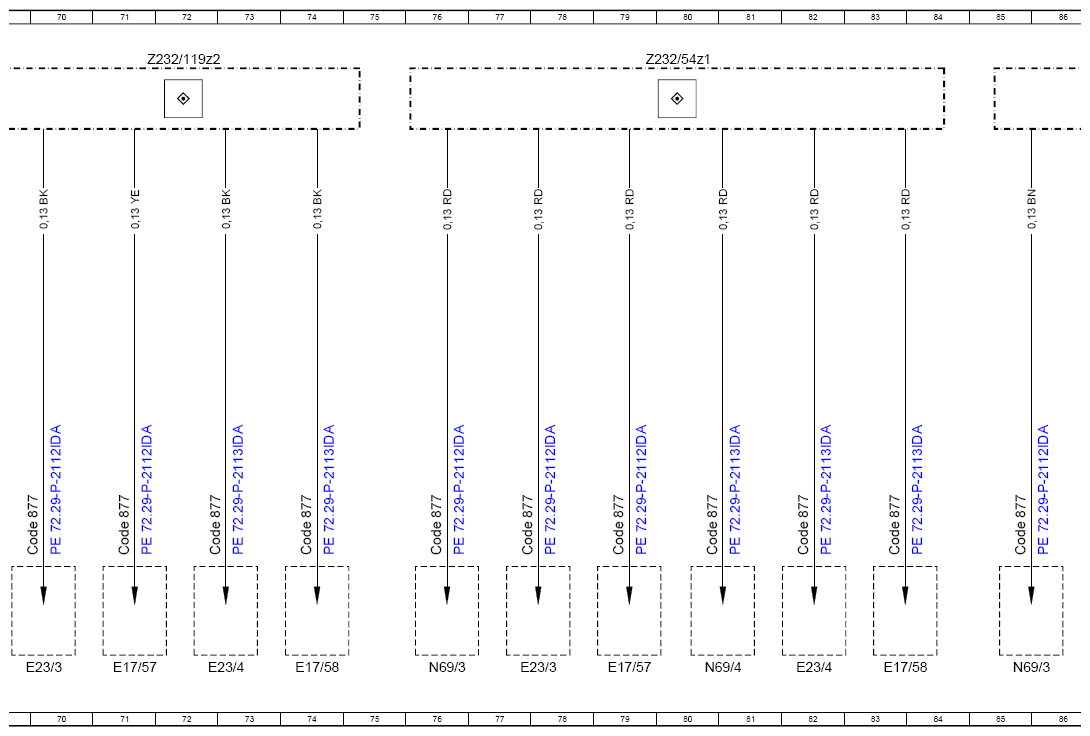

| Z232/119z2 | LIN B39 end sleeve | 72A |
| Z232/54z1 | Voltage supply connector sleeve | 80A |

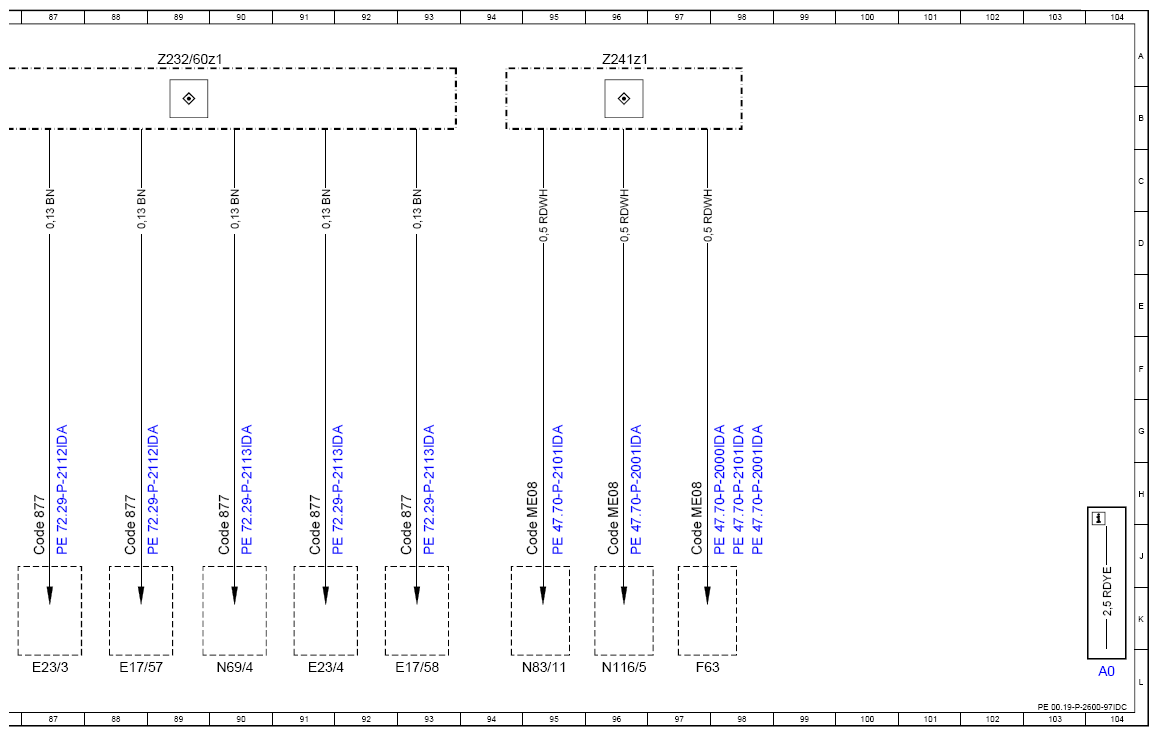

| Z232/60z1 | Ground connection connector sleeve | 89A |
| Z241z1 | Circuit 30c connector sleeve | 96A |
