Wiring Diagram Of Soldered Points/Z Connector Sleeves - PE00.19-P-2600-97IDD
Model 247 Z end sleeves Z133/1Z1, Z133/4Z1, Z134/1Z1, Z137z1, Z141/7Z1, Z141z1, Z142/3Z1
| Code: | Designation: | Position: |
|---|---|---|

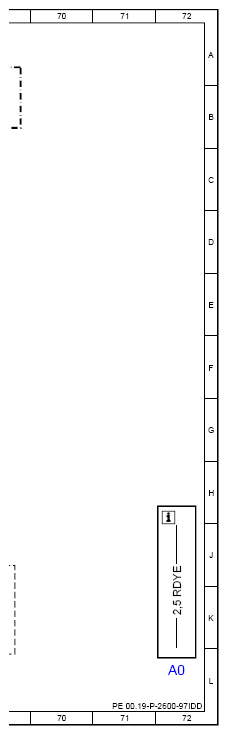

| A0 | Use of wiring diagrams | 72L |
| Code 2U1 | Radiator shutters | 36J |
| Code 2U1 | Radiator shutters | 37J |
| Code 2U1 | Radiator shutters | 39J |
| Code 2U1 | Radiator shutters | 50J |
| Code 2U1 | Radiator shutters | 48J |
| Code 2U1 | Radiator shutters | 51J |
| Code 2U1 | Radiator shutters | 54J |
| Code 2U1 | Radiator shutters | 60J |
| Code 2U1 | Radiator shutters | 63J |
| Code 362 | HERMES LTE | 27J |
| Code 362 | HERMES LTE | 28J |
| Code 362 | HERMES LTE | 29J |
| Code 362 | HERMES LTE | 34J |
| Code 426 | 8G-DCT | 52J |
| Code 426 | 8G-DCT | 54J |
| Code 426 | 8G-DCT | 57J |
| Code 426 | 8G-DCT | 61J |
| Code 426 | 8G-DCT | 64J |
| Code 426 | 8G-DCT | 66J |
| Code 429 | 7G-DCT | 52J |
| Code 429 | 7G-DCT | 55J |
| Code 429 | 7G-DCT | 57J |
| Code 429 | 7G-DCT | 61J |
| Code 429 | 7G-DCT | 64J |
| Code 429 | 7G-DCT | 67J |
| Code 847 | 3rd seat row | 16J |
| Code 847 | 3rd seat row | 15J |
| Code 98B | Upper radiator shutters | 38J |
| Code 98B | Upper radiator shutters | 48J |
| Code 98B | Upper radiator shutters | 52J |
| Code 98B | Upper radiator shutters | 55J |
| Code 98B | Upper radiator shutters | 61J |
| Code 98B | Upper radiator shutters | 64J |
| Code M016 | Uprated high-performance engine | 42J |
| Code M139 | Inline 4-cylinder SPARK-IGNITION ENGINE M139 - AMG | 42J |
| Code M139 | Inline 4-cylinder SPARK-IGNITION ENGINE M139 - AMG | 46J |
| Code M139 | Inline 4-cylinder SPARK-IGNITION ENGINE M139 - AMG | 44J |
| Code M139 | Inline 4-cylinder SPARK-IGNITION ENGINE M139 - AMG | 62J |
| Code M139 | Inline 4-cylinder SPARK-IGNITION ENGINE M139 - AMG | 65J |
| Code M260 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M260 | 42J |
| Code M260 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M260 | 53J |
| Code M260 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M260 | 55J |
| Code M260 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M260 | 58J |
| Code M260 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M260 | 57J |
| Code M260 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M260 | 67J |
| Code M260 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M260 | 66J |
| Code M282 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M282 | 67J |
| Code M282 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M282 | 66J |
| Code M608 | 4-CYLINDER INLINE DIESEL ENGINE OM608 | 59J |
| Code M608 | 4-CYLINDER INLINE DIESEL ENGINE OM608 | 51J |
| Code M608 | 4-CYLINDER INLINE DIESEL ENGINE OM608 | 54J |
| Code M608 | 4-CYLINDER INLINE DIESEL ENGINE OM608 | 58J |
| Code M608 | 4-CYLINDER INLINE DIESEL ENGINE OM608 | 57J |
| Code ME08 | Hybrid drive 75kW-84kW variant (incl. plug-in) | 41J |
| Code ME08 | Hybrid drive 75kW-84kW variant (incl. plug-in) | 46J |
| Code ME08 | Hybrid drive 75kW-84kW variant (incl. plug-in) | 44J |
| Code ME08 | Hybrid drive 75kW-84kW variant (incl. plug-in) | 62J |
| Code ME08 | Hybrid drive 75kW-84kW variant (incl. plug-in) | 64J |
| Code ME08 | Hybrid drive 75kW-84kW variant (incl. plug-in) | 69J |
| Code U10 | Automatic front passenger airbag shutoff | 28J |
| Code U10 | Automatic front passenger airbag shutoff | 30J |
| Code U10 | Automatic front passenger airbag shutoff | 33J |
| Code U62 | Light and vision package | 2J |
| Code U62 | Light and vision package | 4J |
| Code U62 | Light and vision package | 5J |
| Code U62 | Light and vision package | 8J |
| Code U62 | Light and vision package | 9J |
| Code U62 | Light and vision package | 11J |
| Code U62 | Light and vision package | 12J |
| Code U62 | Light and vision package | 18J |
| Code U62 | Light and vision package | 15J |
| Code U62 | Light and vision package | 19J |
| Code U62 | Light and vision package | 21J |
| Code U62 | Light and vision package | 23J |
| Code U62 | Light and vision package | 25J |
| E14/1 | Left sun visor mirror lamp | 24L |
| E14/2 | Right sun visor mirror lamp | 23L |
| E15/12 | Left rear interior/reading lamp | 10L |
| E15/12 | Left rear interior/reading lamp | 18L |
| E15/13 | Right rear interior/reading lamp | 9L |
| E15/13 | Right rear interior/reading lamp | 19L |
| E15/3 | Rear dome lamp | 12L |
| E15/3 | Rear dome lamp | 15L |
| E15/4 | Central load compartment dome lamp | 16L |
| F152/3 | Engine compartment fuse and relay module | 36L |
| F152/3 | Engine compartment fuse and relay module | 42L |
| F152/3 | Engine compartment fuse and relay module | 46L |
| M13/7 | Transmission oil cooling coolant circulation pump | 58L |
| M13/7 | Transmission oil cooling coolant circulation pump | 67L |
| M2/38 | Upper radiator trim flap actuator motor | 38L |
| M2/38 | Upper radiator trim flap actuator motor | 48L |
| M2/39 | Lower radiator trim flap actuator motor | 39L |
| M2/39 | Lower radiator trim flap actuator motor | 50L |
| M4/7 | Fan motor | 55L |
| M4/7 | Fan motor | 65L |
| M75/14 | Power electronics/transmission coolant pump | 69L |
| N110 | Weight Sensing System (WSS) control unit | 30L |
| N110 | Weight Sensing System (WSS) control unit | 33L |
| N112/9 | HERMES control unit | 26L |
| N112/9 | HERMES control unit | 34L |
| N127 | Drivetrain control unit | 44L |
| N127 | Drivetrain control unit | 53L |
| N127 | Drivetrain control unit | 62L |
| N2/10 | Supplemental restraint system control unit | 28L |
| N2/10 | Supplemental restraint system control unit | 31L |
| N70 | Overhead control panel control unit | 2L |
| N70 | Overhead control panel control unit | 8L |
| N70 | Overhead control panel control unit | 13L |
| N70 | Overhead control panel control unit | 21L |
| S101 | Left front mirror lamp switch | 5L |
| S102 | Right front mirror lamp switch | 4L |

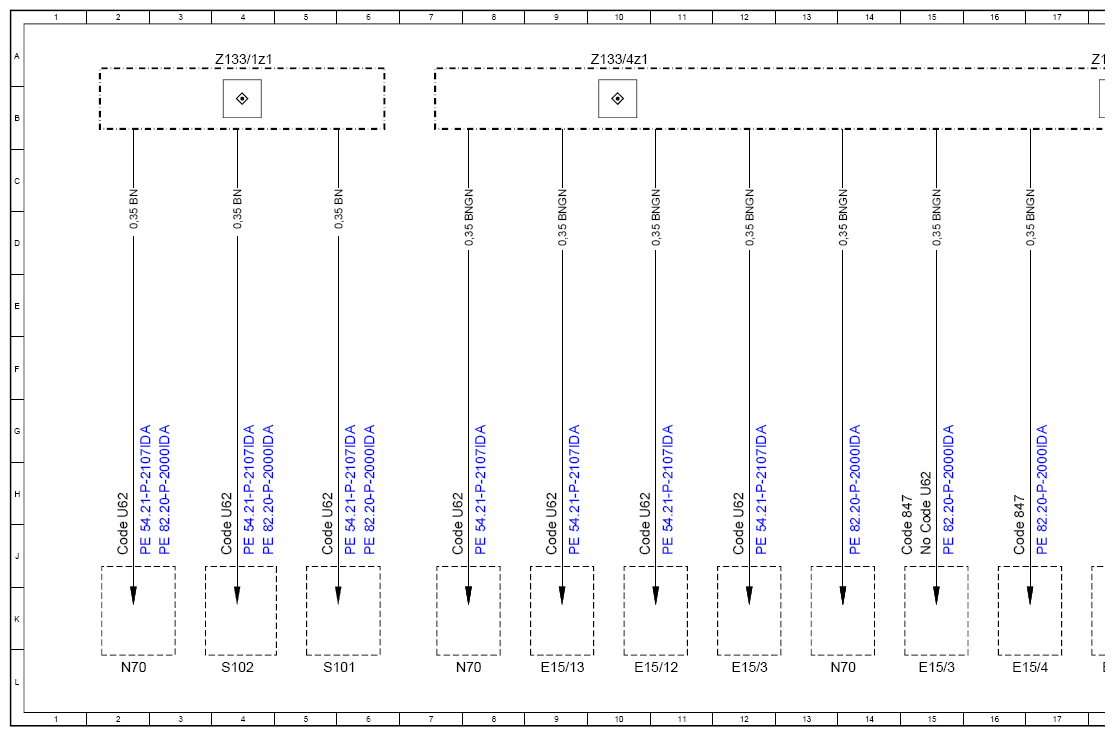

| Z133/1z1 | Ground connection connector sleeve | 4A |
| Z133/4z1 | Ground connection connector sleeve | 10A |
| Z133/4z1 | Ground connection connector sleeve | 18A |

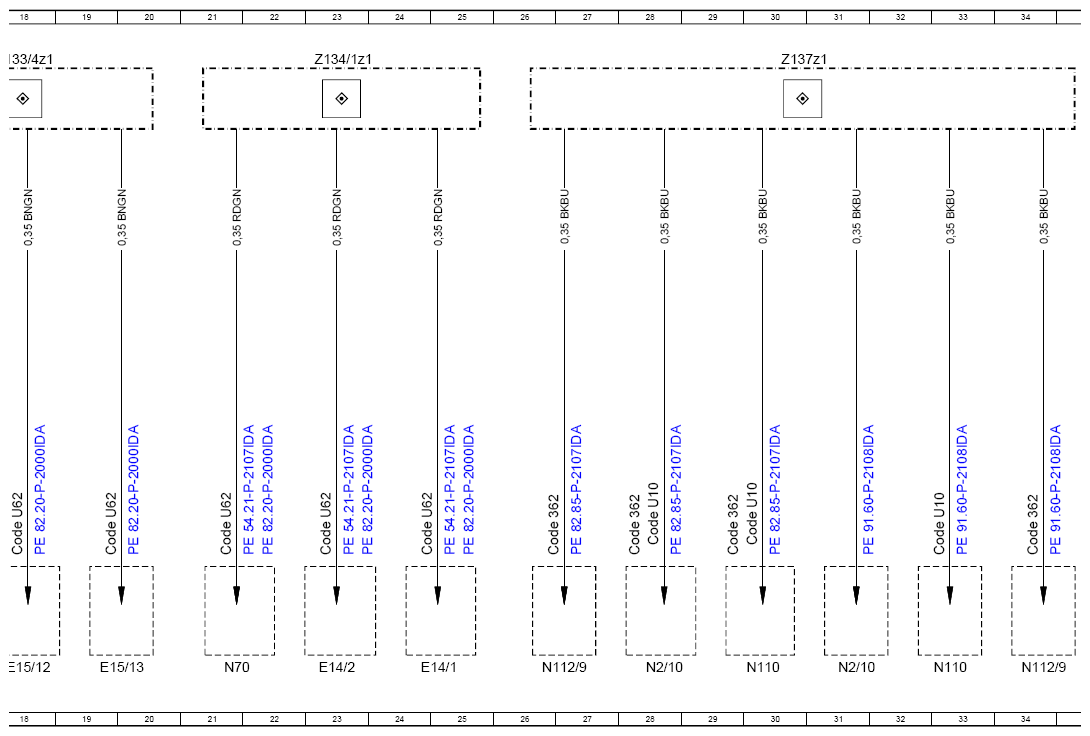

| Z134/1z1 | Voltage supply connector sleeve | 23A |
| Z137z1 | LIN E2 connector sleeve | 30A |

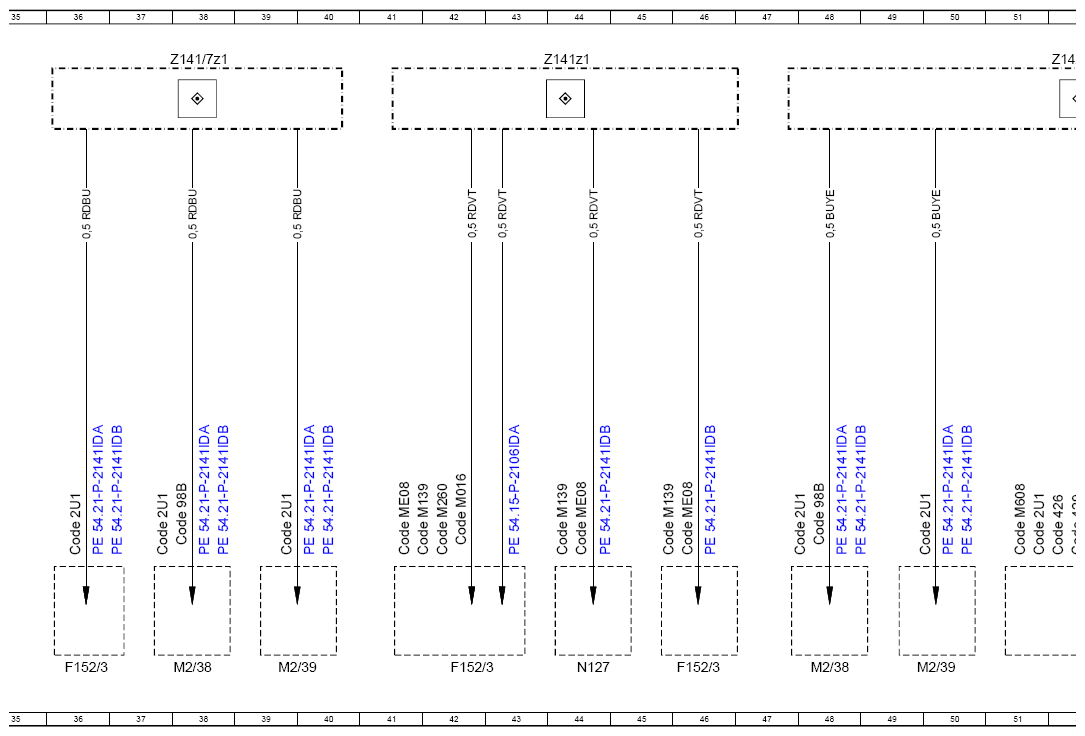

| Z141/7z1 | Radiator shutters circuit 87 C1 end sleeve | 38A |
| Z141z1 | Terminal 87C relay actuation end sleeve | 44A |

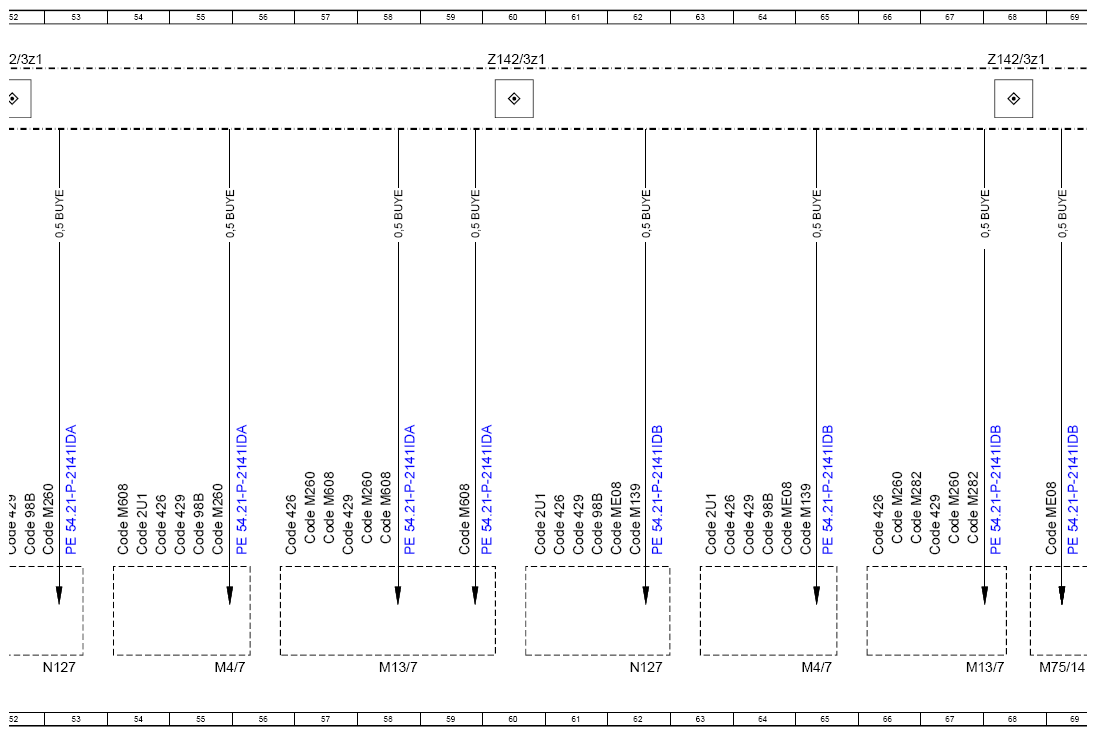

| Z142/3z1 | Radiator shutters LIN C1 end sleeve | 52A |
| Z142/3z1 | Radiator shutters LIN C1 end sleeve | 60A |
| Z142/3z1 | Radiator shutters LIN C1 end sleeve | 68A |
