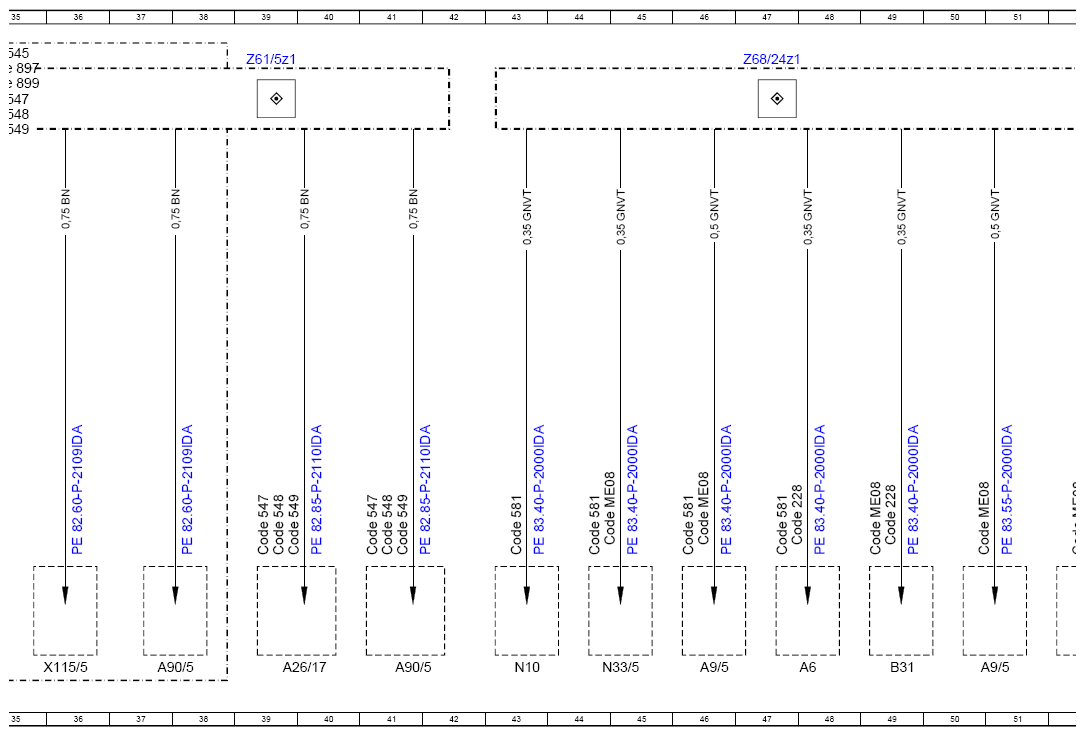

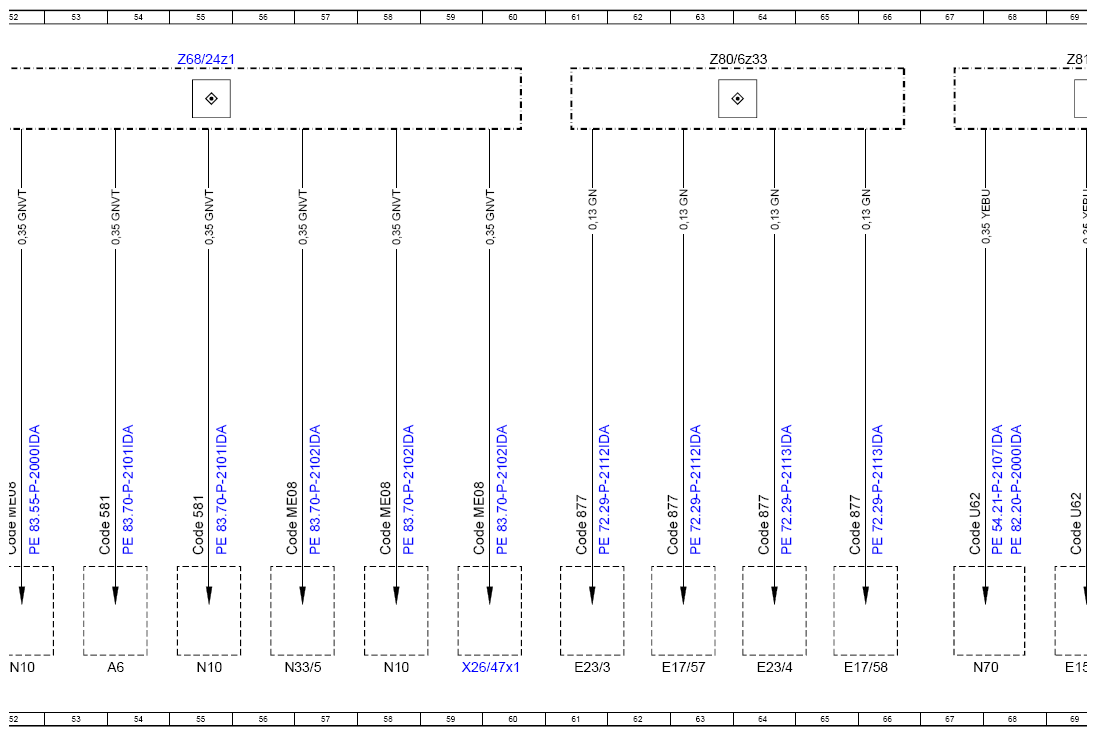

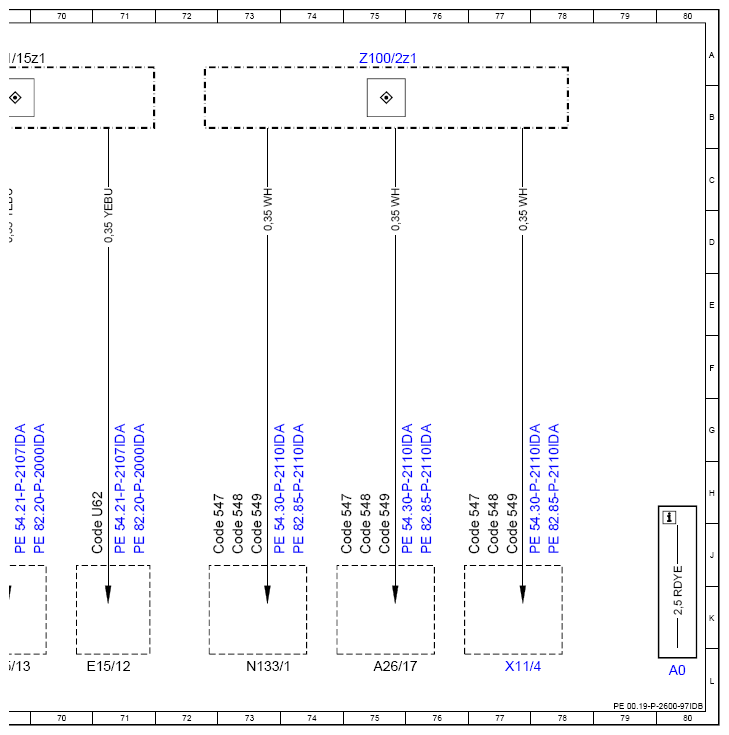

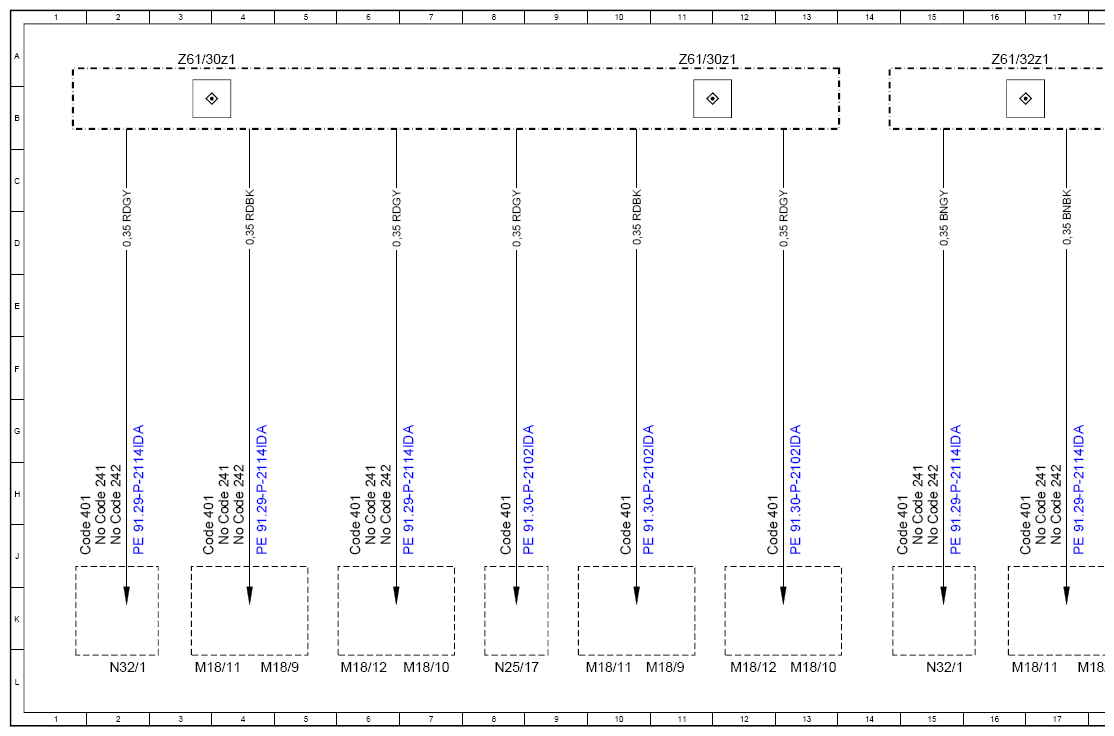

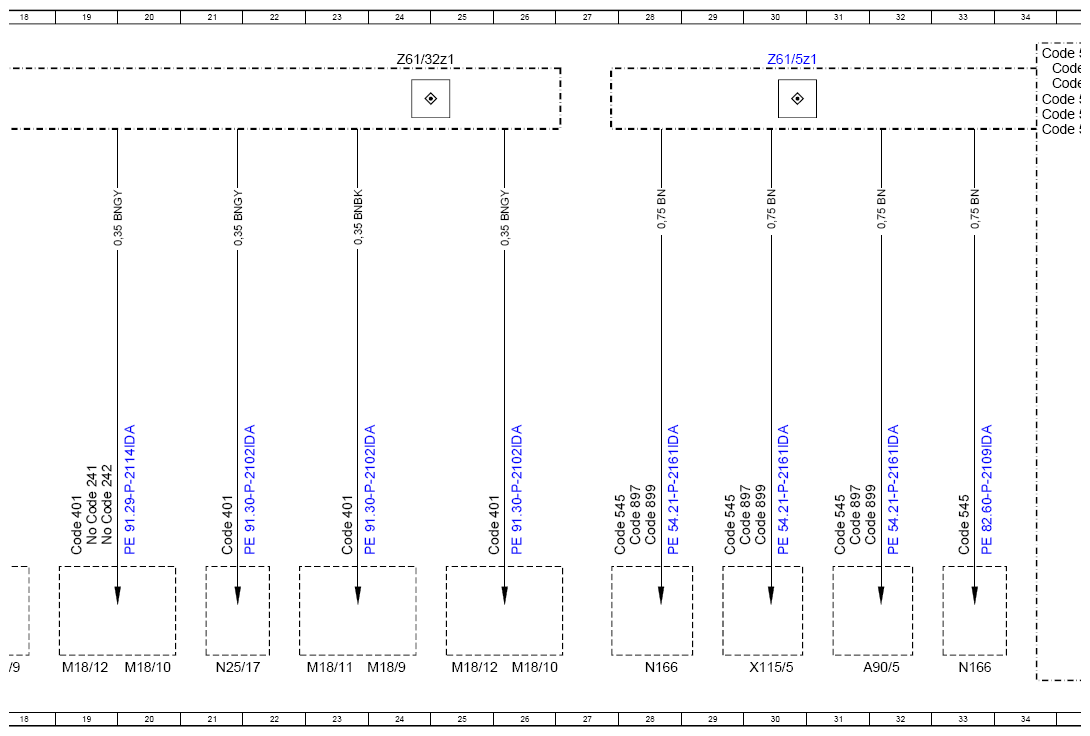

Wiring Diagram Of Soldered Points/Z Connector Sleeves - PE00.19-P-2600-97IDB
Model 247 Z end sleeves Z61/30z1, Z61/32z1, Z61/5z1, Z68/24z1, Z80/6z33, Z81/15z1, Z100/2z1
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 80L |
| A26/17 | Head unit | 75L |
| A26/17 | Head unit | 39L |
| A6 | Stationary heater unit | 48L |
| A6 | Stationary heater unit | 54L |
| A9/5 | Electric refrigerant compressor | 46L |
| A9/5 | Electric refrigerant compressor | 51L |
| A90/5 | Multimedia connection unit | 32L |
| A90/5 | Multimedia connection unit | 37L |
| A90/5 | Multimedia connection unit | 41L |
| B31 | Air quality sensor | 49L |
| Code 228 | Stationary heater | 48J |
| Code 228 | Stationary heater | 49J |
| Code 241 | Memory switch for electrically adjustable front passenger seat, left | 2H |
| Code 241 | Memory switch for electrically adjustable front passenger seat, left | 4H |
| Code 241 | Memory switch for electrically adjustable front passenger seat, left | 6H |
| Code 241 | Memory switch for electrically adjustable front passenger seat, left | 15H |
| Code 241 | Memory switch for electrically adjustable front passenger seat, left | 17H |
| Code 241 | Memory switch for electrically adjustable front passenger seat, left | 19H |
| Code 242 | Electrically adjustable front passenger seat with memory function | 2H |
| Code 242 | Electrically adjustable front passenger seat with memory function | 4H |
| Code 242 | Electrically adjustable front passenger seat with memory function | 6H |
| Code 242 | Electrically adjustable front passenger seat with memory function | 15H |
| Code 242 | Electrically adjustable front passenger seat with memory function | 17H |
| Code 242 | Electrically adjustable front passenger seat with memory function | 19H |
| Code 401 | Seat climate control for driver and front passenger | 10J |
| Code 401 | Seat climate control for driver and front passenger | 13J |
| Code 401 | Seat climate control for driver and front passenger | 2J |
| Code 401 | Seat climate control for driver and front passenger | 4J |
| Code 401 | Seat climate control for driver and front passenger | 6J |
| Code 401 | Seat climate control for driver and front passenger | 8J |
| Code 401 | Seat climate control for driver and front passenger | 23J |
| Code 401 | Seat climate control for driver and front passenger | 26J |
| Code 401 | Seat climate control for driver and front passenger | 15J |
| Code 401 | Seat climate control for driver and front passenger | 17J |
| Code 401 | Seat climate control for driver and front passenger | 19J |
| Code 401 | Seat climate control for driver and front passenger | 21J |
| Code 545 | Connect 5 (NTG6) | 28J |
| Code 545 | Connect 5 (NTG6) | 29J |
| Code 545 | Connect 5 (NTG6) | 31J |
| Code 545 | Connect 5 (NTG6) | 33J |
| Code 545 | Connect 5 (NTG6) | 34A |
| Code 547 | Connect 20 Entry (NTG6) | 73J |
| Code 547 | Connect 20 Entry (NTG6) | 75J |
| Code 547 | Connect 20 Entry (NTG6) | 77J |
| Code 547 | Connect 20 Entry (NTG6) | 34B |
| Code 547 | Connect 20 Entry (NTG6) | 39J |
| Code 547 | Connect 20 Entry (NTG6) | 41J |
| Code 548 | Connect 20 MID (NTG6) | 73J |
| Code 548 | Connect 20 MID (NTG6) | 75J |
| Code 548 | Connect 20 MID (NTG6) | 77J |
| Code 548 | Connect 20 MID (NTG6) | 34B |
| Code 548 | Connect 20 MID (NTG6) | 39J |
| Code 548 | Connect 20 MID (NTG6) | 41J |
| Code 549 | Connect 20 HIGH (NTG6) | 73J |
| Code 549 | Connect 20 HIGH (NTG6) | 75J |
| Code 549 | Connect 20 HIGH (NTG6) | 77J |
| Code 549 | Connect 20 HIGH (NTG6) | 34B |
| Code 549 | Connect 20 HIGH (NTG6) | 40J |
| Code 549 | Connect 20 HIGH (NTG6) | 41J |
| Code 581 | Automatic air conditioning | 43J |
| Code 581 | Automatic air conditioning | 44J |
| Code 581 | Automatic air conditioning | 46J |
| Code 581 | Automatic air conditioning | 47J |
| Code 581 | Automatic air conditioning | 54J |
| Code 581 | Automatic air conditioning | 55J |
| Code 877 | Ambiance illumination | 61J |
| Code 877 | Ambiance illumination | 63J |
| Code 877 | Ambiance illumination | 64J |
| Code 877 | Ambiance illumination | 66J |
| Code 897 | Wireless mobile phone charging | 28J |
| Code 897 | Wireless mobile phone charging | 30J |
| Code 897 | Wireless mobile phone charging | 31J |
| Code 897 | Wireless mobile phone charging | 34A |
| Code 899 | Wireless phone charging at front and antenna | 28J |
| Code 899 | Wireless phone charging at front and antenna | 30J |
| Code 899 | Wireless phone charging at front and antenna | 32J |
| Code 899 | Wireless phone charging at front and antenna | 34B |
| Code ME08 | Hybrid drive 75kW-84kW variant (incl. plug-in) | 45J |
| Code ME08 | Hybrid drive 75kW-84kW variant (incl. plug-in) | 46J |
| Code ME08 | Hybrid drive 75kW-84kW variant (incl. plug-in) | 49J |
| Code ME08 | Hybrid drive 75kW-84kW variant (incl. plug-in) | 51J |
| Code ME08 | Hybrid drive 75kW-84kW variant (incl. plug-in) | 52J |
| Code ME08 | Hybrid drive 75kW-84kW variant (incl. plug-in) | 57J |
| Code ME08 | Hybrid drive 75kW-84kW variant (incl. plug-in) | 58J |
| Code ME08 | Hybrid drive 75kW-84kW variant (incl. plug-in) | 60J |
| Code U62 | Light and vision package | 67J |
| Code U62 | Light and vision package | 69J |
| Code U62 | Light and vision package | 71J |
| E15/12 | Left rear interior/reading lamp | 71L |
| E15/13 | Right rear interior/reading lamp | 69L |
| E17/57 | Left rear door handle ambiance illumination | 63L |
| E17/58 | Right rear door handle ambiance illumination | 65L |
| E23/3 | Left rear door stowage compartment illumination | 61L |
| E23/4 | Right rear door stowage compartment illumination | 64L |
| M18/10 | Left front backrest seat ventilation motor | 7L |
| M18/10 | Left front backrest seat ventilation motor | 13L |
| M18/10 | Left front backrest seat ventilation motor | 20L |
| M18/10 | Left front backrest seat ventilation motor | 26L |
| M18/11 | Right front seat cushion seat ventilation motor | 3L |
| M18/11 | Right front seat cushion seat ventilation motor | 10L |
| M18/11 | Right front seat cushion seat ventilation motor | 16L |
| M18/11 | Right front seat cushion seat ventilation motor | 23L |
| M18/12 | Right front backrest seat ventilation motor | 6L |
| M18/12 | Right front backrest seat ventilation motor | 12L |
| M18/12 | Right front backrest seat ventilation motor | 19L |
| M18/12 | Right front backrest seat ventilation motor | 25L |
| M18/9 | Left front seat cushion seat ventilation motor | 4L |
| M18/9 | Left front seat cushion seat ventilation motor | 11L |
| M18/9 | Left front seat cushion seat ventilation motor | 17L |
| M18/9 | Left front seat cushion seat ventilation motor | 24L |
| N10 | Central control module | 43L |
| N10 | Central control module | 52L |
| N10 | Central control module | 55L |
| N10 | Central control module | 58L |
| N133/1 | Instrument cluster control unit | 73L |
| N166 | Head unit/instrument cluster control unit | 28L |
| N166 | Head unit/instrument cluster control unit | 33L |
| N25/17 | Front seat heater/seat ventilation control unit | 8L |
| N25/17 | Front seat heater/seat ventilation control unit | 21L |
| N32/1 | Driver seat control unit | 2L |
| N32/1 | Driver seat control unit | 15L |
| N33/5 | High-voltage PTC heater | 45L |
| N33/5 | High-voltage PTC heater | 56L |
| N70 | Overhead control panel control unit | 67L |
| X11/4 | Diagnostic connector | 77L |
| X115/5 | Front center console USB connector | 30L |
| X115/5 | Front center console USB connector | 36L |
| X26/47x1 | Engine wiring harness/engine compartment electrical connector | 59L |
| Z100/2z1 | Wake-up signal connector sleeve | 75A |
| Z61/30z1 | DC motor connector sleeve (potential according to rotation direction) | 3A |
| Z61/30z1 | DC motor connector sleeve (potential according to rotation direction) | 11A |
| Z61/32z1 | DC motor connector sleeve (potential according to rotation direction) | 16A |
| Z61/32z1 | DC motor connector sleeve (potential according to rotation direction) | 24A |
| Z61/5z1 | Ground connection connector sleeve | 30A |
| Z61/5z1 | Ground connection connector sleeve | 39A |
| Z68/24z1 | LIN B8-1 connector sleeve | 47A |
| Z68/24z1 | LIN B8-1 connector sleeve | 55A |
| Z80/6z33 | LIN B39 end sleeve | 63A |
| Z81/15z1 | Circuit 58d connector sleeve | 69A |
