Wiring Diagram Of Soldered Points/Z Connector Sleeves - PE00.19-P-2600-97IDA

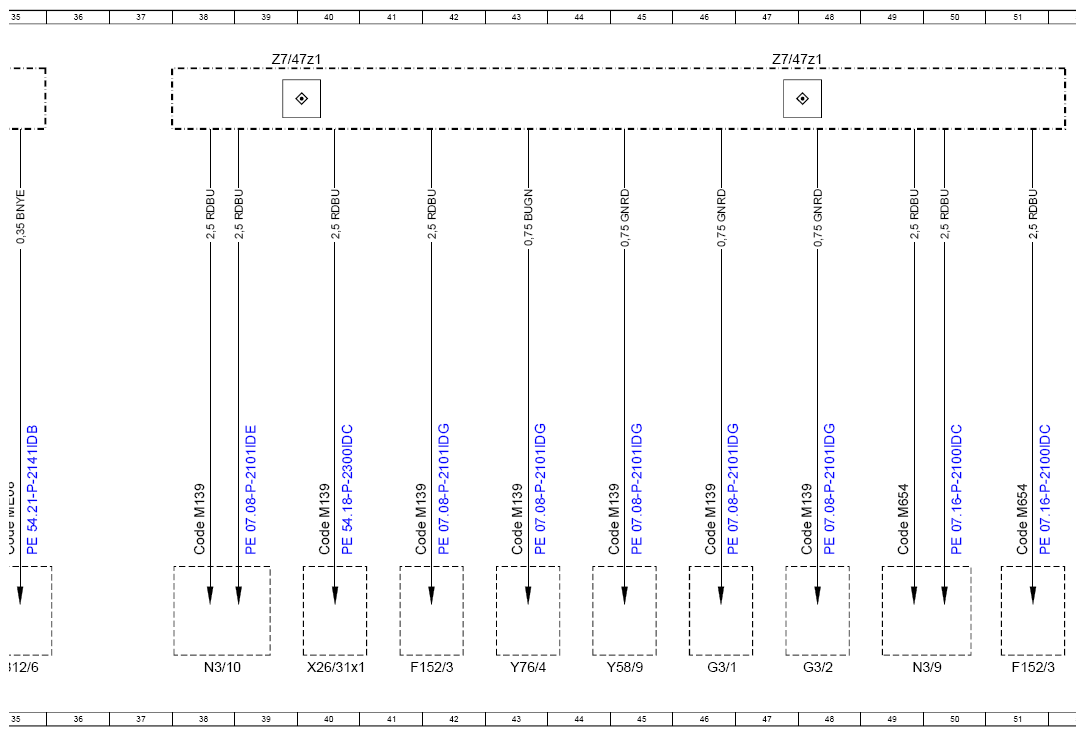

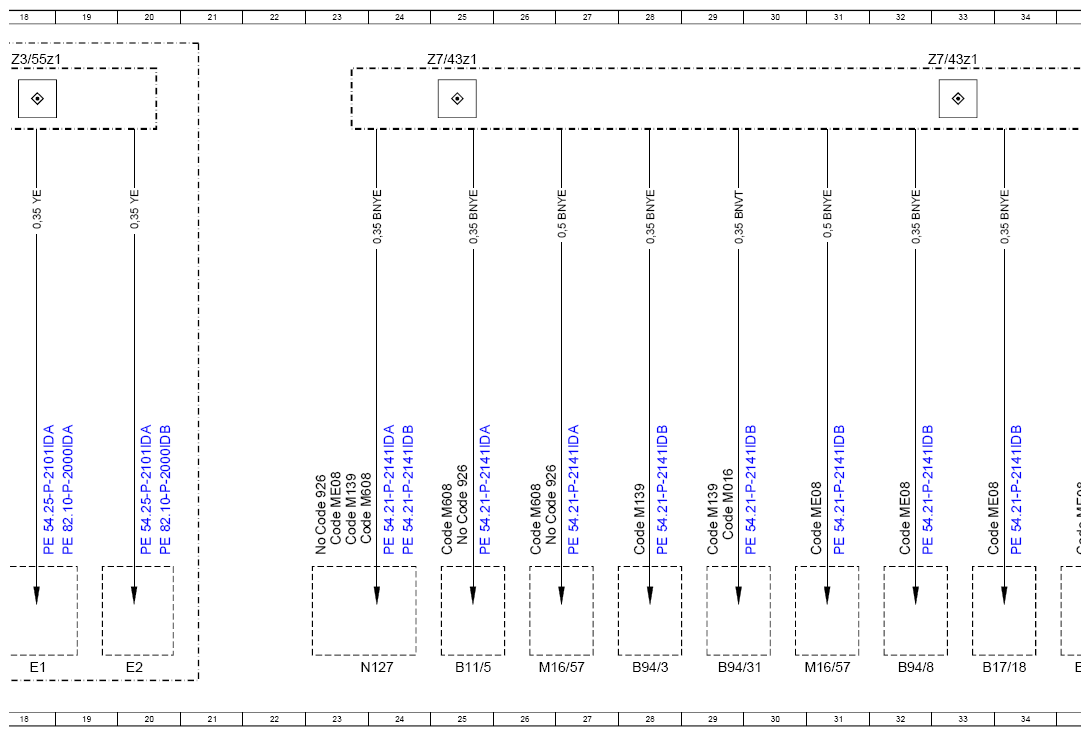

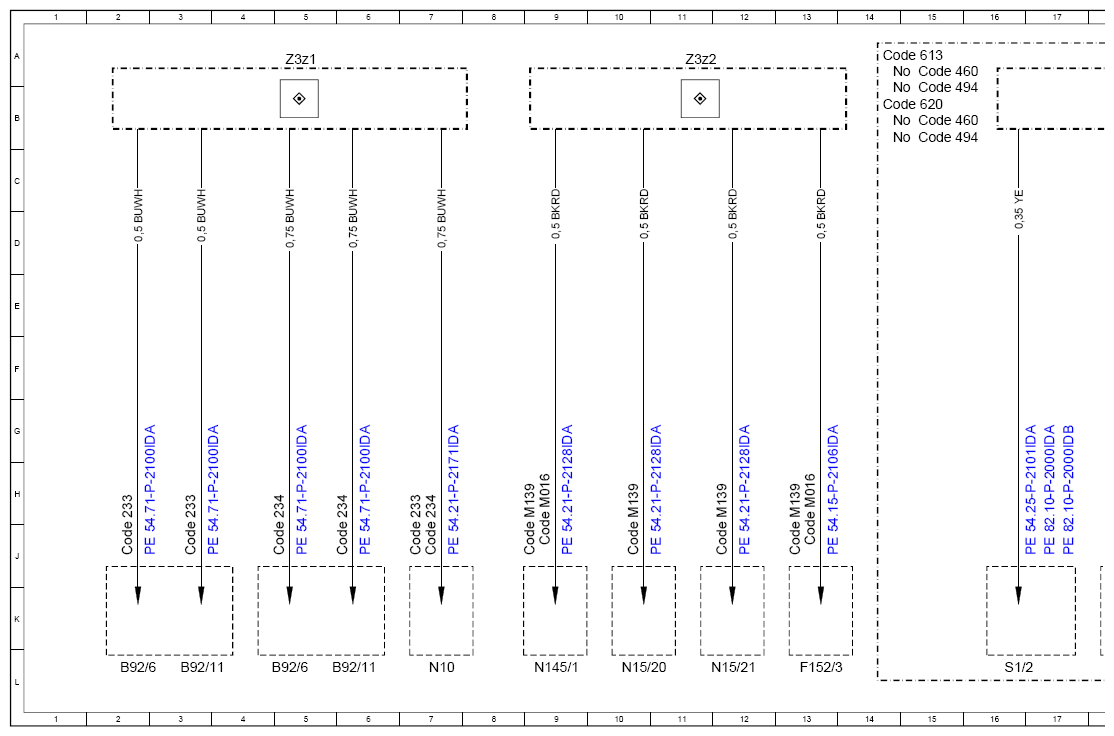

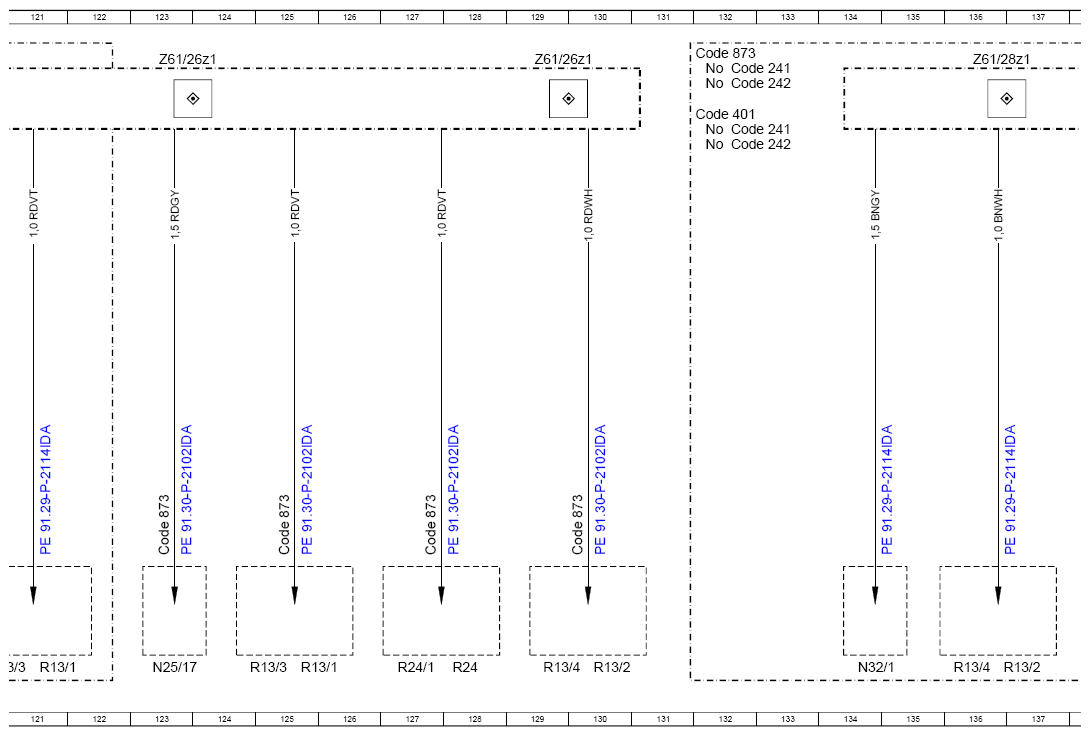

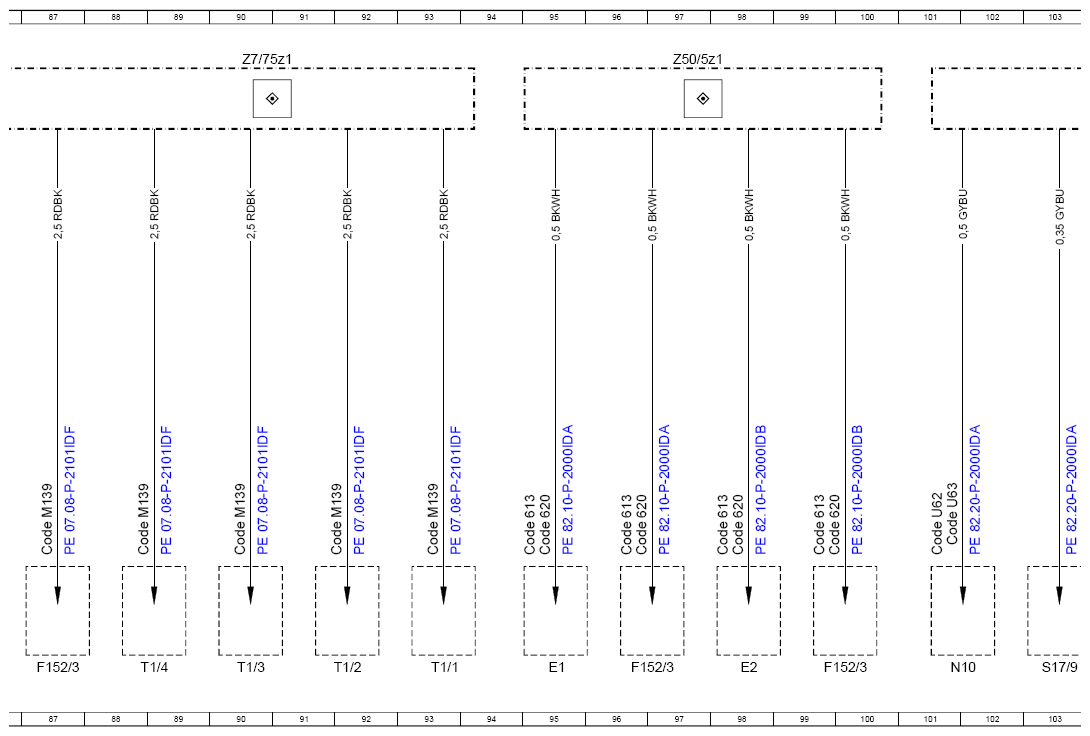

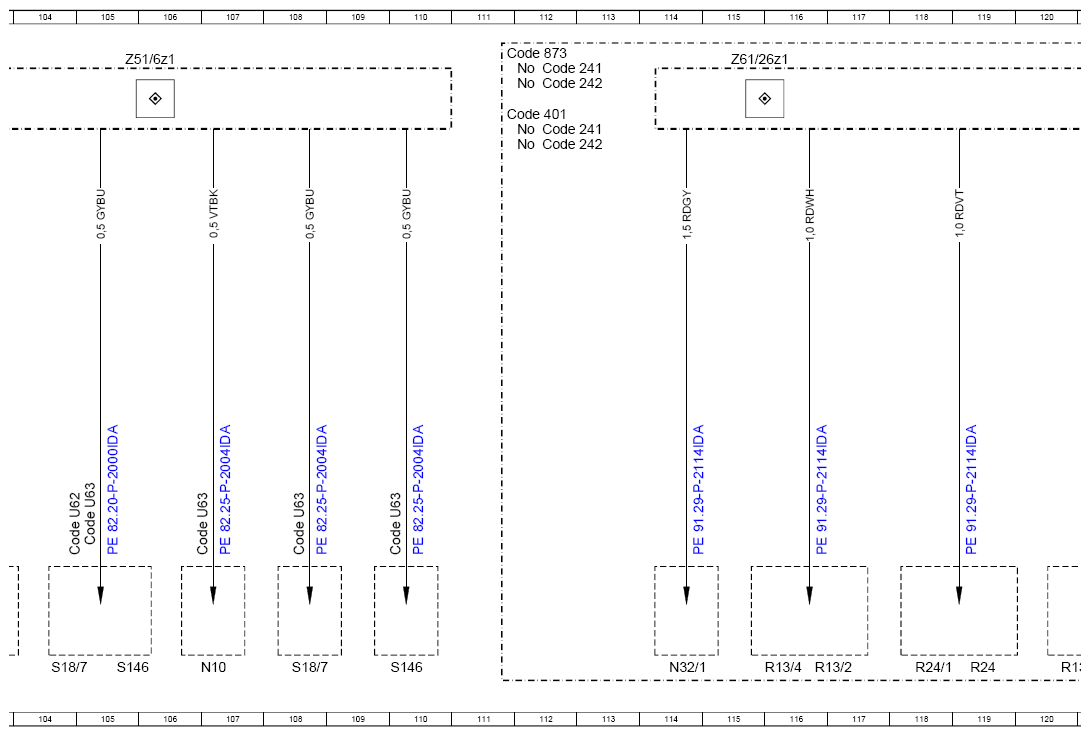

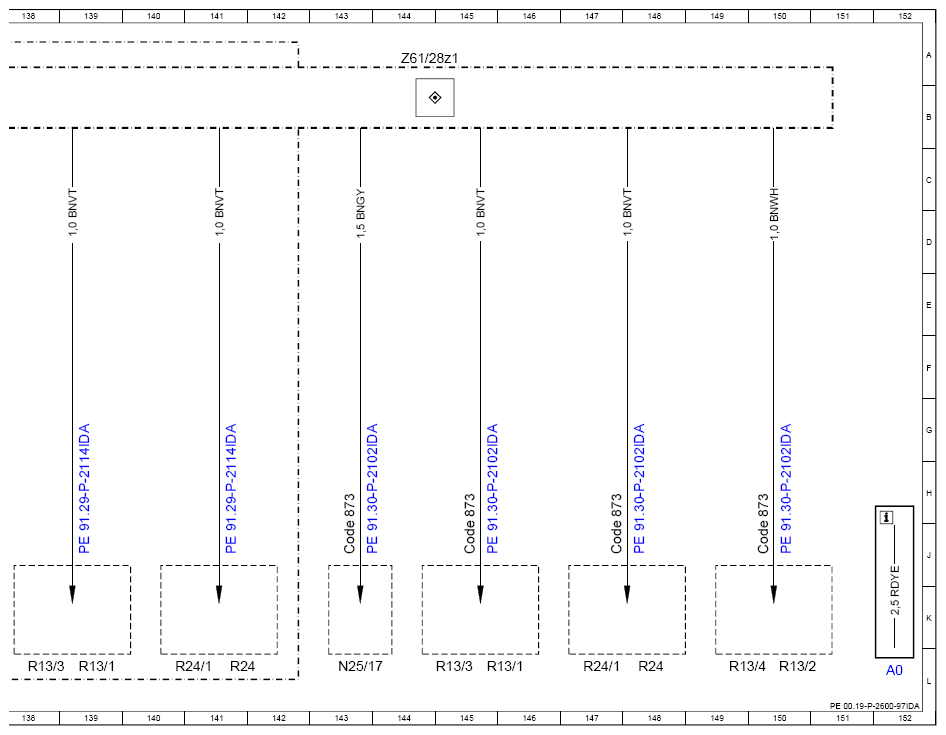

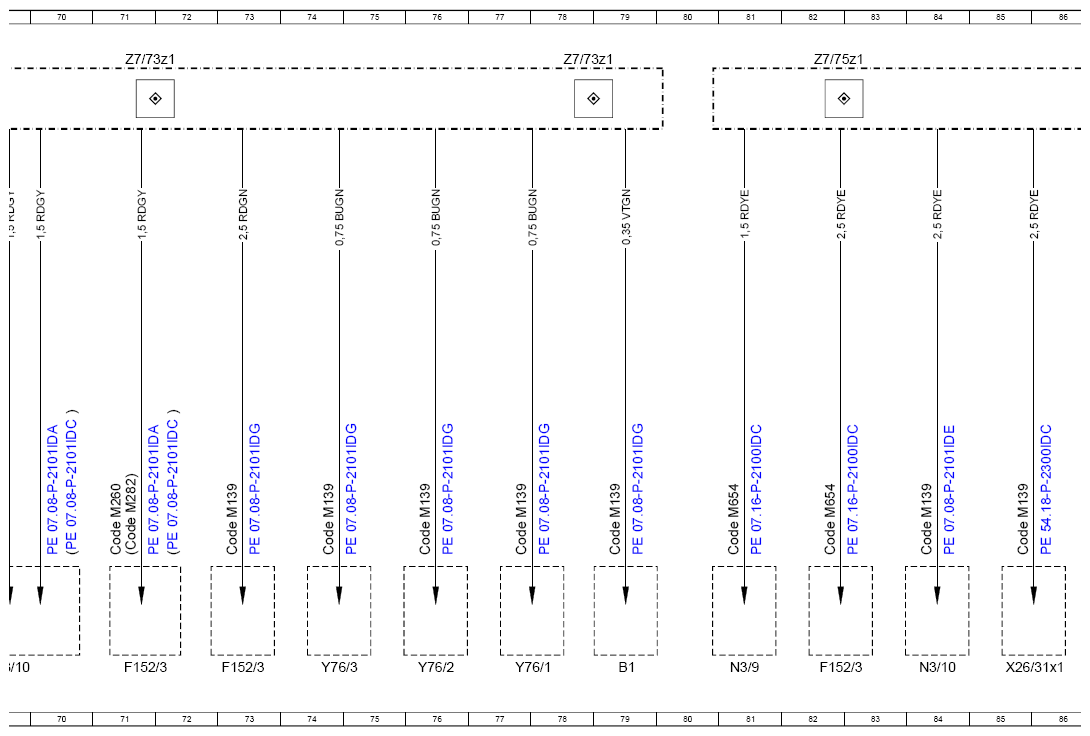

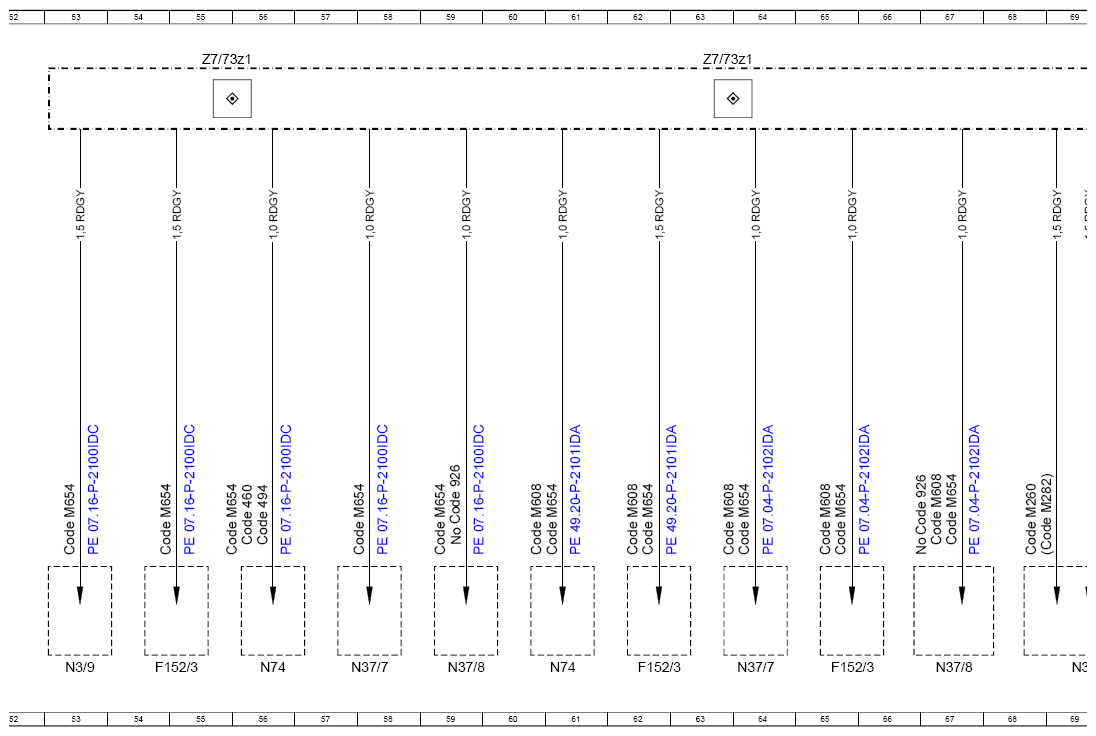

Model 247 Z end sleeves Z3z1, Z3z2, Z3/55z1, Z7/43z1, Z7/47z1, Z7/73z1, Z7/75z1, Z50/5z1, Z51/6z1, Z61/26z1, Z61/28z1
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 152L |
| B1 | Engine oil temperature sensor | 79L |
| B11/5 | Charge air cooler coolant temperature sensor | 25L |
| B12/6 | Suction line pressure sensor | 35L |
| B17/18 | Power electronics cooling circuit temperature sensor | 33L |
| B92/11 | Left outer rear integrated radar sensor | 3L |
| B92/11 | Left outer rear integrated radar sensor | 6L |
| B92/6 | Right outer rear integrated radar sensor | 2L |
| B92/6 | Right outer rear integrated radar sensor | 5L |
| B94/3 | Compressor temperature sensor | 28L |
| B94/31 | Airstream cooling temperature sensor | 29L |
| B94/8 | Battery cooling system temperature sensor | 32L |
| Code 233 | Adaptive cruise control Plus (DISTRONIC PLUS) | 2J |
| Code 233 | Adaptive cruise control Plus (DISTRONIC PLUS) | 3J |
| Code 233 | Adaptive cruise control Plus (DISTRONIC PLUS) | 7J |
| Code 234 | Blind spot assist | 5J |
| Code 234 | Blind spot assist | 6J |
| Code 234 | Blind spot assist | 7J |
| Code 241 | Memory switch for electrically adjustable front passenger seat, left | 112A |
| Code 241 | Memory switch for electrically adjustable front passenger seat, left | 112B |
| Code 241 | Memory switch for electrically adjustable front passenger seat, left | 132A |
| Code 241 | Memory switch for electrically adjustable front passenger seat, left | 132B |
| Code 242 | Electrically adjustable front passenger seat with memory function | 112B |
| Code 242 | Electrically adjustable front passenger seat with memory function | 112C |
| Code 242 | Electrically adjustable front passenger seat with memory function | 132B |
| Code 242 | Electrically adjustable front passenger seat with memory function | 132C |
| Code 401 | Seat climate control for driver and front passenger | 111B |
| Code 401 | Seat climate control for driver and front passenger | 132B |
| Code 460 | Canada version | 15A |
| Code 460 | Canada version | 15B |
| Code 460 | Canada version | 56J |
| Code 494 | USA version | 15B |
| Code 494 | USA version | 15B |
| Code 494 | USA version | 56J |
| Code 613 | Left-hand traffic headlamps | 14A |
| Code 613 | Left-hand traffic headlamps | 95J |
| Code 613 | Left-hand traffic headlamps | 96J |
| Code 613 | Left-hand traffic headlamps | 98J |
| Code 613 | Left-hand traffic headlamps | 99J |
| Code 620 | Right-hand traffic headlamps | 14B |
| Code 620 | Right-hand traffic headlamps | 95J |
| Code 620 | Right-hand traffic headlamps | 96J |
| Code 620 | Right-hand traffic headlamps | 98J |
| Code 620 | Right-hand traffic headlamps | 100J |
| Code 873 | Seat heater for driver and front passenger | 123J |
| Code 873 | Seat heater for driver and front passenger | 111A |
| Code 873 | Seat heater for driver and front passenger | 125J |
| Code 873 | Seat heater for driver and front passenger | 130J |
| Code 873 | Seat heater for driver and front passenger | 143J |
| Code 873 | Seat heater for driver and front passenger | 132A |
| Code 873 | Seat heater for driver and front passenger | 145J |
| Code 873 | Seat heater for driver and front passenger | 150J |
| Code 873 | Seat heater for driver and front passenger | 127J |
| Code 873 | Seat heater for driver and front passenger | 147J |
| Code 926 | Low-emission EURO4 | 25H |
| Code 926 | Low-emission EURO4 | 27H |
| Code 926 | Low-emission EURO4 | 23J |
| Code 926 | Low-emission EURO4 | 59H |
| Code 926 | Low-emission EURO4 | 67J |
| Code M016 | Uprated high-performance engine | 9J |
| Code M016 | Uprated high-performance engine | 13J |
| Code M016 | Uprated high-performance engine | 29J |
| Code M139 | Inline 4-cylinder SPARK-IGNITION ENGINE M139 - AMG | 9J |
| Code M139 | Inline 4-cylinder SPARK-IGNITION ENGINE M139 - AMG | 10J |
| Code M139 | Inline 4-cylinder SPARK-IGNITION ENGINE M139 - AMG | 12J |
| Code M139 | Inline 4-cylinder SPARK-IGNITION ENGINE M139 - AMG | 13J |
| Code M139 | Inline 4-cylinder SPARK-IGNITION ENGINE M139 - AMG | 23J |
| Code M139 | Inline 4-cylinder SPARK-IGNITION ENGINE M139 - AMG | 28J |
| Code M139 | Inline 4-cylinder SPARK-IGNITION ENGINE M139 - AMG | 29J |
| Code M139 | Inline 4-cylinder SPARK-IGNITION ENGINE M139 - AMG | 43J |
| Code M139 | Inline 4-cylinder SPARK-IGNITION ENGINE M139 - AMG | 38J |
| Code M139 | Inline 4-cylinder SPARK-IGNITION ENGINE M139 - AMG | 40J |
| Code M139 | Inline 4-cylinder SPARK-IGNITION ENGINE M139 - AMG | 42J |
| Code M139 | Inline 4-cylinder SPARK-IGNITION ENGINE M139 - AMG | 45J |
| Code M139 | Inline 4-cylinder SPARK-IGNITION ENGINE M139 - AMG | 46J |
| Code M139 | Inline 4-cylinder SPARK-IGNITION ENGINE M139 - AMG | 48J |
| Code M139 | Inline 4-cylinder SPARK-IGNITION ENGINE M139 - AMG | 73J |
| Code M139 | Inline 4-cylinder SPARK-IGNITION ENGINE M139 - AMG | 74J |
| Code M139 | Inline 4-cylinder SPARK-IGNITION ENGINE M139 - AMG | 76J |
| Code M139 | Inline 4-cylinder SPARK-IGNITION ENGINE M139 - AMG | 77J |
| Code M139 | Inline 4-cylinder SPARK-IGNITION ENGINE M139 - AMG | 79J |
| Code M139 | Inline 4-cylinder SPARK-IGNITION ENGINE M139 - AMG | 84J |
| Code M139 | Inline 4-cylinder SPARK-IGNITION ENGINE M139 - AMG | 85J |
| Code M139 | Inline 4-cylinder SPARK-IGNITION ENGINE M139 - AMG | 87J |
| Code M139 | Inline 4-cylinder SPARK-IGNITION ENGINE M139 - AMG | 89J |
| Code M139 | Inline 4-cylinder SPARK-IGNITION ENGINE M139 - AMG | 90J |
| Code M139 | Inline 4-cylinder SPARK-IGNITION ENGINE M139 - AMG | 92J |
| Code M139 | Inline 4-cylinder SPARK-IGNITION ENGINE M139 - AMG | 93J |
| Code M260 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M260 | 68J |
| Code M260 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M260 | 71J |
| Code M282 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M282 | 69J |
| Code M282 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M282 | 71J |
| Code M608 | 4-CYLINDER INLINE DIESEL ENGINE OM608 | 24J |
| Code M608 | 4-CYLINDER INLINE DIESEL ENGINE OM608 | 25J |
| Code M608 | 4-CYLINDER INLINE DIESEL ENGINE OM608 | 26J |
| Code M608 | 4-CYLINDER INLINE DIESEL ENGINE OM608 | 60J |
| Code M608 | 4-CYLINDER INLINE DIESEL ENGINE OM608 | 62J |
| Code M608 | 4-CYLINDER INLINE DIESEL ENGINE OM608 | 64J |
| Code M608 | 4-CYLINDER INLINE DIESEL ENGINE OM608 | 65J |
| Code M608 | 4-CYLINDER INLINE DIESEL ENGINE OM608 | 67J |
| Code M654 | 4-CYLINDER INLINE DIESEL ENGINE OM654 | 49J |
| Code M654 | 4-CYLINDER INLINE DIESEL ENGINE OM654 | 58J |
| Code M654 | 4-CYLINDER INLINE DIESEL ENGINE OM654 | 59J |
| Code M654 | 4-CYLINDER INLINE DIESEL ENGINE OM654 | 61J |
| Code M654 | 4-CYLINDER INLINE DIESEL ENGINE OM654 | 51J |
| Code M654 | 4-CYLINDER INLINE DIESEL ENGINE OM654 | 53J |
| Code M654 | 4-CYLINDER INLINE DIESEL ENGINE OM654 | 55J |
| Code M654 | 4-CYLINDER INLINE DIESEL ENGINE OM654 | 56J |
| Code M654 | 4-CYLINDER INLINE DIESEL ENGINE OM654 | 62J |
| Code M654 | 4-CYLINDER INLINE DIESEL ENGINE OM654 | 64J |
| Code M654 | 4-CYLINDER INLINE DIESEL ENGINE OM654 | 65J |
| Code M654 | 4-CYLINDER INLINE DIESEL ENGINE OM654 | 67J |
| Code M654 | 4-CYLINDER INLINE DIESEL ENGINE OM654 | 81J |
| Code M654 | 4-CYLINDER INLINE DIESEL ENGINE OM654 | 82J |
| Code ME08 | Hybrid drive 75kW-84kW variant (incl. plug-in) | 31J |
| Code ME08 | Hybrid drive 75kW-84kW variant (incl. plug-in) | 32J |
| Code ME08 | Hybrid drive 75kW-84kW variant (incl. plug-in) | 34J |
| Code ME08 | Hybrid drive 75kW-84kW variant (incl. plug-in) | 35J |
| Code ME08 | Hybrid drive 75kW-84kW variant (incl. plug-in) | 23J |
| Code U62 | Light and vision package | 101J |
| Code U62 | Light and vision package | 105J |
| Code U63 | Driving school package | 101J |
| Code U63 | Driving school package | 105J |
| Code U63 | Driving school package | 107J |
| Code U63 | Driving school package | 108J |
| Code U63 | Driving school package | 110J |
| E1 | Left front lamp unit | 18L |
| E1 | Left front lamp unit | 95L |
| E2 | Right front lamp unit | 20L |
| E2 | Right front lamp unit | 98L |
| F152/3 | Engine compartment fuse and relay module | 13L |
| F152/3 | Engine compartment fuse and relay module | 41L |
| F152/3 | Engine compartment fuse and relay module | 54L |
| F152/3 | Engine compartment fuse and relay module | 62L |
| F152/3 | Engine compartment fuse and relay module | 65L |
| F152/3 | Engine compartment fuse and relay module | 51L |
| F152/3 | Engine compartment fuse and relay module | 71L |
| F152/3 | Engine compartment fuse and relay module | 73L |
| F152/3 | Engine compartment fuse and relay module | 82L |
| F152/3 | Engine compartment fuse and relay module | 87L |
| F152/3 | Engine compartment fuse and relay module | 96L |
| F152/3 | Engine compartment fuse and relay module | 99L |
| G3/1 | Oxygen sensor downstream of catalytic converter | 46L |
| G3/2 | Oxygen sensor upstream of catalytic converter | 48L |
| M16/57 | Exhaust flap controller | 26L |
| M16/57 | Exhaust flap controller | 31L |
| N10 | Central control module | 7L |
| N10 | Central control module | 101L |
| N10 | Central control module | 107L |
| N127 | Drivetrain control unit | 24L |
| N145/1 | Drive unit control unit | 9L |
| N15/20 | Left rear axle differential control unit | 10L |
| N15/21 | Right rear axle differential control unit | 12L |
| N25/17 | Front seat heater/seat ventilation control unit | 123L |
| N25/17 | Front seat heater/seat ventilation control unit | 143L |
| N3/10 | ME-SFI [ME] control unit | 38L |
| N3/10 | ME-SFI [ME] control unit | 69L |
| N3/10 | ME-SFI [ME] control unit | 84L |
| N3/9 | CDI control unit | 49L |
| N3/9 | CDI control unit | 53L |
| N3/9 | CDI control unit | 81L |
| N32/1 | Driver seat control unit | 114L |
| N32/1 | Driver seat control unit | 134L |
| N37/7 | Control unit of NOx sensor upstream of SCR catalytic converter | 58L |
| N37/7 | Control unit of NOx sensor upstream of SCR catalytic converter | 64L |
| N37/8 | NOx sensor control unit downstream of SCR catalytic converter | 59L |
| N37/8 | NOx sensor control unit downstream of SCR catalytic converter | 67L |
| N74 | Soot particulate sensor control unit | 56L |
| N74 | Soot particulate sensor control unit | 61L |
| R13/1 | Left front seat cushion heater pad | 121L |
| R13/1 | Left front seat cushion heater pad | 125L |
| R13/1 | Left front seat cushion heater pad | 139L |
| R13/1 | Left front seat cushion heater pad | 145L |
| R13/2 | Left front seat backrest heater pad | 116L |
| R13/2 | Left front seat backrest heater pad | 130L |
| R13/2 | Left front seat backrest heater pad | 137L |
| R13/2 | Left front seat backrest heater pad | 150L |
| R13/3 | Right front seat cushion heater pad | 120L |
| R13/3 | Right front seat cushion heater pad | 125L |
| R13/3 | Right front seat cushion heater pad | 138L |
| R13/3 | Right front seat cushion heater pad | 145L |
| R13/4 | Right front seat backrest heater pad | 116L |
| R13/4 | Right front seat backrest heater pad | 129L |
| R13/4 | Right front seat backrest heater pad | 136L |
| R13/4 | Right front seat backrest heater pad | 149L |
| R24 | Adjustable seat cushion length heater pad, left front seat | 119L |
| R24 | Adjustable seat cushion length heater pad, left front seat | 128L |
| R24 | Adjustable seat cushion length heater pad, left front seat | 141L |
| R24 | Adjustable seat cushion length heater pad, left front seat | 148L |
| R24/1 | Adjustable seat cushion length heater pad, right front seat | 118L |
| R24/1 | Adjustable seat cushion length heater pad, right front seat | 127L |
| R24/1 | Adjustable seat cushion length heater pad, right front seat | 140L |
| R24/1 | Adjustable seat cushion length heater pad, right front seat | 147L |
| S1/2 | Exterior lights and electric parking brake switch group | 16L |
| S146 | Pedal operation monitor switch | 105L |
| S146 | Pedal operation monitor switch | 110L |
| S17/9 | Glove box lamp switch | 103L |
| S18/7 | Footwell illumination switch | 104L |
| S18/7 | Footwell illumination switch | 108L |
| T1/1 | Cylinder 1 ignition coil | 93L |
| T1/2 | Cylinder 2 ignition coil | 92L |
| T1/3 | Cylinder 3 ignition coil | 90L |
| T1/4 | Cylinder 4 ignition coil | 88L |
| X26/31x1 | Engine/engine compartment electrical connector | 40L |
| X26/31x1 | Engine/engine compartment electrical connector | 85L |
| Y58/9 | Fuel tank bleed valve | 45L |
| Y76/1 | Cylinder 1 fuel injector | 77L |
| Y76/2 | Cylinder 2 fuel injector | 76L |
| Y76/3 | Cylinder 3 fuel injector | 74L |
| Y76/4 | Cylinder 4 fuel injector | 43L |
| Z3/55z1 | Voltage supply connector sleeve | 18A |
| Z3z1 | Tml. 15 connector sleeve | 5A |
| Z3z2 | Tml. 15 connector sleeve | 11A |
| Z50/5z1 | Tml. 15 connector sleeve | 97A |
| Z51/6z1 | Circuit 58d connector sleeve | 105A |
| Z61/26z1 | Voltage supply connector sleeve | 115A |
| Z61/26z1 | Voltage supply connector sleeve | 123A |
| Z61/26z1 | Voltage supply connector sleeve | 129A |
| Z61/28z1 | Ground connection connector sleeve | 136A |
| Z61/28z1 | Ground connection connector sleeve | 144A |
| Z7/43z1 | Sensor ground connection connector sleeve | 33A |
| Z7/43z1 | Sensor ground connection connector sleeve | 25A |
| Z7/47z1 | Circuit 87M connector sleeve | 47A |
| Z7/47z1 | Circuit 87M connector sleeve | 39A |
| Z7/73z1 | Circuit 87M connector sleeve | 63A |
| Z7/73z1 | Circuit 87M connector sleeve | 55A |
| Z7/73z1 | Circuit 87M connector sleeve | 71A |
| Z7/73z1 | Circuit 87M connector sleeve | 78A |
| Z7/75z1 | Circuit 87M connector sleeve | 82A |
| Z7/75z1 | Circuit 87M connector sleeve | 90A |
