Wiring Diagram Of Interior CAN - PE00.19-P-2185-97IDA
Model 247

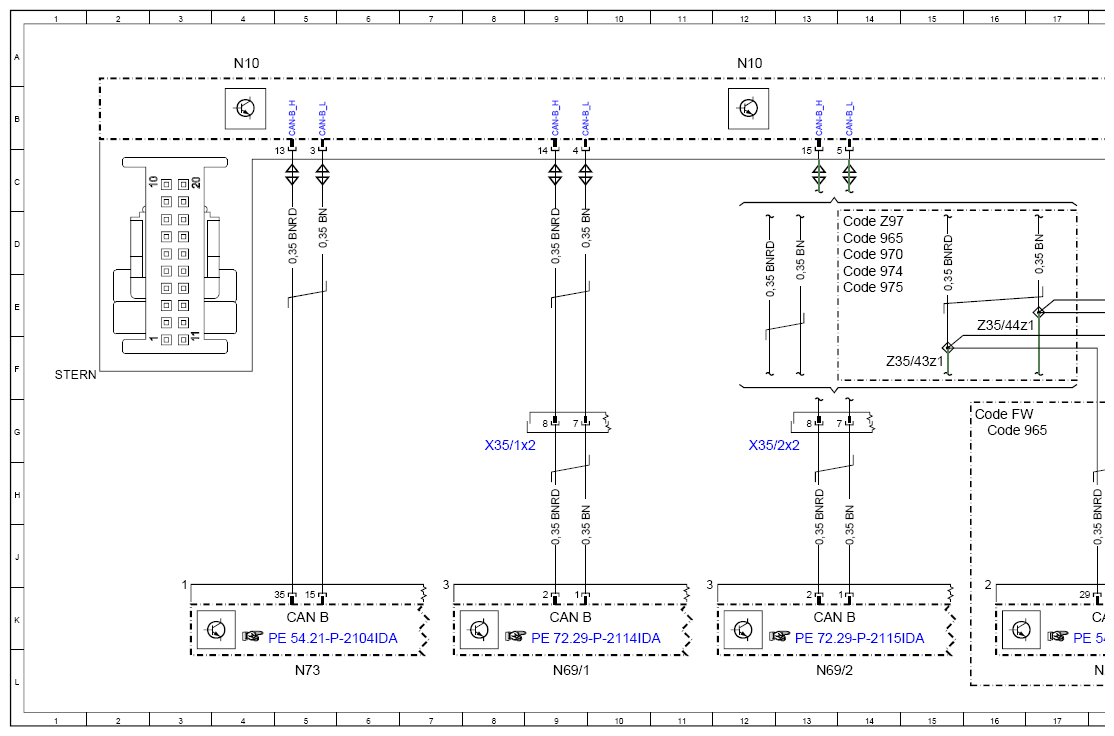

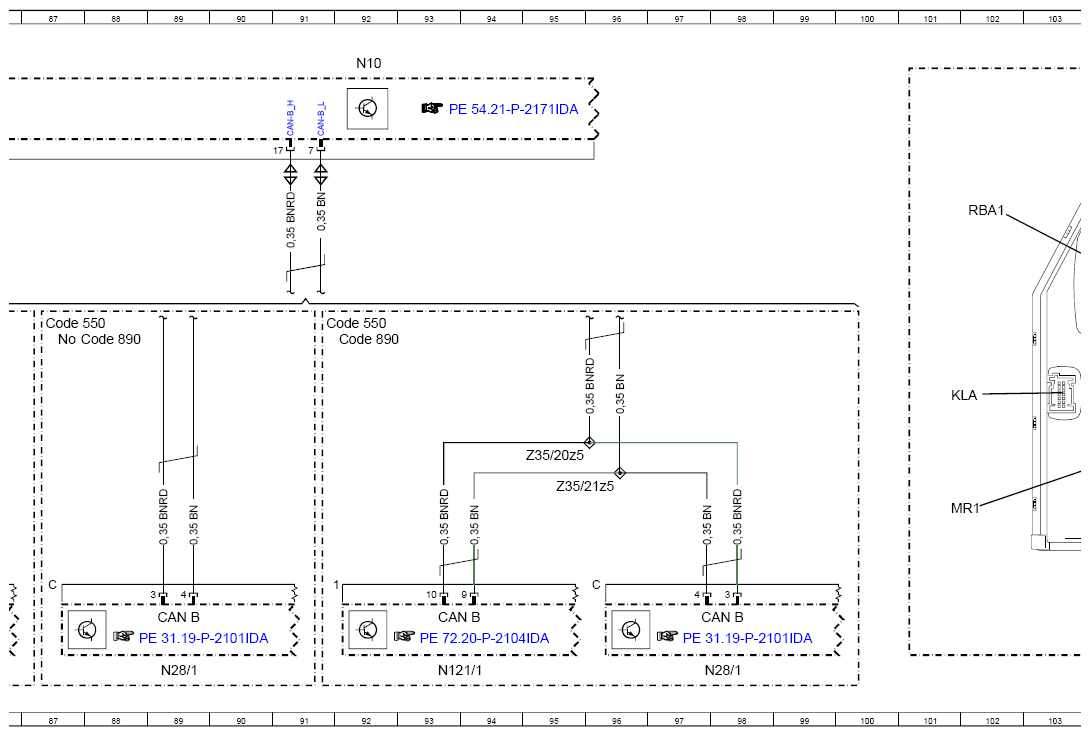

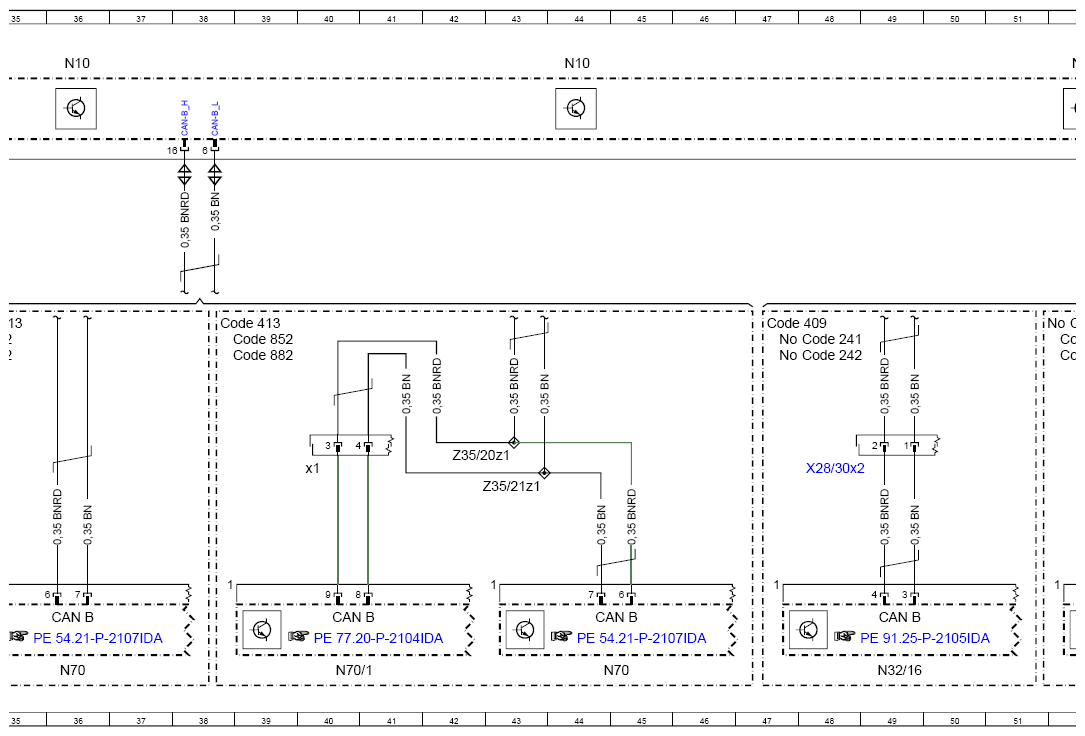

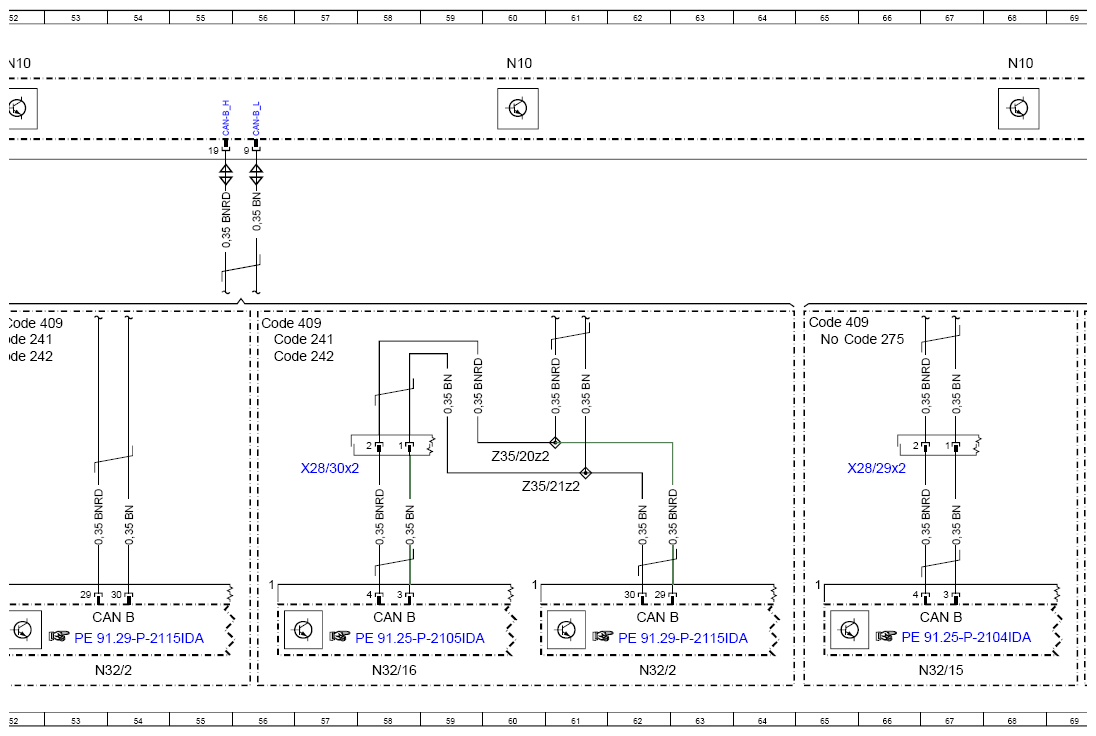

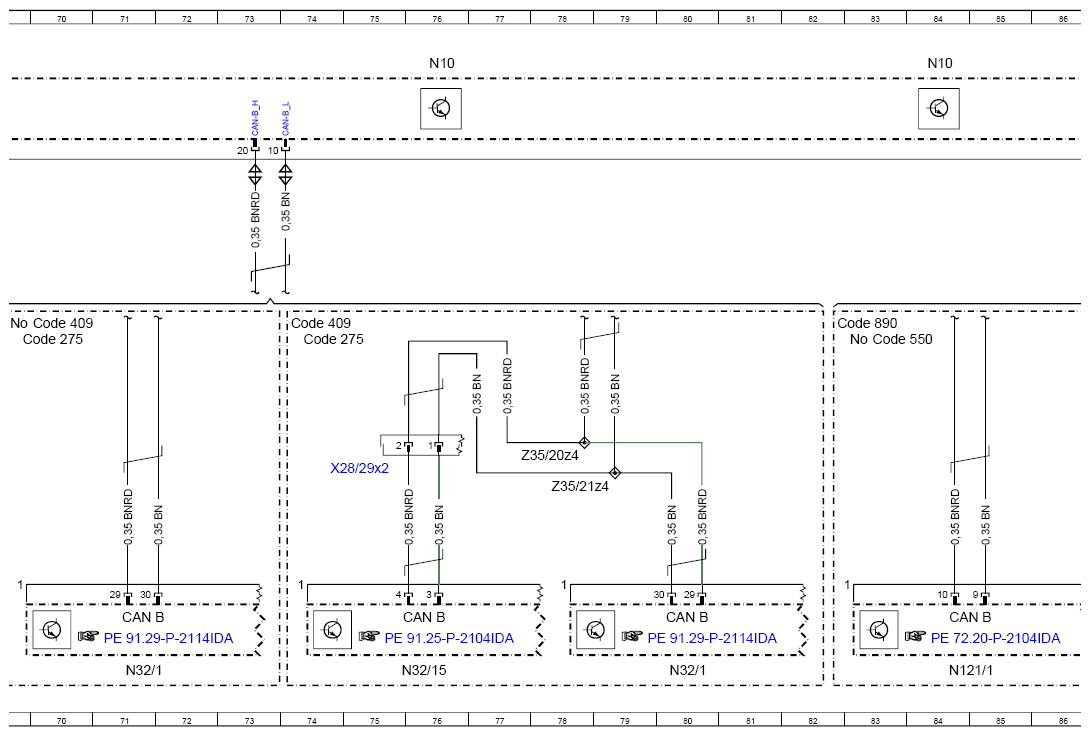

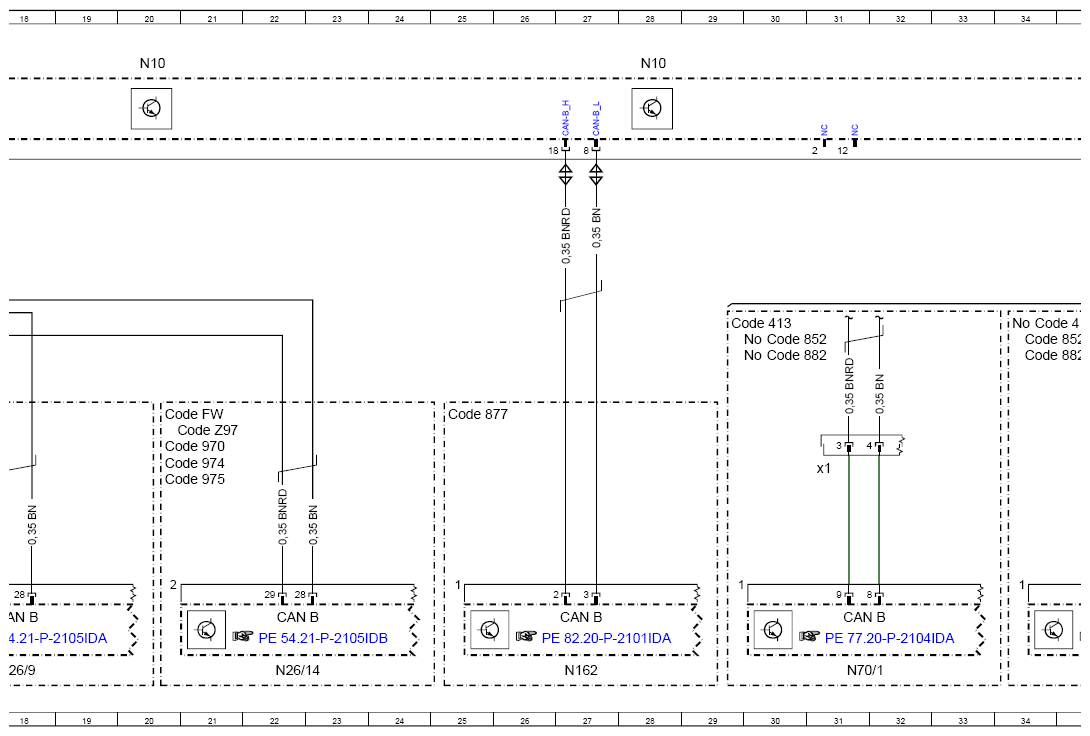

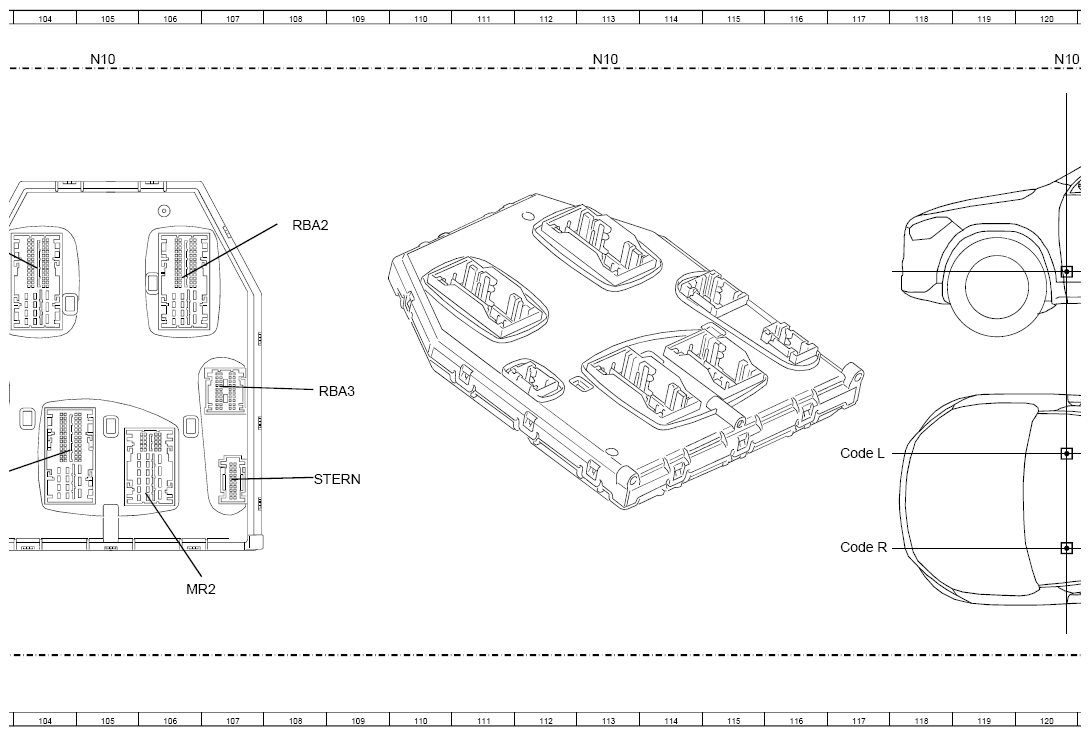

N10 plug STAR (CAN B)

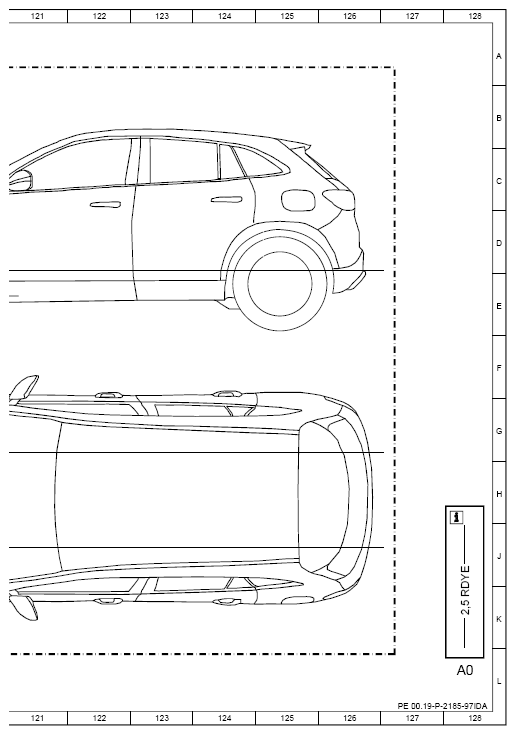

| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 128L |
| CAN B | Interior CAN | 5K |
| CAN B | Interior CAN | 9K |
| CAN B | Interior CAN | 13K |
| CAN B | Interior CAN | 18K |
| CAN B | Interior CAN | 22K |
| CAN B | Interior CAN | 27K |
| CAN B | Interior CAN | 84K |
| CAN B | Interior CAN | 89K |
| CAN B | Interior CAN | 93K |
| CAN B | Interior CAN | 98K |
| CAN B | Interior CAN | 76K |
| CAN B | Interior CAN | 80K |
| CAN B | Interior CAN | 67K |
| CAN B | Interior CAN | 71K |
| CAN B | Interior CAN | 58K |
| CAN B | Interior CAN | 62K |
| CAN B | Interior CAN | 49K |
| CAN B | Interior CAN | 53K |
| CAN B | Interior CAN | 40K |
| CAN B | Interior CAN | 44K |
| CAN B | Interior CAN | 31K |
| CAN B | Interior CAN | 36K |
| Code 241 | Memory switch for electrically adjustable front passenger seat, left | 48F |
| Code 241 | Memory switch for electrically adjustable front passenger seat, left | 56F |
| Code 241 | Memory switch for electrically adjustable front passenger seat, left | 52F |
| Code 242 | Electrically adjustable front passenger seat with memory function | 48F |
| Code 242 | Electrically adjustable front passenger seat with memory function | 56F |
| Code 242 | Electrically adjustable front passenger seat with memory function | 52F |
| Code 275 | Electrically adjustable driver seat with memory function | 65F |
| Code 275 | Electrically adjustable driver seat with memory function | 74F |
| Code 275 | Electrically adjustable driver seat with memory function | 69F |
| Code 409 | Left/right front multicontour seats | 65E |
| Code 409 | Left/right front multicontour seats | 74E |
| Code 409 | Left/right front multicontour seats | 47E |
| Code 409 | Left/right front multicontour seats | 56E |
| Code 409 | Left/right front multicontour seats | 70E |
| Code 409 | Left/right front multicontour seats | 52E |
| Code 413 | Panoramic sliding sunroof | 29E |
| Code 413 | Panoramic sliding sunroof | 38E |
| Code 413 | Panoramic sliding sunroof | 34E |
| Code 550 | Trailer hitch | 83F |
| Code 550 | Trailer hitch | 91E |
| Code 550 | Trailer hitch | 87E |
| Code 852 | Sensor system for anti-theft alarm system (ATA) | 30F |
| Code 852 | Sensor system for anti-theft alarm system (ATA) | 38F |
| Code 852 | Sensor system for anti-theft alarm system (ATA) | 34F |
| Code 877 | Ambiance illumination | 25G |
| Code 882 | Interior monitoring | 30F |
| Code 882 | Interior monitoring | 38F |
| Code 882 | Interior monitoring | 34F |
| Code 890 | EASY-PACK liftgate | 82E |
| Code 890 | EASY-PACK liftgate | 92F |
| Code 890 | EASY-PACK liftgate | 87F |
| Code 965 | Taxi/rental car - Pre-installation | 16G |
| Code 965 | Taxi/rental car - Pre-installation | 14D |
| Code 970 | Police emergency vehicles | 20G |
| Code 970 | Police emergency vehicles | 14D |
| Code 974 | Fire department lead emergency vehicle preinstallation | 20H |
| Code 974 | Fire department lead emergency vehicle preinstallation | 14E |
| Code 975 | Emergency physician vehicle preinstallation | 20H |
| Code 975 | Emergency physician vehicle preinstallation | 14E |
| Code FW | SEDAN | 16G |
| Code FW | SEDAN | 20G |
| Code L | LEFT-HAND DRIVE | 117G |
| Code R | RIGHT-HAND DRIVE | 117J |
| Code Z97 | Electronic interface | 20G |
| Code Z97 | Electronic interface | 14D |
| N10 | Central control module | 4A |
| N10 | Central control module | 12A |
| N10 | Central control module | 36A |
| N10 | Central control module | 52A |
| N10 | Central control module | 60A |
| N10 | Central control module | 76A |
| N10 | Central control module | 20A |
| N10 | Central control module | 28A |
| N10 | Central control module | 113A |
| N10 | Central control module | 120A |
| N10 | Central control module | 105A |
| N10 | Central control module | 44A |
| N10 | Central control module | 68A |
| N10 | Central control module | 84A |
| N10 | Central control module | 92A |
| N121/1 | Trunk lid/liftgate control control unit | 84L |
| N121/1 | Trunk lid/liftgate control control unit | 93L |
| N162 | Ambiance illumination control unit | 27L |
| N26/14 | Special vehicle multifunction control unit (SVMCU [MSS]) | 22L |
| N26/9 | Special-purpose vehicle multifunction control unit | 18L |
| N28/1 | Trailer recognition control unit | 89L |
| N28/1 | Trailer recognition control unit | 98L |
| N32/1 | Driver seat control unit | 80L |
| N32/1 | Driver seat control unit | 71L |
| N32/15 | Driver multicontour seat control unit | 76L |
| N32/15 | Driver multicontour seat control unit | 67L |
| N32/16 | Front passenger multicontour seat control unit | 58L |
| N32/16 | Front passenger multicontour seat control unit | 49L |
| N32/2 | Front passenger seat control unit | 62L |
| N32/2 | Front passenger seat control unit | 53L |
| N69/1 | Driver door control unit | 9L |
| N69/2 | Front passenger door control unit | 13L |
| N70 | Overhead control panel control unit | 45L |
| N70 | Overhead control panel control unit | 36L |
| N70/1 | Panoramic sliding roof control unit | 40L |
| N70/1 | Panoramic sliding roof control unit | 31L |
| N70/1x1 | Panoramic sliding sunroof control unit electrical connector | 40H |
| N70/1x1 | Panoramic sliding sunroof control unit electrical connector | 31H |
| N73 | Electronic ignition switch control unit | 5L |
| X28/29x2 | Frame floor assembly/driver seat electrical connector | 75H |
| X28/29x2 | Frame floor assembly/driver seat electrical connector | 66H |
| X28/30x2 | Frame floor assembly/front passenger seat electrical connector | 57H |
| X28/30x2 | Frame floor assembly/front passenger seat electrical connector | 48H |
| X35/1x2 | Driver door electrical connector | 8G |
| X35/2x2 | Front passenger door electrical connector | 13G |
| Z35/20z1 | Interior CAN (CAN B) high end sleeve 1 | 42G |
| Z35/20z2 | Interior CAN (CAN B) high end sleeve 2 | 60G |
| Z35/20z4 | Interior CAN (CAN B) high end sleeve 4 | 78G |
| Z35/20z5 | Interior CAN (CAN B) high end sleeve 5 | 95G |
| Z35/21z1 | Interior CAN (CAN B) low end sleeve 1 | 43H |
| Z35/21z2 | Interior CAN (CAN B) low end sleeve 2 | 61H |
| Z35/21z4 | Interior CAN (CAN B) low end sleeve 4 | 78H |
| Z35/21z5 | Interior CAN (CAN B) low end sleeve 5 | 96H |
| Z35/43z1 | Interior CAN (CAN B) High connector sleeve | 15F |
| Z35/44z1 | Interior CAN (CAN B) low connector sleeve | 16E |
