Wiring Diagram Of Ground Cabling - PE00.19-P-2800-97IDD
Model 247 Ground points W19, W34, W48, W48/1, W52/19, W78, W78/2
| Code: | Designation: | Position: |
|---|---|---|

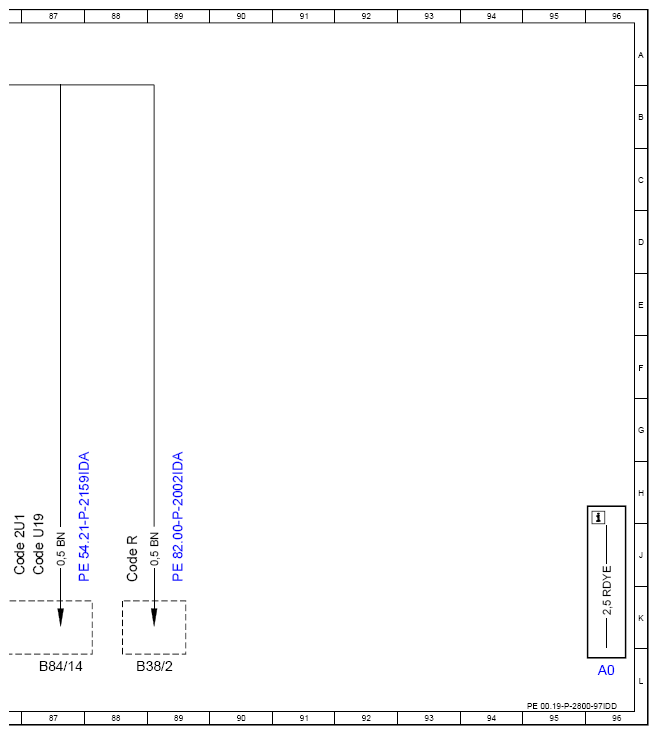

| A0 | Use of wiring diagrams | 96L |
| A100 | High-voltage battery module | 72L |
| A2/17 | Head unit | 42L |
| A2/15 | Cellular telephone system antenna amplifier/compensator | 48L |
| A4/11 | Mono multifunction camera | 77L |
| A4/11 | Mono multifunction camera | 81L |
| A4/12 | Head-up display | 28L |
| A4/16 | Head unit/instrument cluster display cluster | 33L |
| A49 | Two-way radio | 6L |
| A5/2 | Card reader and printer | 8L |
| A5/6 | Dedicated Short-Range Communications control unit | 27L |
| B3/2 | Rain/light sensor with additional functions | 80L |
| B3/2 | Rain/light sensor with additional functions | 88L |
| B8/14 | Augmented reality camera | 75L |
| B8/14 | Augmented reality camera | 87L |
| B8/15 | Hand motion sensor | 73L |
| Code 218 | Backup camera | 40J |
| Code 275 | Electrically adjustable driver seat with memory function | 16J |
| Code 293 | Sidebags in the rear | 57J |
| Code 293 | Sidebags in the rear | 58J |
| Code 293 | Sidebags in the rear | 63J |
| Code 293 | Sidebags in the rear | 64J |
| Code 2U0 | car2go scopes | 31J |
| Code 2U1 | Radiator shutters | 87J |
| Code 362 | HERMES LTE | 30J |
| Code 362 | HERMES LTE | 31J |
| Code 401 | Seat climate control for driver and front passenger | 17J |
| Code 409 | Left/right front multicontour seats | 13J |
| Code 409 | Left/right front multicontour seats | 14J |
| Code 413 | Panoramic sliding sunroof | 83J |
| Code 463 | Head-up display | 28J |
| Code 498 | Japan version | 26J |
| Code 501 | Surround View camera | 40J |
| Code 545 | Connect 5 (NTG6) | 44J |
| Code 547 | Connect 20 Entry (NTG6) | 42J |
| Code 548 | Connect 20 MID (NTG6) | 42J |
| Code 549 | Connect 20 HIGH (NTG6) | 42J |
| Code 567 | Vario rear bench seat | 52J |
| Code 567 | Vario rear bench seat | 57J |
| Code 567 | Vario rear bench seat | 58J |
| Code 567 | Vario rear bench seat | 63J |
| Code 567 | Vario rear bench seat | 64J |
| Code 567 | Vario rear bench seat | 68J |
| Code 567 | Vario rear bench seat | 67J |
| Code 77B | Contactless gesture control at front | 73J |
| Code 847 | 3rd seat row | 53J |
| Code 847 | 3rd seat row | 65J |
| Code 847 | 3rd seat row | 68J |
| Code 847 | 3rd seat row | 67J |
| Code 873 | Seat heater for driver and front passenger | 17J |
| Code 877 | Ambiance illumination | 34J |
| Code 877 | Ambiance illumination | 36J |
| Code 877 | Ambiance illumination | 37J |
| Code 877 | Ambiance illumination | 46J |
| Code 897 | Wireless mobile phone charging | 48J |
| Code 965 | Taxi/rental car - Pre-installation | 6J |
| Code 965 | Taxi/rental car - Pre-installation | 7J |
| Code 965 | Taxi/rental car - Pre-installation | 9J |
| Code L | LEFT-HAND DRIVE | 2J |
| Code L | LEFT-HAND DRIVE | 5J |
| Code L | LEFT-HAND DRIVE | 6J |
| Code L | LEFT-HAND DRIVE | 7J |
| Code L | LEFT-HAND DRIVE | 9J |
| Code L | LEFT-HAND DRIVE | 12J |
| Code L | LEFT-HAND DRIVE | 15J |
| Code L | LEFT-HAND DRIVE | 22J |
| Code L | LEFT-HAND DRIVE | 25J |
| Code L | LEFT-HAND DRIVE | 25J |
| Code L | LEFT-HAND DRIVE | 28J |
| Code L | LEFT-HAND DRIVE | 30J |
| Code L | LEFT-HAND DRIVE | 33J |
| Code L | LEFT-HAND DRIVE | 39J |
| Code L | LEFT-HAND DRIVE | 41J |
| Code L | LEFT-HAND DRIVE | 44J |
| Code L | LEFT-HAND DRIVE | 50J |
| Code L | LEFT-HAND DRIVE | 77J |
| Code L | LEFT-HAND DRIVE | 78J |
| Code L | LEFT-HAND DRIVE | 80J |
| Code L | LEFT-HAND DRIVE | 86J |
| Code ME08 | Hybrid drive 75kW-84kW variant (incl. plug-in) | 70J |
| Code R | RIGHT-HAND DRIVE | 3J |
| Code R | RIGHT-HAND DRIVE | 10J |
| Code R | RIGHT-HAND DRIVE | 13J |
| Code R | RIGHT-HAND DRIVE | 16J |
| Code R | RIGHT-HAND DRIVE | 19J |
| Code R | RIGHT-HAND DRIVE | 21J |
| Code R | RIGHT-HAND DRIVE | 24J |
| Code R | RIGHT-HAND DRIVE | 27J |
| Code R | RIGHT-HAND DRIVE | 31J |
| Code R | RIGHT-HAND DRIVE | 35J |
| Code R | RIGHT-HAND DRIVE | 47J |
| Code R | RIGHT-HAND DRIVE | 75J |
| Code R | RIGHT-HAND DRIVE | 85J |
| Code R | RIGHT-HAND DRIVE | 88J |
| Code U01 | Rear seat belt status indicator in instrument cluster | 51J |
| Code U01 | Rear seat belt status indicator in instrument cluster | 67J |
| Code U01 | Rear seat belt status indicator in instrument cluster | 66J |
| Code U19 | Augmented Reality | 75J |
| Code U19 | Augmented Reality | 87J |
| Code U22 | 4-way lumbar support | 10J |
| Code U22 | 4-way lumbar support | 11J |
| Code U62 | Light and vision package | 45J |
| Code U63 | Driving school package | 46J |
| E1/16 | Left front footwell lamp | 46L |
| M7/10 | High-voltage battery coolant pump | 71L |
| N11/9 | HERMES control unit | 30L |
| N162 | Ambiance illumination control unit | 35L |
| N166 | Head unit/instrument cluster control unit | 44L |
| N2/17 | Front seat heater/seat ventilation control unit | 17L |
| N2/10 | Carsharing control unit | 32L |
| N2/5 | Electric steering lock control unit | 25L |
| N3/1 | Driver seat control unit | 19L |
| N3/15 | Driver multicontour seat control unit | 13L |
| N3/16 | Front passenger multicontour seat control unit | 15L |
| N3/2 | Front passenger seat control unit | 2L |
| N3/23 | Driver's seat lumbar support electropneumatic controller unit | 10L |
| N3/24 | Front passenger seat lumbar support electropneumatic controller unit | 12L |
| N66/2 | Backup camera control unit | 40L |
| N70 | Overhead control panel control unit | 78L |
| N70 | Overhead control panel control unit | 85L |
| N7/1 | Panoramic sliding roof control unit | 83L |
| N73 | Electronic ignition switch control unit | 24L |
| R1/10 | Front passenger sidebag squib | 5L |
| R1/11 | Left rear sidebag squib | 57L |
| R1/12 | Right rear sidebag squib | 63L |
| R1/9 | Driver sidebag squib | 3L |
| S15/1 | Right 2nd seat row easy entry/exit switch | 66L |
| S15/2 | Left 2nd seat row easy entry/exit switch | 53L |
| S/2 | Start/stop button with ECO start/stop function button | 25L |
| S6/11 | Left rear seat belt buckle switch | 54L |
| S6/12 | Right rear seat belt buckle switch | 68L |
| S6/13 | Center and right rear passenger compartment seat belt buckles | 52L |
| S6/14 | Center rear seat belt buckle switch | 55L |

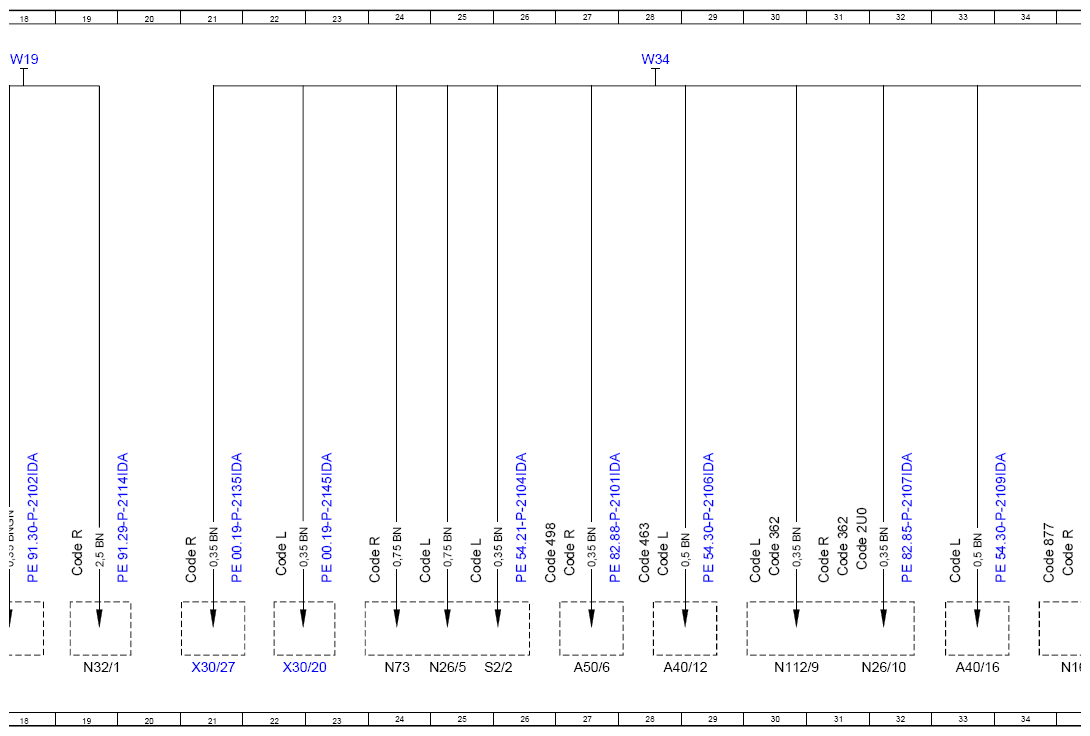

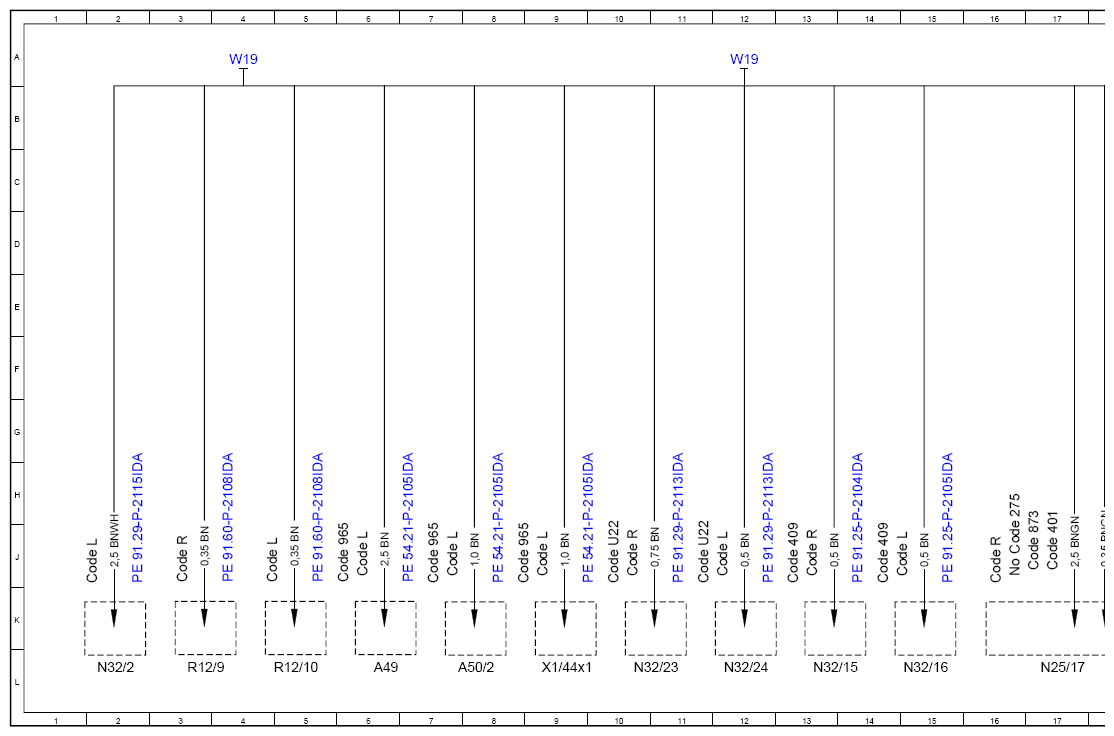

| W19 | Right front seat crossmember ground point | 4A |
| W19 | Right front seat crossmember ground point | 12A |
| W19 | Right front seat crossmember ground point | 18A |

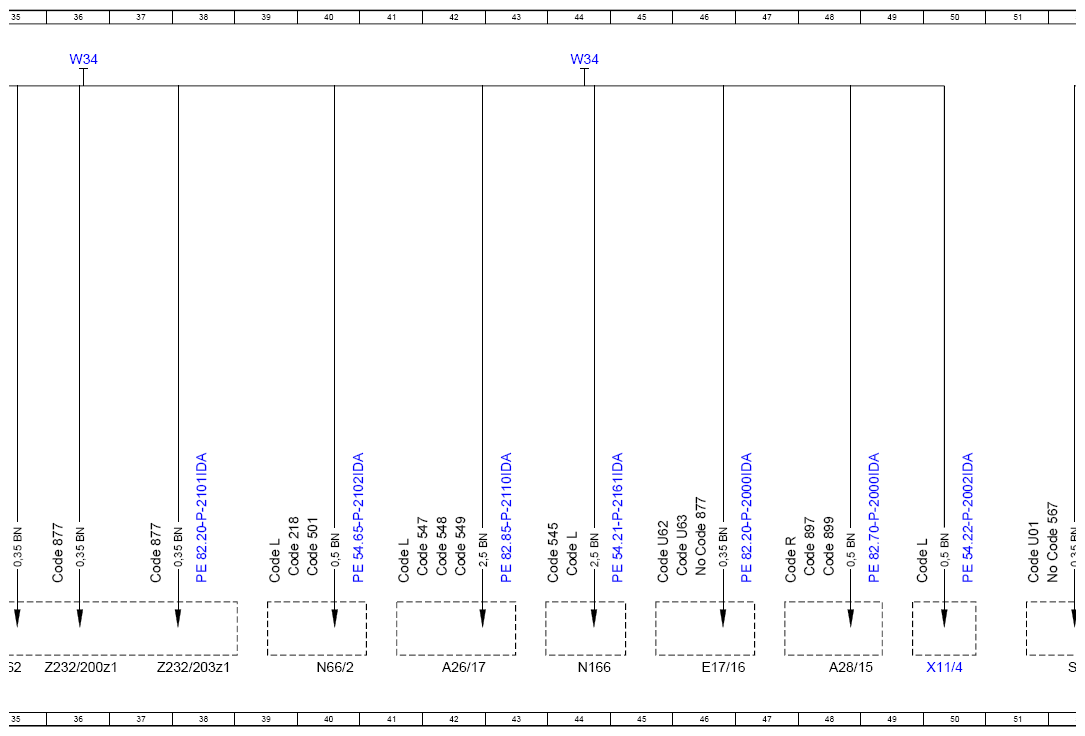

| W34 | Left footwell ground point | 28A |
| W34 | Left footwell ground point | 36A |
| W34 | Left footwell ground point | 44A |

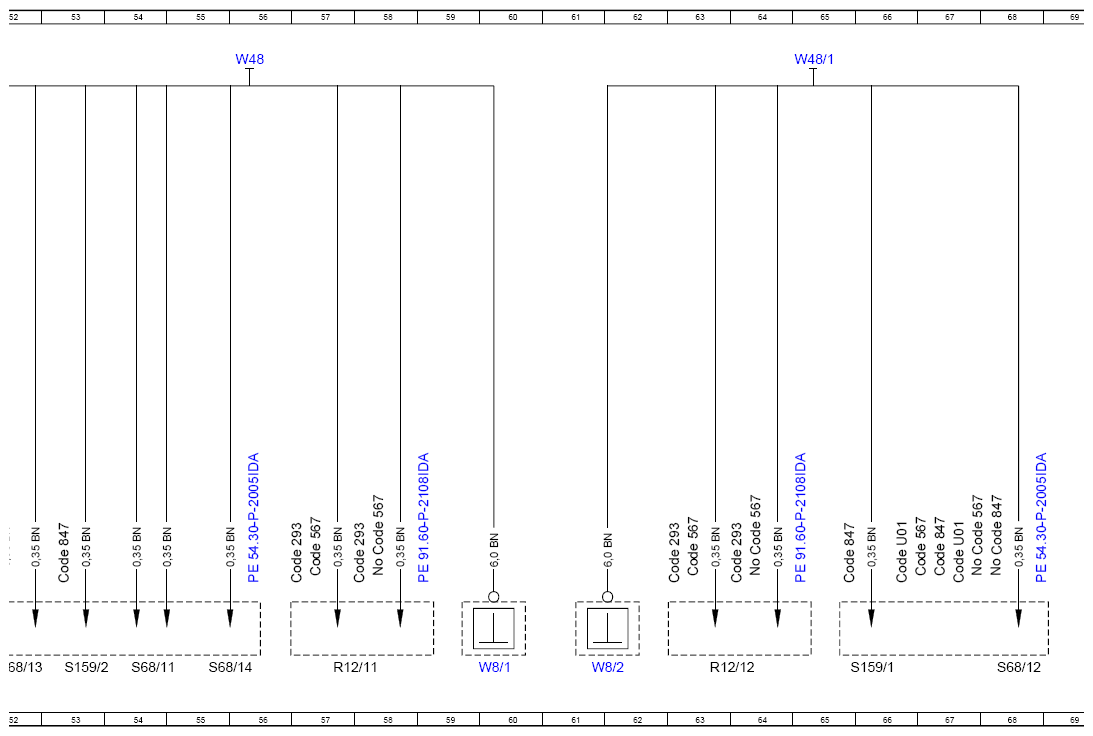

| W48 | Left rear roof frame ground point | 56A |
| W4/1 | Right rear roof frame ground point | 65A |

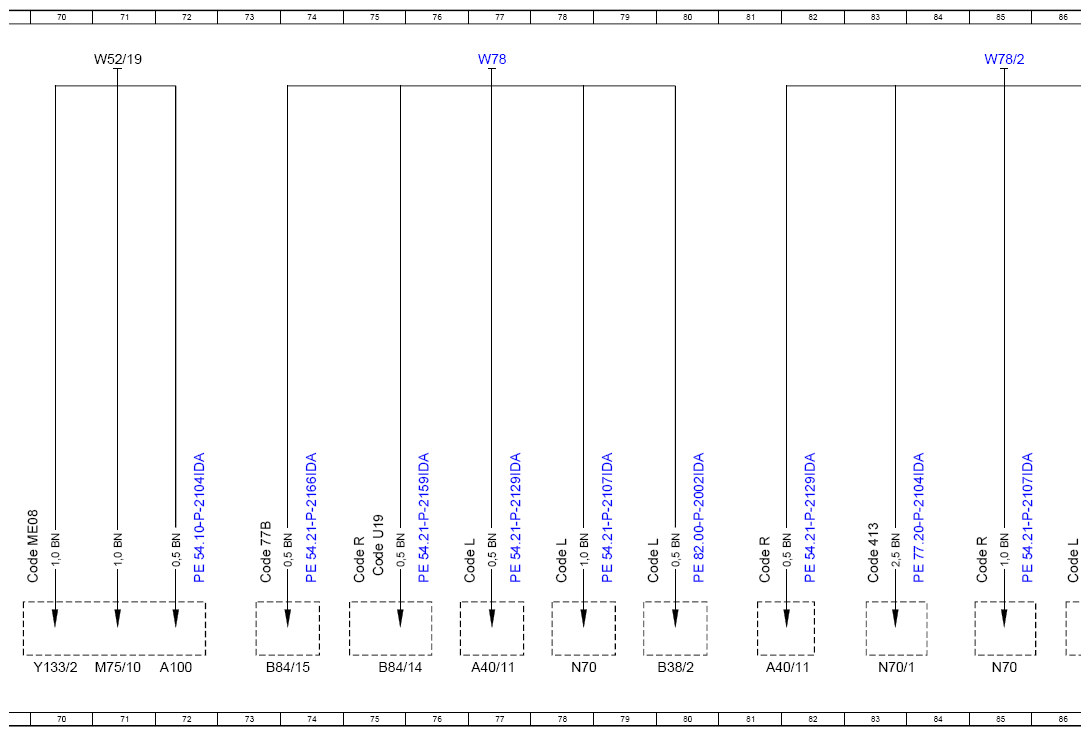

| W5/19 | Underbody longitudinal member ground point | 71A |
| W78 | Roof ground point 1 | 77A |
| W7/2 | Roof ground point 2 | 85A |
| W/1 | Left tailgate ground point | 60L |
| W/2 | Right tailgate ground point | 61L |
| X1/44x1 | Taxi peripheral device electrical connector | 9L |
| X1/4 | Diagnostic connector | 50L |
| X30/20 | User interface CAN (CAN HMI) potential distributor | 22L |
| X30/27 | Peripherals CAN (CAN PER) potential distributor electrical connector | 21L |
| Y133/2 | Battery coolant pump switchover valve | 70L |
| Z232/200z1 | Ground connection connector sleeve | 36L |
| Z232/203z1 | Ground connection connector sleeve | 38L |
