Wiring Diagram Of Ground Cabling - PE00.19-P-2800-97IDC
Model 247 Ground points W15, W15/5, W15/7, W18
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 129L |
| A26/17 | Head unit | 22L |
| A28/15 | Cellular telephone system antenna amplifier/compensator | 24L |
| A32 | AC housing | 59L |
| A32 | AC housing | 85L |
| A40/12 | Head-up display | 11L |
| A40/16 | Head unit/instrument cluster display cluster | 9L |
| A50/6 | Dedicated Short-Range Communications control unit | 108L |
| A6/1 | Stationary heater radio remote control receiver | 61L |
| A6/1 | Stationary heater radio remote control receiver | 74L |
| A76 | Left front reversible emergency tensioning retractor | 50L |
| A76/1 | Right front reversible emergency tensioning retractor | 89L |
| Code 218 | Backup camera | 28J |
| Code 228 | Stationary heater | 60J |
| Code 233 | Adaptive cruise control Plus (DISTRONIC PLUS) | 18J |
| Code 235 | Park-Pilot with PARKTRONIC | 28J |
| Code 235 | Park-Pilot with PARKTRONIC | 42J |
| Code 275 | Electrically adjustable driver seat with memory function | 110J |
| Code 275 | Electrically adjustable driver seat with memory function | 116J |
| Code 299 | PRE-SAFE® system | 50J |
| Code 299 | PRE-SAFE® system | 89J |
| Code 2U0 | car2go scopes | 7J |
| Code 362 | HERMES LTE | 12J |
| Code 401 | Seat climate control for driver and front passenger | 116J |
| Code 409 | Left/right front multicontour seats | 122J |
| Code 409 | Left/right front multicontour seats | 120J |
| Code 426 | 8G-DCT | 97J |
| Code 429 | 7G-DCT | 98J |
| Code 463 | Head-up display | 10J |
| Code 475 | Tire pressure monitor | 38J |
| Code 545 | Connect 5 (NTG6) | 26J |
| Code 547 | Connect 20 Entry (NTG6) | 21J |
| Code 547 | Connect 20 Entry (NTG6) | 47J |
| Code 548 | Connect 20 MID (NTG6) | 21J |
| Code 548 | Connect 20 MID (NTG6) | 48J |
| Code 549 | Connect 20 HIGH (NTG6) | 22J |
| Code 549 | Connect 20 HIGH (NTG6) | 48J |
| Code 579 | Single-zone air conditioning | 57J |
| Code 580 | Air conditioning | 99J |
| Code 581 | Automatic air conditioning | 100J |
| Code 835 | Additional parts for South Korea vehicles | 108J |
| Code 873 | Seat heater for driver and front passenger | 116J |
| Code 877 | Ambiance illumination | 70J |
| Code 877 | Ambiance illumination | 76J |
| Code 877 | Ambiance illumination | 32J |
| Code 897 | Wireless mobile phone charging | 24J |
| Code 899 | Wireless phone charging at front and antenna | 24J |
| Code 965 | Taxi/rental car - Pre-installation | 65J |
| Code B24 | Remote control for stationary heater | 61J |
| Code B24 | Remote control for stationary heater | 73J |
| Code B24 | Remote control for stationary heater | 87J |
| Code L | LEFT-HAND DRIVE | 3J |
| Code L | LEFT-HAND DRIVE | 34J |
| Code L | LEFT-HAND DRIVE | 7J |
| Code L | LEFT-HAND DRIVE | 16J |
| Code L | LEFT-HAND DRIVE | 18J |
| Code L | LEFT-HAND DRIVE | 23J |
| Code L | LEFT-HAND DRIVE | 46J |
| Code L | LEFT-HAND DRIVE | 52J |
| Code L | LEFT-HAND DRIVE | 63J |
| Code L | LEFT-HAND DRIVE | 69J |
| Code L | LEFT-HAND DRIVE | 74J |
| Code L | LEFT-HAND DRIVE | 76J |
| Code L | LEFT-HAND DRIVE | 80J |
| Code L | LEFT-HAND DRIVE | 81J |
| Code L | LEFT-HAND DRIVE | 85J |
| Code L | LEFT-HAND DRIVE | 90J |
| Code L | LEFT-HAND DRIVE | 96J |
| Code L | LEFT-HAND DRIVE | 99J |
| Code L | LEFT-HAND DRIVE | 105J |
| Code L | LEFT-HAND DRIVE | 107J |
| Code L | LEFT-HAND DRIVE | 110J |
| Code L | LEFT-HAND DRIVE | 112J |
| Code L | LEFT-HAND DRIVE | 115J |
| Code L | LEFT-HAND DRIVE | 120J |
| Code L | LEFT-HAND DRIVE | 124J |
| Code ME08 | Hybrid drive 75kW-84kW variant (incl. plug-in) | 14J |
| Code R | RIGHT-HAND DRIVE | 2J |
| Code R | RIGHT-HAND DRIVE | 4J |
| Code R | RIGHT-HAND DRIVE | 5J |
| Code R | RIGHT-HAND DRIVE | 9J |
| Code R | RIGHT-HAND DRIVE | 11J |
| Code R | RIGHT-HAND DRIVE | 12J |
| Code R | RIGHT-HAND DRIVE | 21J |
| Code R | RIGHT-HAND DRIVE | 26J |
| Code R | RIGHT-HAND DRIVE | 27J |
| Code R | RIGHT-HAND DRIVE | 30J |
| Code R | RIGHT-HAND DRIVE | 36J |
| Code R | RIGHT-HAND DRIVE | 40J |
| Code R | RIGHT-HAND DRIVE | 53J |
| Code R | RIGHT-HAND DRIVE | 57J |
| Code R | RIGHT-HAND DRIVE | 61J |
| Code R | RIGHT-HAND DRIVE | 67J |
| Code R | RIGHT-HAND DRIVE | 72J |
| Code R | RIGHT-HAND DRIVE | 78J |
| Code R | RIGHT-HAND DRIVE | 83J |
| Code R | RIGHT-HAND DRIVE | 92J |
| Code R | RIGHT-HAND DRIVE | 94J |
| Code R | RIGHT-HAND DRIVE | 114J |
| Code R | RIGHT-HAND DRIVE | 118J |
| Code R | RIGHT-HAND DRIVE | 122J |
| Code R | RIGHT-HAND DRIVE | 126J |
| Code U22 | 4-way lumbar support | 126J |
| Code U22 | 4-way lumbar support | 124J |
| Code U25 | Illuminated door sills | 44J |
| Code U25 | Illuminated door sills | 102J |
| Code U62 | Light and vision package | 70J |
| Code U63 | Driving school package | 81J |
| E13/1 | Glove box lamp | 67L |
| E13/1 | Glove box lamp | 69L |
| E17/15 | Right front footwell lamp | 70L |
| E17/47 | Left front illuminated door sill molding | 44L |
| E17/48 | Right front illuminated door sill molding | 102L |
| F152/4 | Vehicle interior fuse and relay module | 36L |
| F152/4 | Vehicle interior fuse and relay module | 106L |
| G1/7 | Additional battery | 98L |
| H15 | Pedal operation monitor buzzer | 82L |
| N10 | Central control module | 40L |
| N10 | Central control module | 80L |
| N112/9 | HERMES control unit | 12L |
| N118 | Fuel pump control unit | 104L |
| N133/1 | Instrument cluster control unit | 48L |
| N162 | Ambiance illumination control unit | 76L |
| N166 | Head unit/instrument cluster control unit | 26L |
| N25/17 | Front seat heater/seat ventilation control unit | 116L |
| N26/10 | Carsharing control unit | 7L |
| N26/5 | Electric steering lock control unit | 4L |
| N32/1 | Driver seat control unit | 110L |
| N32/15 | Driver multicontour seat control unit | 120L |
| N32/16 | Front passenger multicontour seat control unit | 122L |
| N32/2 | Front passenger seat control unit | 118L |
| N32/23 | Driver's seat lumbar support electropneumatic controller unit | 124L |
| N32/24 | Front passenger seat lumbar support electropneumatic controller unit | 127L |
| N58/1 | Climate control operating unit | 58L |
| N58/1 | Climate control operating unit | 100L |
| N62 | Parking system control unit | 42L |
| N62/4 | Mercedes-Benz Intelligent Drive control unit | 18L |
| N69/1 | Driver door control unit | 52L |
| N69/1 | Driver door control unit | 92L |
| N69/2 | Front passenger door control unit | 54L |
| N69/2 | Front passenger door control unit | 91L |
| N69/3 | Left rear door control unit | 55L |
| N69/4 | Right rear door control unit | 94L |
| N73 | Electronic ignition switch control unit | 4L |
| N80 | Steering column module control unit | 46L |
| N80 | Steering column module control unit | 83L |
| N88 | Tire pressure monitor control unit | 38L |
| R12/10 | Front passenger sidebag squib | 114L |
| R12/9 | Driver sidebag squib | 112L |
| S2/2 | Start/stop button with ECO start/stop function button | 5L |
| S2/2 | Start/stop button with ECO start/stop function button | 34L |
| S2/2 | Start/stop button with ECO start/stop function button | 78L |

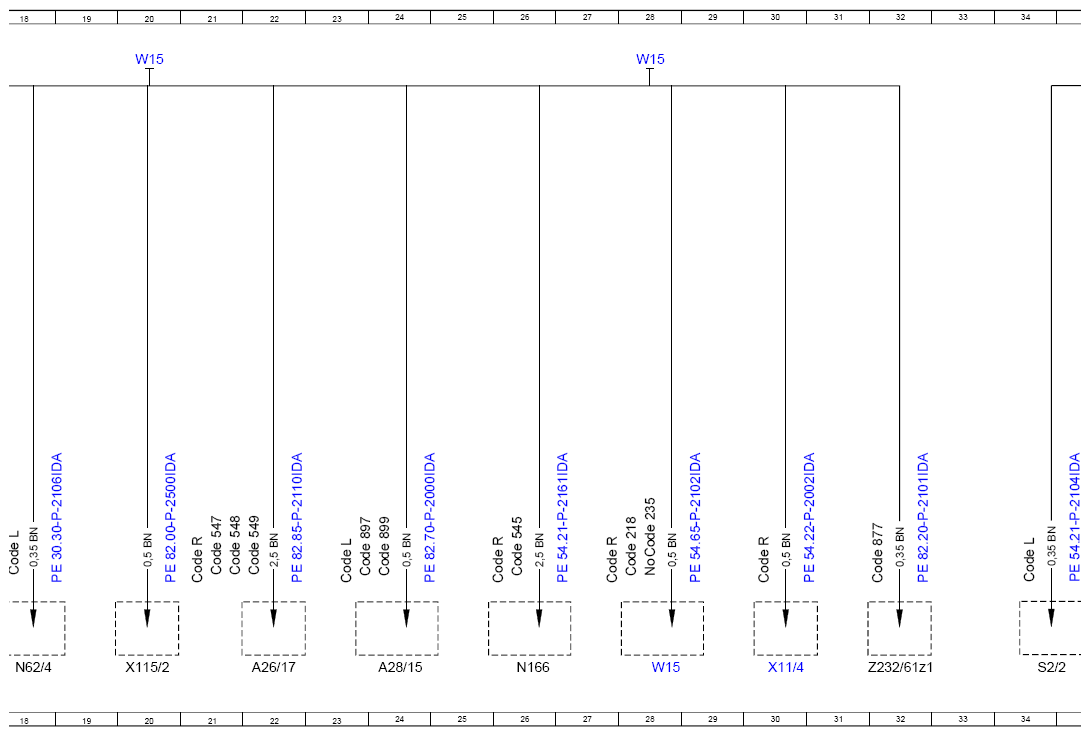

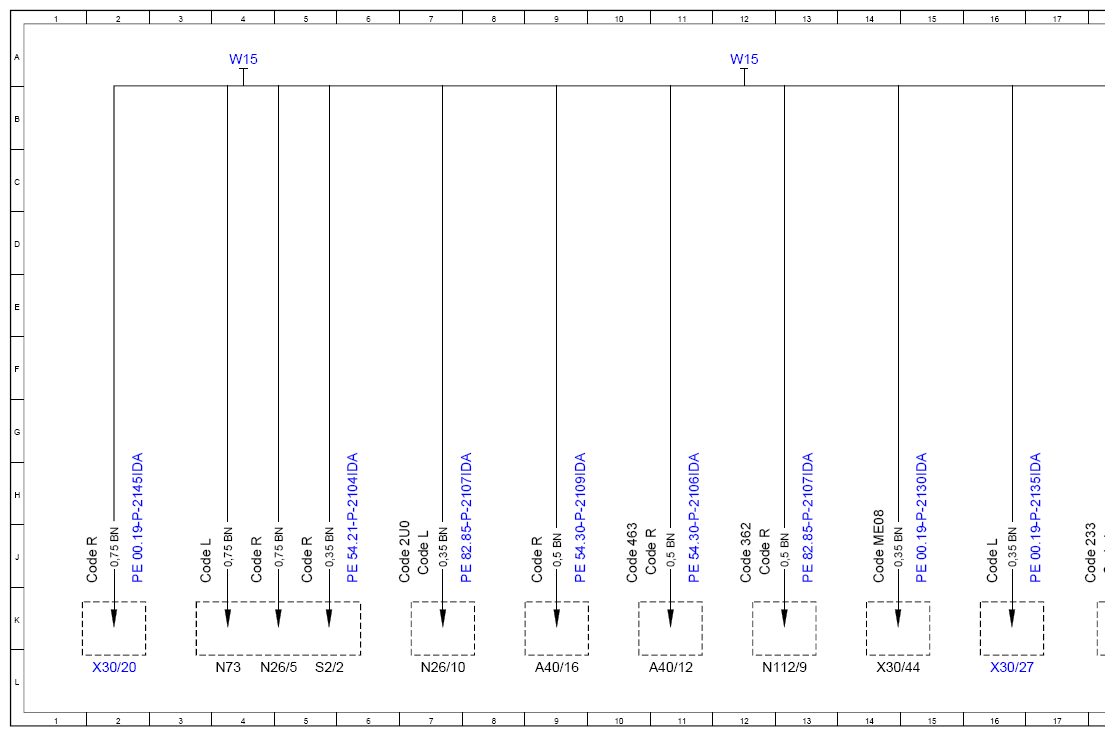

| W15 | Right front footwell ground point | 4A |
| W15 | Right front footwell ground point | 12A |
| W15 | Right front footwell ground point | 20A |
| W15 | Right front footwell ground point | 28A |
| W15 | Right front footwell ground point | 28L |

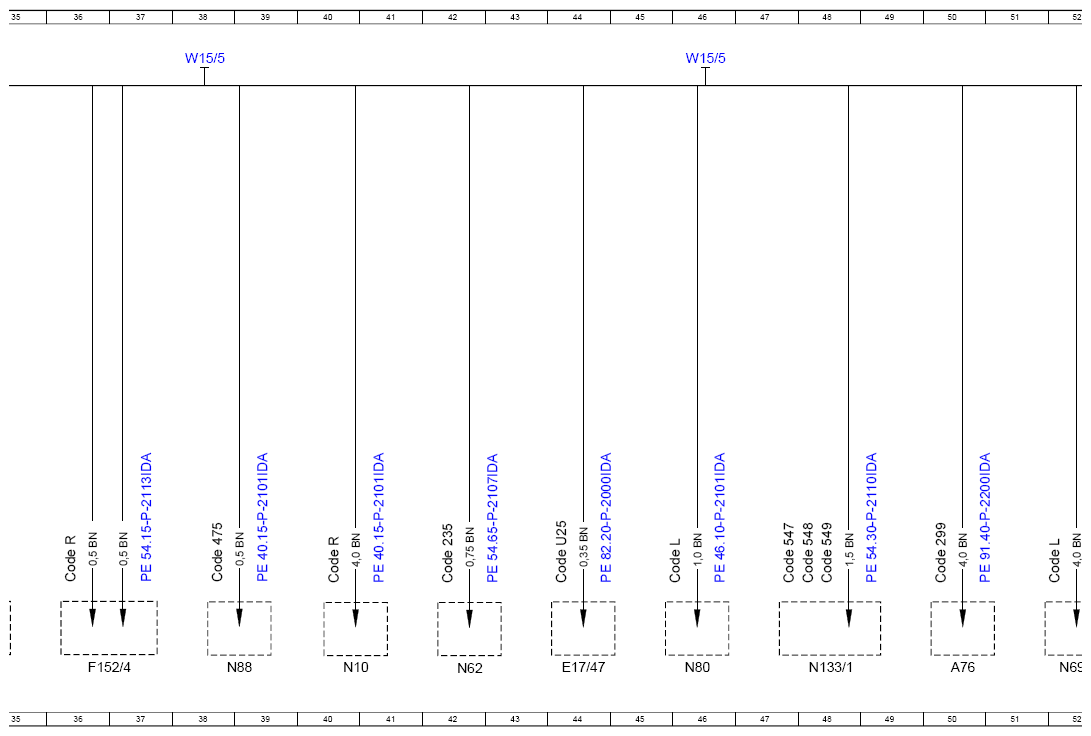

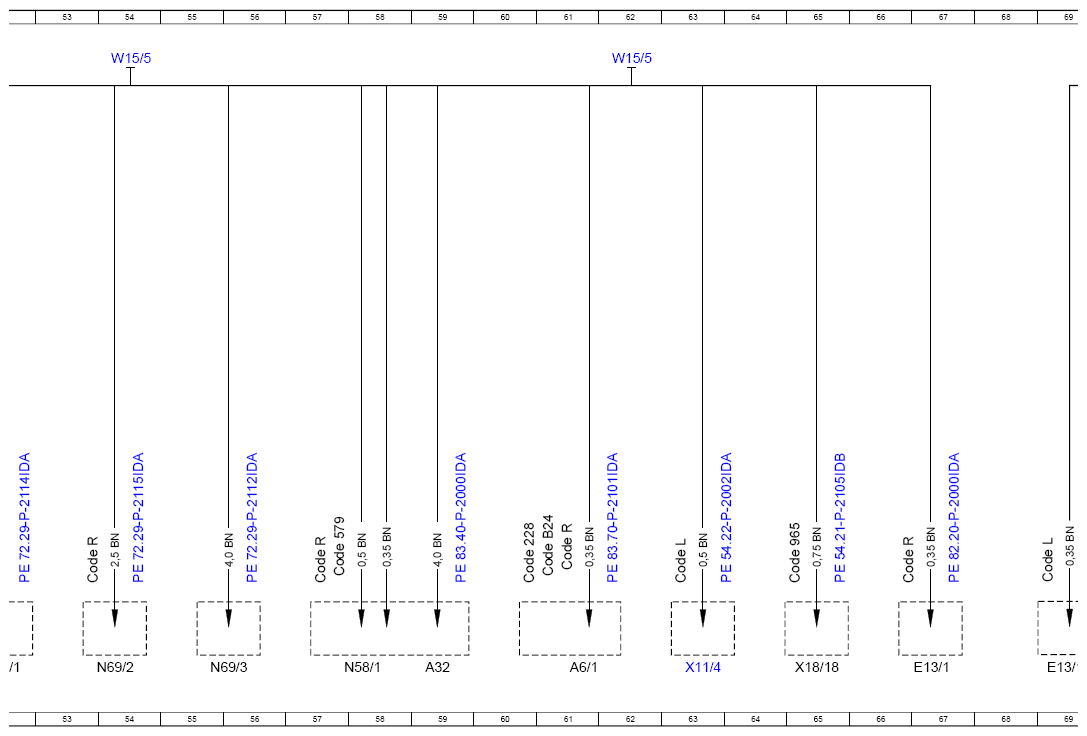

| W15/5 | Left front footwell ground point | 38A |
| W15/5 | Left front footwell ground point | 46A |
| W15/5 | Left front footwell ground point | 54A |
| W15/5 | Left front footwell ground point | 62A |

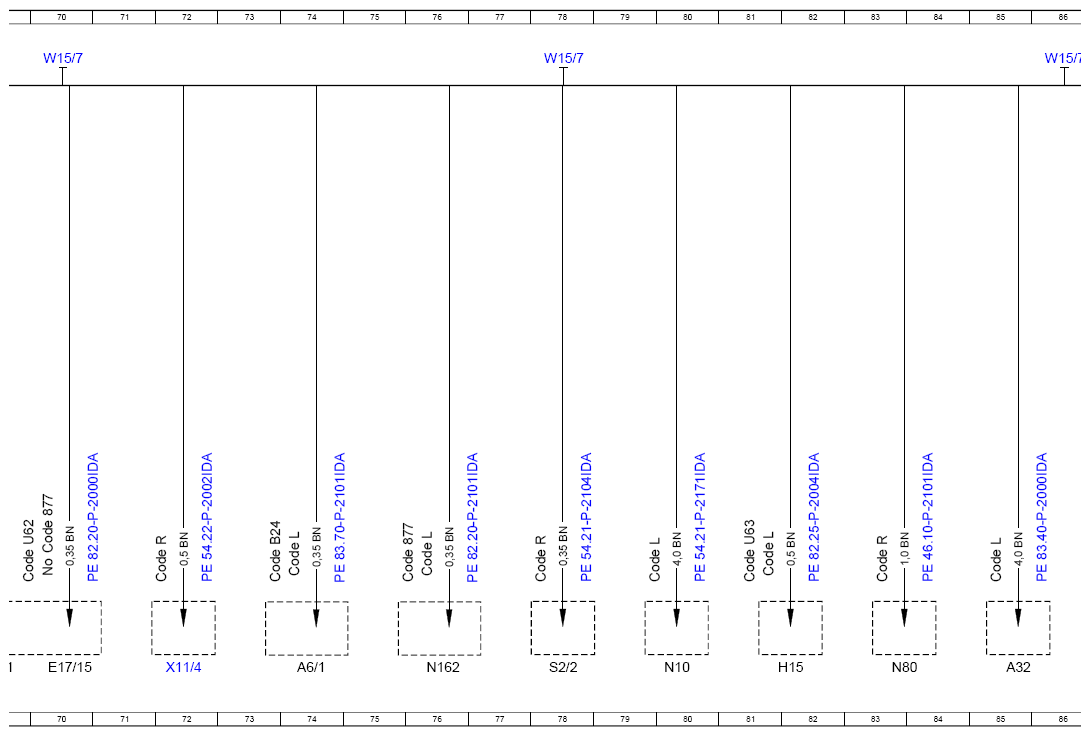

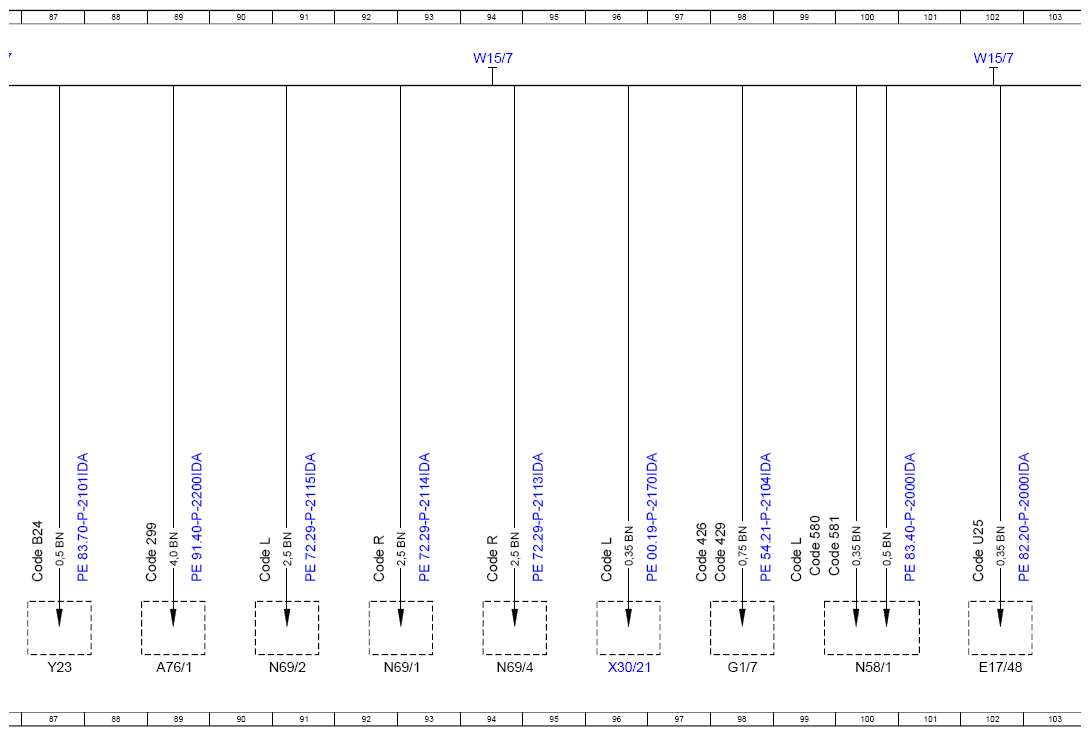

| W15/7 | Right front footwell ground point | 70A |
| W15/7 | Right front footwell ground point | 78A |
| W15/7 | Right front footwell ground point | 86A |
| W15/7 | Right front footwell ground point | 94A |
| W15/7 | Right front footwell ground point | 102A |

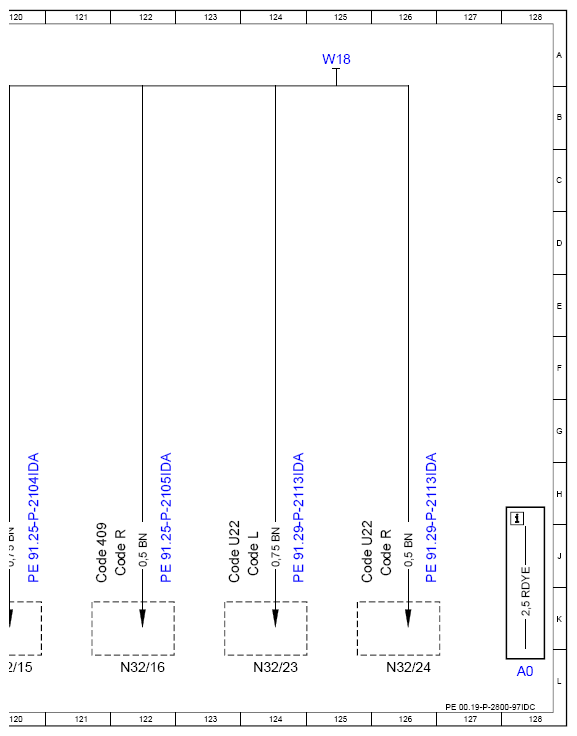

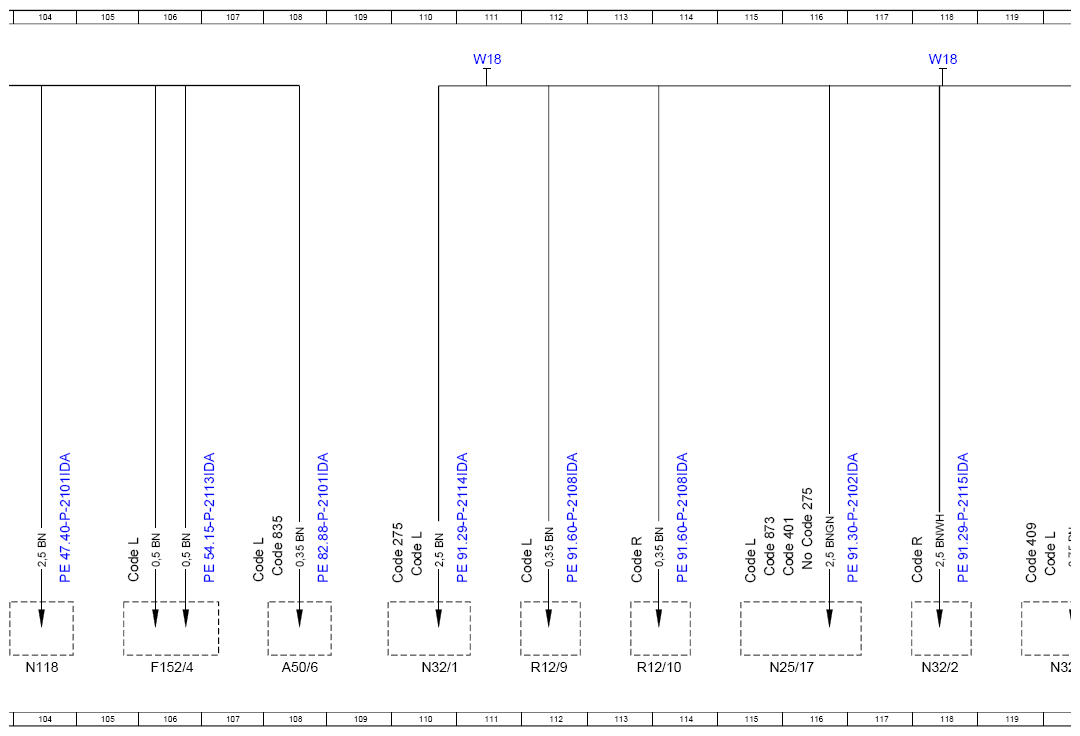

| W18 | Left front seat crossmember ground point | 111A |
| W18 | Left front seat crossmember ground point | 118A |
| W18 | Left front seat crossmember ground point | 126A |
| X11/4 | Diagnostic connector | 30L |
| X11/4 | Diagnostic connector | 63L |
| X11/4 | Diagnostic connector | 72L |
| X115/2 | Rear passenger compartment USB connector | 20L |
| X18/18 | Vehicle gateway electrical connector | 65L |
| X30/20 | User interface CAN (CAN HMI) potential distributor | 2L |
| X30/21 | Drive train CAN (CAN C1) potential distributor | 96L |
| X30/27 | Peripherals CAN (CAN PER) potential distributor electrical connector | 16L |
| X30/44 | Hybrid CAN (CAN L) potential distributor electrical connector | 14L |
| Y23 | Stationary heater fuel pump | 87L |
| Z232/61z1 | Ground connection connector sleeve | 32L |
