Wiring Diagram Of Ground Cabling - PE00.19-P-2800-97IDB
Model 247 Ground points W7, W8/5, W9, W11, W12, W12/1
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 120L |
| A105 | Touchpad | 95L |
| A105 | Touchpad | 109L |
| A49/5 | Radio data transmission two-way radio | 22L |
| A85/5 | Trunk lid/liftgate lock | 50L |
| B39/4 | Rear window glass breakage sensor | 48L |
| B92/12 | Short and long-range radar sensor | 61L |
| Code 218 | Backup camera | 37J |
| Code 233 | Adaptive cruise control Plus (DISTRONIC PLUS) | 60J |
| Code 235 | Park-Pilot with PARKTRONIC | 39J |
| Code 411 | 6-SPEED MANUAL TRANSMISSION | 103J |
| Code 411 | 6-SPEED MANUAL TRANSMISSION | 110J |
| Code 550 | Trailer hitch | 8J |
| Code 550 | Trailer hitch | 41J |
| Code 613 | Left-hand traffic headlamps | 13J |
| Code 613 | Left-hand traffic headlamps | 31J |
| Code 620 | Right-hand traffic headlamps | 13J |
| Code 620 | Right-hand traffic headlamps | 31J |
| Code 631 | Static LED headlamp, left-hand traffic | 16J |
| Code 631 | Static LED headlamp, left-hand traffic | 33J |
| Code 632 | Static LED headlamp, right-hand traffic | 16J |
| Code 632 | Static LED headlamp, right-hand traffic | 33J |
| Code 641 | Dynamic LED headlamps, left-hand traffic | 16J |
| Code 641 | Dynamic LED headlamps, left-hand traffic | 33J |
| Code 642 | Dynamic LED headlamps, right-hand traffic | 17J |
| Code 642 | Dynamic LED headlamps, right-hand traffic | 34J |
| Code 802 | YoM 21/1 | 79J |
| Code 802 | YoM 21/1 | 77J |
| Code 810 | Sound system | 3J |
| Code 847 | 3rd seat row | 18J |
| Code 847 | 3rd seat row | 20J |
| Code 853 | Midline sound system | 10J |
| Code 877 | Ambiance illumination | 105J |
| Code 877 | Ambiance illumination | 112J |
| Code 882 | Interior monitoring | 47J |
| Code 890 | EASY-PACK liftgate | 7J |
| Code 897 | Wireless mobile phone charging | 93J |
| Code 897 | Wireless mobile phone charging | 107J |
| Code 899 | Wireless phone charging at front and antenna | 93J |
| Code 899 | Wireless phone charging at front and antenna | 107J |
| Code 938 | Hands-free two-way radio | 96J |
| Code 965 | Taxi/rental car - Pre-installation | 2J |
| Code 965 | Taxi/rental car - Pre-installation | 21J |
| Code 965 | Taxi/rental car - Pre-installation | 29J |
| Code FW | SEDAN | 22J |
| Code FX | Special version | 18J |
| Code FX | Special version | 20J |
| Code FX | Special version | 47J |
| Code L | LEFT-HAND DRIVE | 22J |
| Code L | LEFT-HAND DRIVE | 92J |
| Code L | LEFT-HAND DRIVE | 95J |
| Code L | LEFT-HAND DRIVE | 96J |
| Code L | LEFT-HAND DRIVE | 98J |
| Code L | LEFT-HAND DRIVE | 99J |
| Code L | LEFT-HAND DRIVE | 105J |
| Code L | LEFT-HAND DRIVE | 110J |
| Code M016 | Uprated high-performance engine | 57J |
| Code M139 | Inline 4-cylinder SPARK-IGNITION ENGINE M139 - AMG | 57J |
| Code M139 | Inline 4-cylinder SPARK-IGNITION ENGINE M139 - AMG | 61J |
| Code M139 | Inline 4-cylinder SPARK-IGNITION ENGINE M139 - AMG | 67J |
| Code M139 | Inline 4-cylinder SPARK-IGNITION ENGINE M139 - AMG | 72J |
| Code M139 | Inline 4-cylinder SPARK-IGNITION ENGINE M139 - AMG | 75J |
| Code M139 | Inline 4-cylinder SPARK-IGNITION ENGINE M139 - AMG | 73J |
| Code M139 | Inline 4-cylinder SPARK-IGNITION ENGINE M139 - AMG | 80J |
| Code M139 | Inline 4-cylinder SPARK-IGNITION ENGINE M139 - AMG | 77J |
| Code M260 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M260 | 57J |
| Code M260 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M260 | 59J |
| Code M260 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M260 | 85J |
| Code M282 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M282 | 69J |
| Code M282 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M282 | 82J |
| Code M608 | 4-CYLINDER INLINE DIESEL ENGINE OM608 | 90J |
| Code M654 | 4-CYLINDER INLINE DIESEL ENGINE OM654 | 62J |
| Code M654 | 4-CYLINDER INLINE DIESEL ENGINE OM654 | 64J |
| Code M654 | 4-CYLINDER INLINE DIESEL ENGINE OM654 | 66J |
| Code M654 | 4-CYLINDER INLINE DIESEL ENGINE OM654 | 87J |
| Code ME08 | Hybrid drive 75kW-84kW variant (incl. plug-in) | 5J |
| Code ME08 | Hybrid drive 75kW-84kW variant (incl. plug-in) | 25J |
| Code ME08 | Hybrid drive 75kW-84kW variant (incl. plug-in) | 24J |
| Code ME08 | Hybrid drive 75kW-84kW variant (incl. plug-in) | 54J |
| Code ME08 | Hybrid drive 75kW-84kW variant (incl. plug-in) | 55J |
| Code ME08 | Hybrid drive 75kW-84kW variant (incl. plug-in) | 70J |
| Code R | RIGHT-HAND DRIVE | 106J |
| Code R | RIGHT-HAND DRIVE | 109J |
| Code R | RIGHT-HAND DRIVE | 102J |
| Code R | RIGHT-HAND DRIVE | 103J |
| Code R | RIGHT-HAND DRIVE | 112J |
| Code U62 | Light and vision package | 98J |
| Code U62 | Light and vision package | 100J |
| Code U62 | Light and vision package | 105J |
| Code U62 | Light and vision package | 112J |
| Code U63 | Driving school package | 98J |
| Code U63 | Driving school package | 100J |
| Code Z97 | Electronic interface | 1J |
| Code Z97 | Electronic interface | 27J |
| E13/5 | Center console stowage compartment illumination | 105L |
| E13/5 | Center console stowage compartment illumination | 112L |
| E19/1 | Left license plate lamp | 44L |
| E19/2 | Right license plate lamp | 44L |
| E21 | Center stop lamp | 43L |
| E3/1 | Inner left rear lamp unit | 32L |
| E3/1 | Inner left rear lamp unit | 33L |
| E4 | Right rear lamp unit | 14L |
| E4 | Right rear lamp unit | 16L |
| E4/1 | Inner right rear lamp unit | 31L |
| E4/1 | Inner right rear lamp unit | 34L |
| E40/6 | Liftgate ambient lamp and warning lamp | 46L |
| F152/3 | Engine compartment fuse and relay module | 56L |
| H2 | Left fanfare horn | 53L |
| M35/2 | Rear camera cover motor | 39L |
| M6/4 | Tailgate wiper motor | 36L |
| N116/5 | DC/DC converter charger | 5L |
| N121/1 | Trunk lid/liftgate control control unit | 7L |
| N123/8 | Mobile phone cradle control unit | 93L |
| N123/8 | Mobile phone cradle control unit | 107L |
| N24/3 | DC/AC converter control unit | 12L |
| N26/14 | Special vehicle multifunction control unit (SVMCU [MSS]) | 27L |
| N26/9 | Special-purpose vehicle multifunction control unit | 2L |
| N28/1 | Trailer recognition control unit | 8L |
| N3/10 | ME-SFI [ME] control unit | 80L |
| N3/10 | ME-SFI [ME] control unit | 83L |
| N3/10 | ME-SFI [ME] control unit | 85L |
| N3/10 | ME-SFI [ME] control unit | 77L |
| N3/9 | CDI control unit | 88L |
| N3/9 | CDI control unit | 90L |
| N40/3 | Sound system amplifier control unit | 3L |
| N40/9 | Woofer amplifier | 10L |
| N83/11 | Alternating current charger for high-voltage battery | 25L |
| N83/11 | Alternating current charger for high-voltage battery | 24L |
| S143/3 | Trailer hitch switch | 41L |
| S146 | Pedal operation monitor switch | 98L |
| S18/7 | Footwell illumination switch | 100L |
| S68/16 | Left third row seat belt buckle switch | 18L |
| S68/17 | Right third row seat belt buckle switch | 18L |
| S88/8 | Trunk lid/liftgate external operation button | 49L |
| S93/2 | Two-way radio switch | 96L |

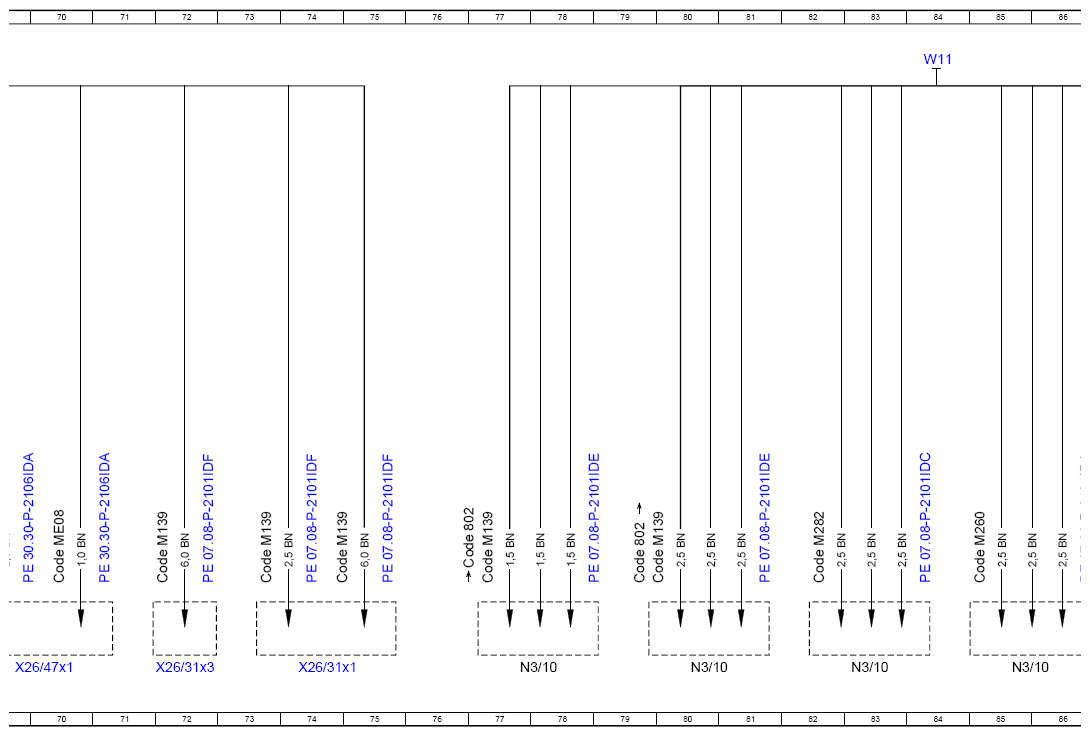

| W11 | Combustion engine ground point | 84A |

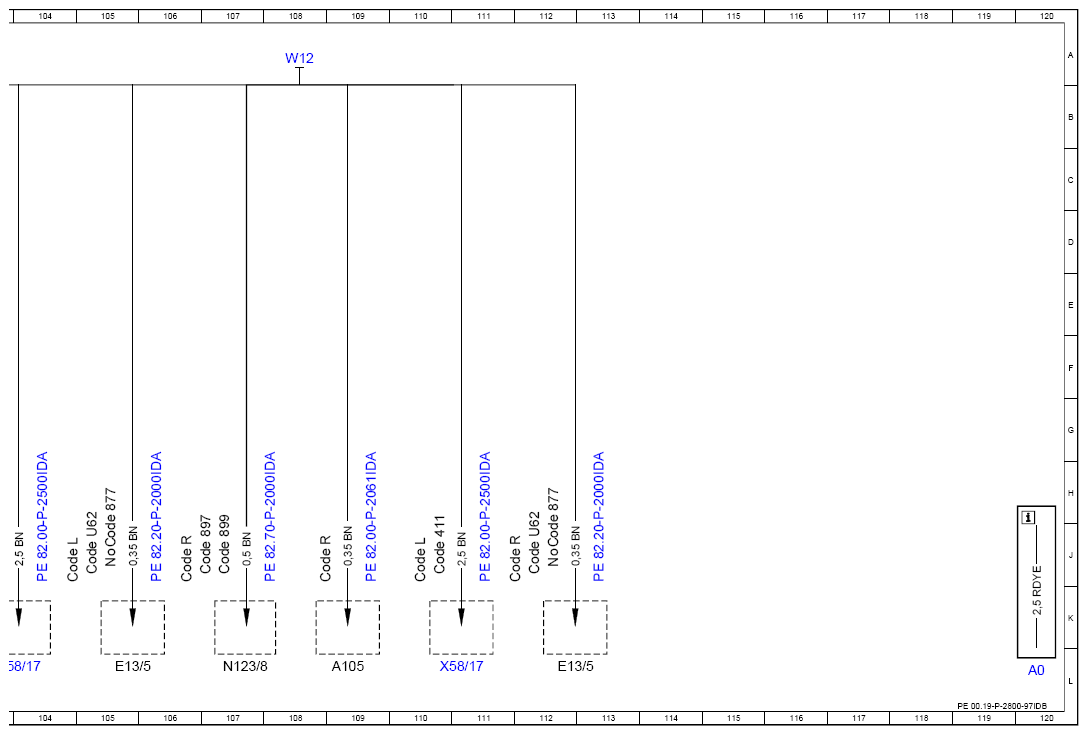

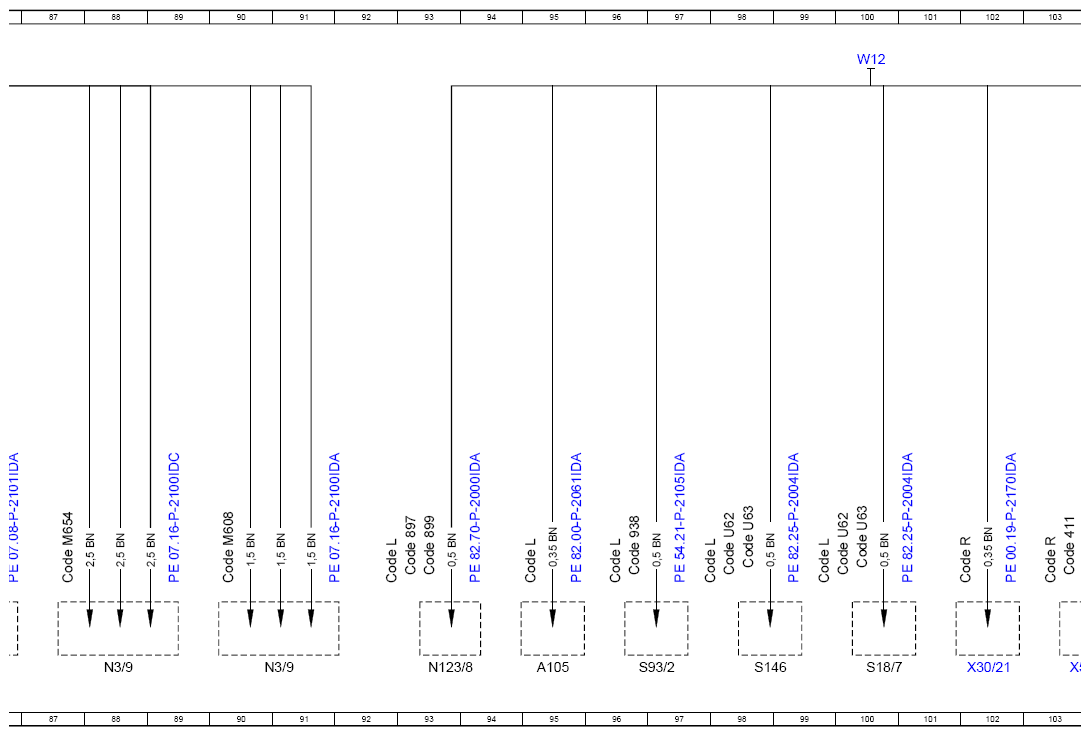

| W12 | Left center console ground point | 100A |
| W12 | Left center console ground point | 108A |

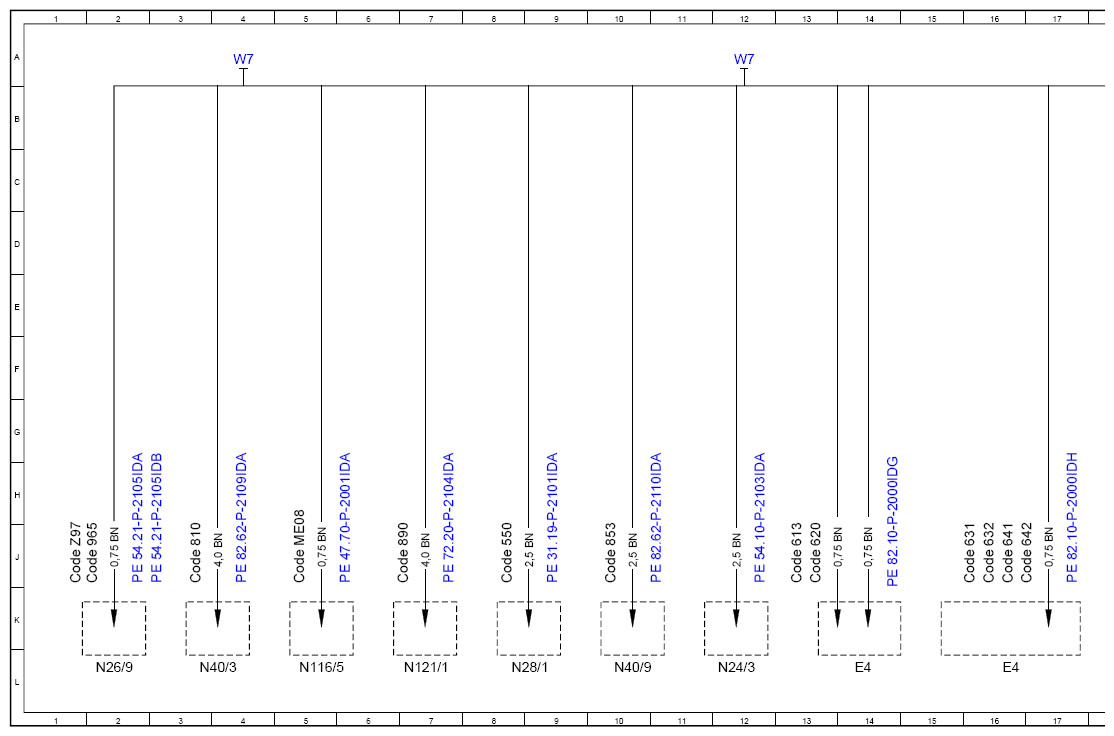

| W7 | Right wheelhouse trunk ground point | 4A |
| W7 | Right wheelhouse trunk ground point | 12A |

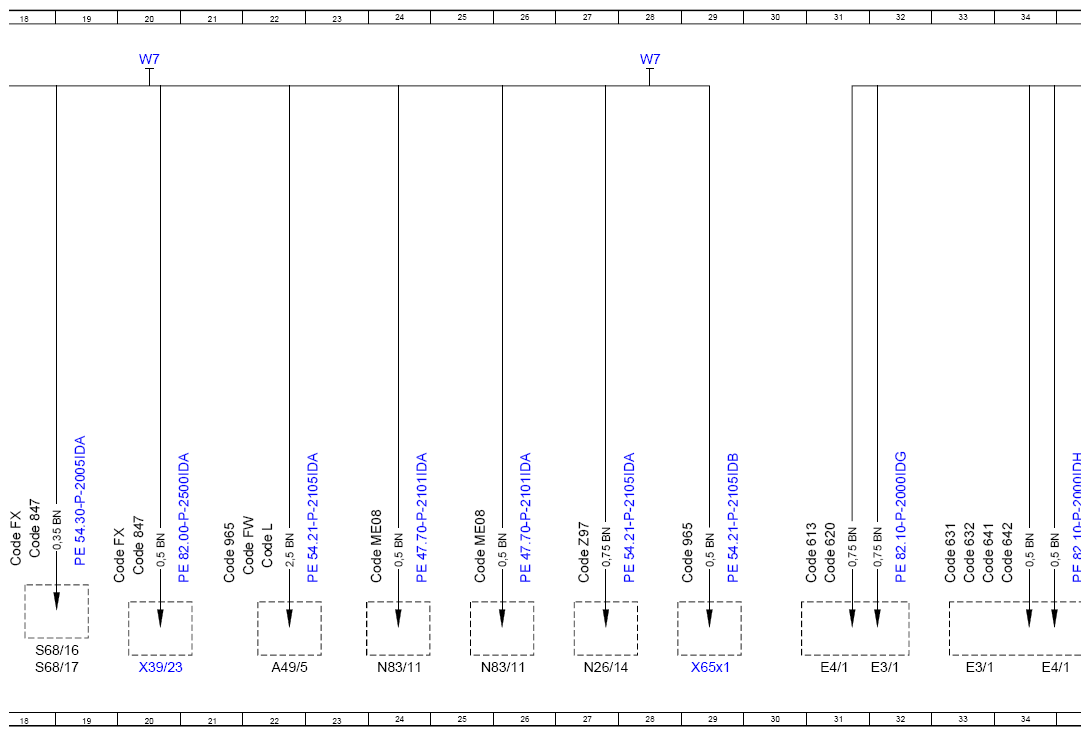

| W7 | Right wheelhouse trunk ground point | 20A |
| W7 | Right wheelhouse trunk ground point | 28A |

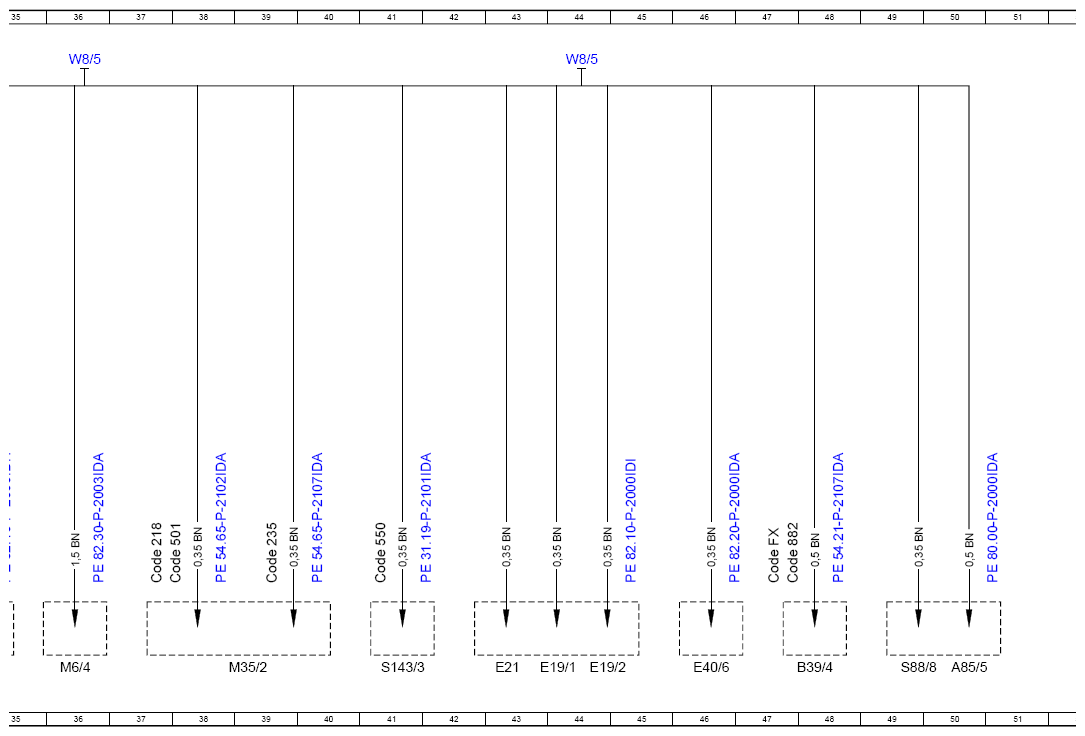

| W8/5 | Right tailgate ground point | 36A |
| W8/5 | Right tailgate ground point | 44A |

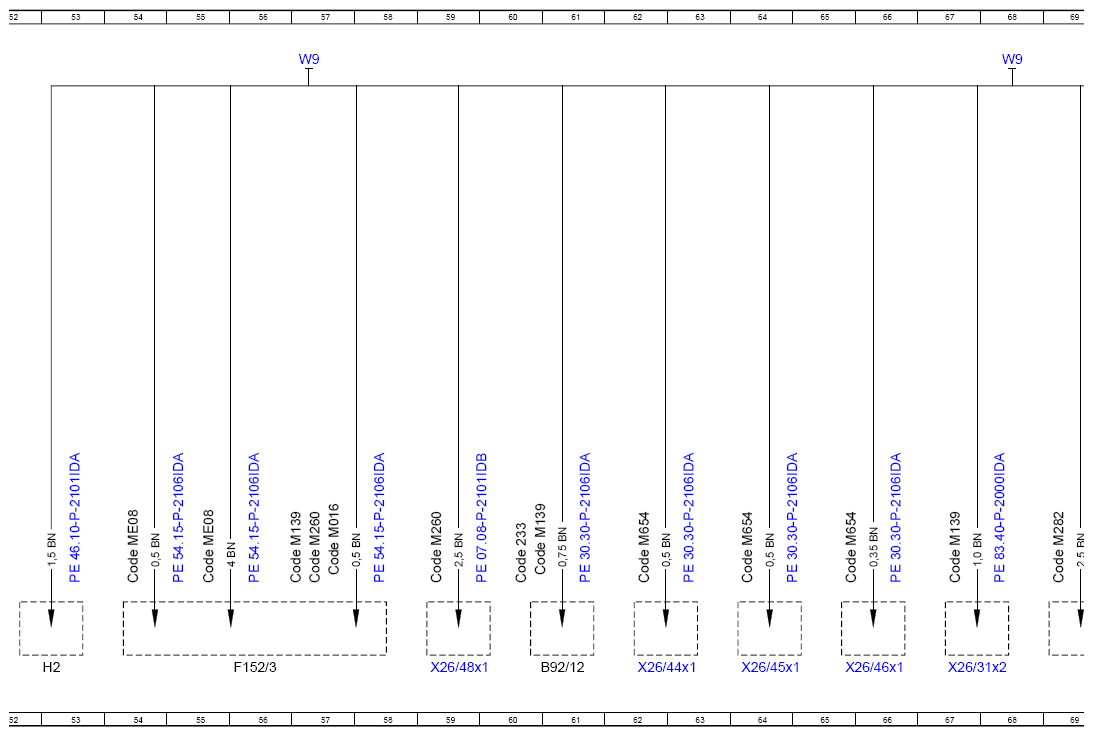

| W9 | Left front ground point | 57A |
| W9 | Left front ground point | 68A |
| X26/31x1 | Engine/engine compartment electrical connector | 74L |
| X26/31x2 | Engine wiring harness/engine compartment electrical connector | 67L |
| X26/31x3 | Engine/engine compartment electrical connector | 72L |
| X26/44x1 | Engine wiring harness/engine compartment electrical connector | 62L |
| X26/45x1 | Engine wiring harness/engine compartment electrical connector | 64L |
| X26/46x1 | Engine wiring harness/engine compartment electrical connector | 66L |
| X26/47x1 | Engine wiring harness/engine compartment electrical connector | 69L |
| X26/48x1 | Engine wiring harness/engine compartment electrical connector | 59L |
| X30/21 | Drive train CAN (CAN C1) potential distributor | 102L |
| X39/23 | Right rear passenger compartment USB port 2 | 20L |
| X58/17 | Front vehicle interior power outlet | 103L |
| X58/17 | Front vehicle interior power outlet | 110L |
| X65x1 | Rear seat electrical connector | 29L |
