Wiring Diagram Of Ground Cabling - PE00.19-P-2800-97IDA
Model 247 Ground points W2, W3/1, W3/2, W6
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 120L |
| A6 | Stationary heater unit | 12L |
| A9/5 | Electric refrigerant compressor | 80L |
| B31/4 | Fine particle sensor | 58L |
| B92/11 | Left outer rear integrated radar sensor | 111L |
| B92/11 | Left outer rear integrated radar sensor | 108L |
| B92/12 | Short and long-range radar sensor | 13L |
| B92/6 | Right outer rear integrated radar sensor | 110L |
| B92/6 | Right outer rear integrated radar sensor | 107L |
| Code 228 | Stationary heater | 12J |
| Code 228 | Stationary heater | 6J |
| Code 228 | Stationary heater | 23J |
| Code 233 | Adaptive cruise control Plus (DISTRONIC PLUS) | 13J |
| Code 233 | Adaptive cruise control Plus (DISTRONIC PLUS) | 110J |
| Code 233 | Adaptive cruise control Plus (DISTRONIC PLUS) | 107J |
| Code 234 | Blind spot assist | 109J |
| Code 2U1 | Radiator shutters | 15J |
| Code 2U1 | Radiator shutters | 17J |
| Code 459 | Steel suspension with adjustable damping | 96J |
| Code 460 | Canada version | 9J |
| Code 460 | Canada version | 10J |
| Code 460 | Canada version | 29J |
| Code 460 | Canada version | 29J |
| Code 494 | USA version | 6J |
| Code 494 | USA version | 9J |
| Code 494 | USA version | 10J |
| Code 494 | USA version | 30J |
| Code 494 | USA version | 29J |
| Code 581 | Automatic air conditioning | 5J |
| Code 608 | Adaptive Highbeam Assist | 92J |
| Code 613 | Left-hand traffic headlamps | 8J |
| Code 613 | Left-hand traffic headlamps | 9J |
| Code 613 | Left-hand traffic headlamps | 50J |
| Code 613 | Left-hand traffic headlamps | 99J |
| Code 620 | Right-hand traffic headlamps | 8J |
| Code 620 | Right-hand traffic headlamps | 10J |
| Code 620 | Right-hand traffic headlamps | 50J |
| Code 620 | Right-hand traffic headlamps | 100J |
| Code 631 | Static LED headlamp, left-hand traffic | 101J |
| Code 631 | Static LED headlamp, left-hand traffic | 53J |
| Code 632 | Static LED headlamp, right-hand traffic | 101J |
| Code 632 | Static LED headlamp, right-hand traffic | 53J |
| Code 640 | Dynamic LED headlamps, SAE, right-hand traffic | 51J |
| Code 641 | Dynamic LED headlamps, left-hand traffic | 102J |
| Code 641 | Dynamic LED headlamps, left-hand traffic | 51J |
| Code 642 | Dynamic LED headlamps, right-hand traffic | 102J |
| Code 642 | Dynamic LED headlamps, right-hand traffic | 51J |
| Code 847 | 3rd seat row | 89J |
| Code 871 | HANDS-FREE ACCESS | 82J |
| Code 882 | Interior monitoring | 26J |
| Code 926 | Low-emission EURO4 | 21J |
| Code 926 | Low-emission EURO4 | 20J |
| Code 98B | Upper radiator shutters | 17J |
| Code B53 | Acoustic ambient protection | 36J |
| Code B53 | Acoustic ambient protection | 83J |
| Code L | LEFT-HAND DRIVE | 28J |
| Code L | LEFT-HAND DRIVE | 58J |
| Code L | LEFT-HAND DRIVE | 67J |
| Code L | LEFT-HAND DRIVE | 56J |
| Code M005 | 4MATIC | 90J |
| Code M016 | Uprated high-performance engine | 38J |
| Code M016 | Uprated high-performance engine | 74J |
| Code M016 | Uprated high-performance engine | 78J |
| Code M016 | Uprated high-performance engine | 43J |
| Code M016 | Uprated high-performance engine | 93J |
| Code M139 | Inline 4-cylinder SPARK-IGNITION ENGINE M139 - AMG | 2J |
| Code M139 | Inline 4-cylinder SPARK-IGNITION ENGINE M139 - AMG | 39J |
| Code M139 | Inline 4-cylinder SPARK-IGNITION ENGINE M139 - AMG | 64J |
| Code M139 | Inline 4-cylinder SPARK-IGNITION ENGINE M139 - AMG | 75J |
| Code M139 | Inline 4-cylinder SPARK-IGNITION ENGINE M139 - AMG | 76J |
| Code M139 | Inline 4-cylinder SPARK-IGNITION ENGINE M139 - AMG | 78J |
| Code M139 | Inline 4-cylinder SPARK-IGNITION ENGINE M139 - AMG | 93J |
| Code M139 | Inline 4-cylinder SPARK-IGNITION ENGINE M139 - AMG | 104J |
| Code M139 | Inline 4-cylinder SPARK-IGNITION ENGINE M139 - AMG | 43J |
| Code M139 | Inline 4-cylinder SPARK-IGNITION ENGINE M139 - AMG | 85J |
| Code M139 | Inline 4-cylinder SPARK-IGNITION ENGINE M139 - AMG | 46J |
| Code M260 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M260 | 37J |
| Code M260 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M260 | 75J |
| Code M260 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M260 | 76J |
| Code M260 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M260 | 78J |
| Code M260 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M260 | 93J |
| Code M260 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M260 | 105J |
| Code M260 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M260 | 15J |
| Code M260 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M260 | 18J |
| Code M282 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M282 | 77J |
| Code M608 | 4-CYLINDER INLINE DIESEL ENGINE OM608 | 6J |
| Code M608 | 4-CYLINDER INLINE DIESEL ENGINE OM608 | 28J |
| Code M608 | 4-CYLINDER INLINE DIESEL ENGINE OM608 | 62J |
| Code M608 | 4-CYLINDER INLINE DIESEL ENGINE OM608 | 15J |
| Code M608 | 4-CYLINDER INLINE DIESEL ENGINE OM608 | 18J |
| Code M608 | 4-CYLINDER INLINE DIESEL ENGINE OM608 | 70J |
| Code M654 | 4-CYLINDER INLINE DIESEL ENGINE OM654 | 16J |
| Code M654 | 4-CYLINDER INLINE DIESEL ENGINE OM654 | 6J |
| Code M654 | 4-CYLINDER INLINE DIESEL ENGINE OM654 | 22J |
| Code M654 | 4-CYLINDER INLINE DIESEL ENGINE OM654 | 29J |
| Code M654 | 4-CYLINDER INLINE DIESEL ENGINE OM654 | 77J |
| Code M654 | 4-CYLINDER INLINE DIESEL ENGINE OM654 | 18J |
| Code M654 | 4-CYLINDER INLINE DIESEL ENGINE OM654 | 21J |
| Code M654 | 4-CYLINDER INLINE DIESEL ENGINE OM654 | 20J |
| Code ME08 | Hybrid drive 75kW-84kW variant (incl. plug-in) | 5J |
| Code ME08 | Hybrid drive 75kW-84kW variant (incl. plug-in) | 33J |
| Code ME08 | Hybrid drive 75kW-84kW variant (incl. plug-in) | 36J |
| Code ME08 | Hybrid drive 75kW-84kW variant (incl. plug-in) | 45J |
| Code ME08 | Hybrid drive 75kW-84kW variant (incl. plug-in) | 75J |
| Code ME08 | Hybrid drive 75kW-84kW variant (incl. plug-in) | 80J |
| Code P53 | Air purification package | 58J |
| Code R | RIGHT-HAND DRIVE | 25J |
| Code R | RIGHT-HAND DRIVE | 56J |
| Code U35 | 12 V socket in load compartment | 87J |
| Code U37 | Front fog lamp | 4J |
| Code U37 | Front fog lamp | 60J |
| Code U78 | AMG Sport exhaust system | 104J |
| Code U79 | BLUETEC (SCR) diesel exhaust treatment Generation 3 | 91J |
| E1 | Left front lamp unit | 52L |
| E18/5 | Left load compartment lamp | 95L |
| E2 | Right front lamp unit | 9L |
| E3 | Left rear lamp unit | 101L |
| E5/1 | Left fog lamp | 4L |
| E5/2 | Right fog lamp | 60L |
| F150/1 | Starter battery prefuse box | 65L |
| F152/3 | Engine compartment fuse and relay module | 76L |
| H2/1 | Right fanfare horn | 2L |
| H2/1 | Right fanfare horn | 39L |
| H3/1 | Alarm siren | 27L |
| H4/134 | Sound generator 2 | 83L |
| H4/16 | Sound generator | 36L |
| M13/5 | Coolant circulation pump | 7L |
| M13/7 | Transmission oil cooling coolant circulation pump | 70L |
| M14/10 | Tank cap central locking actuator | 98L |
| M16/57 | Exhaust flap controller | 104L |
| M2/38 | Upper radiator trim flap actuator motor | 18L |
| M2/39 | Lower radiator trim flap actuator motor | 16L |
| M4/2 | Coolant fan motor | 64L |
| M44 | Charge air cooler circulation pump | 38L |
| M44 | Charge air cooler circulation pump | 71L |
| M45/5 | Low-temperature circuit circulation pump | 42L |
| M6/1 | Wiper motor | 56L |
| M75/14 | Power electronics/transmission coolant pump | 45L |
| N10 | Central control module | 25L |
| N10 | Central control module | 67L |
| N118/5 | AdBlue® control unit | 92L |
| N127 | Drivetrain control unit | 34L |
| N145/1 | Drive unit control unit | 94L |
| N15/17 | All-wheel drive control unit | 90L |
| N15/20 | Left rear axle differential control unit | 85L |
| N15/21 | Right rear axle differential control unit | 86L |
| N33/5 | High-voltage PTC heater | 33L |
| N33/6 | Fuel preheater control unit | 62L |
| N37/7 | Control unit of NOx sensor upstream of SCR catalytic converter | 22L |
| N37/8 | NOx sensor control unit downstream of SCR catalytic converter | 21L |
| N38 | Rear switching module | 82L |
| N51/5 | Adaptive damping system control unit | 96L |
| N74 | Soot particulate sensor control unit | 30L |
| R2/11 | Spray nozzle hose heater | 55L |
| R62 | Voltage dip limiter | 68L |
| S10/2 | Right front brake wear sensor | 48L |
| S62 | Center engine hood contact switch | 41L |

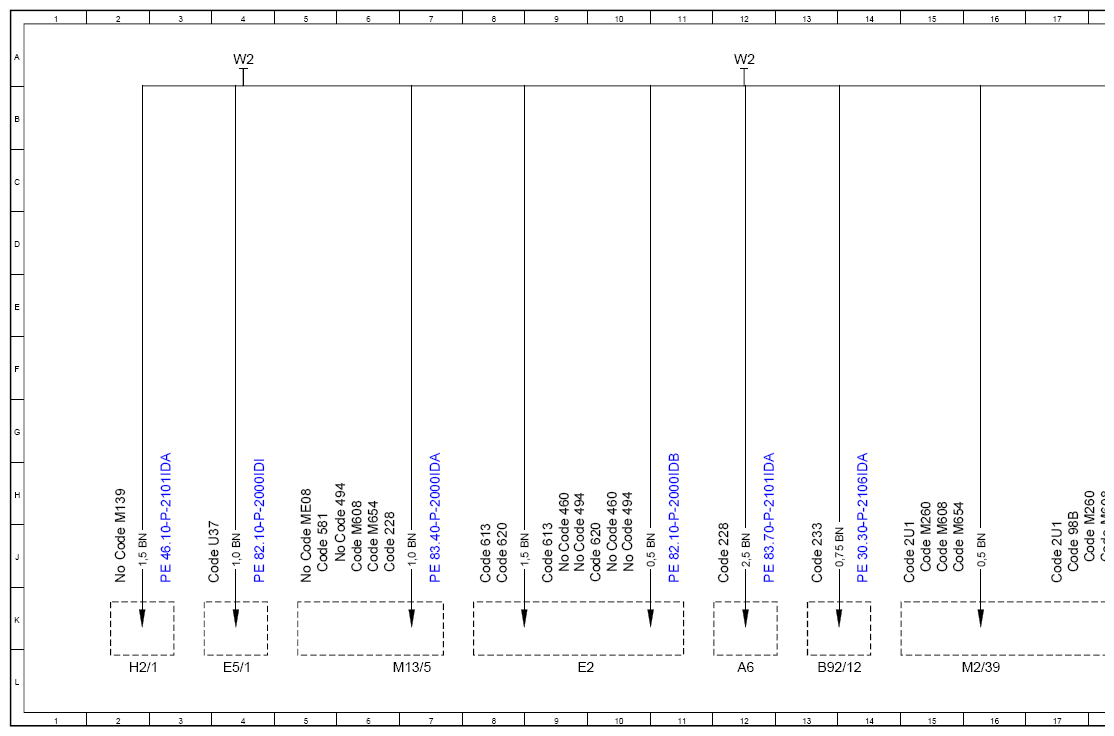

| W2 | Right front engine compartment ground point | 12A |
| W2 | Right front engine compartment ground point | 18A |
| W2 | Right front engine compartment ground point | 4A |

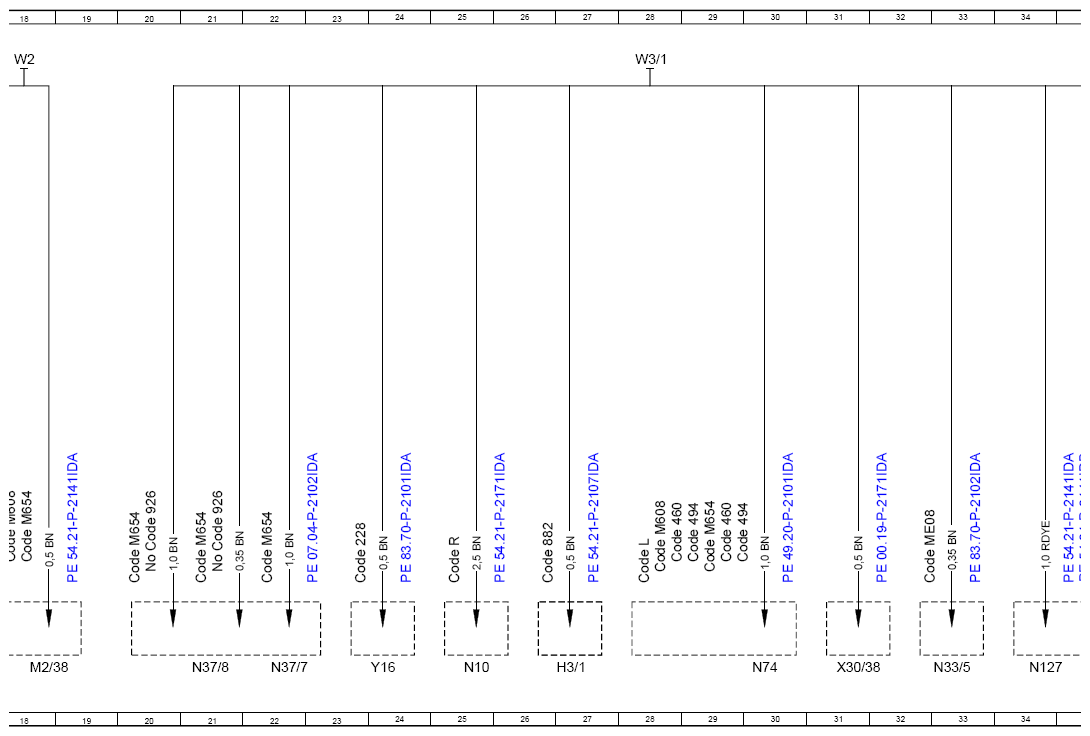

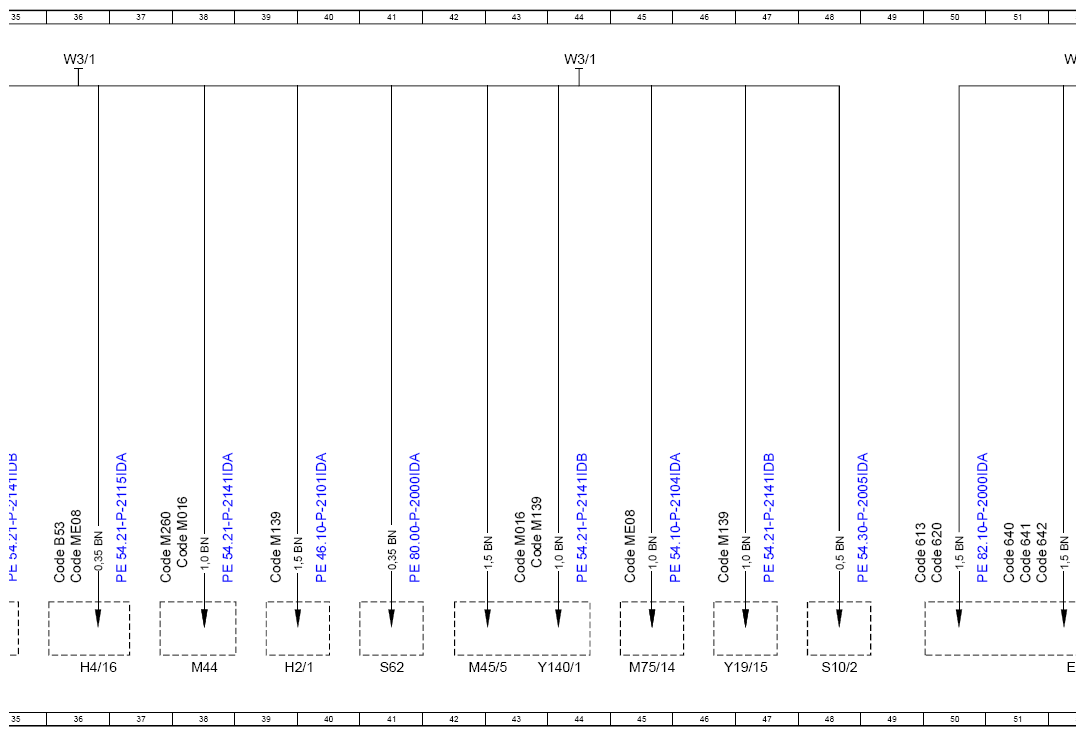

| W3/1 | Ground point (right front wheel well) | 36A |
| W3/1 | Ground point (right front wheel well) | 44A |
| W3/1 | Ground point (right front wheel well) | 28A |

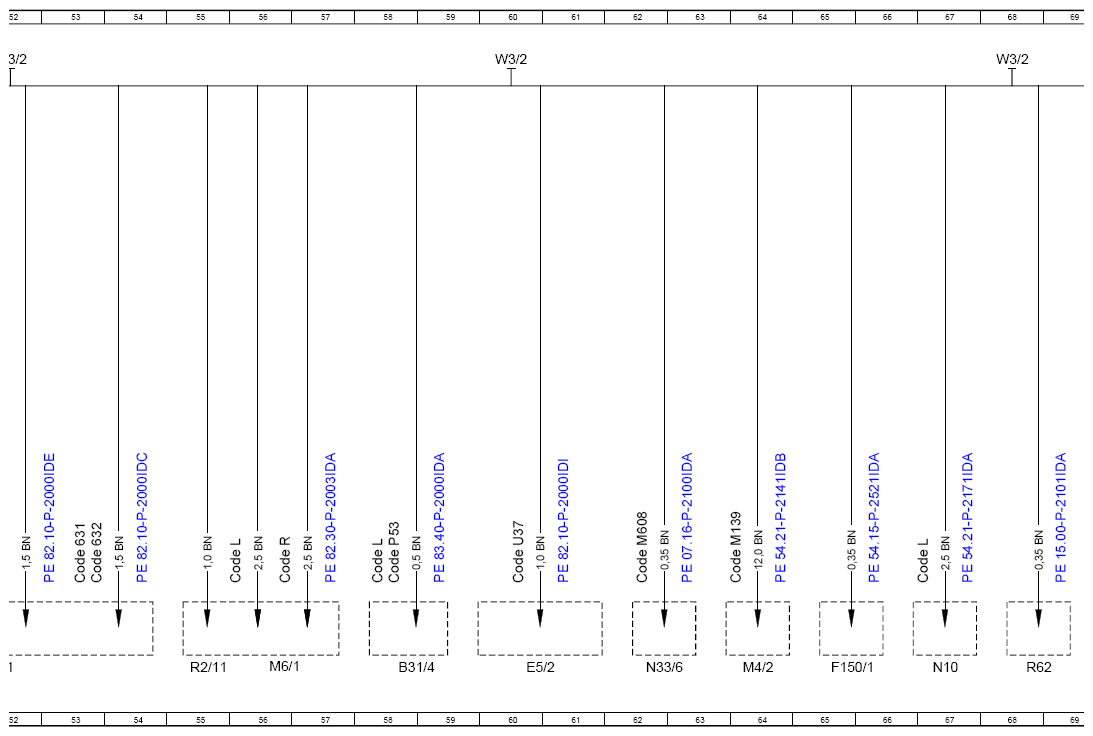

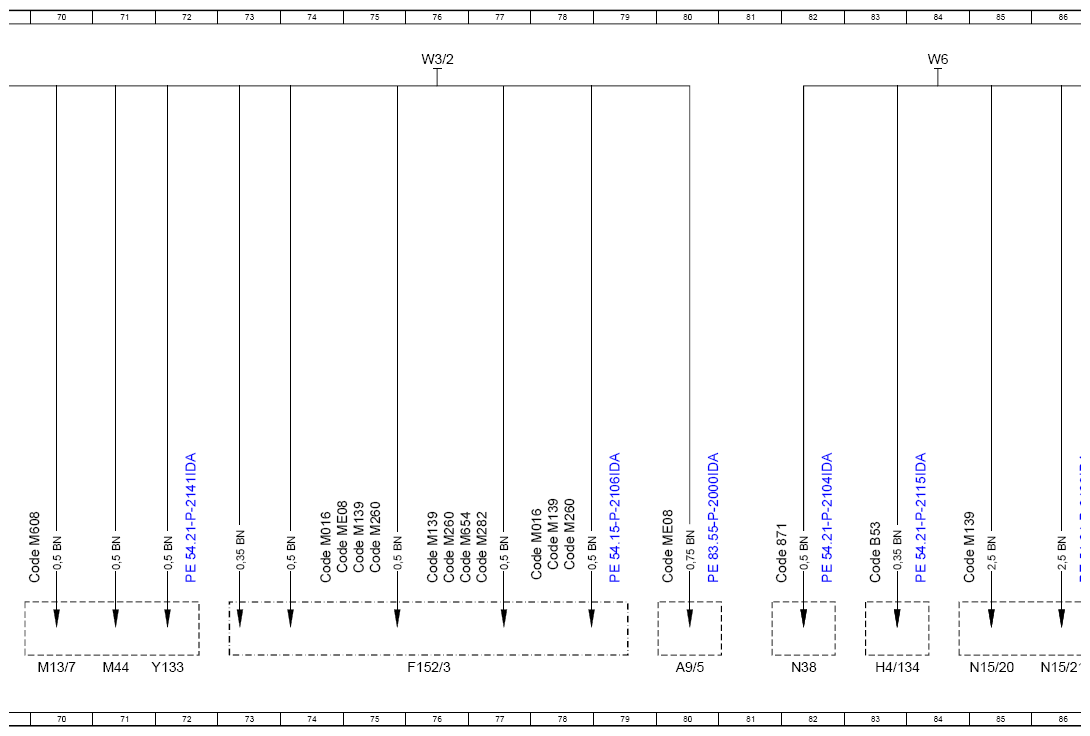

| W3/2 | Left front wheel arch ground point | 52A |
| W3/2 | Left front wheel arch ground point | 60A |
| W3/2 | Left front wheel arch ground point | 76A |
| W3/2 | Left front wheel arch ground point | 68A |

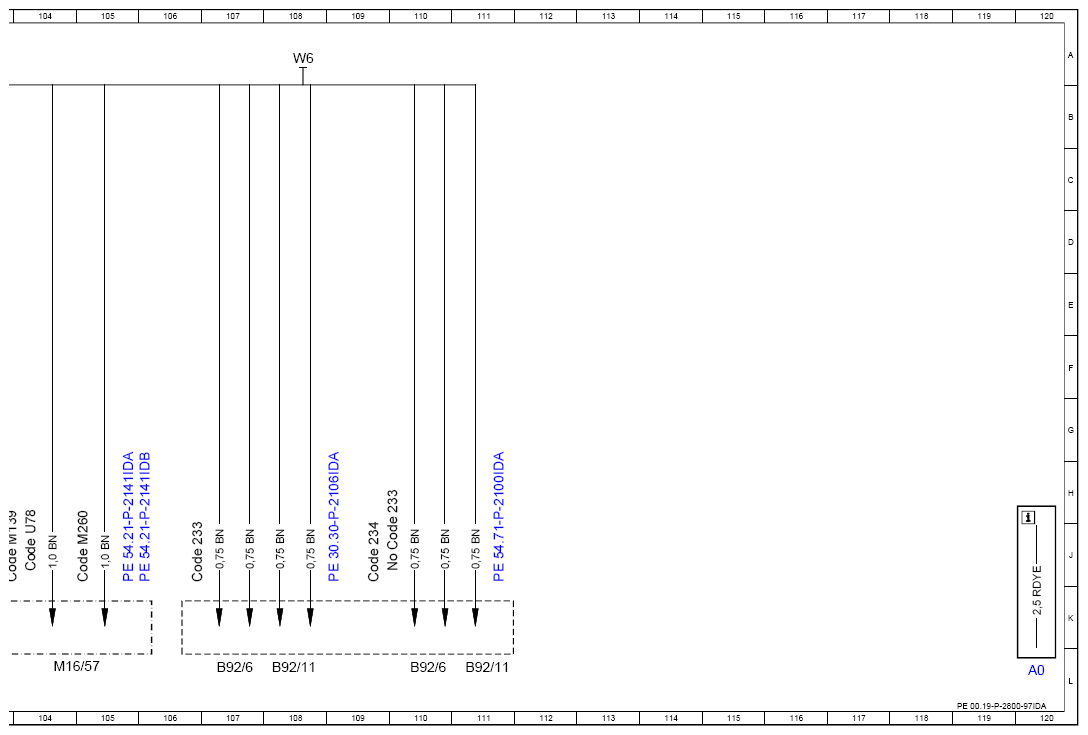

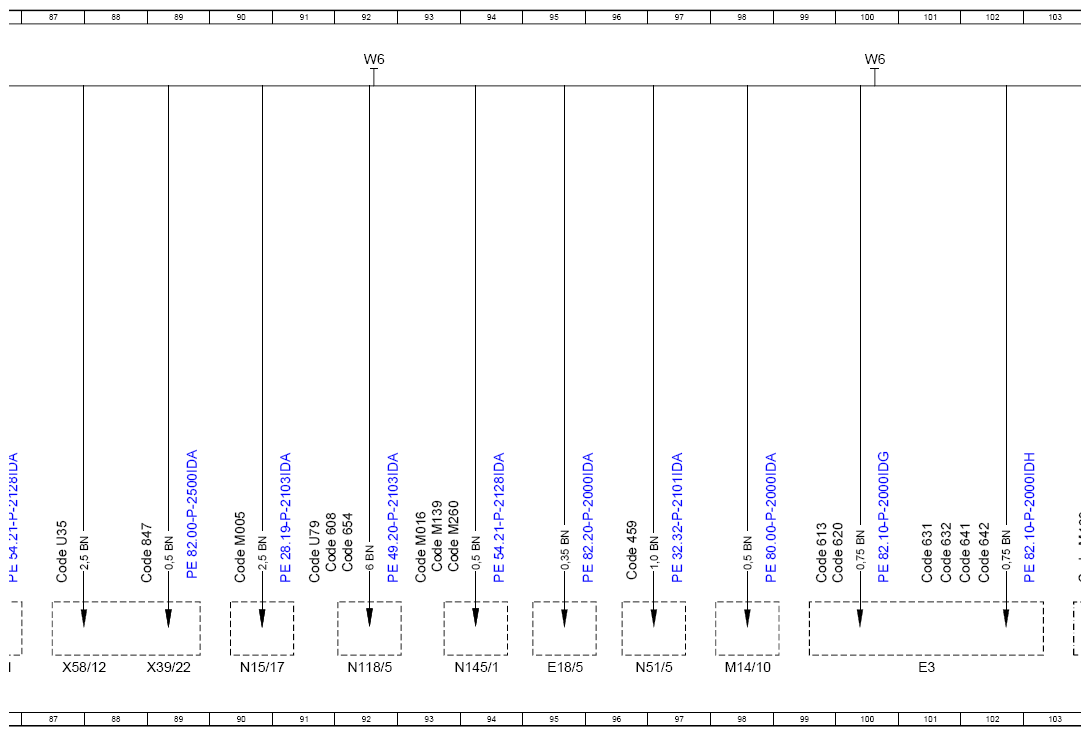

| W6 | Left wheel arch trunk ground point | 84A |
| W6 | Left wheel arch trunk ground point | 92A |
| W6 | Left wheel arch trunk ground point | 100A |
| W6 | Left wheel arch trunk ground point | 108A |
| X30/38 | Drive train sensor CAN (CAN I) potential distributor | 31L |
| X39/22 | Left rear passenger compartment USB port 1 | 89L |
| X58/12 | Luggage compartment socket | 87L |
| Y133 | Coolant pump switchover valve | 72L |
| Y140/1 | Cooling switchover valve | 44L |
| Y16 | Stationary heater switchover valve | 24L |
| Y19/15 | Regulation valve (AMG) | 46L |
