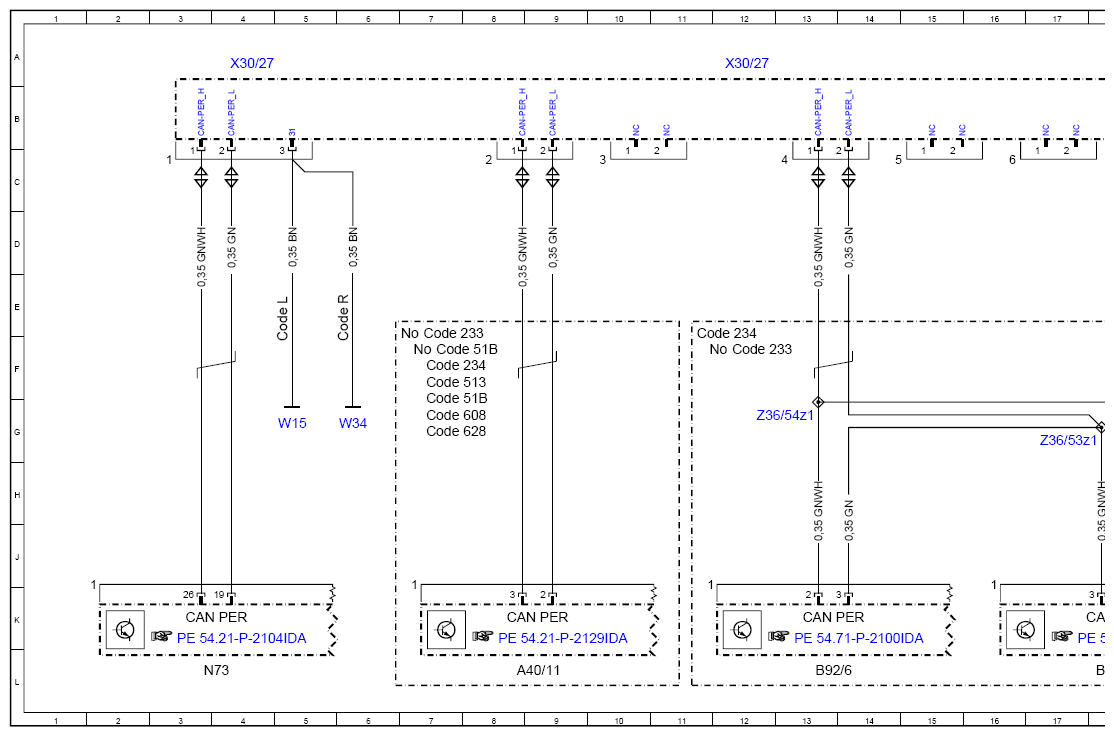

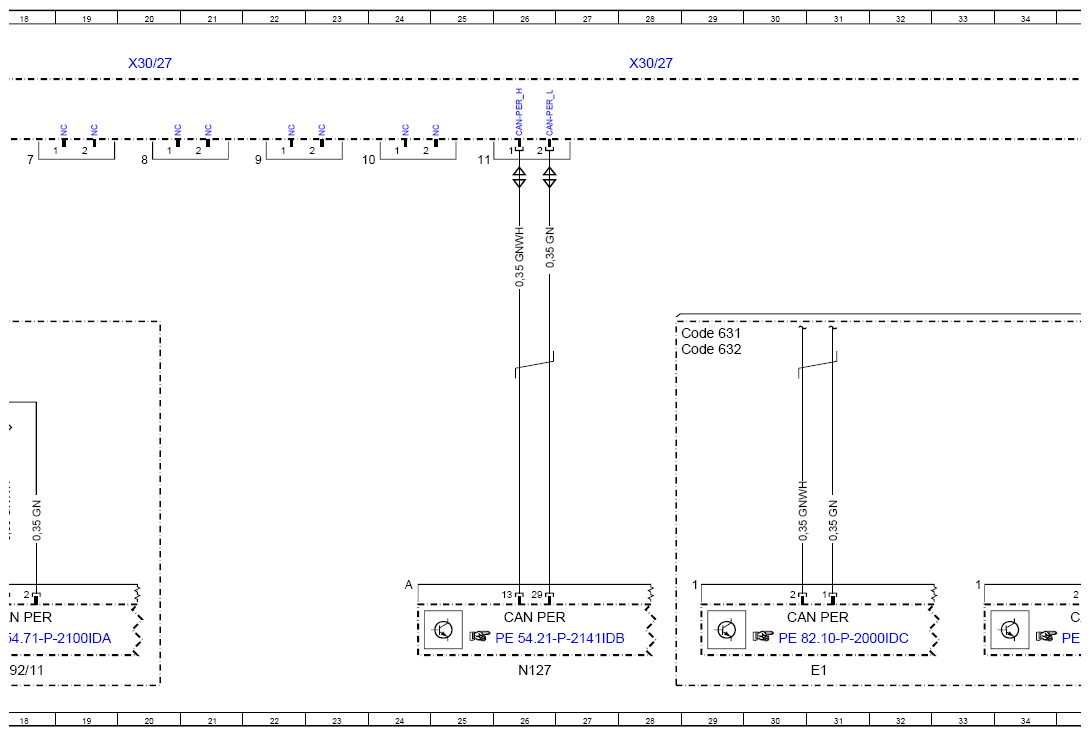

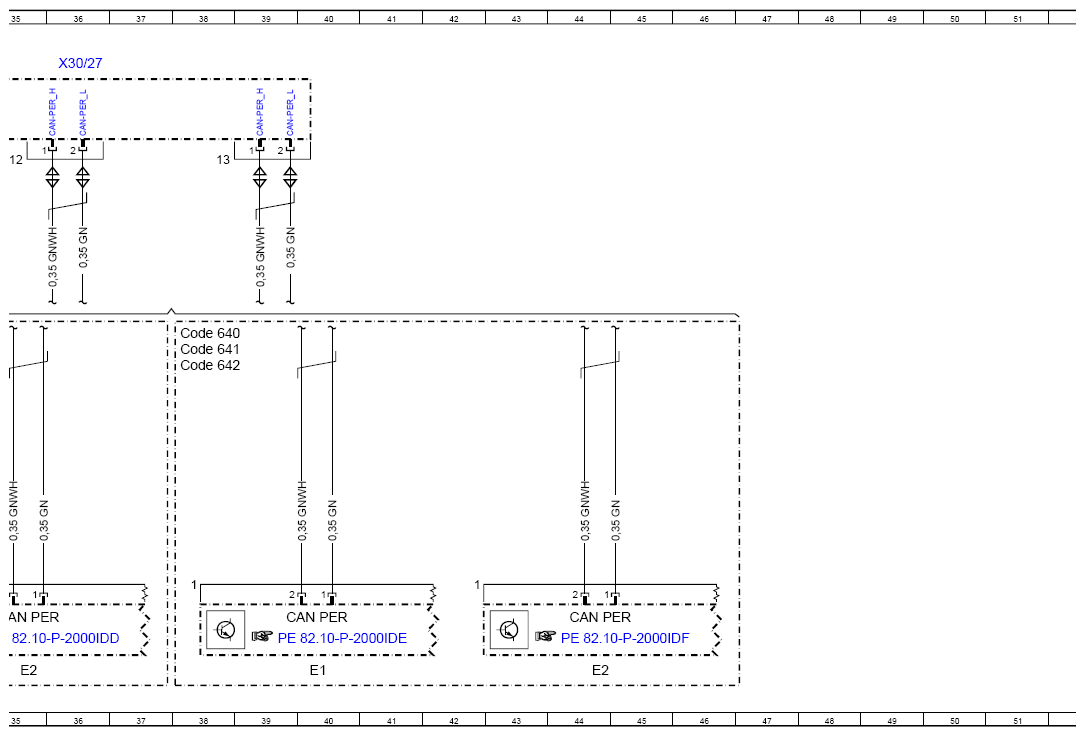

Wiring Diagram For Peripherals CAN - PE00.19-P-2135-97IDA
Model 247
Potential distributor X30/27 (CAN PER)
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 56L |
| A40/11 | Mono multifunction camera | 9L |
| B92/11 | Left outer rear integrated radar sensor | 18L |
| B92/6 | Right outer rear integrated radar sensor | 13L |
| CAN PER | Peripherals CAN | 3K |
| CAN PER | Peripherals CAN | 9K |
| CAN PER | Peripherals CAN | 13K |
| CAN PER | Peripherals CAN | 18K |
| CAN PER | Peripherals CAN | 26K |
| CAN PER | Peripherals CAN | 30K |
| CAN PER | Peripherals CAN | 35K |
| CAN PER | Peripherals CAN | 40K |
| CAN PER | Peripherals CAN | 44K |
| Code 233 | DISTRONIC Distance-Pilot | 12F |
| Code 233 | DISTRONIC Distance-Pilot | 7F |
| Code 234 | Blind spot assist | 11F |
| Code 234 | Blind spot assist | 7F |
| Code 513 | Traffic Sign Assist | 7F |
| Code 51B | EURO-NCAP | 7F |
| Code 51B | EURO-NCAP | 7G |
| Code 608 | Adaptive Highbeam Assist | 7G |
| Code 628 | Adaptive Highbeam Assist Plus | 7G |
| Code 631 | Static LED headlamp, left-hand traffic | 28F |
| Code 632 | Static LED headlamp, right-hand traffic | 28F |
| Code 640 | Dynamic LED headlamps, SAE, right-hand traffic | 38F |
| Code 641 | Dynamic LED headlamps, left-hand traffic | 38F |
| Code 642 | Dynamic LED headlamps, right-hand traffic | 38F |
| Code L | LEFT-HAND DRIVE | 5F |
| Code R | RIGHT-HAND DRIVE | 6F |
| E1 | Left front lamp unit | 31L |
| E1 | Left front lamp unit | 40L |
| E2 | Right front lamp unit | 35L |
| E2 | Right front lamp unit | 44L |
| N127 | Drivetrain control unit | 26L |
| N73 | Electronic ignition switch control unit | 3L |
| W15 | Right front footwell ground point | 5G |
| W34 | Left footwell ground point | 6G |
| X30/27 | Peripherals CAN (CAN PER) potential distributor electrical connector | 4A |
| X30/27 | Peripherals CAN (CAN PER) potential distributor electrical connector | 12A |
| X30/27 | Peripherals CAN (CAN PER) potential distributor electrical connector | 20A |
| X30/27 | Peripherals CAN (CAN PER) potential distributor electrical connector | 28A |
| X30/27 | Peripherals CAN (CAN PER) potential distributor electrical connector | 36A |
| Z36/53z1 | Periphery CAN (CAN PER) low connector sleeve | 17G |
| Z36/54z1 | Periphery CAN (CAN PER) high connector sleeve | 13G |
