Hoods, Doors And Lids Gap Dimensions - Ar60.00-P-0700-01MFA

Model 177

Model 247

MODIFICATION NOTES

25.06.2019

Rear door to side wall

Model 247.0

BE60.00-P-1011-01MA

TEST AND ADJUSTMENT VALUES FOR GAP DIMENSIONS

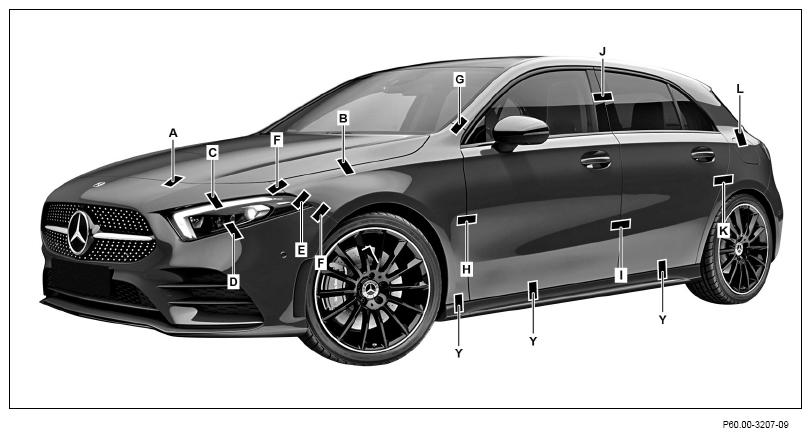

Number	Designation			Model 177.0	Model 177.1/9
BE60.00-P-1001-01JA	Engine hood to bumper	Dimension "A"	mm	3 (± 1)	3 (± 1)
BE60.00-P-1001-01JA	Engine hood to bumper	For picture, see		AR60.00-P-0700-01MFA	AR60.00-P-0700-01MFA

GAP DIMENSIONS

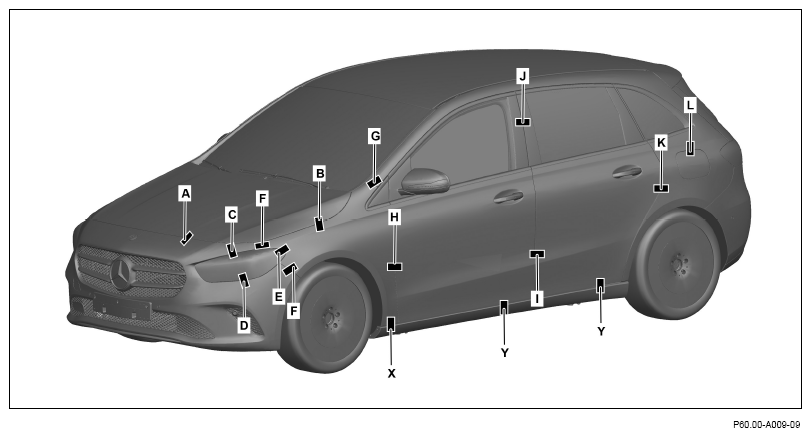

Number	Designation			Model 247.0	Model 247.6
BE60.00-P-1001-01MA	Engine hood to bumper	Dimension "A"	mm	3 (± 1)	3 (± 1)
BE60.00-P-1001-01MA	Engine hood to bumper	For picture, see		AR60.00-P-0700-01MFA	AR60.00-P-0700-01MFA

GAP DIMENSIONS

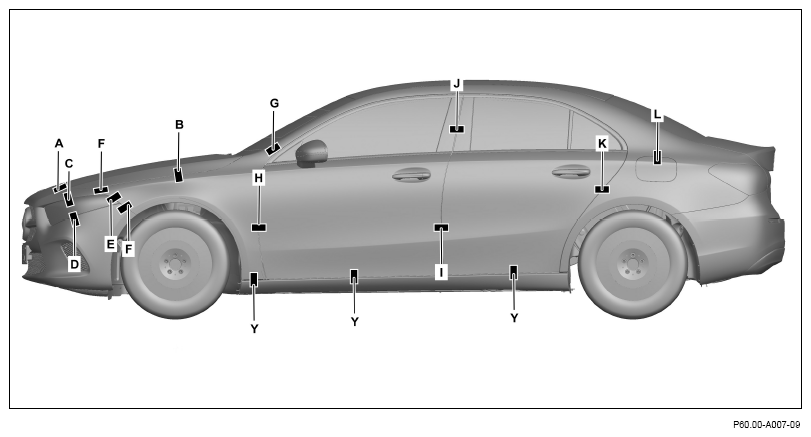

Number	Designation			Model 247.7
BE60.00-P-1001-01MA	Engine hood to bumper	Dimension "A"	mm	3 (± 1)
BE60.00-P-1001-01MA	Engine hood to bumper	For picture, see		AR60.00-P-0700-01MFA

TEST AND ADJUSTMENT VALUES FOR GAP DIMENSIONS

Number	Designation			Model 177.0	Model 177.1/9
BE60.00-P-1002-01JA	Engine hood to fender	Dimension "B"	mm	3 (± 0, 5)	3 (± 0, 5)
BE60.00-P-1002-01JA	Engine hood to fender	For picture, see		AR60.00-P-0700-01MFA	AR60.00-P-0700-01MFA

GAP DIMENSIONS

Number	Designation			Model 247.0	Model 247.6
BE60.00-P-1002-01MA	Engine hood to fender	Dimension "B"	mm	3 (± 0, 5)	3 (± 0, 5)
		Dimension "B1"	mm	-	-
		For picture, see		AR60.00-P-0700-01MFA	AR60.00-P-0700-01MFA

GAP DIMENSIONS

Number	Designation			Model 247.7
BE60.00-P-1002-01MA	Engine hood to fender	Dimension "B"	mm	3 (± 0, 5)
		Dimension "B1"	mm	5 (+1/-1, 5)
		For picture, see		AR60.00-P-0700-01MFA

TEST AND ADJUSTMENT VALUES FOR GAP DIMENSIONS

Number	Designation			Model 177.0	Model 177.1/9
BE60.00-P-1003-01JA	Headlamp front to bumper	Dimension "C"	mm	2 (± 1, 5)	2 (± 1, 5)
BE60.00-P-1003-01JA	Headlamp front to bumper	For picture, see		AR60.00-P-0700-01MFA	AR60.00-P-0700-01MFA

GAP DIMENSIONS

Number	Designation			Model 247.0	Model 247.6
BE60.00-P-1003-01MA	Headlamp front to bumper	Dimension "C"	mm	2 (± 1, 5)	2 (± 1, 5)
		Dimension "C1"	mm	-	-
		For picture, see		AR60.00-P-0700-01MFA	AR60.00-P-0700-01MFA

GAP DIMENSIONS

Number	Designation			Model 247.7
BE60.00-P-1003-01MA	Headlamp front to bumper	Dimension "C"	mm	2 (± 1, 5)
		Dimension "C1"	mm	2 (± 1, 5)
		For picture, see		AR60.00-P-0700-01MFA

TEST AND ADJUSTMENT VALUES FOR GAP DIMENSIONS

Number	Designation			Model 177.0	Model 177.1/9
BE60.00-P-1004-01JA	Headlamp bottom to bumper	Dimension "D"	mm	2 (± 1)	2 (± 1)
BE60.00-P-1004-01JA	Headlamp bottom to bumper	For picture, see		AR60.00-P-0700-01MFA	AR60.00-P-0700-01MFA

GAP DIMENSIONS

Number	Designation			Model 247.0	Model 247.6
BE60.00-P-1004-01MA	Headlamp bottom to bumper	Dimension "D"	mm	2 (± 1)	2 (± 1)
BE60.00-P-1004-01MA	Headlamp bottom to bumper	For picture, see		AR60.00-P-0700-01MFA	AR60.00-P-0700-01MFA

GAP DIMENSIONS

Number	Designation			Model 247.7
BE60.00-P-1004-01MA	Headlamp bottom to bumper	Dimension "D"	mm	2 (± 1)
BE60.00-P-1004-01MA	Headlamp bottom to bumper	For picture, see		AR60.00-P-0700-01MFA

TEST AND ADJUSTMENT VALUES FOR GAP DIMENSIONS

Number	Designation			Model 177.0	Model 177.1/9
BE60.00-P-1005-01JA	Headlamp to fender	Dimension "E"	mm	2 (± 1)	2 (± 1)
BE60.00-P-1005-01JA	Headlamp to fender	For picture, see		AR60.00-P-0700-01MFA	AR60.00-P-0700-01MFA

GAP DIMENSIONS

Number	Designation			Model 247.0	Model 247.6
BE60.00-P-1005-01MA	Headlamp to fender	Dimension "E"	mm	2 (± 1)	2 (± 1)
BE60.00-P-1005-01MA	Headlamp to fender	For picture, see		AR60.00-P-0700-01MFA	AR60.00-P-0700-01MFA

GAP DIMENSIONS

Number	Designation			Model 247.7
BE60.00-P-1005-01MA	Headlamp to fender	Dimension "E"	mm	2 (± 1)
BE60.00-P-1005-01MA	Headlamp to fender	For picture, see		AR60.00-P-0700-01MFA

TEST AND ADJUSTMENT VALUES FOR GAP DIMENSIONS

Number	Designation			Model 177.0	Model 177.1/9
BE60.00-P-1006-01JA	Fender to bumper at front	Dimension "F"	mm	0 (+0, 5)	0 (+0, 5)
BE60.00-P-1006-01JA	Fender to bumper at front	For picture, see		AR60.00-P-0700-01MFA	AR60.00-P-0700-01MFA

GAP DIMENSIONS

Number	Designation			Model 247.0	Model 247.6
BE60.00-P-1006-01MA	Fender to bumper at front	Dimension "F"	mm	0 (+0, 5)	0 (+0, 5)
BE60.00-P-1006-01MA	Fender to bumper at front	For picture, see		AR60.00-P-0700-01MFA	AR60.00-P-0700-01MFA

GAP DIMENSIONS

Number	Designation			Model 247.7
BE60.00-P-1006-01MA	Fender to bumper at front	Dimension "F"	mm	0 (+0, 5)
BE60.00-P-1006-01MA	Fender to bumper at front	For picture, see		AR60.00-P-0700-01MFA

TEST AND ADJUSTMENT VALUES FOR GAP DIMENSIONS

Number	Designation			Model 177.0	Model 177.1/9
BE60.00-P-1007-01JA	Fender to side wall (A-pillar)	Dimension "G"	mm	2 (+1/-0, 5)	2 (+1/-0, 5)
BE60.00-P-1007-01JA	Fender to side wall (A-pillar)	For picture, see		AR60.00-P-0700-01MFA	AR60.00-P-0700-01MFA

GAP DIMENSIONS

Number	Designation			Model 247.0	Model 247.6
BE60.00-P-1007-01MA	Fender to side wall (A-pillar)	Dimension "G"	mm	2 (+1/-0, 5)	2 (+1/-0, 5)
BE60.00-P-1007-01MA	Fender to side wall (A-pillar)	For picture, see		AR60.00-P-0700-01MFA	AR60.00-P-0700-01MFA

GAP DIMENSIONS

Number	Designation			Model 247.7
BE60.00-P-1007-01MA	Fender to side wall (A-pillar)	Dimension "G"	mm	2 (+1/-0, 5)
BE60.00-P-1007-01MA	Fender to side wall (A-pillar)	For picture, see		AR60.00-P-0700-01MFA

TEST AND ADJUSTMENT VALUES FOR GAP DIMENSIONS

Number	Designation			Model 177.0	Model 177.1/9
BE60.00-P-1008-01JA	Front door to fender	Dimension "H"	mm	4 (± 0, 5)	4 (± 0, 5)
BE60.00-P-1008-01JA	Front door to fender	For picture, see		AR60.00-P-0700-01MFA	AR60.00-P-0700-01MFA

GAP DIMENSIONS

Number	Designation			Model 247.0	Model 247.6
BE60.00-P-1008-01MA	Front door to fender	Dimension "H"	mm	4 (± 0, 5)	4 (± 0, 5)
BE60.00-P-1008-01MA	Front door to fender	For picture, see		AR60.00-P-0700-01MFA	AR60.00-P-0700-01MFA

GAP DIMENSIONS

Number	Designation			Model 247.7
BE60.00-P-1008-01MA	Front door to fender	Dimension "H"	mm	4 (+0, 5/-1)
BE60.00-P-1008-01MA	Front door to fender	For picture, see		AR60.00-P-0700-01MFA

TEST AND ADJUSTMENT VALUES FOR GAP DIMENSIONS

Number	Designation			Model 177.0	Model 177.1/9
BE60.00-P-1009-01JA	Front door to rear door	Dimension "I"	mm	4 (± 0, 5)	4 (± 0, 5)
BE60.00-P-1009-01JA	Front door to rear door	For picture, see		AR60.00-P-0700-01MFA	AR60.00-P-0700-01MFA

GAP DIMENSIONS

Number	Designation			Model 247.0	Model 247.6
BE60.00-P-1009-01MA	Front door to rear door	Dimension "I"	mm	4 (± 0, 5)	4 (± 0, 5)
BE60.00-P-1009-01MA	Front door to rear door	For picture, see		AR60.00-P-0700-01MFA	AR60.00-P-0700-01MFA

GAP DIMENSIONS

Number	Designation			Model 247.7
BE60.00-P-1009-01MA	Front door to rear door	Dimension "I"	mm	4 (± 0, 5)
BE60.00-P-1009-01MA	Front door to rear door	For picture, see		AR60.00-P-0700-01MFA

TEST AND ADJUSTMENT VALUES FOR GAP DIMENSIONS

Number	Designation			Model 177.0	Model 177.1/9
BE60.00-P-1010-01JA	Front door cover to rear door cover (B-pillar)	Dimension "J"	mm	4 (± 1)	4 (± 1)
BE60.00-P-1010-01JA	Front door cover to rear door cover (B-pillar)	For picture, see		AR60.00-P-0700-01MFA	AR60.00-P-0700-01MFA

GAP DIMENSIONS

Number	Designation			Model 247.0	Model 247.6
BE60.00-P-1010-01MA	Front door cover to rear door cover (B-pillar)	Dimension "J"	mm	4 (± 1)	4 (± 1)
BE60.00-P-1010-01MA	Front door cover to rear door cover (B-pillar)	For picture, see		AR60.00-P-0700-01MFA	AR60.00-P-0700-01MFA

GAP DIMENSIONS

Number	Designation			Model 247.7
BE60.00-P-1010-01MA	Front door cover to rear door cover (B-pillar)	Dimension "J"	mm	4 (± 1)
BE60.00-P-1010-01MA	Front door cover to rear door cover (B-pillar)	For picture, see		AR60.00-P-0700-01MFA

TEST AND ADJUSTMENT VALUES FOR GAP DIMENSIONS

Number	Designation			Model 177.0	Model 177.1/9
BE60.00-P-1011-01JA	Rear door to side wall	Dimension "K"	mm	3 (+0, 5)	3 (+0, 5)
BE60.00-P-1011-01JA	Rear door to side wall	For picture, see		AR60.00-P-0700-01MFA	AR60.00-P-0700-01MFA

GAP DIMENSIONS

Number	Designation			Model 247.0	Model 247.6
BE60.00-P-1011-01MA	Rear door to side wall	Dimension "K"	mm	3, 5 (+0, 5)	3, 5 (+0, 5)
BE60.00-P-1011-01MA	Rear door to side wall	For picture, see		AR60.00-P-0700-01MFA	AR60.00-P-0700-01MFA

GAP DIMENSIONS

Number	Designation			Model 247.7
BE60.00-P-1011-01MA	Rear door to side wall	Dimension "K"	mm	3 (+0, 5)
BE60.00-P-1011-01MA	Rear door to side wall	For picture, see		AR60.00-P-0700-01MFA

TEST AND ADJUSTMENT VALUES FOR GAP DIMENSIONS

Number	Designation			Model 177.0	Model 177.1/9
BE60.00-P-1012-01JA	Fuel filler flap/fuel filler flap hybrid to side wall (circumferential)	Dimension "L"	mm	2 (± 0, 5)	2 (± 0, 5)
BE60.00-P-1012-01JA		For picture, see		AR60.00-P-0700-01MFA	AR60.00-P-0700-01MFA

GAP DIMENSIONS

Number	Designation			Model 247.0	Model 247.6
BE60.00-P-1012-01MA	Fuel filler flap/fuel filler flap hybrid to side wall (circumferential)	Dimension "L"	mm	2 (+1/-0, 5)	2, 5 (± 0, 5)
BE60.00-P-1012-01MA		For picture, see		AR60.00-P-0700-01MFA	AR60.00-P-0700-01MFA

GAP DIMENSIONS

Number	Designation			Model 247.7
BE60.00-P-1012-01MA	Fuel filler flap/fuel filler flap hybrid to side wall (circumferential)	Dimension "L"	mm	2 (+1/-0, 5)
BE60.00-P-1012-01MA		For picture, see		AR60.00-P-0700-01MFA

TEST AND ADJUSTMENT VALUES FOR GAP DIMENSIONS

Number	Designation			Model 177.0

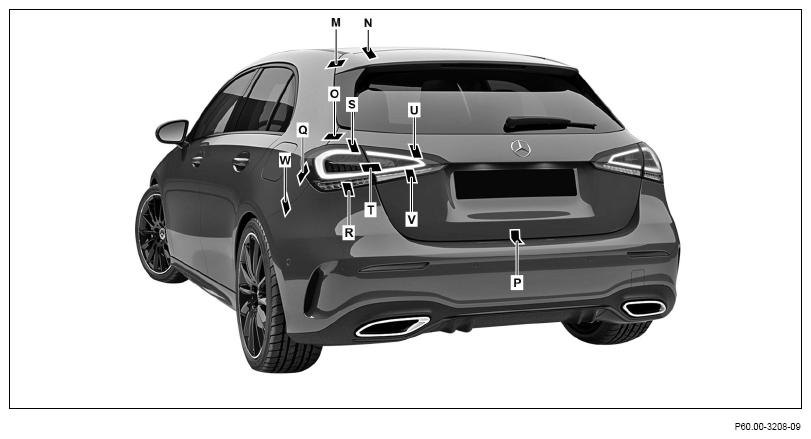

BE60.00-P-1013-01JA	Roof spoiler to side wall	Dimension "M"	mm	4, 5 (± 1)
BE60.00-P-1013-01JA	Roof spoiler to side wall	For picture, see		AR60.00-P-0700-01MFA

GAP DIMENSIONS

Number	Designation			Model 247.0	Model 247.6
BE60.00-P-1013-01MA	Roof spoiler to side wall	Dimension "M"	mm	4, 5 (± 1)	4, 5 (± 1)
BE60.00-P-1013-01MA	Roof spoiler to side wall	For picture, see		AR60.00-P-0700-01MFA	AR60.00-P-0700-01MFA

GAP DIMENSIONS

Number	Designation			Model 247.7
BE60.00-P-1013-01MA	Roof spoiler to side wall	Dimension "M"	mm	4, 5 (± 1)
BE60.00-P-1013-01MA	Roof spoiler to side wall	For picture, see		AR60.00-P-0700-01MFA

TEST AND ADJUSTMENT VALUES FOR GAP DIMENSIONS

Number	Designation			Model 177.0
BE60.00-P-1014-01JA	Roof spoiler to roof	Dimension "N"	mm	5, 5 (± 1, 5)
BE60.00-P-1014-01JA	Roof spoiler to roof	For picture, see		AR60.00-P-0700-01MFA

GAP DIMENSIONS

Number	Designation			Model 247.0	Model 247.6
BE60.00-P-1014-01MA	Roof spoiler to roof	Dimension "N"	mm	5, 5 (± 1, 5)	5, 0 (± 1, 5)
BE60.00-P-1014-01MA	Roof spoiler to roof	For picture, see		AR60.00-P-0700-01MFA	AR60.00-P-0700-01MFA

GAP DIMENSIONS

Number	Designation			Model 247.7
BE60.00-P-1014-01MA	Roof spoiler to roof	Dimension "N"	mm	5 (+1/-1, 5)
BE60.00-P-1014-01MA	Roof spoiler to roof	For picture, see		AR60.00-P-0700-01MFA

TEST AND ADJUSTMENT VALUES FOR GAP DIMENSIONS

Number	Designation			Model 177.0	Model 177.1/9
BE60.00-P-1015-01JA	Liftgate/trunk lid to side wall	Dimension "O"	mm	4, 5 (± 1)	3 (+1/-0, 5)
BE60.00-P-1015-01JA	Liftgate/trunk lid to side wall	For picture, see		AR60.00-P-0700-01MFA	AR60.00-P-0700-01MFA

GAP DIMENSIONS

Number	Designation			Model 247.0	Model 247.6
BE60.00-P-1015-01MA	Liftgate/trunk lid to side wall	Dimension "O"	mm	4, 5 (± 1)	5 (-1/+0, 5)
BE60.00-P-1015-01MA	Liftgate/trunk lid to side wall	For picture, see		AR60.00-P-0700-01MFA	AR60.00-P-0700-01MFA

GAP DIMENSIONS

Number	Designation			Model 247.7
BE60.00-P-1015-01MA	Liftgate/trunk lid to side wall	Dimension "O"	mm	5 (± 1, 5)
BE60.00-P-1015-01MA	Liftgate/trunk lid to side wall	For picture, see		AR60.00-P-0700-01MFA

TEST AND ADJUSTMENT VALUES FOR GAP DIMENSIONS

Number	Designation			Model 177.0	Model 177.1/9

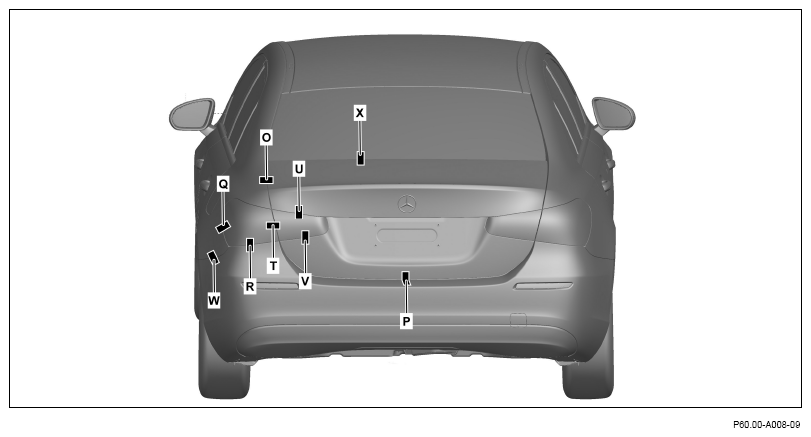

BE60.00-P-1016-01JA	Liftgate/trunk lid to bumper at rear	Dimension "P"	mm	5, 5 (± 1, 5)	5, 5 (± 1)
BE60.00-P-1016-01JA	Liftgate/trunk lid to bumper at rear	For picture, see		AR60.00-P-0700-01MFA	AR60.00-P-0700-01MFA

GAP DIMENSIONS

Number	Designation			Model 247.0	Model 247.6
BE60.00-P-1016-01MA	Liftgate/trunk lid to bumper at rear	Dimension "P"	mm	6 (± 2)	6 (± 2)
		Dimension "P1"	mm	-	5 (-1/+2)
		For picture, see		AR60.00-P-0700-01MFA	AR60.00-P-0700-01MFA

GAP DIMENSIONS

Number	Designation			Model 247.7
BE60.00-P-1016-01MA	Liftgate/trunk lid to bumper at rear	Dimension "P"	mm	6 (± 2)
		Dimension "P1"	mm	4, 5 (± 1, 0)
		For picture, see		AR60.00-P-0700-01MFA

TEST AND ADJUSTMENT VALUES FOR GAP DIMENSIONS

Number	Designation			Model 177.0	Model 177.1/9
BE60.00-P-1017-01JA	Outer tail lamp to side wall	Dimension "Q"	mm	1 (+1/-0, 5)	1 (+1)
BE60.00-P-1017-01JA	Outer tail lamp to side wall	For picture, see		AR60.00-P-0700-01MFA	AR60.00-P-0700-01MFA

GAP DIMENSIONS

Number	Designation			Model 247.0	Model 247.6
BE60.00-P-1017-01MA	Outer tail lamp to side wall	Dimension "Q"	mm	1, 5 (± 0, 5)	1, 5 (± 0, 5)
BE60.00-P-1017-01MA	Outer tail lamp to side wall	For picture, see		AR60.00-P-0700-01MFA	AR60.00-P-0700-01MFA

GAP DIMENSIONS

Number	Designation			Model 247.7
BE60.00-P-1017-01MA	Outer tail lamp to side wall	Dimension "Q"	mm	1, 5 (± 0, 5)
BE60.00-P-1017-01MA	Outer tail lamp to side wall	For picture, see		AR60.00-P-0700-01MFA

TEST AND ADJUSTMENT VALUES FOR GAP DIMENSIONS

Number	Designation			Model 177.0	Model 177.1/9
BE60.00-P-1018-01JA	Outer tail lamp to bumper at rear	Dimension "R"	mm	2 (± 1)	1, 5 (+1)
BE60.00-P-1018-01JA	Outer tail lamp to bumper at rear	For picture, see		AR60.00-P-0700-01MFA	AR60.00-P-0700-01MFA

GAP DIMENSIONS

Number	Designation			Model 247.0	Model 247.6
BE60.00-P-1018-01MA	Outer tail lamp to bumper at rear	Dimension "R"	mm	2 (± 1)	2 (± 1)
BE60.00-P-1018-01MA	Outer tail lamp to bumper at rear	For picture, see		AR60.00-P-0700-01MFA	AR60.00-P-0700-01MFA

GAP DIMENSIONS

Number	Designation			Model 247.7
BE60.00-P-1018-01MA	Outer tail lamp to bumper at rear	Dimension "R"	mm	2 (± 1)
BE60.00-P-1018-01MA	Outer tail lamp to bumper at rear	For picture, see		AR60.00-P-0700-01MFA

TEST AND ADJUSTMENT VALUES FOR GAP DIMENSIONS

Number	Designation			Model 177.0
BE60.00-P-1019-01JA	Outer tail lamp to liftgate	Dimension "S"	mm	3, 5 (+1/-0, 5)
BE60.00-P-1019-01JA	Outer tail lamp to liftgate	For picture, see		AR60.00-P-0700-01MFA

GAP DIMENSIONS

Number	Designation			Model 247.0	Model 247.6
BE60.00-P-1019-01MA	Outer tail lamp to liftgate	Dimension "S"	mm	3, 5 (+1/-0, 5)	4 (± 1)
BE60.00-P-1019-01MA	Outer tail lamp to liftgate	For picture, see		AR60.00-P-0700-01MFA	AR60.00-P-0700-01MFA

GAP DIMENSIONS

Number	Designation			Model 247.7
BE60.00-P-1019-01MA	Outer tail lamp to liftgate	Dimension "S"	mm	4 (± 1)
BE60.00-P-1019-01MA	Outer tail lamp to liftgate	For picture, see		AR60.00-P-0700-01MFA

TEST AND ADJUSTMENT VALUES FOR GAP DIMENSIONS

Number	Designation			Model 177.0	Model 177.1/9
BE60.00-P-1020-01JA	Outside of taillamp to inside of taillamp	Dimension "T"	mm	3, 5 (+1/-0, 5)	3, 5 (+1/-0, 5)
BE60.00-P-1020-01JA	Outside of taillamp to inside of taillamp	For picture, see		AR60.00-P-0700-01MFA	AR60.00-P-0700-01MFA

GAP DIMENSIONS

Number	Designation			Model 247.0	Model 247.6
BE60.00-P-1020-01MA	Outer tail lamp to inner tail lamp/rear continuous reflector strip	Dimension "T"	mm	3, 5 (+1/-0, 5)	4 (± 1)
BE60.00-P-1020-01MA		For picture, see		AR60.00-P-0700-01MFA	AR60.00-P-0700-01MFA

Gap dimensions

Number	Designation			Model 247.7
BE60.00-P-1020-01MA	Outer tail lamp to inner tail lamp/rear continuous reflector strip	Dimension "T"	mm	4 (± 1)
BE60.00-P-1020-01MA		For picture, see		AR60.00-P-0700-01MFA

TEST AND ADJUSTMENT VALUES FOR GAP DIMENSIONS

Number	Designation			Model 177.0	Model 177.1/9
BE60.00-P-1021-01JA	Liftgate/trunk lid to inner tail lamp (top)	Dimension "U"	mm	1 (± 0, 5)	1 (± 0, 5)
BE60.00-P-1021-01JA	Liftgate/trunk lid to inner tail lamp (top)	For picture, see		AR60.00-P-0700-01MFA	AR60.00-P-0700-01MFA

GAP DIMENSIONS

Number	Designation			Model 247.0	Model 247.6
BE60.00-P-1021-01MA	Tailgate/trunk lid to inner tail lamp (top)/rear continuous reflector strip (top)	Dimension "U"	mm	1 (± 0, 5)	1 (± 0, 5)
BE60.00-P-1021-01MA		For picture, see		AR60.00-P-0700-01MFA	AR60.00-P-0700-01MFA

GAP DIMENSIONS

Number	Designation			Model 247.7
BE60.00-P-1021-01MA	Tailgate/trunk lid to inner tail lamp (top)/rear continuous reflector strip (top)	Dimension "U"	mm	1 (± 0, 5)
BE60.00-P-1021-01MA		For picture, see		AR60.00-P-0700-01MFA

TEST AND ADJUSTMENT VALUES FOR GAP DIMENSIONS

Number	Designation			Model 177.0	Model 177.1/9
BE60.00-P-1022-01JA	Liftgate/trunk lid to inner tail lamp (bottom)	Dimension "V"	mm	2, 5 (± 1)	1, 5 (+1/-0, 5)
BE60.00-P-1022-01JA	Liftgate/trunk lid to inner tail lamp (bottom)	For picture, see		AR60.00-P-0700-01MFA	AR60.00-P-0700-01MFA

GAP DIMENSIONS

Number	Designation			Model 247.0	Model 247.6
BE60.00-P-1022-01MA	Tailgate/trunk lid to inner tail lamp (bottom)/rear continuous reflector strip (bottom)	Dimension "V"	mm	2, 5 (± 1)	1, 5 (± 1)
BE60.00-P-1022-01MA		For picture, see		AR60.00-P-0700-01MFA	AR60.00-P-0700-01MFA

GAP DIMENSIONS

Number	Designation			Model 247.7
BE60.00-P-1022-01MA	Tailgate/trunk lid to inner tail lamp (bottom)/rear continuous reflector strip (bottom)	Dimension "V"	mm	1, 5 (± 1)
BE60.00-P-1022-01MA		For picture, see		AR60.00-P-0700-01MFA

TEST AND ADJUSTMENT VALUES FOR GAP DIMENSIONS

Number	Designation			Model 177.0	Model 177.1/9
BE60.00-P-1023-01JA	Bumper at rear to side wall	Dimension "W"	mm	0 (+0, 5)	0 (+0, 5)
BE60.00-P-1023-01JA	Bumper at rear to side wall	For picture, see		AR60.00-P-0700-01MFA	AR60.00-P-0700-01MFA

GAP DIMENSIONS

Number	Designation			Model 247.0	Model 247.6
BE60.00-P-1023-01MA	Bumper at rear to side wall	Dimension "W"	mm	0 (+0, 5)	0, 5 (-0, 5)
BE60.00-P-1023-01MA	Bumper at rear to side wall	For picture, see		AR60.00-P-0700-01MFA	AR60.00-P-0700-01MFA

GAP DIMENSIONS

Number	Designation			Model 247.7
BE60.00-P-1023-01MA	Bumper at rear to side wall	Dimension "W"	mm	0 (+0, 5)
BE60.00-P-1023-01MA	Bumper at rear to side wall	For picture, see		AR60.00-P-0700-01MFA

TEST AND ADJUSTMENT VALUES FOR GAP DIMENSIONS

Number	Designation			Model 177.1/9
BE60.00-P-1024-01JA	Trunk lid to rear window	Dimension "X"	mm	8, 5 (± 2)
BE60.00-P-1024-01JA	Trunk lid to rear window	For picture, see		AR60.00-P-0700-01MFA

GAP DIMENSIONS

Number	Designation			Model 247.0
BE60.00-P-1024-01MA	Longitudinal member panel to fender	Dimension "X"	mm	4, 5 (± 1)
BE60.00-P-1024-01MA	Longitudinal member panel to fender	For picture, see		AR60.00-P-0700-01MFA

TEST AND ADJUSTMENT VALUES FOR GAP DIMENSIONS

Number	Designation			Model 177.0	Model 177.1/9
BE60.00-P-1025-01JA	Longitudinal member panel to fender/front door/rear door	Dimension "Y"	mm	5 (± 1)	5 (± 1)
BE60.00-P-1025-01JA	Longitudinal member panel to fender/front door/rear door	For picture, see		AR60.00-P-0700-01MFA	AR60.00-P-0700-01MFA

GAP DIMENSIONS

Number	Designation			Model 247.0
BE60.00-P-1025-01MA	Longitudinal member panel to front door/rear door	Dimension "Y"	mm	5, 0 (± 1)
BE60.00-P-1025-01MA	Longitudinal member panel to front door/rear door	For picture, see		AR60.00-P-0700-01MFA

GAP DIMENSIONS

Number	Designation			Model 247.6	Model 247.7
BE60.00-P-1026-01MA	Headlamp top to bumper	Dimension "Z"	mm	3, 5 (± 1)	3, 5 (± 1)
BE60.00-P-1026-01MA	Headlamp top to bumper	For picture, see		AR60.00-P-0700-01MFA	AR60.00-P-0700-01MFA

GAP DIMENSIONS

Number	Designation			Model 247.6	Model 247.7
BE60.00-P-1027-01MA	Rear window to side spoiler	Dimension "AA"	mm	3 (± 1, 5)	3 (± 1, 5)
BE60.00-P-1027-01MA	Rear window to side spoiler	For picture, see		AR60.00-P-0700-01MFA	AR60.00-P-0700-01MFA

GAP DIMENSIONS

Number	Designation			Model 247.6	Model 247.7
BE60.00-P-1028-01MA	Rear window (bottom) to liftgate/trunk	Dimension "AB"	mm	3 (-1, 5/+1)	3 (+1/-1, 5)
BE60.00-P-1028-01MA	Rear window (bottom) to liftgate/trunk	For picture, see		AR60.00-P-0700-01MFA	AR60.00-P-0700-01MFA

Fig 1: Feeler Gauge (129 589 03 21 00)

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

Front and side gap dimensions, model 177.0

Courtesy of MERCEDES-BENZ USA

Rear gap dimensions, model 177.0

Courtesy of MERCEDES-BENZ USA

Front and side gap dimensions, model 177.1

Courtesy of MERCEDES-BENZ USA

Rear gap dimensions, model 177.1

Courtesy of MERCEDES-BENZ USA

Front and side gap dimensions, model 247.0

Courtesy of MERCEDES-BENZ USA

Rear gap dimensions, model 247.0

Courtesy of MERCEDES-BENZ USA

Front and side gap dimensions, model 247.6/7

Courtesy of MERCEDES-BENZ USA

Rear gap dimensions, model 247.6/7

Check gap dimensions with feeler gauge as per sketches.
Gap dimensions must be adjusted as per the drawings. The gap should not run wedge-shaped or be too narrow at points. Deviations from parallel gap should be max. 1 mm over the entire length. If the inside clearance is too large or too small, the movable body parts must be centered accordingly. The reference measurements apply only for repair work on vehicles damaged in accidents.
