Tightening Procedure For Charge Air Manifold - AR09.41-P-1312-01MT

Engine 133 in model 117, 156, 176

Engine 260 in model 118, 177, 247

Engine 270 in model 117, 156, 176, 242, 246.2

INTAKE MANIFOLD

Number Designation Engine 260 Engine 270
BA09.20-P-1001-01U Screw/bolt, charge air distributor to cylinder head Nm 14 14
CHARGE AIR PIPE/CHARGE AIR COOLING

Number Designation Engine 133
BA09.41-P-1001-01T Bolt, charge air distributor to cylinder head Nm 9

Engine 270

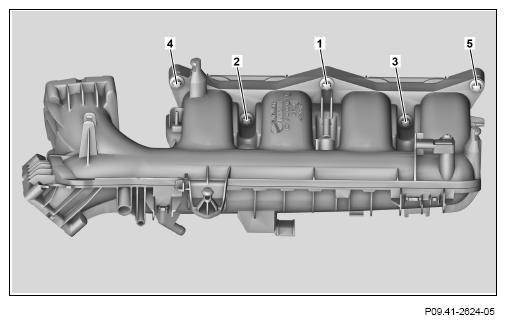

  1. Tighten the bolts (1 to 5) for the charge air distributor in numerical order. Engine 270 in model 117, 156, 176, 242, 246.2 TORQUE SPECIFICATION .
    G12817120Courtesy of MERCEDES-BENZ USA

    Engine 260

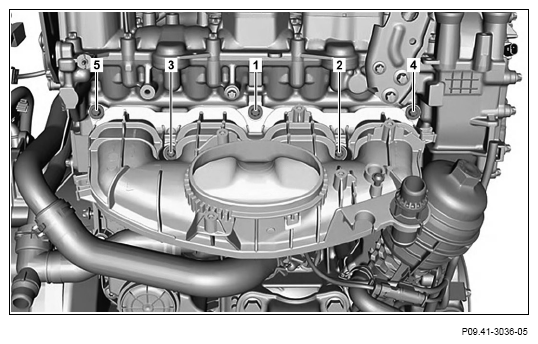

  2. Tighten the bolts (1 to 5) for the charge air distributor in numerical order. Engine 260 in model 177 TORQUE SPECIFICATION .
    G14688437Courtesy of MERCEDES-BENZ USA

    Engine 133

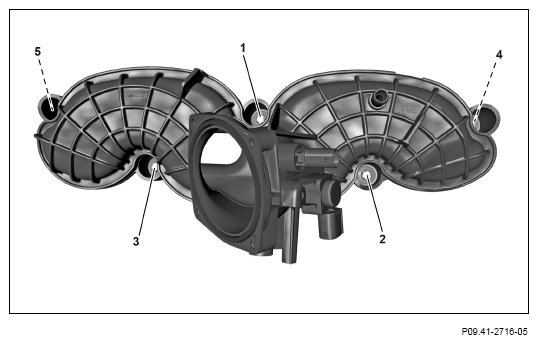

  3. Tighten the bolts (1 to 5) for the charge air distributor in numerical order. Engine 133 in model 117, 156, 176 TORQUE SPECIFICATION .
    Fig 1: Charge Air Manifold/Distributor Tightening Sequence - Engine 260 In Model 247
    G14688438Courtesy of MERCEDES-BENZ USA
