Remove/Install Charge Air Pipe From Charge Air Cooler To Charge Air Distributor - AR09.41-P-1331MFC
Engine 260 in model 118, 177, 247
except code M016 (Uprated Engine)

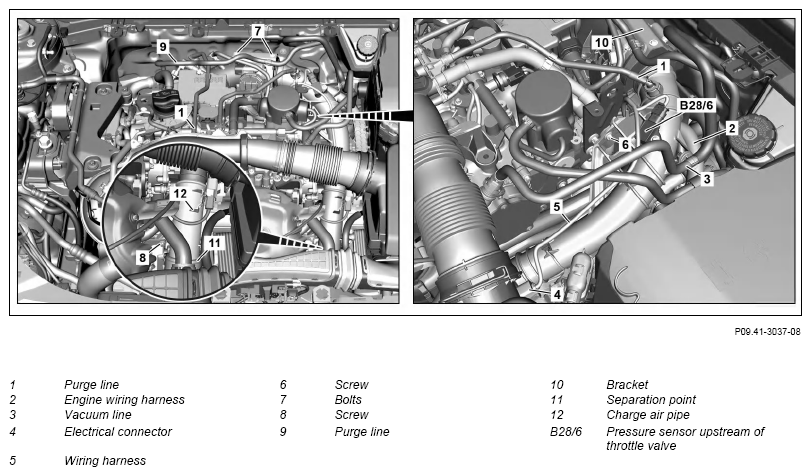

Fig 1: Charge Air Pipe From Charge Air Cooler To Charge Air Distributor Components Location - Engine 260 In Model 247 Except Code M016
| Risk of explosion caused by fuel igniting, risk of poisoning caused by inhaling and swallowing fuel as well as risk of injury to eyes and skin caused by contact with fuel. | No fires, sparks, open flames or smoking. Pour fuels into suitable and appropriately marked containers only. Wear protective clothing when handling fuel. | AS47.00-Z-0001-01A | |
| Risk of explosion caused by fuel igniting. Risk of injury to skin and eyes caused by fuel spraying out at high pressure | Keep all ignition sources out of hazard area. Do not carry out any work on system when it is pressurized. | AS07.16-Z-0001-01A | |
| Risk of injury . Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Topical note | Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Remove/install top part of the charge air pipe (12) | |||
| 1 | Remove upper Engine cover. | ||
| AP01.10-P-2405-01C | |||
| 2 | Remove purge line (1) and seal exposed connections with suitable stop plugs. | Fig 2 | |
| 3 | Unclip vacuum line (3) from charge air pipe (12). | ||
| 4 | Release and disconnect electrical connector from pressure sensor upstream of throttle valve (B28/6). | ||
| 5 | Unclip Engine wiring harness (2) below charge air pipe (12). | ||
| 6 | Unclip electrical connector (4) of lambda sensor upstream of catalytic converter (G3/2) with connected wiring harness (5) from charge air pipe (12) and place to one side. | ||
| 7 | Unclip purge line (9) from bracket (10) of charge air pipe (12). | ||
| 8 | Unscrew screw/bolt (6). | ||
| 9 | Remove bolts (7) and remove bracket (10) of charge air pipe (12) from throttle valve actuator (M16/6). | ||
| 10 | Remove screw (8). | ||
| 11 | Disconnect charge air pipe (12) from connecting point (11) and remove. | AR09.41-P-1311-01AL | |
| 12 | Remove bolt from pressure sensor upstream of throttle valve (B28/6). | When installing new charge air pipe (12). | |
| 13 | Remove pressure sensor upstream of throttle valve (B28/6) and lay down on suitable mat. | When installing new charge air pipe (12). |
|
| 14 | Install in the reverse order. | ||
| Remove/install bottom part of the charge air pipe (12) | |||
| 15 | Remove lower Engine compartment paneling. | AR61.20-P-1105MFA | |
| 16 | Remove charge air pipe (12) from charge air cooler. | AR09.41-P-1311-01AL | |
| 17 | Install in the reverse order. |
