Remove/Install Divert Air Switchover Valve - AR09.40-P-3000MFC

Engine 260 in model 118, 177, 247

with code M016 (Uprated Engine)

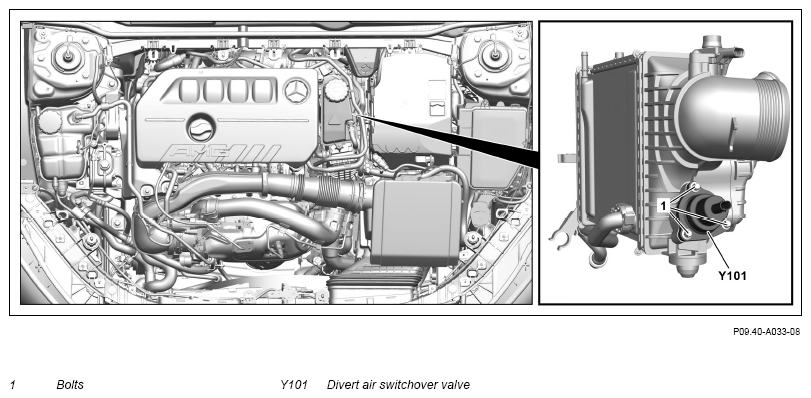

Fig 1: Divert Air Switchover Valve Components Location - Engine 260 In Model 247 With Code M016

Courtesy of MERCEDES-BENZ USA

	Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
Notice	Notes on avoiding damage through contamination and foreign objects		AH00.00-P-5000-01A
	Remove/install
1	Remove charge air cooler.		AR09.41-P-0105MFC
2	Remove bolts (1).	Bolt, solenoid valve to charge air cooler	*BA09.41-P-1001-01KOA
3	Remove the overrun mode bypass air switchover valve (Y101) and seal the opening on the charge air cooler with suitable stop plugs.	Replace seal.
		Set of plugs	Fig 2
4	Install in the reverse order.
