Routing Diagram For Poly-V Belt - AR13.22-P-3902-02NKB

Engine 260 in model 118, 177, 247

Engine 270 in model 242

Engine 270, 651 in model 117, 156, 176, 246

Engine 651.9

Courtesy of MERCEDES-BENZ USA

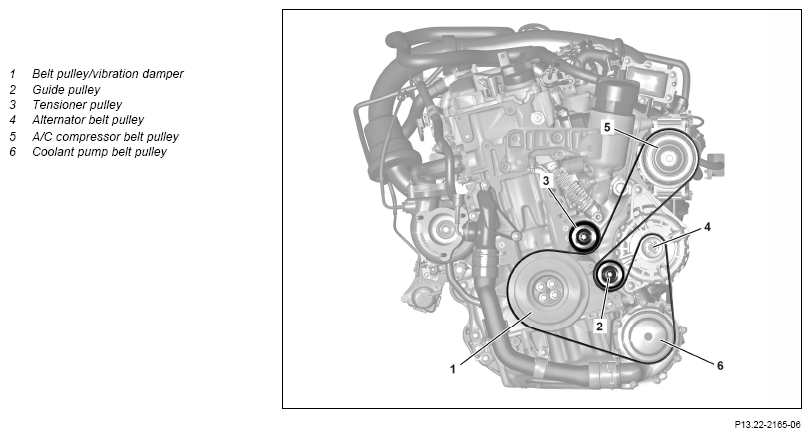

Engine 270.9 and engine 260

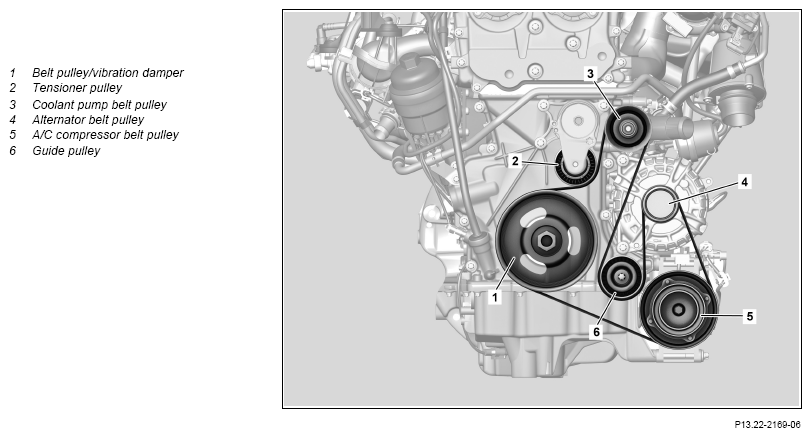

Fig 1: Poly-V Belt Drive Belt Routing - Engine 260 In Model 247
