Remove/Install Poly-V-Belt Tensioning Device - AR13.25-P-3220MFC
Engine 260 in model 118, 177, 247
MODIFICATION NOTES
| 22.11.2019 | Document completely revised. |

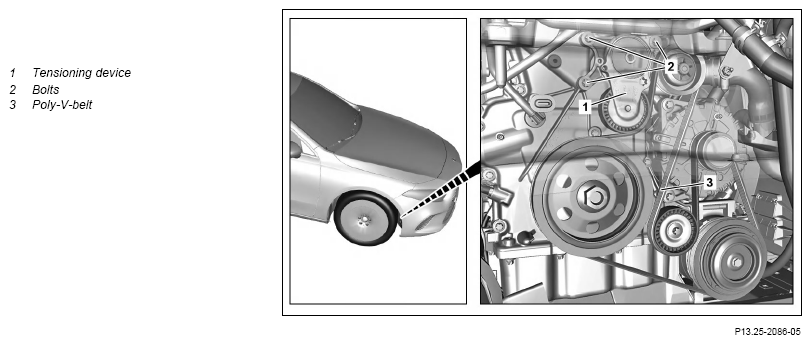

Shown on model 177
| Risk of injury . Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of injury . Moving parts can pinch, crush or, in extreme cases even sever extremities. | No parts of the body or limbs should be within the operating area of mechanical components when moving components. | AS00.00-Z-0009-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Notice | Notes on self-locking nuts and bolts | AH00.00-P-0001-01KOA | |
| Remove/install | |||
| 1 | Remove poly-V-belt (3). | AR13.22-P-1202MFC | |
| 2 | Remove right engine mount. | AR22.10-P-1102MFD | |
| 3 | Remove screws (2). | *BA13.25-P-1001-01Z | |
| 4 | Remove tensioning device (1). | ||
| 5 | Check tensioning device (1) for damage, wear and contamination. | If there are problems, ↓ Replace clamping device (1). |
|
| 6 | Install in the reverse order. |
BELT TENSIONING DEVICE
| Number | Designation | Engine 260 | |
|---|---|---|---|
| BA13.25-P-1001-01Z | Bolt, tensioning device to timing case cover | Nm | 20 |
