Wiring Diagram Of 48V On-Board Electrical System - PE54.10-P-2008-97IDA
Model 247 with code B01 (48V technology)
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 48L |
| CAN L | Hybrid CAN | 34K |
| F150/3 | Engine compartment pre-fuse box | 8L |
| F152/3 | Engine compartment fuse and relay module | 32A |
| F152/3f56 | Fuse 56 | 31A |
| F152/3f63 | Fuse 63 | 29A |
| F152/4 | Vehicle interior fuse and relay module | 38A |
| F152/4f128 | Fuse 128 | 35A |
| F152/4f147 | Fuse 147 | 39A |
| F152/4f151 | Fuse 151 | 37A |
| F32/9 | 48 V on-board electrical system engine compartment pre-fuse box | 15A |

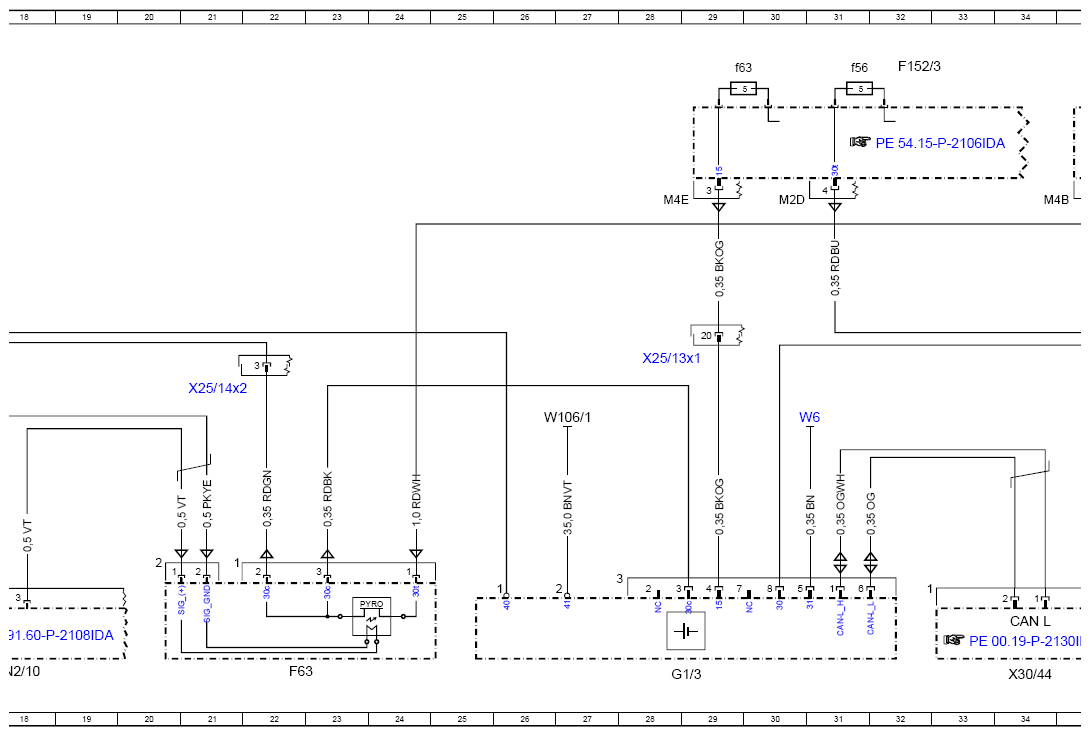

| F63 | Pyrofuse | 22L |
| G1/3 | 48 V on-board electrical system battery | 28L |
| G2/3 | Belt-driven starter alternator | 4L |

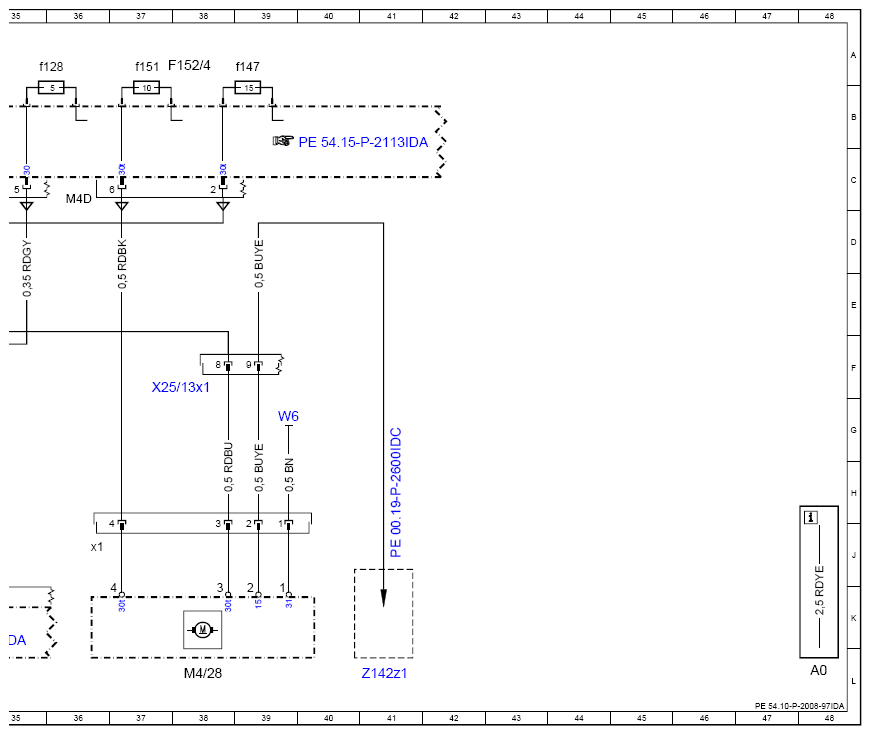

| M4/28 | 12 V fan for 48 V on-board electrical system battery | 38L |
| M4/28x1 | Electrical connector of 12 V fan for 48 V on-board electrical system battery | 36J |
| M75/12 | Electric coolant pump | 15L |
| N2/10 | Supplemental restraint system control unit | 18L |

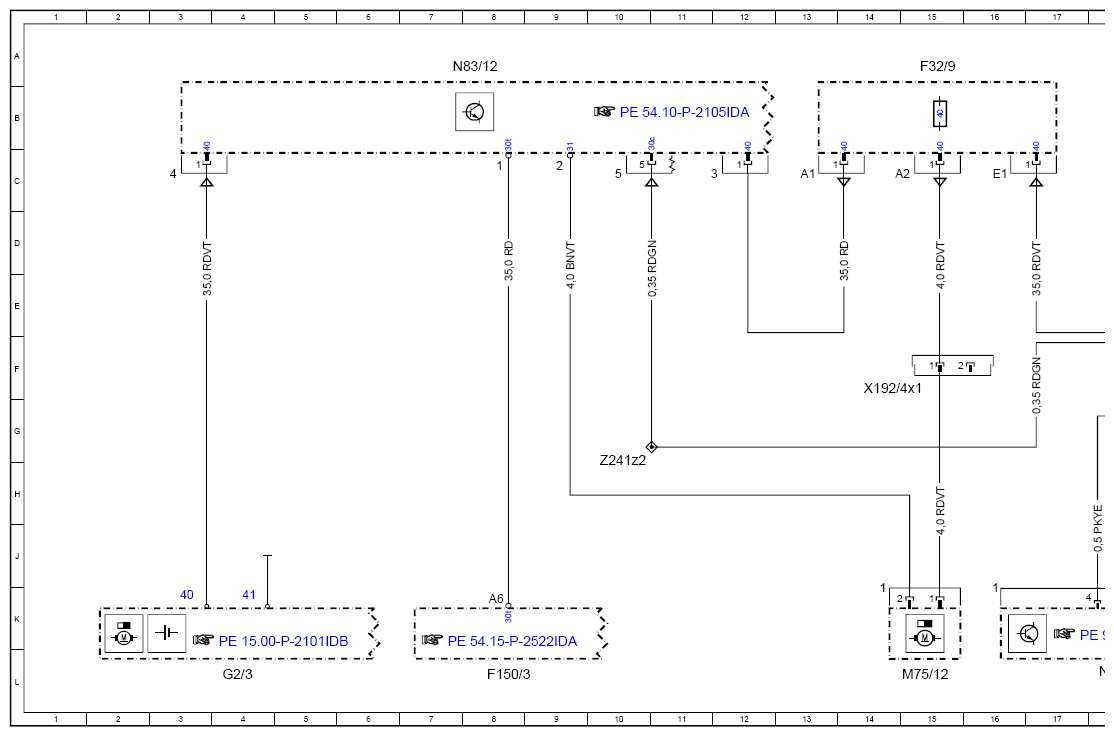

| N83/12 | 48 V on-board electrical system DC/DC converter control unit | 8A |
| W106/1 | 48 V on-board electrical system battery ground point | 27G |
| W6 | Left wheel arch trunk ground point | 30G |
| W6 | Left wheel arch trunk ground point | 39G |
| X192/4x1 | Coolant pump electrical connector | 14F |
| X25/13x1 | Left engine compartment/vehicle interior electrical connector | 28F |
| X25/13x1 | Left engine compartment/vehicle interior electrical connector | 38F |
| X25/14x2 | Right engine compartment/vehicle interior electrical connector | 21F |
| X30/44 | Hybrid CAN (CAN L) potential distributor electrical connector | 34L |
| Z142z1 | LIN C3 connector sleeve | 41L |
| Z241z2 | Circuit 30c connector sleeve | 10H |
