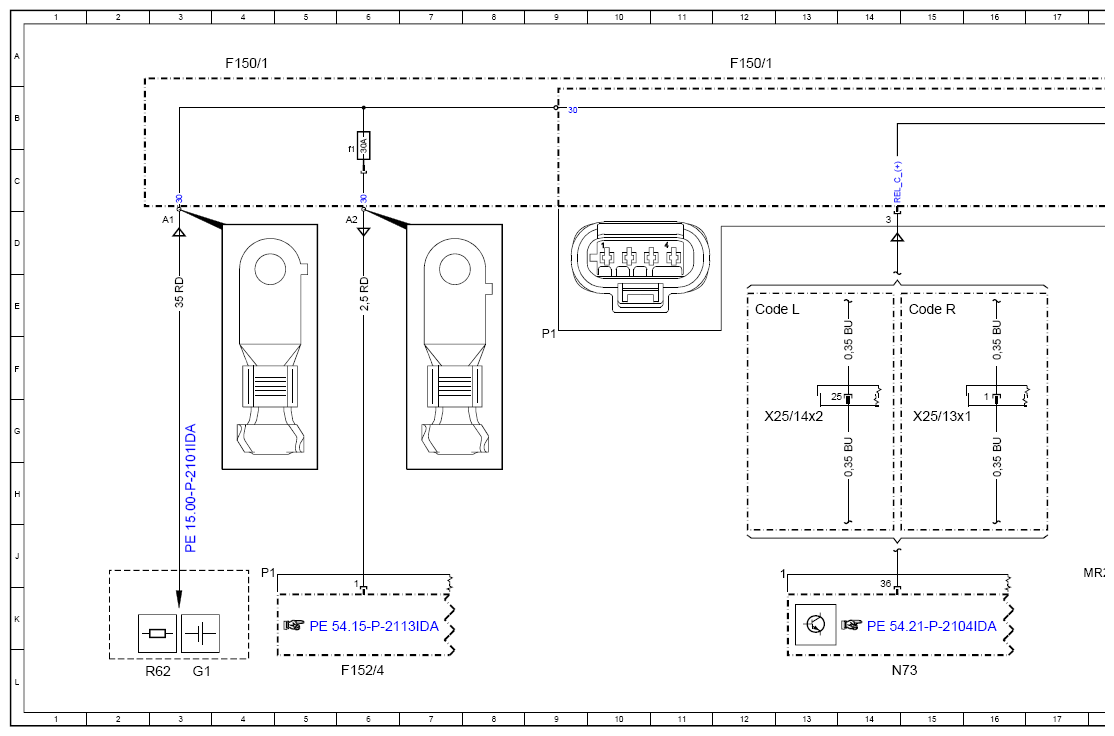

Wiring Diagram For Starter Battery Pre-fuse Box - PE54.15-P-2521-97IDA
Model 247
Fuse box F150/1
| Code: | Designation: | Position: |
|---|---|---|

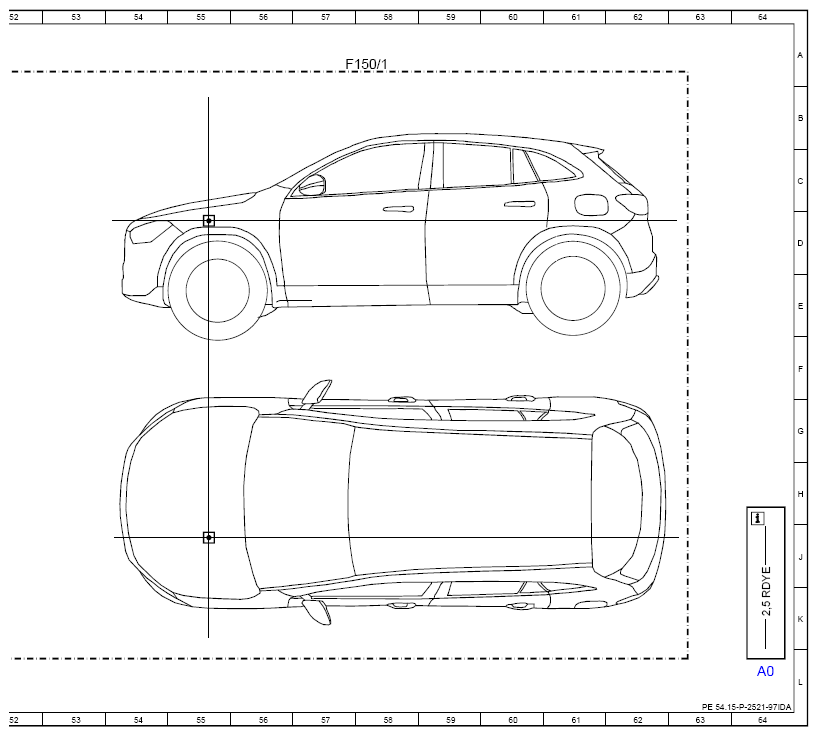

| A0 | Use of wiring diagrams | 64L |
| Code L | LEFT-HAND DRIVE | 12E |
| Code M139 | Inline 4-cylinder SPARK-IGNITION ENGINE M139 - AMG | 24E |
| Code M139 | Inline 4-cylinder SPARK-IGNITION ENGINE M139 - AMG | 24E |
| Code ME08 | Hybrid drive 75kW-84kW variant (incl. plug-in) | 24F |
| Code ME08 | Hybrid drive 75kW-84kW variant (incl. plug-in) | 24E |
| Code R | RIGHT-HAND DRIVE | 15E |

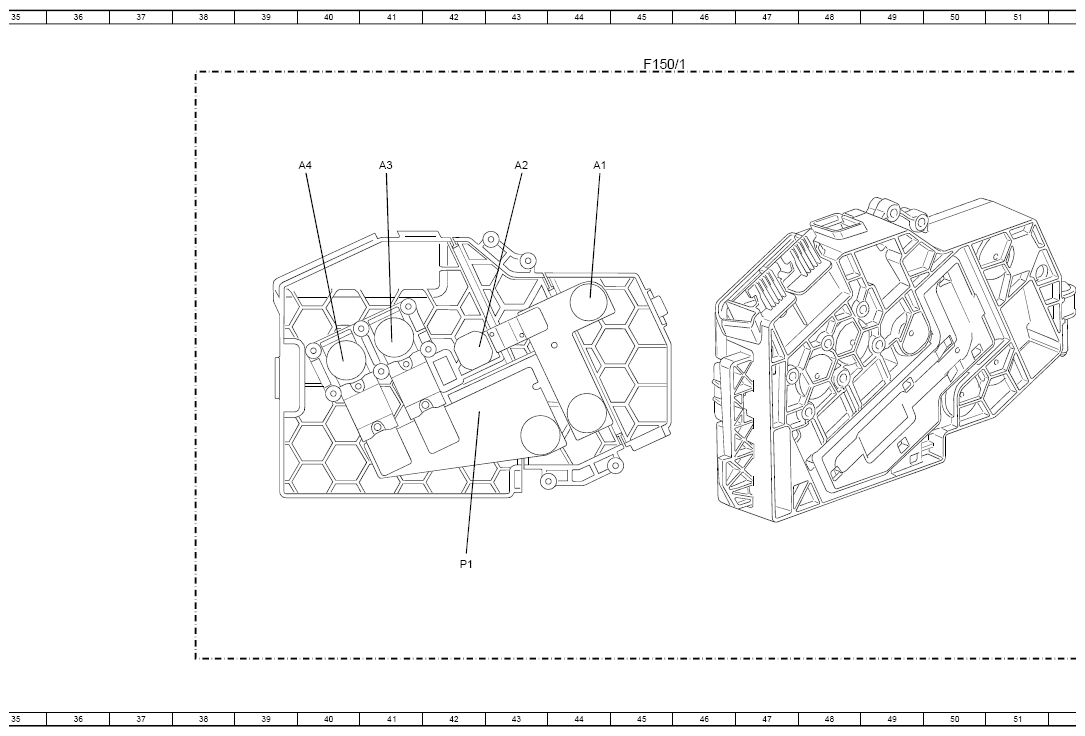

| F150/1 | Starter battery pre-fuse box | 12A |
| F150/1 | Starter battery pre-fuse box | 4A |
| F150/1 | Starter battery pre-fuse box | 45A |
| F150/1 | Starter battery pre-fuse box | 57A |
| F150/1 | Starter battery pre-fuse box | 28A |
| F150/1 | Starter battery pre-fuse box | 19A |

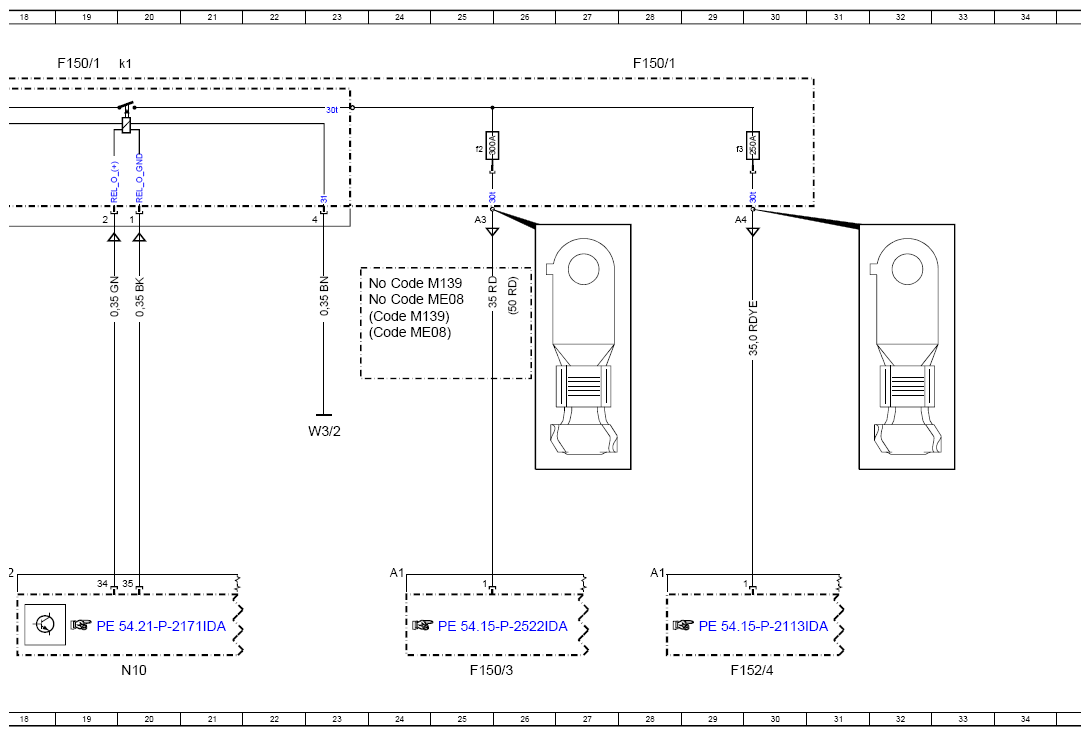

| F150/1f1 | Fuse 1 | 6C |
| F150/1f2 | Fuse 2 | 25C |
| F150/1f3 | Fuse 3 | 29C |
| F150/1k1 | Battery disconnect switch relay | 20A |
| F150/3 | Engine compartment pre-fuse box | 25L |
| F152/4 | Vehicle interior fuse and relay module | 6L |
| F152/4 | Vehicle interior fuse and relay module | 29L |
| G1 | On-board electrical system battery | 3L |
| N10 | Central control module | 20L |
| N73 | Electronic ignition switch control unit | 14L |
| R62 | Voltage dip limiter | 3L |
| W3/2 | Left front wheel arch ground point | 23G |
| X25/13x1 | Left engine compartment/vehicle interior electrical connector | 15G |
| X25/14x2 | Right engine compartment/vehicle interior electrical connector | 12G |
