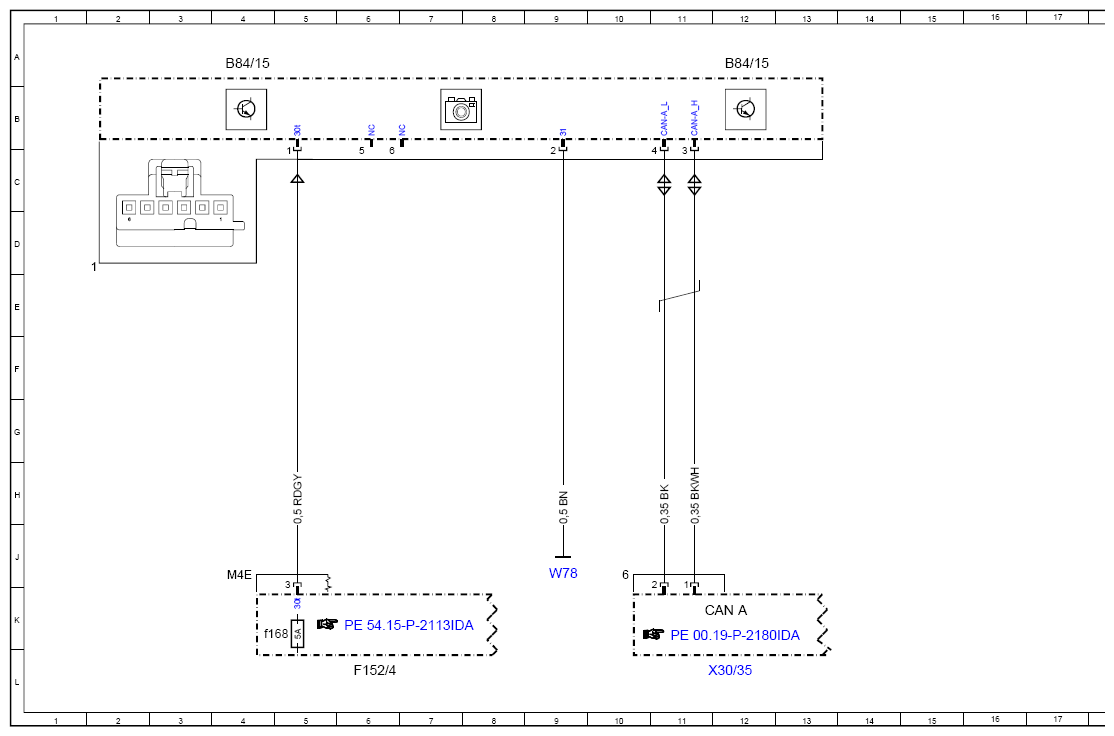

Hand Motion Sensor Wiring Diagram - PE54.21-P-2166-97IDA
Model 247
with code 77B (Contactless gesture control at front)

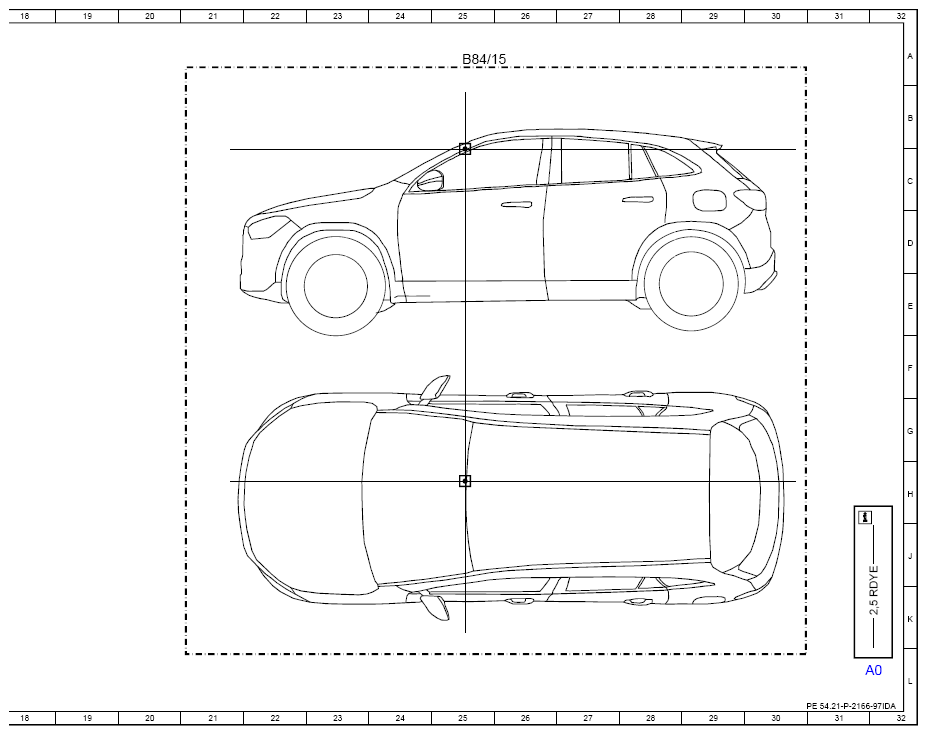

Sensor B84/15
| Code: | Designation: | Position |
|---|---|---|
| A0 | Use of wiring diagrams | 32L |
| B84/15 | Hand motion sensor | 4A |
| B84/15 | Hand motion sensor | 12A |
| B84/15 | Hand motion sensor | 25A |
| CAN A | Telematics CAN | 11K |
| F152/4 | Vehicle interior fuse and relay module | 6L |
| F152/4f168 | Electrical fuse 168 | 5K |
| W78 | Roof ground point 1 | 9J |
| X30/35 | Telematics CAN potential distributor (CAN A) | 12L |
