Engine Compartment Pre-fuse Box Wiring Diagram - PE54.15-P-2522-97IDA
Model 247
Fuse box F150/3
| Code: | Designation: | Position: |
|---|---|---|

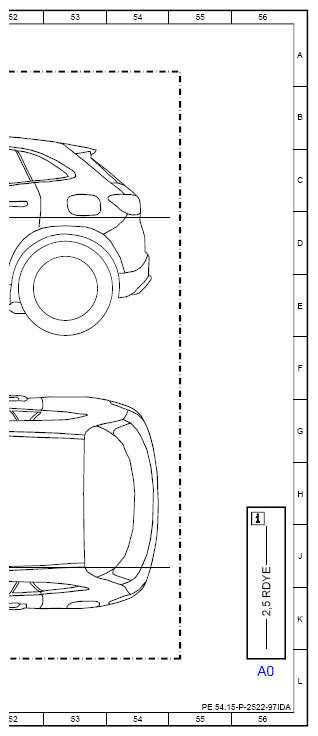

| A0 | Use of wiring diagrams | 56L |
| Code 426 | 8G-DCT | 16J |
| Code M139 | Inline 4-cylinder SPARK-IGNITION ENGINE M139 - AMG | 23K |
| Code M139 | Inline 4-cylinder SPARK-IGNITION ENGINE M139 - AMG | 1F |
| Code M139 | Inline 4-cylinder SPARK-IGNITION ENGINE M139 - AMG | 1E |
| Code M139 | Inline 4-cylinder SPARK-IGNITION ENGINE M139 - AMG | 11J |
| Code M139 | Inline 4-cylinder SPARK-IGNITION ENGINE M139 - AMG | 18J |
| Code M260 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M260 | 19J |
| Code M282 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M282 | 20J |
| Code M608 | 4-CYLINDER INLINE DIESEL ENGINE OM608 | 12J |
| Code M608 | 4-CYLINDER INLINE DIESEL ENGINE OM608 | 23K |
| Code M608 | 4-CYLINDER INLINE DIESEL ENGINE OM608 | 20J |
| Code M654 | 4-CYLINDER INLINE DIESEL ENGINE OM654 | 23K |
| Code M654 | 4-CYLINDER INLINE DIESEL ENGINE OM654 | 20J |
| Code ME08 | Hybrid drive 75kW-84kW variant (incl. plug-in) | 9J |
| Code ME08 | Hybrid drive 75kW-84kW variant (incl. plug-in) | 1F |
| Code ME08 | Hybrid drive 75kW-84kW variant (incl. plug-in) | 1E |
| F150/1 | Starter battery pre-fuse box | 4L |
| F150/1f2 | Fuse 2 | 3K |

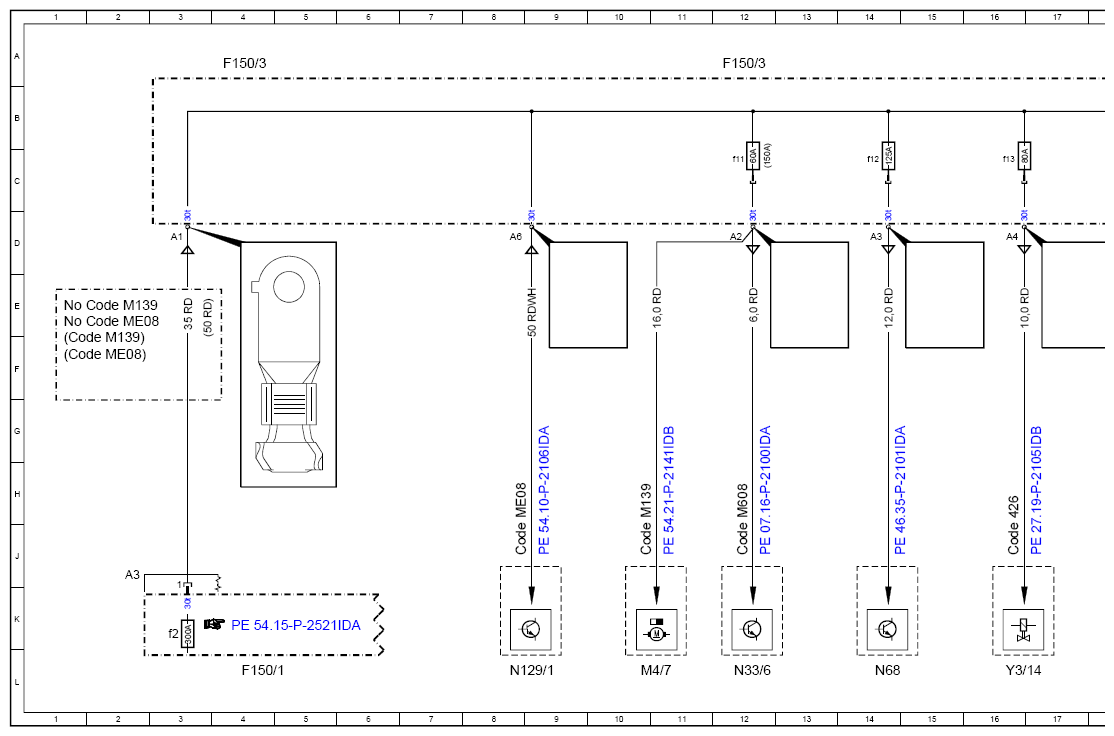

| F150/3 | Engine compartment pre-fuse box | 12A |
| F150/3 | Engine compartment pre-fuse box | 4A |
| F150/3 | Engine compartment pre-fuse box | 20A |

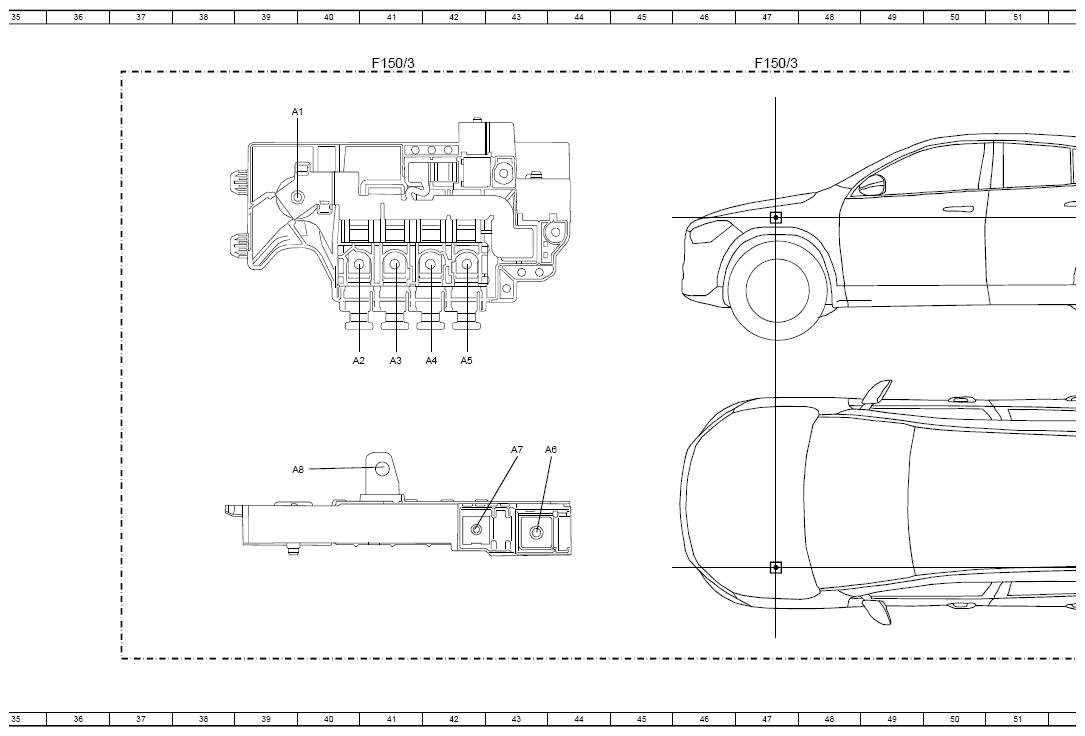

| F150/3 | Engine compartment pre-fuse box | 41A |
| F150/3 | Engine compartment pre-fuse box | 47A |
| F150/3 | Engine compartment pre-fuse box | 28A |
| F150/3f11 | Fuse 11 | 12C |
| F150/3f12 | Fuse 12 | 14C |
| F150/3f13 | Fuse 13 | 16C |

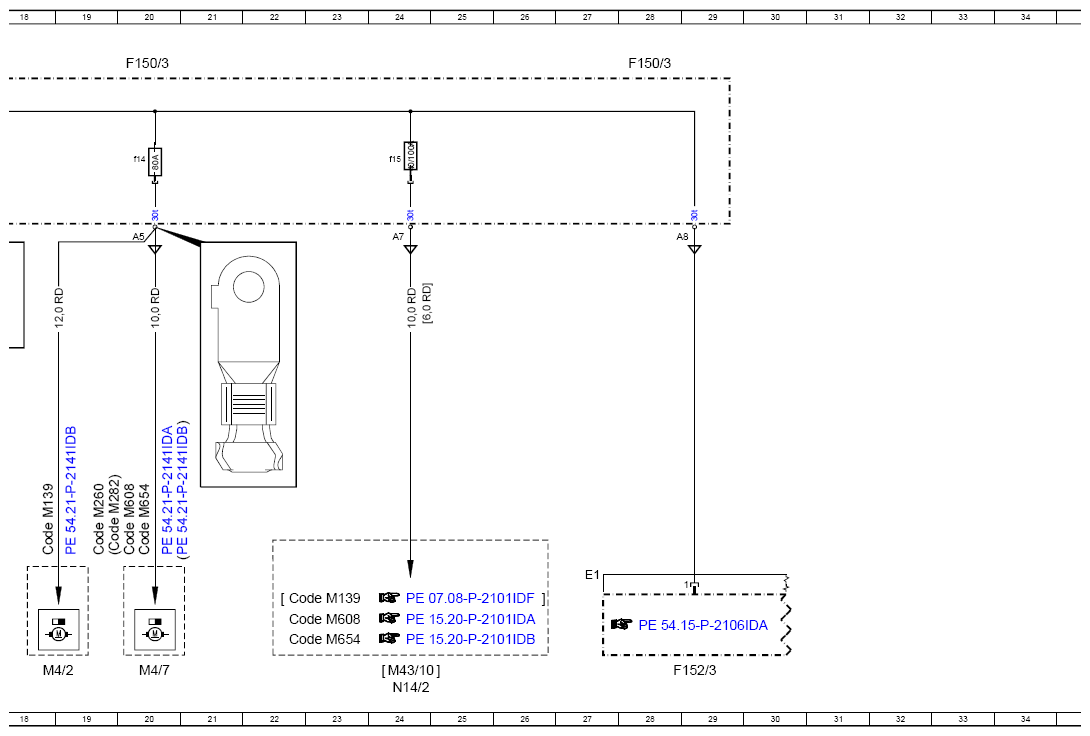

| F150/3f14 | Fuse 14 | 20C |
| F150/3f15 | Fuse 15 | 24C |
| F152/3 | Engine compartment fuse and relay module | 29L |
| M4/2 | Coolant fan motor | 18L |
| M4/7 | Fan motor | 20L |
| M4/7 | Fan motor | 10L |
| M43/10 | High-temperature circuit coolant pump | 24L |
| N129/1 | Power electronics control unit | 8L |
| N14/2 | Glow output stage | 24L |
| N33/6 | Fuel preheater control unit | 12L |
| N68 | Electrical power steering control unit | 14L |
| Y3/14 | Dual clutch transmission fully integrated transmission control electrohydraulic controller unit | 16L |
