Connector Separation Point Wiring Diagram - PE54.18-P-2300-97IDG
Model 247

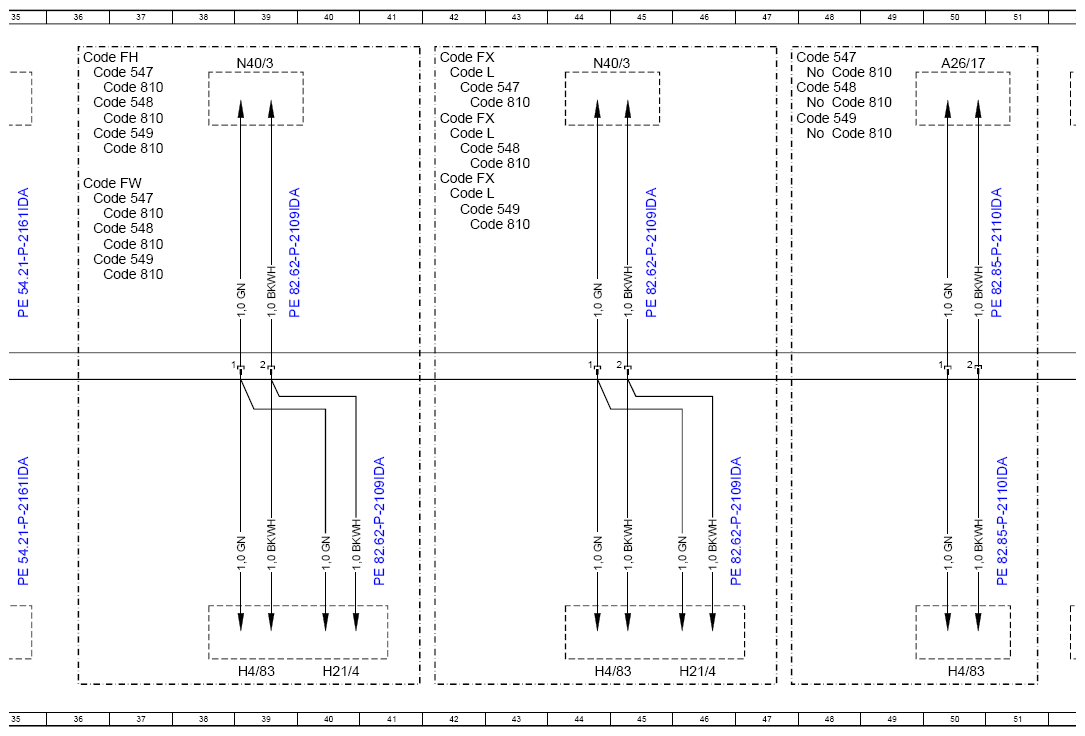

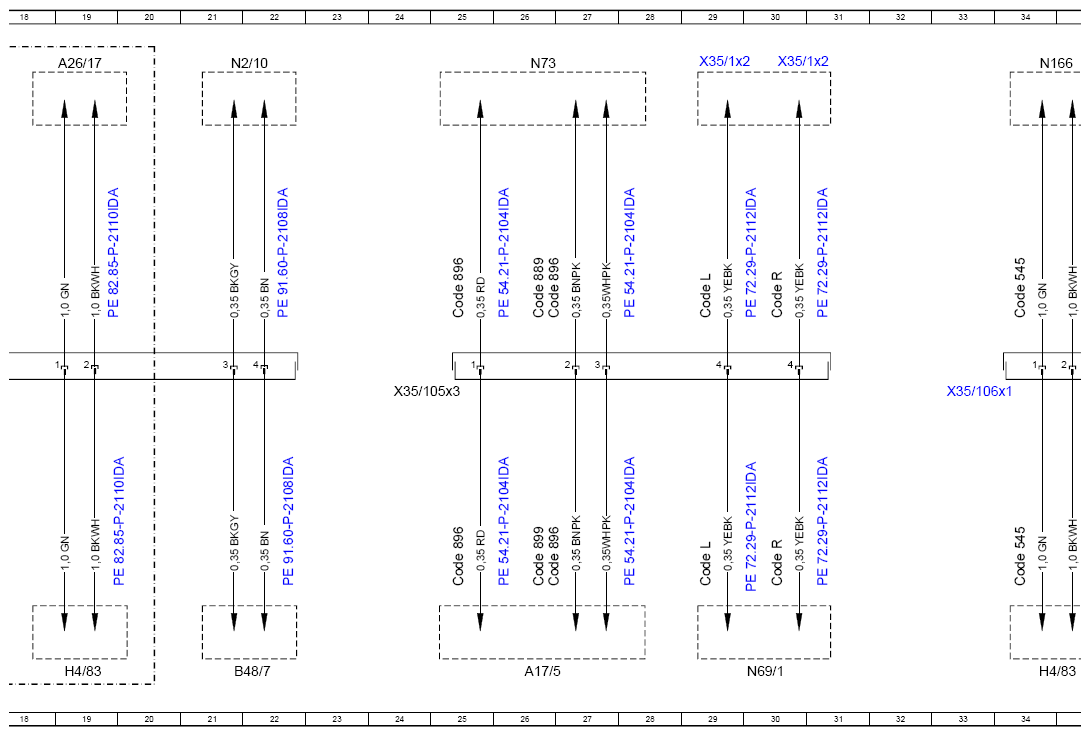

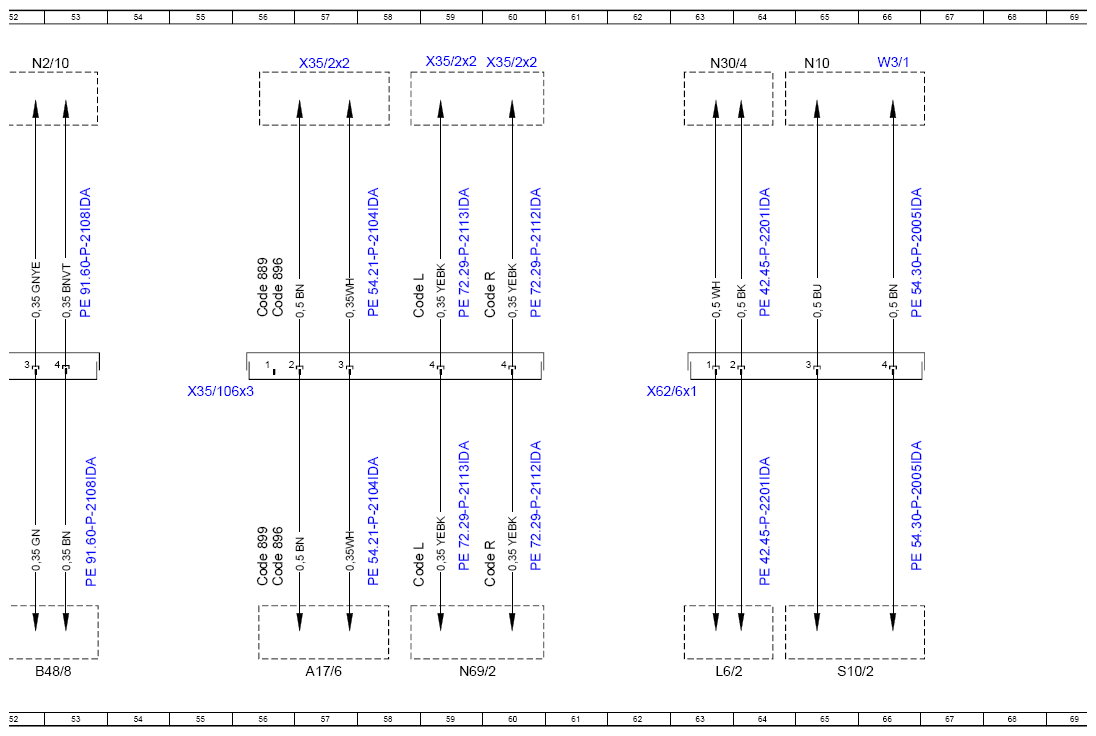

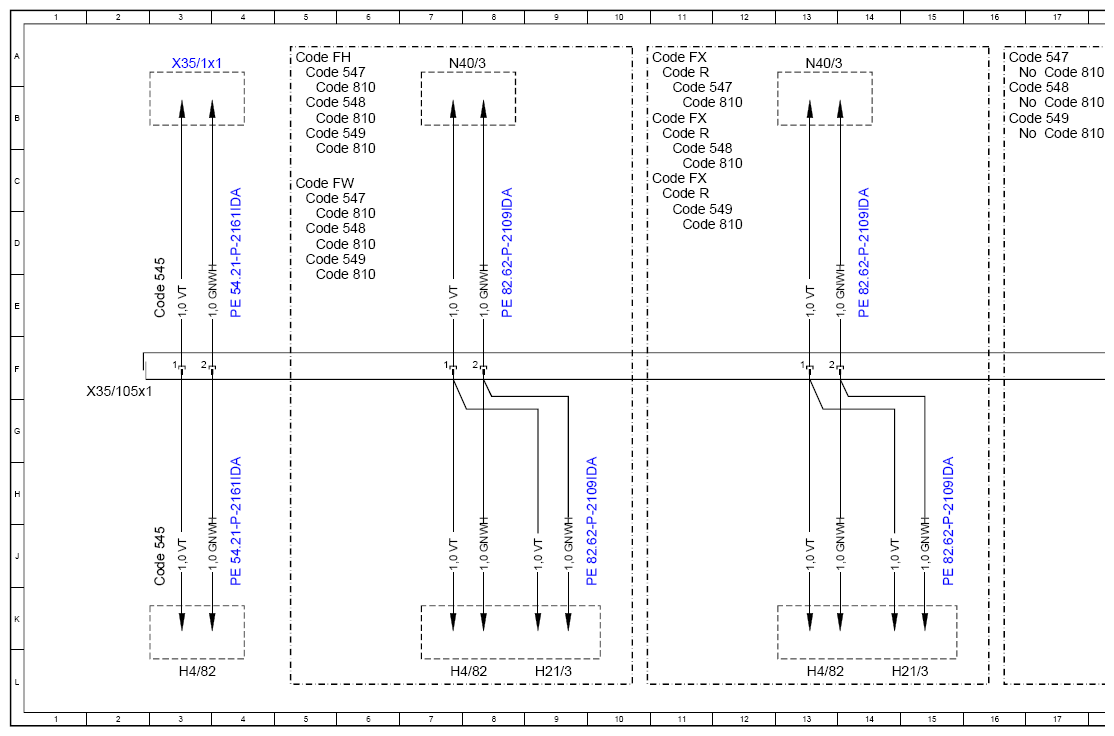

Connecting points X35/105x1, X35/105x3, X35/106x1, X35/106x3, X62/6x1
| Code: | Designation: | Position: |
|---|---|---|

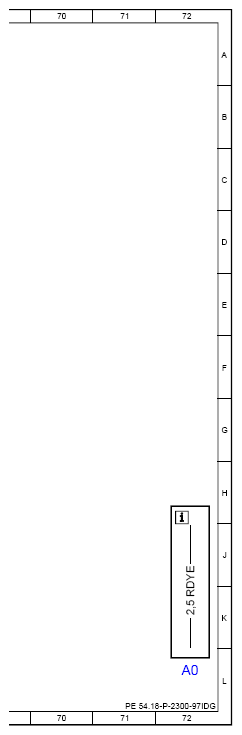

| A0 | Use of wiring diagrams | 72L |
| A17/5 | Driver door KEYLESS-GO door handle | 26L |
| A17/6 | Front passenger door KEYLESS-GO door handle | 57L |
| A26/17 | Head unit | 19A |
| A26/17 | Head unit | 50A |
| B48/7 | Driver door pressure sensor | 22L |
| B48/8 | Front passenger door pressure sensor | 53L |
| Code 545 | Connect 5 (NTG6) | 3E |
| Code 545 | Connect 5 (NTG6) | 3J |
| Code 545 | Connect 5 (NTG6) | 34E |
| Code 545 | Connect 5 (NTG6) | 34J |
| Code 547 | Connect 20 Entry (NTG6) | 5A |
| Code 547 | Connect 20 Entry (NTG6) | 5C |
| Code 547 | Connect 20 Entry (NTG6) | 11B |
| Code 547 | Connect 20 Entry (NTG6) | 16A |
| Code 547 | Connect 20 Entry (NTG6) | 36A |
| Code 547 | Connect 20 Entry (NTG6) | 36C |
| Code 547 | Connect 20 Entry (NTG6) | 42B |
| Code 547 | Connect 20 Entry (NTG6) | 47A |
| Code 548 | Connect 20 MID (NTG6) | 5B |
| Code 548 | Connect 20 MID (NTG6) | 5D |
| Code 548 | Connect 20 MID (NTG6) | 11C |
| Code 548 | Connect 20 MID (NTG6) | 16B |
| Code 548 | Connect 20 MID (NTG6) | 36B |
| Code 548 | Connect 20 MID (NTG6) | 36D |
| Code 548 | Connect 20 MID (NTG6) | 42C |
| Code 548 | Connect 20 MID (NTG6) | 47B |
| Code 549 | Connect 20 HIGH (NTG6) | 5B |
| Code 549 | Connect 20 HIGH (NTG6) | 5D |
| Code 549 | Connect 20 HIGH (NTG6) | 11D |
| Code 549 | Connect 20 HIGH (NTG6) | 16B |
| Code 549 | Connect 20 HIGH (NTG6) | 36B |
| Code 549 | Connect 20 HIGH (NTG6) | 36D |
| Code 549 | Connect 20 HIGH (NTG6) | 42D |
| Code 549 | Connect 20 HIGH (NTG6) | 47B |
| Code 810 | Sound system | 5B |
| Code 810 | Sound system | 5B |
| Code 810 | Sound system | 5C |
| Code 810 | Sound system | 5D |
| Code 810 | Sound system | 5D |
| Code 810 | Sound system | 5E |
| Code 810 | Sound system | 11B |
| Code 810 | Sound system | 11C |
| Code 810 | Sound system | 11D |
| Code 810 | Sound system | 17A |
| Code 810 | Sound system | 17B |
| Code 810 | Sound system | 17B |
| Code 810 | Sound system | 36B |
| Code 810 | Sound system | 36B |
| Code 810 | Sound system | 36C |
| Code 810 | Sound system | 36D |
| Code 810 | Sound system | 36D |
| Code 810 | Sound system | 36E |
| Code 810 | Sound system | 42B |
| Code 810 | Sound system | 42C |
| Code 810 | Sound system | 42D |
| Code 810 | Sound system | 48A |
| Code 810 | Sound system | 48B |
| Code 810 | Sound system | 48B |
| Code 889 | KEYLESS-GO | 26E |
| Code 889 | KEYLESS-GO | 56E |
| Code 896 | Vehicle access and drive authorization via mobile phone | 27J |
| Code 896 | Vehicle access and drive authorization via mobile phone | 27E |
| Code 896 | Vehicle access and drive authorization via mobile phone | 25J |
| Code 896 | Vehicle access and drive authorization via mobile phone | 25E |
| Code 896 | Vehicle access and drive authorization via mobile phone | 56J |
| Code 896 | Vehicle access and drive authorization via mobile phone | 56E |
| Code 899 | Wireless phone charging at front and antenna | 26J |
| Code 899 | Wireless phone charging at front and antenna | 56J |
| Code FH | HATCHBACK | 5A |
| Code FH | HATCHBACK | 36A |
| Code FW | SEDAN | 5C |
| Code FW | SEDAN | 36C |
| Code FX | Special version | 11A |
| Code FX | Special version | 11B |
| Code FX | Special version | 11C |
| Code FX | Special version | 42A |
| Code FX | Special version | 42B |
| Code FX | Special version | 42C |
| Code L | LEFT-HAND DRIVE | 29E |
| Code L | LEFT-HAND DRIVE | 29J |
| Code L | LEFT-HAND DRIVE | 42A |
| Code L | LEFT-HAND DRIVE | 42B |
| Code L | LEFT-HAND DRIVE | 42C |
| Code L | LEFT-HAND DRIVE | 59E |
| Code L | LEFT-HAND DRIVE | 59J |
| Code R | RIGHT-HAND DRIVE | 11A |
| Code R | RIGHT-HAND DRIVE | 11B |
| Code R | RIGHT-HAND DRIVE | 11G |
| Code R | RIGHT-HAND DRIVE | 30E |
| Code R | RIGHT-HAND DRIVE | 30J |
| Code R | RIGHT-HAND DRIVE | 60E |
| Code R | RIGHT-HAND DRIVE | 60J |
| H21/3 | Left front door surround sound system midrange speaker | 9L |
| H21/3 | Left front door surround sound system midrange speaker | 15L |
| H21/4 | Right front door surround sound system midrange speaker | 40L |
| H21/4 | Right front door surround sound system midrange speaker | 46L |
| H4/82 | Left front door woofer/midrange speaker | 3L |
| H4/82 | Left front door woofer/midrange speaker | 7L |
| H4/82 | Left front door woofer/midrange speaker | 13L |
| H4/83 | Right front door woofer/midrange speaker | 19L |
| H4/83 | Right front door woofer/midrange speaker | 34L |
| H4/83 | Right front door woofer/midrange speaker | 39L |
| H4/83 | Right front door woofer/midrange speaker | 44L |
| H4/83 | Right front door woofer/midrange speaker | 50L |
| L6/2 | Right front axle rpm sensor | 63L |
| N10 | Central control module | 65A |
| N166 | Head unit/instrument cluster control unit | 34A |
| N2/10 | Supplemental restraint system control unit | 21A |
| N2/10 | Supplemental restraint system control unit | 52A |
| N30/4 | Electronic Stability Program control unit | 63A |
| N40/3 | Sound system amplifier control unit | 7A |
| N40/3 | Sound system amplifier control unit | 13A |
| N40/3 | Sound system amplifier control unit | 39A |
| N40/3 | Sound system amplifier control unit | 44A |
| N69/1 | Driver door control unit | 30L |
| N69/2 | Front passenger door control unit | 59L |
| N73 | Electronic ignition switch control unit | 26A |
| S10/2 | Right front brake wear sensor | 65L |
| W3/1 | Ground point (right front wheel well) | 66A |
| X35/105x1 | Driver door module electrical connector | 2F |
| X35/105x3 | Driver door module electrical connector | 24F |
| X35/106x1 | Passenger door module electrical connector | 33F |
| X35/106x3 | Passenger door module electrical connector | 55F |
| X35/1x1 | Driver door electrical connector | 3A |
| X35/1x2 | Driver door electrical connector | 30A |
| X35/1x2 | Driver door electrical connector | 29A |
| X35/2x2 | Front passenger door electrical connector | 57A |
| X35/2x2 | Front passenger door electrical connector | 60A |
| X35/2x2 | Front passenger door electrical connector | 59A |
| X62/6x1 | Front axle electrical connector, right distributor | 63F |
