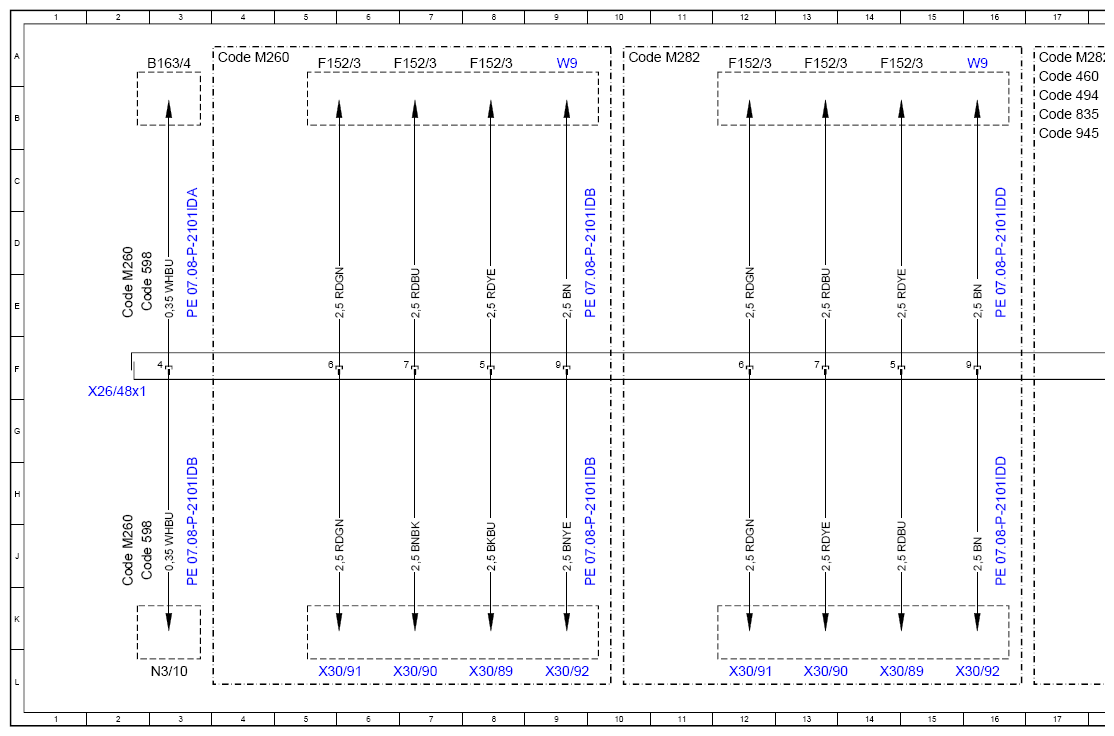

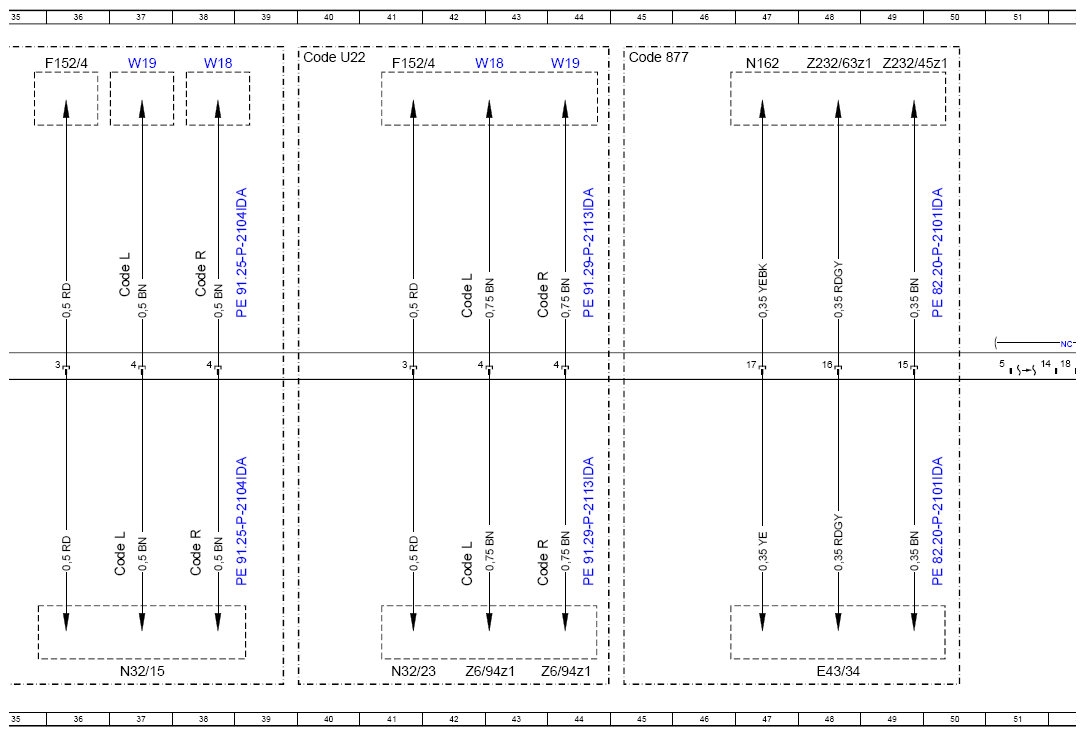

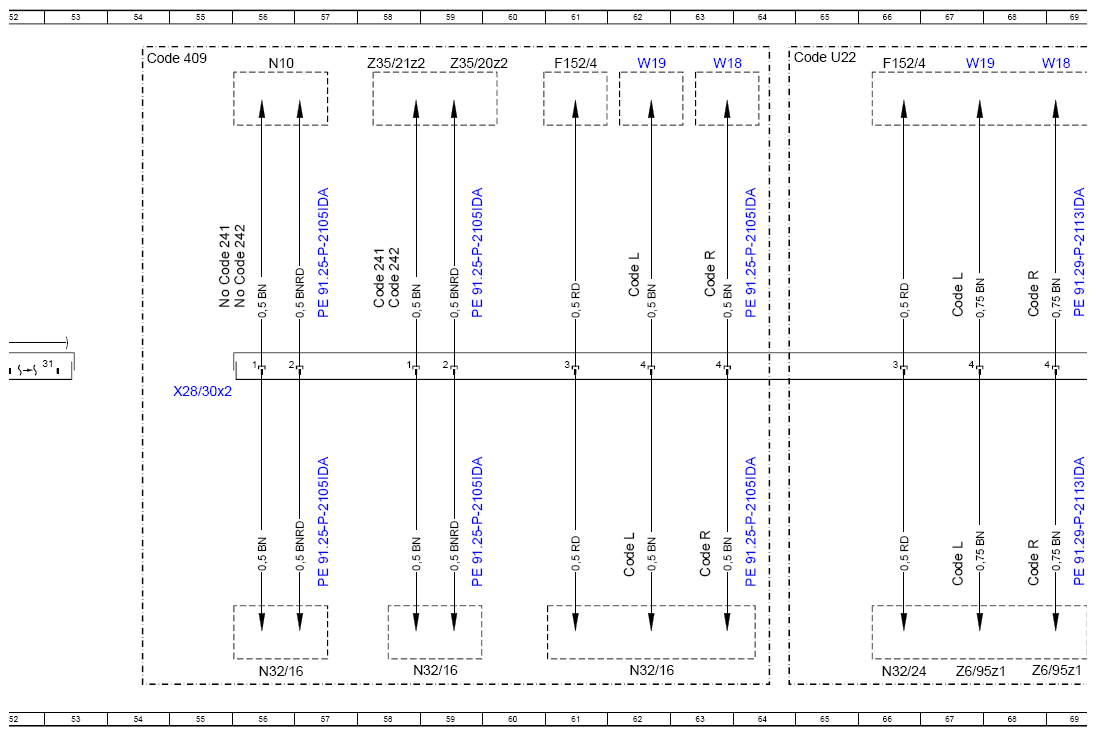

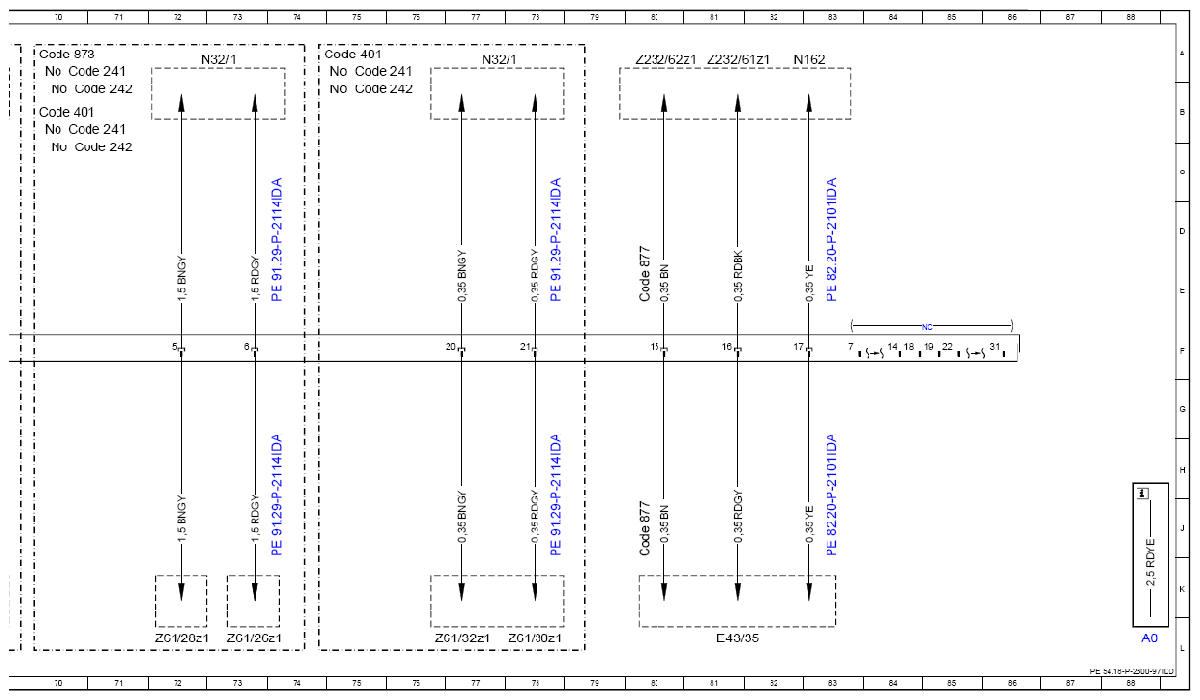

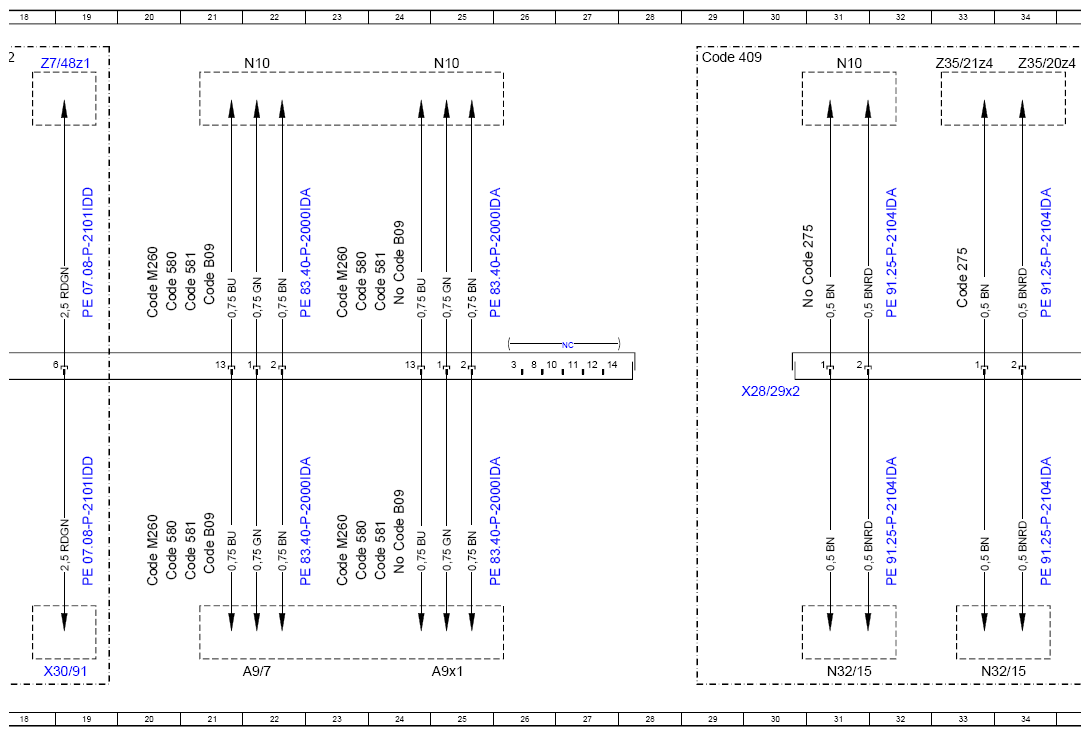

Connector Separation Point Wiring Diagram - PE54.18-P-2300-97IDD
Model 247
Connecting points X26/48x1, X28/29x2, X28/30x2
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 88L |
| A9/7 | Refrigerant compressor with magnetic clutch | 22L |
| A9x1 | Refrigerant compressor electrical connector | 25L |
| B163/4 | Temperature sensor upstream of gasoline particulate filter | 3A |
| Code 241 | Memory switch for electrically adjustable front passenger seat, left | 75A |
| Code 241 | Memory switch for electrically adjustable front passenger seat, left | 55E |
| Code 241 | Memory switch for electrically adjustable front passenger seat, left | 58E |
| Code 241 | Memory switch for electrically adjustable front passenger seat, left | 70A |
| Code 241 | Memory switch for electrically adjustable front passenger seat, left | 70B |
| Code 242 | Electrically adjustable front passenger seat with memory function | 75B |
| Code 242 | Electrically adjustable front passenger seat with memory function | 56E |
| Code 242 | Electrically adjustable front passenger seat with memory function | 58E |
| Code 242 | Electrically adjustable front passenger seat with memory function | 70B |
| Code 242 | Electrically adjustable front passenger seat with memory function | 70C |
| Code 275 | Electrically adjustable driver seat with memory function | 31E |
| Code 275 | Electrically adjustable driver seat with memory function | 33E |
| Code 401 | Seat climate control for driver and front passenger | 74A |
| Code 401 | Seat climate control for driver and front passenger | 70B |
| Code 409 | Left/right front multicontour seats | 54A |
| Code 409 | Left/right front multicontour seats | 29A |
| Code 460 | Canada version | 17A |
| Code 494 | USA version | 17B |
| Code 580 | Air conditioning | 20J |
| Code 580 | Air conditioning | 20E |
| Code 580 | Air conditioning | 23J |
| Code 580 | Air conditioning | 23E |
| Code 581 | Automatic air conditioning | 21J |
| Code 581 | Automatic air conditioning | 21E |
| Code 581 | Automatic air conditioning | 24J |
| Code 581 | Automatic air conditioning | 24E |
| Code 598 | Gasoline particulate filter (0PF) with sensor system | 3J |
| Code 598 | Gasoline particulate filter (0PF) with sensor system | 3E |
| Code 835 | Additional parts for South Korea vehicles | 17B |
| Code 873 | Seat heater for driver and front passenger | 70A |
| Code 877 | Ambiance illumination | 80E |
| Code 877 | Ambiance illumination | 80J |
| Code 877 | Ambiance illumination | 45A |
| Code 945 | China Stage 6 exhaust treatment | 17B |
| Code B09 | Refrigerant compressor with magnetic clutch | 24J |
| Code B09 | Refrigerant compressor with magnetic clutch | 21J |
| Code B09 | Refrigerant compressor with magnetic clutch | 24E |
| Code B09 | Refrigerant compressor with magnetic clutch | 21E |
| Code L | LEFT-HAND DRIVE | 62E |
| Code L | LEFT-HAND DRIVE | 62J |
| Code L | LEFT-HAND DRIVE | 67J |
| Code L | LEFT-HAND DRIVE | 67E |
| Code L | LEFT-HAND DRIVE | 42J |
| Code L | LEFT-HAND DRIVE | 42E |
| Code L | LEFT-HAND DRIVE | 37E |
| Code L | LEFT-HAND DRIVE | 37J |
| Code M260 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M260 | 2J |
| Code M260 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M260 | 2E |
| Code M260 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M260 | 4A |
| Code M260 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M260 | 20J |
| Code M260 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M260 | 20E |
| Code M260 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M260 | 23J |
| Code M260 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M260 | 23E |
| Code M282 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M282 | 10A |
| Code M282 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M282 | 17A |
| Code R | RIGHT-HAND DRIVE | 63E |
| Code R | RIGHT-HAND DRIVE | 63J |
| Code R | RIGHT-HAND DRIVE | 68J |
| Code R | RIGHT-HAND DRIVE | 68E |
| Code R | RIGHT-HAND DRIVE | 44J |
| Code R | RIGHT-HAND DRIVE | 44E |
| Code R | RIGHT-HAND DRIVE | 38E |
| Code R | RIGHT-HAND DRIVE | 38J |
| Code U22 | 4-way lumbar support | 64A |
| Code U22 | 4-way lumbar support | 40A |
| E43/34 | Left rear footwell ambiance illumination | 48L |
| E43/35 | Right rear footwell ambiance illumination | 81L |
| F152/3 | Engine compartment fuse and relay module | 5A |
| F152/3 | Engine compartment fuse and relay module | 7A |
| F152/3 | Engine compartment fuse and relay module | 8A |
| F152/3 | Engine compartment fuse and relay module | 12A |
| F152/3 | Engine compartment fuse and relay module | 13A |
| F152/3 | Engine compartment fuse and relay module | 14A |
| F152/4 | Vehicle interior fuse and relay module | 61A |
| F152/4 | Vehicle interior fuse and relay module | 66A |
| F152/4 | Vehicle interior fuse and relay module | 41A |
| F152/4 | Vehicle interior fuse and relay module | 36A |
| N10 | Central control module | 56A |
| N10 | Central control module | 31A |
| N10 | Central control module | 22A |
| N10 | Central control module | 25A |
| N162 | Ambiance illumination control unit | 82A |
| N162 | Ambiance illumination control unit | 47A |
| N3/10 | ME-SFI [ME] control unit | 3L |
| N32/1 | Driver seat control unit | 77A |
| N32/1 | Driver seat control unit | 73A |
| N32/15 | Driver multicontour seat control unit | 31L |
| N32/15 | Driver multicontour seat control unit | 33L |
| N32/15 | Driver multicontour seat control unit | 37L |
| N32/16 | Front passenger multicontour seat control unit | 56L |
| N32/16 | Front passenger multicontour seat control unit | 59L |
| N32/16 | Front passenger multicontour seat control unit | 62L |
| N32/23 | Driver's seat lumbar support electropneumatic controller unit | 41L |
| N32/24 | Front passenger seat lumbar support electropneumatic controller unit | 66L |
| W18 | Left front seat crossmember ground point | 63A |
| W18 | Left front seat crossmember ground point | 69A |
| W18 | Left front seat crossmember ground point | 42A |
| W18 | Left front seat crossmember ground point | 38A |
| W19 | Right front seat crossmember ground point | 62A |
| W19 | Right front seat crossmember ground point | 67A |
| W19 | Right front seat crossmember ground point | 44A |
| W19 | Right front seat crossmember ground point | 37A |
| W9 | Left front ground point | 9A |
| W9 | Left front ground point | 16A |
| X26/48x1 | Engine wiring harness/engine compartment electrical connector | 2F |
| X28/29x2 | Frame floor assembly/driver seat electrical connector | 30F |
| X28/30x2 | Frame floor assembly/front passenger seat electrical connector | 55F |
| X30/89 | Power supply potential distributor 1 | 8L |
| X30/89 | Power supply potential distributor 1 | 14L |
| X30/90 | Power supply potential distributor 2 | 7L |
| X30/90 | Power supply potential distributor 2 | 13L |
| X30/91 | Power supply potential distributor 3 | 5L |
| X30/91 | Power supply potential distributor 3 | 18L |
| X30/91 | Power supply potential distributor 3 | 12L |
| X30/92 | Circuit 31 potential distributor 1 | 9L |
| X30/92 | Circuit 31 potential distributor 1 | 16L |
| Z232/45z1 | Ground connection connector sleeve | 49A |
| Z232/61z1 | Ground connection connector sleeve | 81A |
| Z232/62z1 | Voltage supply connector sleeve | 80A |
| Z232/63z1 | Voltage supply connector sleeve | 48A |
| Z35/20z2 | Interior CAN (CAN B) high end sleeve 2 | 59A |
| Z35/20z4 | Interior CAN (CAN B) high end sleeve 4 | 34A |
| Z35/21z2 | Interior CAN (CAN B) low end sleeve 2 | 58A |
| Z35/21z4 | Interior CAN (CAN B) low end sleeve 4 | 33A |
| Z6/94z1 | Ground connection connector sleeve | 42L |
| Z6/94z1 | Ground connection connector sleeve | 44L |
| Z6/95z1 | Ground connection connector sleeve | 68L |
| Z6/95z1 | Ground connection connector sleeve | 67L |
| Z61/26z1 | Voltage supply connector sleeve | 73L |
| Z61/28z1 | Ground connection connector sleeve | 72L |
| Z61/30z1 | DC motor connector sleeve (potential according to rotation direction) | 78L |
| Z61/32z1 | DC motor connector sleeve (potential according to rotation direction) | 77L |
| Z7/48z1 | Circuit 87M connector sleeve | 18A |
