Connector Separation Point Wiring Diagram - PE54.18-P-2300-97IDC
Model 247
Connecting points X26/31x1, X26/38x1, X26/43x1, X26/47x1
| Code: | Designation: | Position: |
|---|---|---|

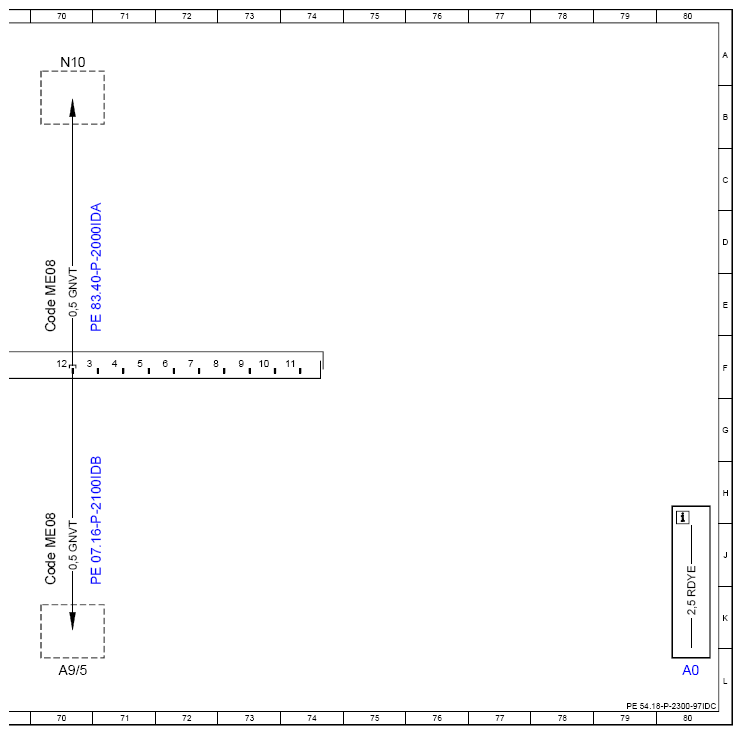

| A0 | Use of wiring diagrams | 80L |
| A108 | Active Brake Assist controller unit | 27L |
| A108/1 | Active Distance Assist DISTRONIC electric controller unit | 33L |
| A9 | Refrigerant compressor | 3L |
| A9 | Refrigerant compressor | 59L |
| A9/5 | Electric refrigerant compressor | 68L |
| A9/5 | Electric refrigerant compressor | 70L |
| A9/5 | Electric refrigerant compressor | 66L |
| A9/7 | Refrigerant compressor with magnetic clutch | 57L |
| A9/7 | Refrigerant compressor with magnetic clutch | 64L |
| B1 | Engine oil temperature sensor | 7A |
| B40 | Oil sensor (oil level, temperature and quality) | 53L |
| B8/1 | Outer left front parking system distance sensor | 38L |
| B8/2 | Center left front parking system distance sensor | 39L |
| B8/3 | Inner left front parking system distance sensor | 40L |
| B8/4 | Inner right front parking system distance sensor | 41L |
| B8/5 | Center right front parking system distance sensor | 42L |
| B8/6 | Outer right front parking system distance sensor | 42L |
| B92/12 | Short and long-range radar sensor | 21L |
| Code 233 | Adaptive cruise control Plus (DISTRONIC PLUS) | 17A |
| Code 239 | Active Distance Assist DISTRONIC | 30A |
| Code 239 | Active Distance Assist DISTRONIC | 36A |
| Code 258 | Active Brake Assist | 24A |
| Code B09 | Refrigerant compressor with magnetic clutch | 57J |
| Code B09 | Refrigerant compressor with magnetic clutch | 59J |
| Code M139 | Inline 4-cylinder SPARK-IGNITION ENGINE M139 - AMG | 3J |
| Code M139 | Inline 4-cylinder SPARK-IGNITION ENGINE M139 - AMG | 3E |
| Code M139 | Inline 4-cylinder SPARK-IGNITION ENGINE M139 - AMG | 5E |
| Code M139 | Inline 4-cylinder SPARK-IGNITION ENGINE M139 - AMG | 5J |
| Code M139 | Inline 4-cylinder SPARK-IGNITION ENGINE M139 - AMG | 13E |
| Code M139 | Inline 4-cylinder SPARK-IGNITION ENGINE M139 - AMG | 13J |
| Code M139 | Inline 4-cylinder SPARK-IGNITION ENGINE M139 - AMG | 19J |
| Code M139 | Inline 4-cylinder SPARK-IGNITION ENGINE M139 - AMG | 19E |
| Code M139 | Inline 4-cylinder SPARK-IGNITION ENGINE M139 - AMG | 22E |
| Code M139 | Inline 4-cylinder SPARK-IGNITION ENGINE M139 - AMG | 22J |
| Code M139 | Inline 4-cylinder SPARK-IGNITION ENGINE M139 - AMG | 21J |
| Code M139 | Inline 4-cylinder SPARK-IGNITION ENGINE M139 - AMG | 21E |
| Code M139 | Inline 4-cylinder SPARK-IGNITION ENGINE M139 - AMG | 25J |
| Code M139 | Inline 4-cylinder SPARK-IGNITION ENGINE M139 - AMG | 25E |
| Code M139 | Inline 4-cylinder SPARK-IGNITION ENGINE M139 - AMG | 28E |
| Code M139 | Inline 4-cylinder SPARK-IGNITION ENGINE M139 - AMG | 28J |
| Code M139 | Inline 4-cylinder SPARK-IGNITION ENGINE M139 - AMG | 27J |
| Code M139 | Inline 4-cylinder SPARK-IGNITION ENGINE M139 - AMG | 27E |
| Code M139 | Inline 4-cylinder SPARK-IGNITION ENGINE M139 - AMG | 31J |
| Code M139 | Inline 4-cylinder SPARK-IGNITION ENGINE M139 - AMG | 31E |
| Code M139 | Inline 4-cylinder SPARK-IGNITION ENGINE M139 - AMG | 34E |
| Code M139 | Inline 4-cylinder SPARK-IGNITION ENGINE M139 - AMG | 34J |
| Code M139 | Inline 4-cylinder SPARK-IGNITION ENGINE M139 - AMG | 33J |
| Code M139 | Inline 4-cylinder SPARK-IGNITION ENGINE M139 - AMG | 33E |
| Code M139 | Inline 4-cylinder SPARK-IGNITION ENGINE M139 - AMG | 37J |
| Code M139 | Inline 4-cylinder SPARK-IGNITION ENGINE M139 - AMG | 37E |
| Code M139 | Inline 4-cylinder SPARK-IGNITION ENGINE M139 - AMG | 41E |
| Code M139 | Inline 4-cylinder SPARK-IGNITION ENGINE M139 - AMG | 41J |
| Code M282 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M282 | 63J |
| Code M282 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M282 | 63E |
| Code M608 | 4-CYLINDER INLINE DIESEL ENGINE 0M608 | 48J |
| Code M608 | 4-CYLINDER INLINE DIESEL ENGINE 0M608 | 48E |
| Code M608 | 4-CYLINDER INLINE DIESEL ENGINE 0M608 | 53J |
| Code M608 | 4-CYLINDER INLINE DIESEL ENGINE 0M608 | 53E |
| Code M608 | 4-CYLINDER INLINE DIESEL ENGINE 0M608 | 55J |
| Code M608 | 4-CYLINDER INLINE DIESEL ENGINE 0M608 | 55E |
| Code M608 | 4-CYLINDER INLINE DIESEL ENGINE 0M608 | 57E |
| Code M608 | 4-CYLINDER INLINE DIESEL ENGINE 0M608 | 56J |
| Code M608 | 4-CYLINDER INLINE DIESEL ENGINE 0M608 | 59J |
| Code ME08 | Hybrid drive 75kW-84kW variant (incl. plug-in) | 67J |
| Code ME08 | Hybrid drive 75kW-84kW variant (incl. plug-in) | 67E |
| Code ME08 | Hybrid drive 75kW-84kW variant (incl. plug-in) | 70J |
| Code ME08 | Hybrid drive 75kW-84kW variant (incl. plug-in) | 70E |
| Code ME08 | Hybrid drive 75kW-84kW variant (incl. plug-in) | 65J |
| Code ME08 | Hybrid drive 75kW-84kW variant (incl. plug-in) | 65E |
| F152/3 | Engine compartment fuse and relay module | 5L |
| F152/3 | Engine compartment fuse and relay module | 7L |
| F152/3 | Engine compartment fuse and relay module | 13L |
| F152/3 | Engine compartment fuse and relay module | 16L |
| F152/3 | Engine compartment fuse and relay module | 21A |
| F152/3 | Engine compartment fuse and relay module | 23A |
| F152/3 | Engine compartment fuse and relay module | 27A |
| F152/3 | Engine compartment fuse and relay module | 29A |
| F152/3 | Engine compartment fuse and relay module | 33A |
| F152/3 | Engine compartment fuse and relay module | 35A |
| F152/3 | Engine compartment fuse and relay module | 49A |
| F152/3 | Engine compartment fuse and relay module | 53A |
| F152/3 | Engine compartment fuse and relay module | 65A |
| G3/1 | Oxygen sensor downstream of catalytic converter | 5A |
| G3/2 | Oxygen sensor upstream of catalytic converter | 5A |
| M43/10 | High-temperature circuit coolant pump | 14A |
| N10 | Central control module | 3A |
| N10 | Central control module | 57A |
| N10 | Central control module | 64A |
| N10 | Central control module | 70A |
| N118/5 | AdBlue® control unit | 55A |
| N127 | Drivetrain control unit | 14L |
| N127 | Drivetrain control unit | 15L |
| N129/1 | Power electronics control unit | 68A |
| N2/10 | Supplemental restraint system control unit | 52A |
| N3/10 | ME-SFI [ME] control unit | 6L |
| N3/10 | ME-SFI [ME] control unit | 8L |
| N3/9 | CDI control unit | 50L |
| N30/4 | Electronic Stability Program control unit | 20A |
| N30/4 | Electronic Stability Program control unit | 26A |
| N30/4 | Electronic Stability Program control unit | 32A |
| N33/6 | Fuel preheater control unit | 50A |
| N62 | Parking system control unit | 40A |
| S185/5 | Interlock circuit cover panel open circuit switch | 68A |
| T1/1 | Cylinder 1 ignition coil | 12A |
| T1/2 | Cylinder 2 ignition coil | 13A |
| T1/3 | Cylinder 3 ignition coil | 12A |
| T1/4 | Cylinder 4 ignition coil | 13A |
| W2 | Right front engine compartment ground point | 22A |
| W2 | Right front engine compartment ground point | 28A |
| W2 | Right front engine compartment ground point | 34A |
| W3/2 | Left front wheel arch ground point | 66A |
| W9 | Left front ground point | 9L |
| W9 | Left front ground point | 11L |
| W9 | Left front ground point | 14L |
| W9 | Left front ground point | 19A |
| W9 | Left front ground point | 25A |
| W9 | Left front ground point | 31A |

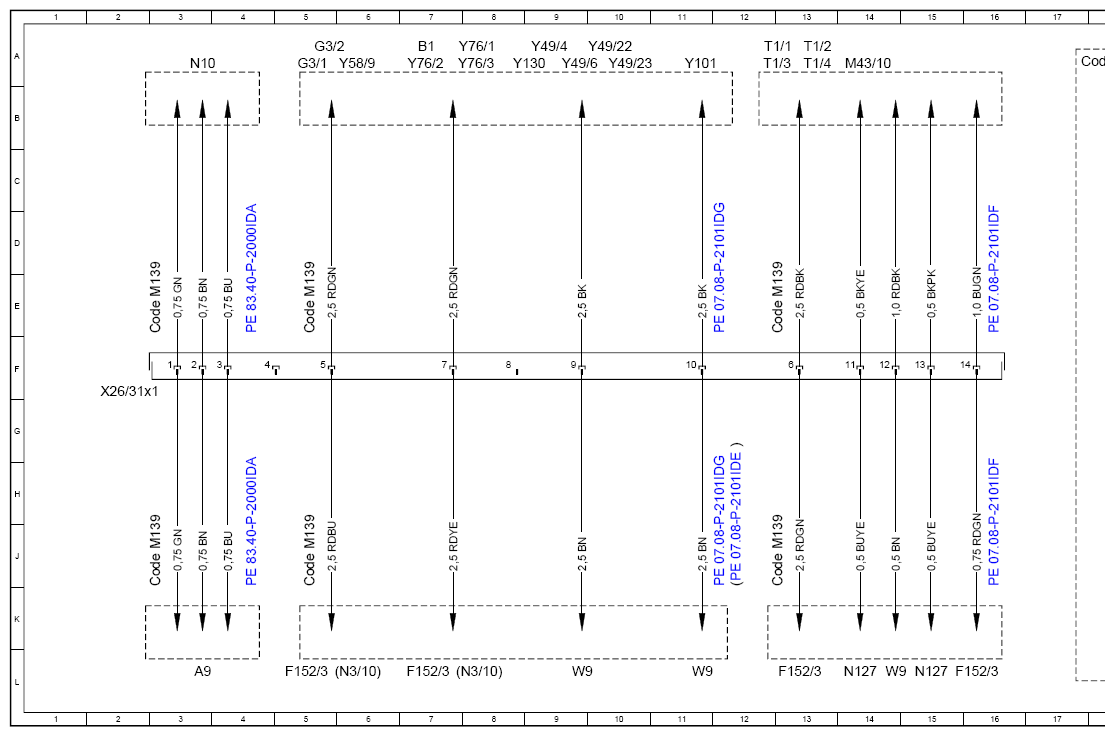

| X26/31x1 | Engine/engine compartment electrical connector | 2F |

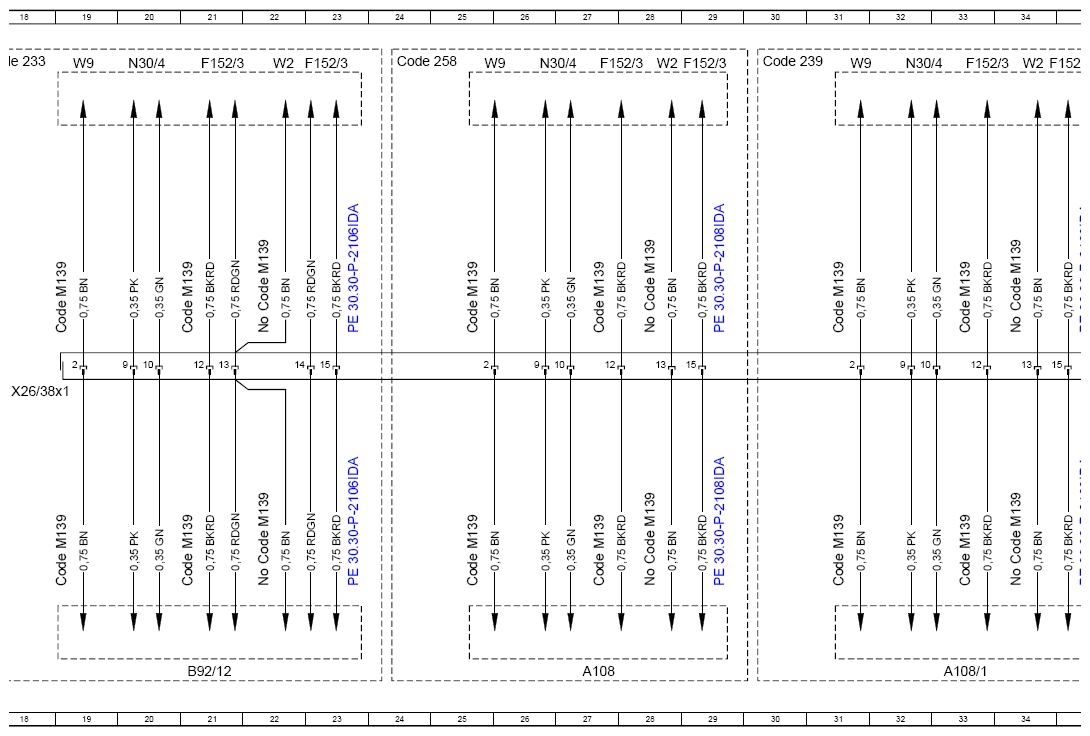

| X26/38x1 | Front bumper electrical connector | 18F |

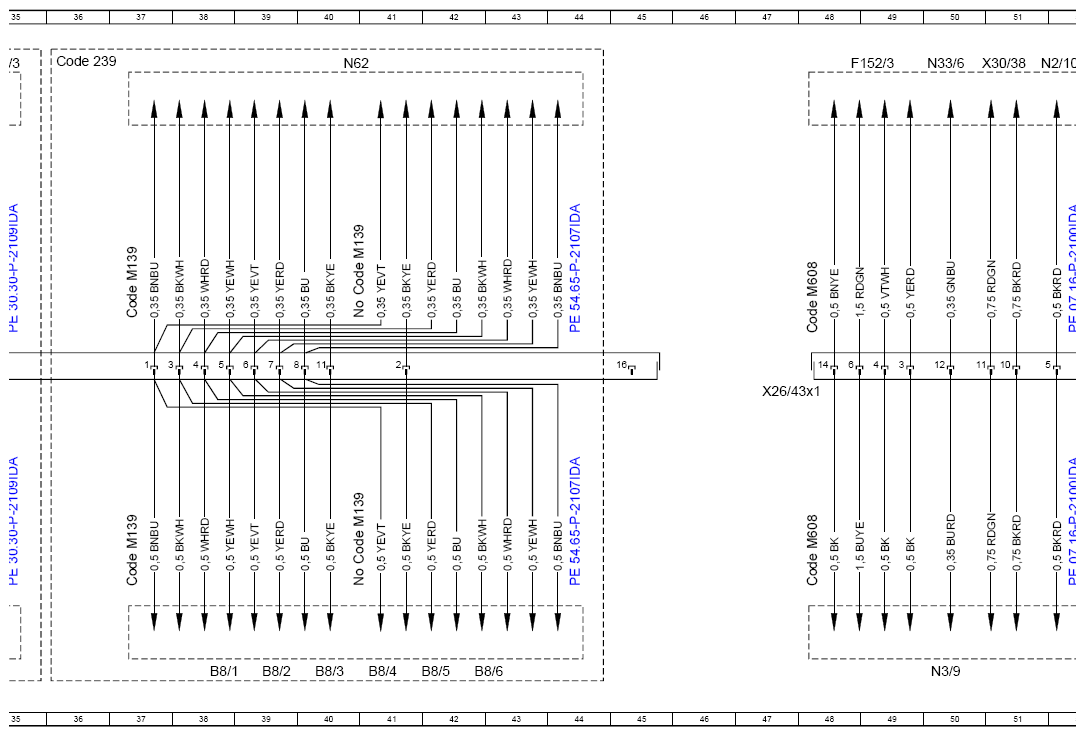

| X26/43x1 | Engine wiring harness/engine compartment electrical connector | 47F |

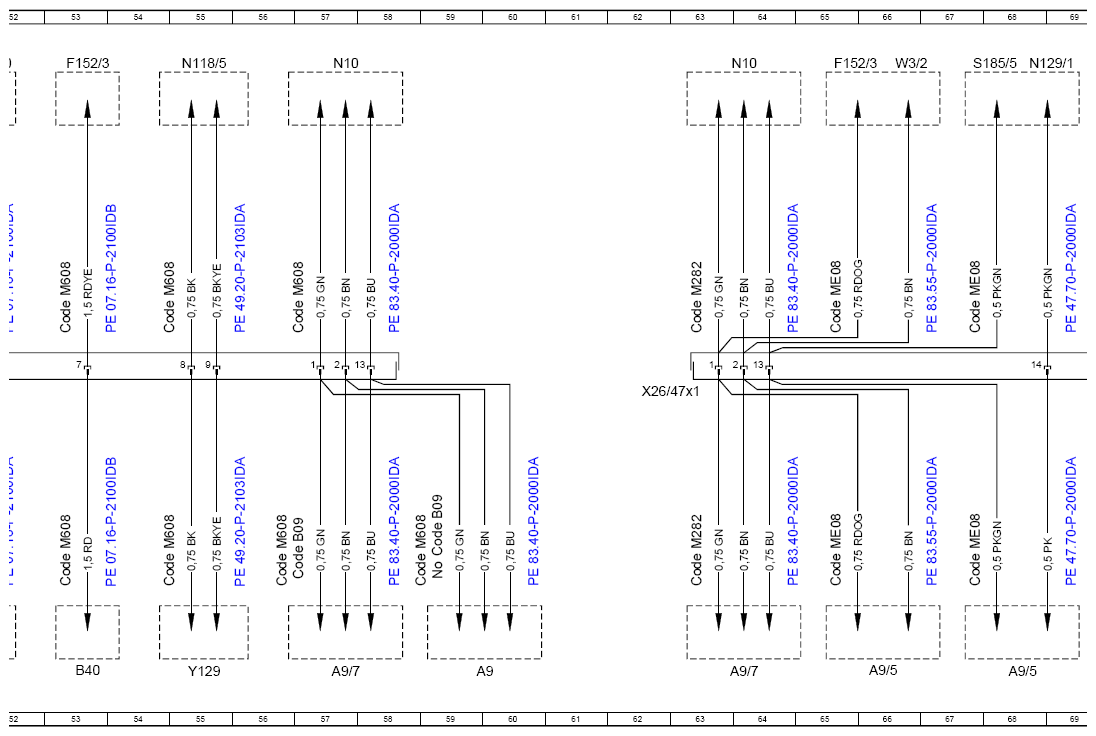

| X26/47x1 | Engine wiring harness/engine compartment electrical connector | 62F |
| X30/38 | Drive train sensor CAN (CAN I) potential distributor | 51A |
| Y101 | Divert air switchover valve | 11A |
| Y129 | AdBlue® metering valve | 55L |
| Y130 | Engine oil pump valve | 8A |
| Y49/22 | Cylinder 1 and 2 exhaust CAMTRONIC actuator | 10A |
| Y49/23 | Cylinder 3 and 4 exhaust CAMTRONIC actuator | 10A |
| Y49/4 | Left intake camshaft solenoid | 9A |
| Y49/6 | Left exhaust camshaft solenoid | 9A |
| Y58/9 | Fuel tank bleed valve | 6A |
| Y76/1 | Cylinder 1 fuel injector | 8A |
| Y76/2 | Cylinder 2 fuel injector | 7A |
| Y76/3 | Cylinder 3 fuel injector | 8A |
