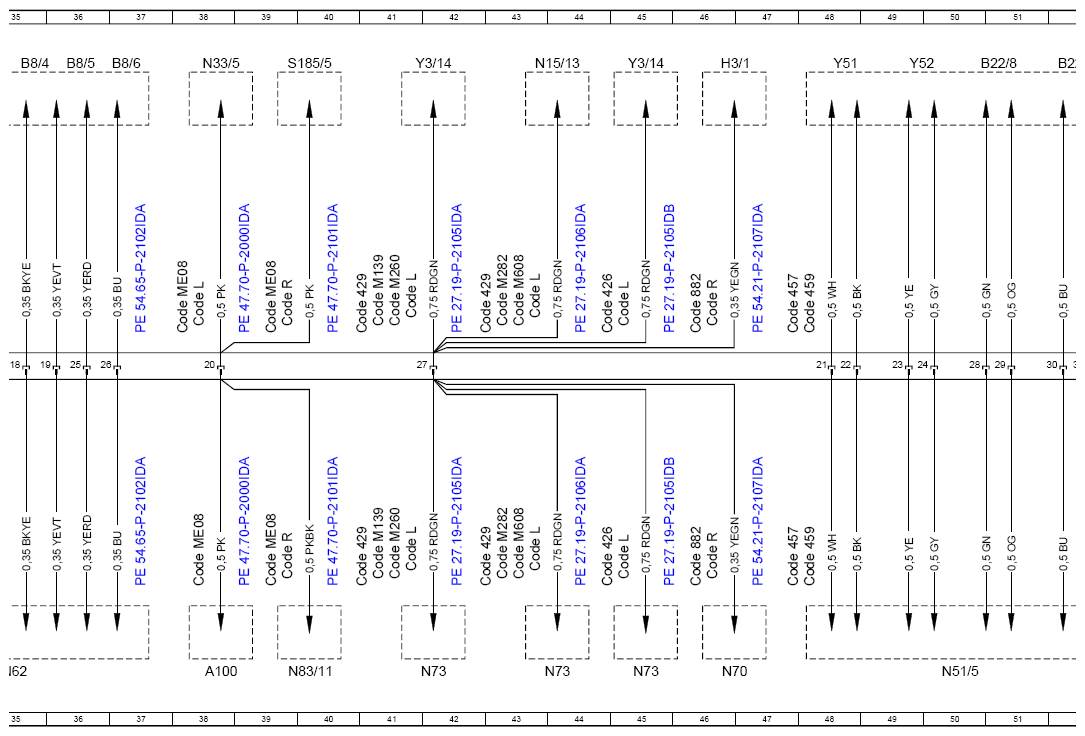

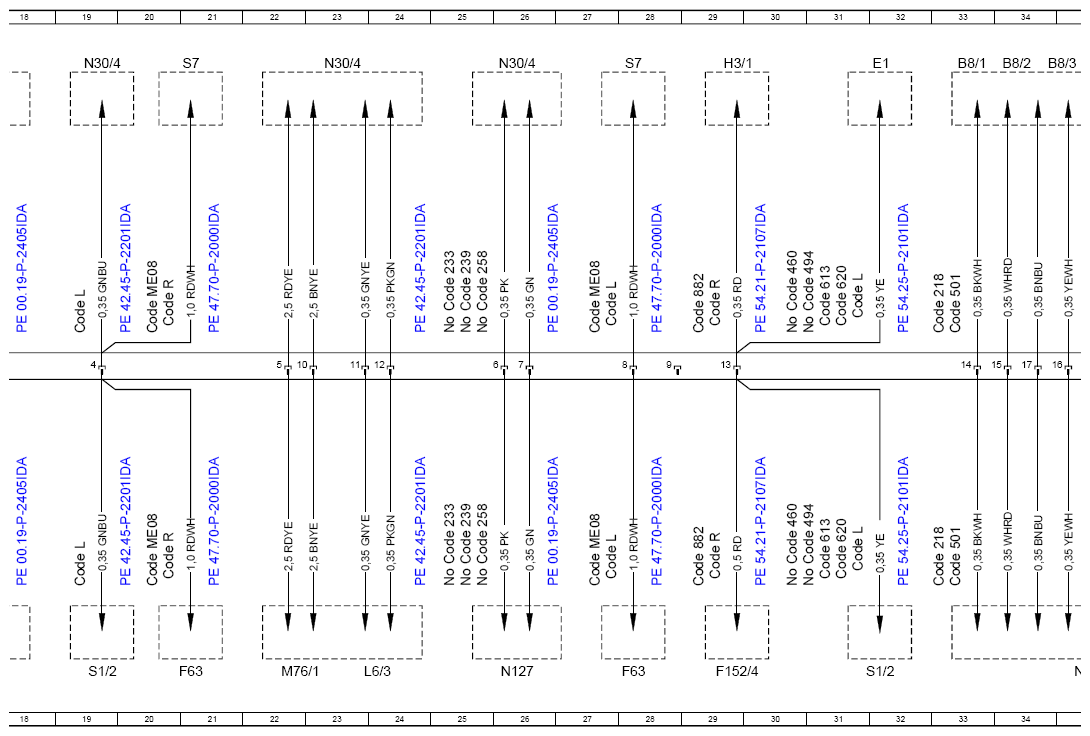

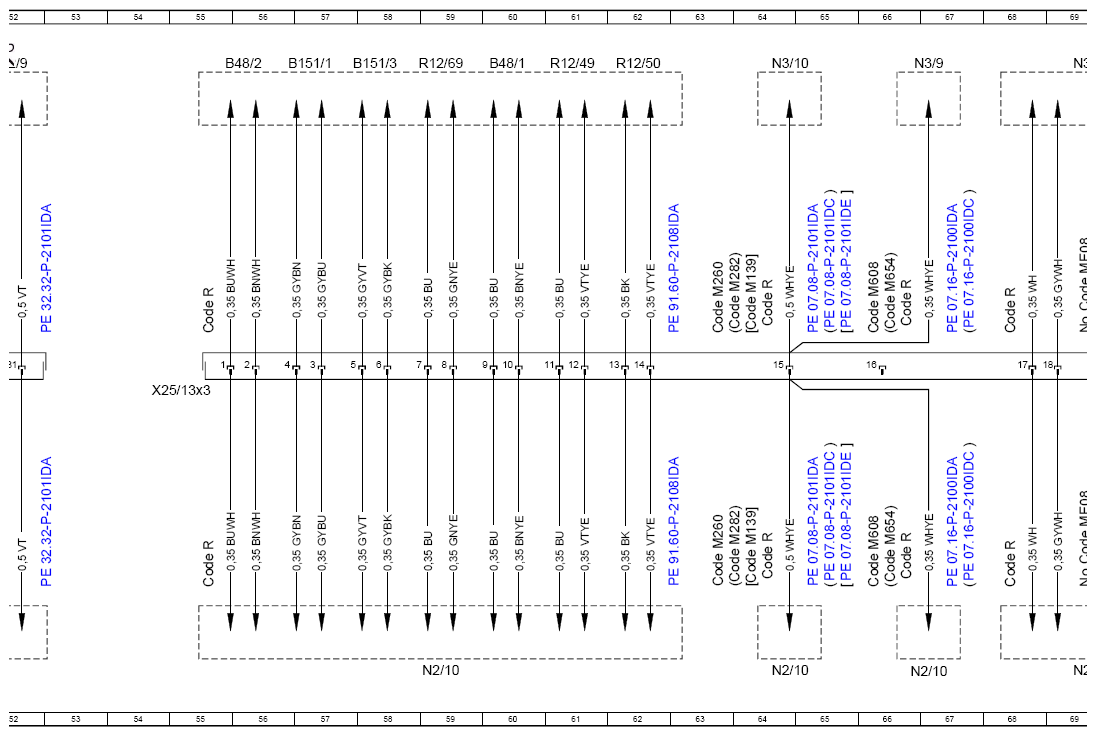

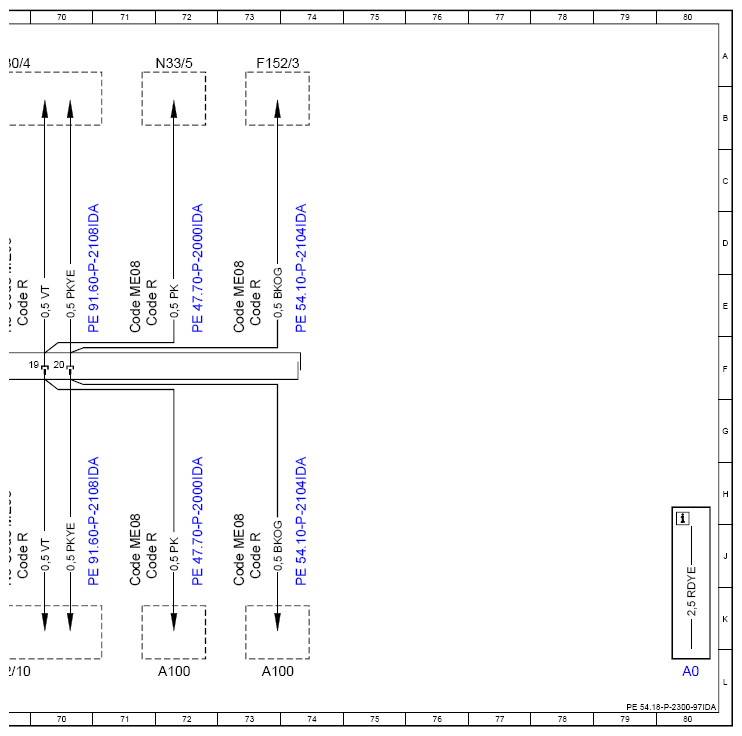

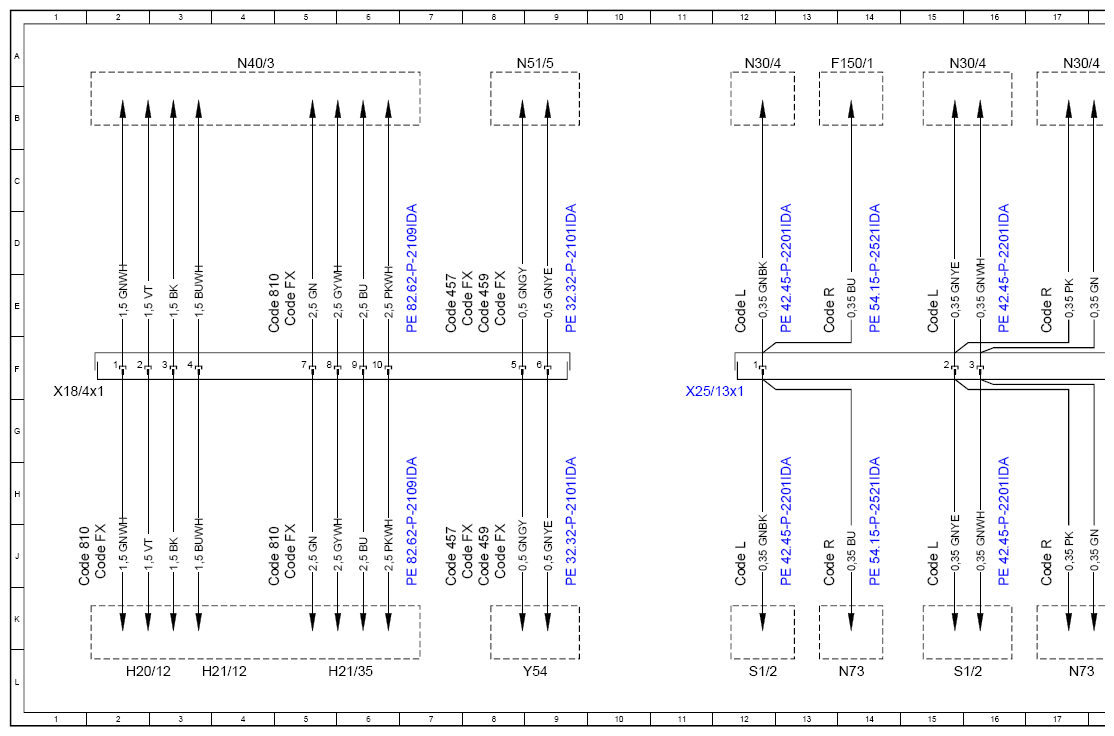

Connector Separation Point Wiring Diagram - PE54.18-P-2300-97IDA
Model 247
Connecting points X18/4x1, X25/13x1, X25/13x3
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 80L |
| A100 | High-voltage battery module | 38L |
| A100 | High-voltage battery module | 72L |
| A100 | High-voltage battery module | 73L |
| B151/1 | Left front bumper pedestrian protection sensor | 57A |
| B151/3 | Right front bumper pedestrian protection sensor | 58A |
| B22/8 | Left front level sensor | 51A |
| B22/9 | Right front level sensor | 52A |
| B48/1 | Left frontal acceleration sensor | 60A |
| B48/2 | Right frontal acceleration sensor | 56A |
| B8/1 | Outer left front parking system distance sensor | 33A |
| B8/2 | Center left front parking system distance sensor | 34A |
| B8/3 | Inner left front parking system distance sensor | 34A |
| B8/4 | Inner right front parking system distance sensor | 35A |
| B8/5 | Center right front parking system distance sensor | 36A |
| B8/6 | Outer right front parking system distance sensor | 37A |
| Code 218 | Backup camera | 33J |
| Code 218 | Backup camera | 33E |
| Code 233 | Adaptive cruise control Plus (DISTRONIC PLUS) | 25E |
| Code 233 | Adaptive cruise control Plus (DISTRONIC PLUS) | 25J |
| Code 239 | Active Distance Assist DISTRONIC | 25E |
| Code 239 | Active Distance Assist DISTRONIC | 25J |
| Code 258 | Active Brake Assist | 25E |
| Code 258 | Active Brake Assist | 25J |
| Code 426 | 8G-DCT | 45E |
| Code 426 | 8G-DCT | 45J |
| Code 429 | 7G-DCT | 41E |
| Code 429 | 7G-DCT | 41J |
| Code 429 | 7G-DCT | 43E |
| Code 429 | 7G-DCT | 43J |
| Code 457 | Comfort suspension with adjustable damping | 7J |
| Code 457 | Comfort suspension with adjustable damping | 7E |
| Code 457 | Comfort suspension with adjustable damping | 48J |
| Code 457 | Comfort suspension with adjustable damping | 48E |
| Code 459 | Steel suspension with adjustable damping | 8J |
| Code 459 | Steel suspension with adjustable damping | 8E |
| Code 459 | Steel suspension with adjustable damping | 48J |
| Code 459 | Steel suspension with adjustable damping | 48E |
| Code 460 | Canada version | 30E |
| Code 460 | Canada version | 30J |
| Code 494 | USA version | 31E |
| Code 494 | USA version | 31J |
| Code 501 | Surround View camera | 33J |
| Code 501 | Surround View camera | 33E |
| Code 613 | Left-hand traffic headlamps | 31E |
| Code 613 | Left-hand traffic headlamps | 31J |
| Code 620 | Right-hand traffic headlamps | 31E |
| Code 620 | Right-hand traffic headlamps | 31J |
| Code 810 | Sound system | 5J |
| Code 810 | Sound system | 5E |
| Code 810 | Sound system | 2J |
| Code 882 | Interior monitoring | 29E |
| Code 882 | Interior monitoring | 29J |
| Code 882 | Interior monitoring | 46E |
| Code 882 | Interior monitoring | 46J |
| Code FX | Special version | 8J |
| Code FX | Special version | 8J |
| Code FX | Special version | 8E |
| Code FX | Special version | 8E |
| Code FX | Special version | 5J |
| Code FX | Special version | 5E |
| Code FX | Special version | 2J |
| Code L | LEFT-HAND DRIVE | 15J |
| Code L | LEFT-HAND DRIVE | 15E |
| Code L | LEFT-HAND DRIVE | 27E |
| Code L | LEFT-HAND DRIVE | 27J |
| Code L | LEFT-HAND DRIVE | 38E |
| Code L | LEFT-HAND DRIVE | 45E |
| Code L | LEFT-HAND DRIVE | 45J |
| Code L | LEFT-HAND DRIVE | 41E |
| Code L | LEFT-HAND DRIVE | 41J |
| Code L | LEFT-HAND DRIVE | 43E |
| Code L | LEFT-HAND DRIVE | 43J |
| Code L | LEFT-HAND DRIVE | 12J |
| Code L | LEFT-HAND DRIVE | 12E |
| Code L | LEFT-HAND DRIVE | 19J |
| Code L | LEFT-HAND DRIVE | 19E |
| Code L | LEFT-HAND DRIVE | 31E |
| Code L | LEFT-HAND DRIVE | 31J |
| Code M139 | Inline 4-cylinder SPARK-IGNITION ENGINE M139 - AMG | 41E |
| Code M139 | Inline 4-cylinder SPARK-IGNITION ENGINE M139 - AMG | 41J |
| Code M139 | Inline 4-cylinder SPARK-IGNITION ENGINE M139 - AMG | 64E |
| Code M139 | Inline 4-cylinder SPARK-IGNITION ENGINE M139 - AMG | 64J |
| Code M260 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M260 | 41E |
| Code M260 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M260 | 41J |
| Code M260 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M260 | 63J |
| Code M260 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M260 | 63E |
| Code M282 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M282 | 43E |
| Code M282 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M282 | 43J |
| Code M282 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M282 | 64J |
| Code M282 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M282 | 64E |
| Code M608 | 4-CYLINDER INLINE DIESEL ENGINE OM608 | 43E |
| Code M608 | 4-CYLINDER INLINE DIESEL ENGINE OM608 | 43J |
| Code M608 | 4-CYLINDER INLINE DIESEL ENGINE OM608 | 66E |
| Code M608 | 4-CYLINDER INLINE DIESEL ENGINE OM608 | 66J |
| Code M654 | 4-CYLINDER INLINE DIESEL ENGINE OM654 | 66E |
| Code M654 | 4-CYLINDER INLINE DIESEL ENGINE OM654 | 66J |
| Code ME08 | Hybrid drive 75kW-84kW variant (incl. plug-in) | 20J |
| Code ME08 | Hybrid drive 75kW-84kW variant (incl. plug-in) | 20E |
| Code ME08 | Hybrid drive 75kW-84kW variant (incl. plug-in) | 27E |
| Code ME08 | Hybrid drive 75kW-84kW variant (incl. plug-in) | 27J |
| Code ME08 | Hybrid drive 75kW-84kW variant (incl. plug-in) | 38J |
| Code ME08 | Hybrid drive 75kW-84kW variant (incl. plug-in) | 38E |
| Code ME08 | Hybrid drive 75kW-84kW variant (incl. plug-in) | 39E |
| Code ME08 | Hybrid drive 75kW-84kW variant (incl. plug-in) | 39J |
| Code ME08 | Hybrid drive 75kW-84kW variant (incl. plug-in) | 69E |
| Code ME08 | Hybrid drive 75kW-84kW variant (incl. plug-in) | 69J |
| Code ME08 | Hybrid drive 75kW-84kW variant (incl. plug-in) | 71E |
| Code ME08 | Hybrid drive 75kW-84kW variant (incl. plug-in) | 71J |
| Code ME08 | Hybrid drive 75kW-84kW variant (incl. plug-in) | 73E |
| Code ME08 | Hybrid drive 75kW-84kW variant (incl. plug-in) | 73J |
| Code R | RIGHT-HAND DRIVE | 20J |
| Code R | RIGHT-HAND DRIVE | 20E |
| Code R | RIGHT-HAND DRIVE | 39E |
| Code R | RIGHT-HAND DRIVE | 39J |
| Code R | RIGHT-HAND DRIVE | 13J |
| Code R | RIGHT-HAND DRIVE | 13E |
| Code R | RIGHT-HAND DRIVE | 17J |
| Code R | RIGHT-HAND DRIVE | 17E |
| Code R | RIGHT-HAND DRIVE | 29E |
| Code R | RIGHT-HAND DRIVE | 29J |
| Code R | RIGHT-HAND DRIVE | 46E |
| Code R | RIGHT-HAND DRIVE | 46J |
| Code R | RIGHT-HAND DRIVE | 68E |
| Code R | RIGHT-HAND DRIVE | 68J |
| Code R | RIGHT-HAND DRIVE | 69E |
| Code R | RIGHT-HAND DRIVE | 69J |
| Code R | RIGHT-HAND DRIVE | 55E |
| Code R | RIGHT-HAND DRIVE | 55J |
| Code R | RIGHT-HAND DRIVE | 64E |
| Code R | RIGHT-HAND DRIVE | 64J |
| Code R | RIGHT-HAND DRIVE | 66E |
| Code R | RIGHT-HAND DRIVE | 66J |
| Code R | RIGHT-HAND DRIVE | 72E |
| Code R | RIGHT-HAND DRIVE | 72J |
| Code R | RIGHT-HAND DRIVE | 73E |
| Code R | RIGHT-HAND DRIVE | 73J |
| E1 | Left front lamp unit | 32A |
| F150/1 | Starter battery pre-fuse box | 14A |
| F152/3 | Engine compartment fuse and relay module | 73A |
| F152/4 | Vehicle interior fuse and relay module | 29L |
| F63 | Pyrofuse | 28L |
| F63 | Pyrofuse | 21L |
| H20/12 | Right rear door tweeter | 2L |
| H21/12 | Right rear door surround sound system tweeter | 4L |
| H21/35 | Rear subwoofer | 6L |
| H3/1 | Alarm siren | 29A |
| H3/1 | Alarm siren | 46A |
| L6/3 | Left rear axle rpm sensor | 24L |
| M76/1 | Left electric parking brake actuator motor | 22L |
| N127 | Drivetrain control unit | 26L |
| N15/13 | Double clutch transmission control unit | 43A |
| N2/10 | Supplemental restraint system control unit | 69L |
| N2/10 | Supplemental restraint system control unit | 59L |
| N2/10 | Supplemental restraint system control unit | 64L |
| N2/10 | Supplemental restraint system control unit | 66L |
| N3/10 | ME-SFI [ME] control unit | 64A |
| N3/9 | CDI control unit | 67A |
| N30/4 | Electronic Stability Program control unit | 15A |
| N30/4 | Electronic Stability Program control unit | 23A |
| N30/4 | Electronic Stability Program control unit | 12A |
| N30/4 | Electronic Stability Program control unit | 26A |
| N30/4 | Electronic Stability Program control unit | 17A |
| N30/4 | Electronic Stability Program control unit | 19A |
| N30/4 | Electronic Stability Program control unit | 69A |
| N33/5 | High-voltage PTC heater | 38A |
| N33/5 | High-voltage PTC heater | 72A |
| N40/3 | Sound system amplifier control unit | 4A |
| N51/5 | Adaptive damping system control unit | 9A |
| N51/5 | Adaptive damping system control unit | 50L |
| N62 | Parking system control unit | 35L |
| N70 | Overhead control panel control unit | 46L |
| N73 | Electronic ignition switch control unit | 42L |
| N73 | Electronic ignition switch control unit | 45L |
| N73 | Electronic ignition switch control unit | 44L |
| N73 | Electronic ignition switch control unit | 14L |
| N73 | Electronic ignition switch control unit | 17L |
| N83/11 | Alternating current charger for high-voltage battery | 40L |
| R12/49 | Left active engine hood squib | 61A |
| R12/50 | Right active engine hood squib | 62A |
| R12/69 | Refrigerant inerting squib | 59A |
| S1/2 | Exterior lights and electric parking brake switch group | 15L |
| S1/2 | Exterior lights and electric parking brake switch group | 12L |
| S1/2 | Exterior lights and electric parking brake switch group | 19L |
| S1/2 | Exterior lights and electric parking brake switch group | 32L |
| S185/5 | Interlock circuit cover panel open circuit switch | 40A |
| S7 | High-voltage disconnect device | 28A |
| S7 | High-voltage disconnect device | 21A |
| X18/4x1 | Vehicle interior/sound system electrical connector | 1F |
| X25/13x1 | Left engine compartment/vehicle interior electrical connector | 12F |
| X25/13x3 | Left engine compartment/vehicle interior electrical connector | 55F |
| Y3/14 | Dual clutch transmission fully integrated transmission control electrohydraulic controller unit | 42A |
| Y3/14 | Dual clutch transmission fully integrated transmission control electrohydraulic controller unit | 45A |
| Y51 | Left front axle damping valve unit | 48A |
| Y52 | Right front axle damping valve unit | 49A |
| Y54 | Right rear axle damping valve unit | 9L |
