Remove/Install Battery Carrier - AR54.10-P-0028MFA
Model 118, 177, 247
Shown on model 177.0 with engine 608
| Remove/install | |||
| 1 | Remove on-board electrical system battery. | AR54.10-P-0005MFA | |

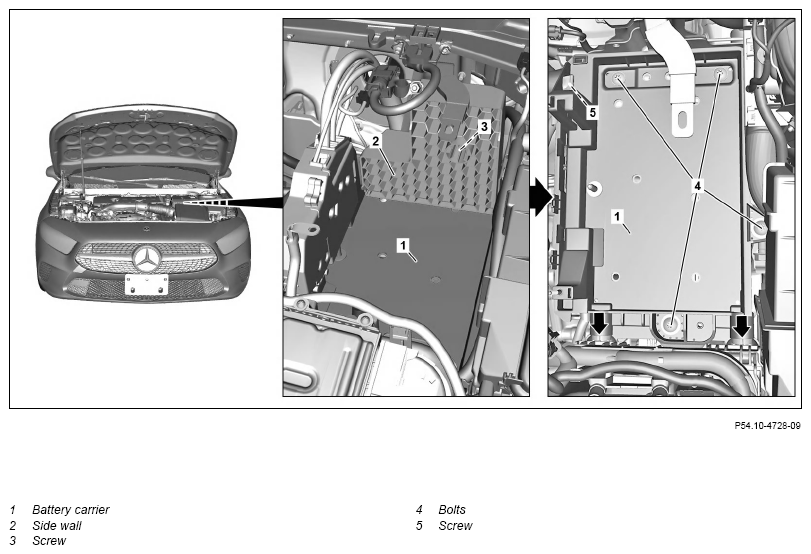

| 2 | Remove screw (3) and remove side wall (2). | If the side wall (2) is present. | |
| 3 | Remove screws/bolts (4). | ||
| 4 | Remove screw (5). | Model 118, 177, 247 with code ME08 (Hybrid drive 75-84 kW VARIANT (INCLUDING PLUGIN)) | |
| 5 | Loosen air filter housing and guide out of battery carrier (1) (arrows). | Model 247 with engine 654 | AR09.10-P-1150MFF |
| Model 118, 177 with engine 260 | AR09.10-P-1150MFC | ||
| Model 118, 177, 247 with engine 282 | AR09.10-P-1150MFD | ||
| Model 118, 177, 247 with engine 608 | AR09.10-P-1150MFE | ||
| 6 | Remove battery carrier (1). | ||
| 7 | Install in the reverse order. |
