Wiring Diagram Of Head Unit - PE82.85-P-2110-97IDA
Model 247
with code 547 (Connect 20 Entry (NTG6))
Head unit A26/17
Model 247
with code 548 (Connect 20 MID (NTG6))
Head unit A26/17
Model 247
with code 549 (Connect 20 HIGH (NTG6))
Head unit A26/17
| Code: | Designation: | Position |
|---|---|---|

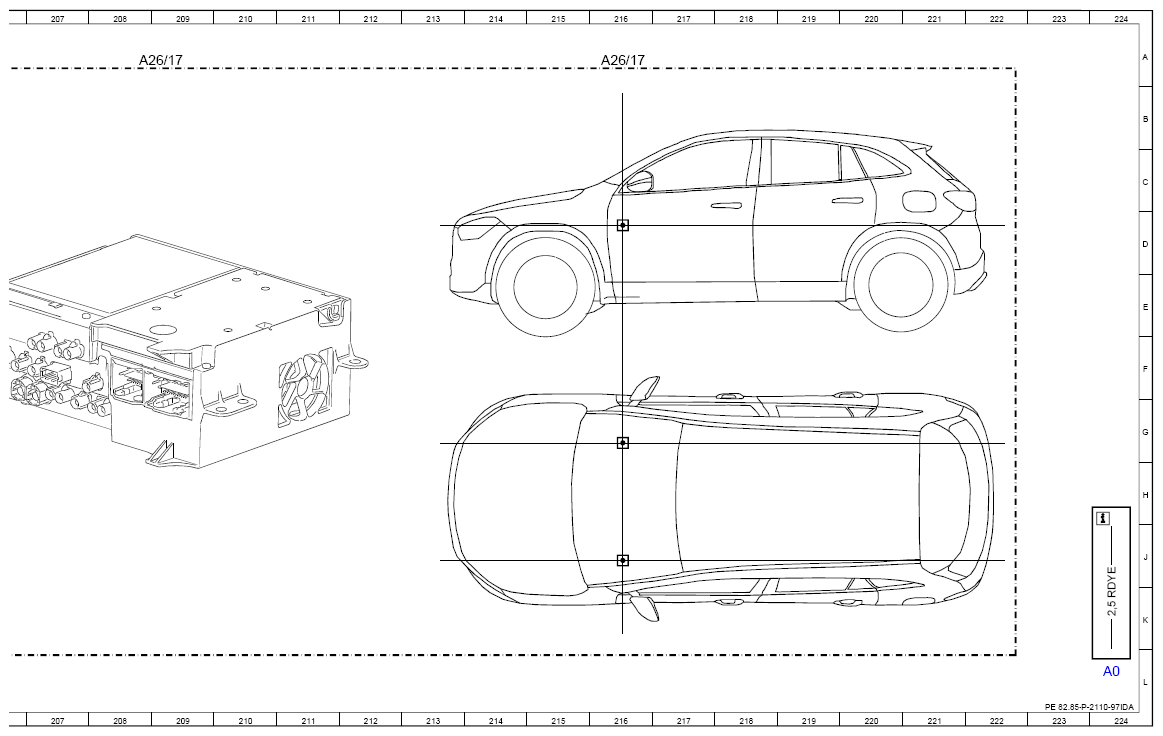

| A0 | Use of wiring diagrams | 224L |

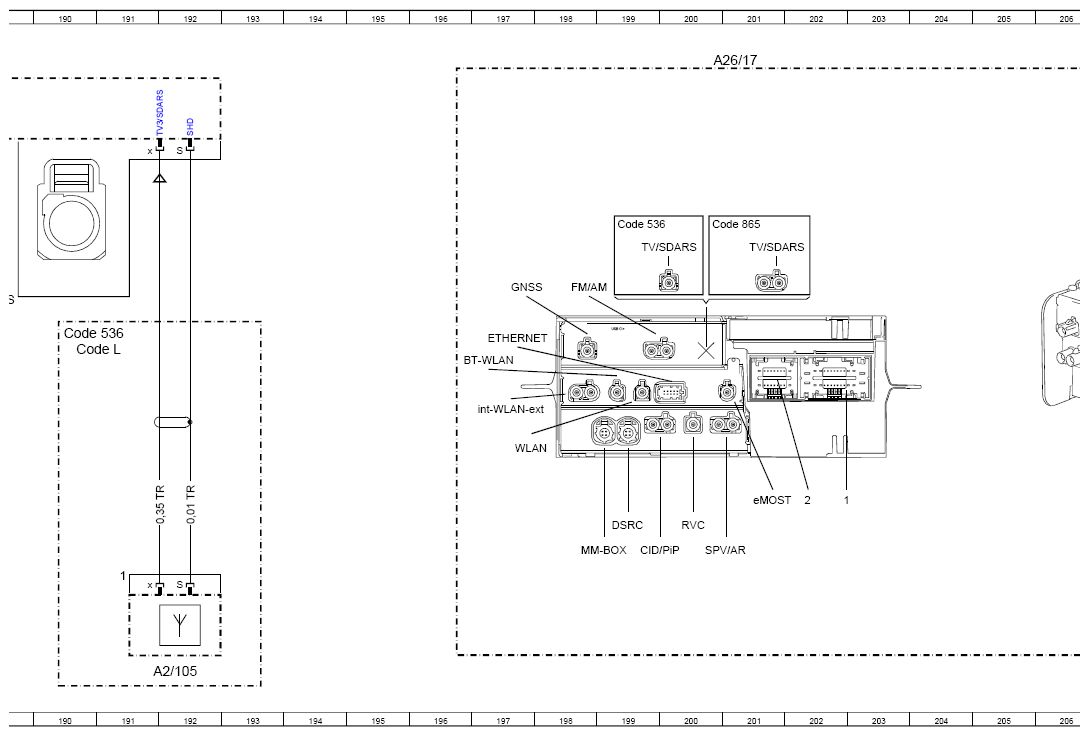

| A2/105 | SDARS antenna | 192L |

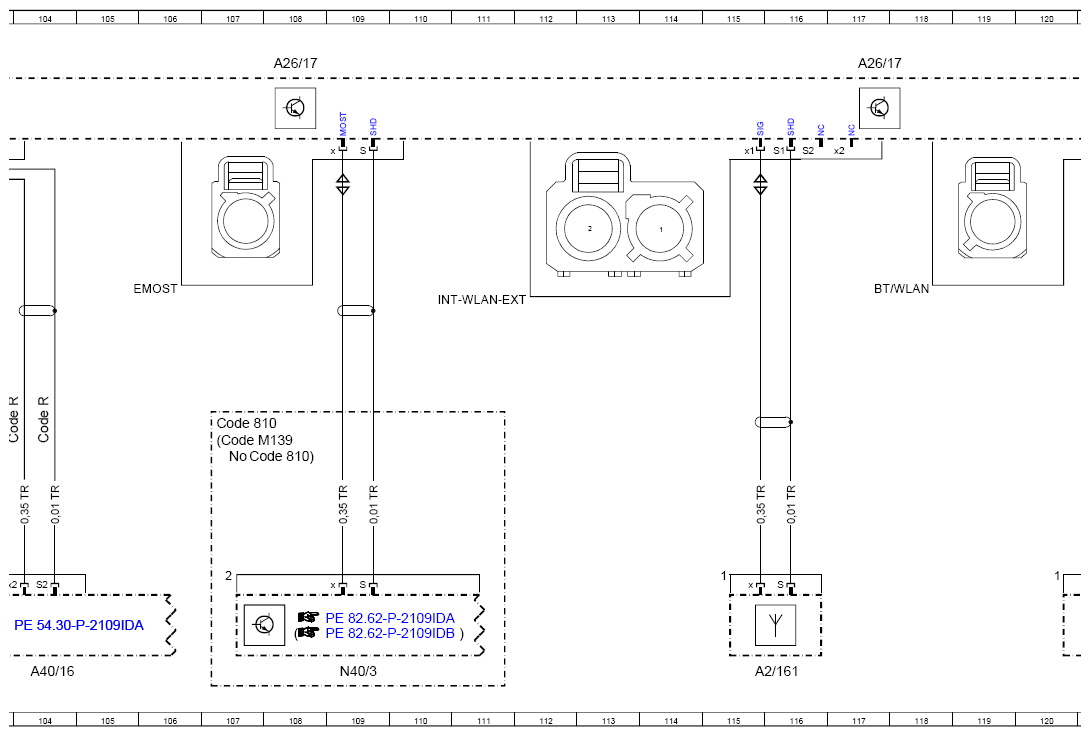

| A2/161 | Bluetooth®/WiFi antenna | 115L |
| A2/162 | Bluetooth®/WiFi antenna | 187L |
| A2/18 | FM, AM, CL, DAB and KEYLESS-GO antenna amplifier | 155L |
| A2/19 | FM2, DAB and TV2 antenna amplifier | 157L |

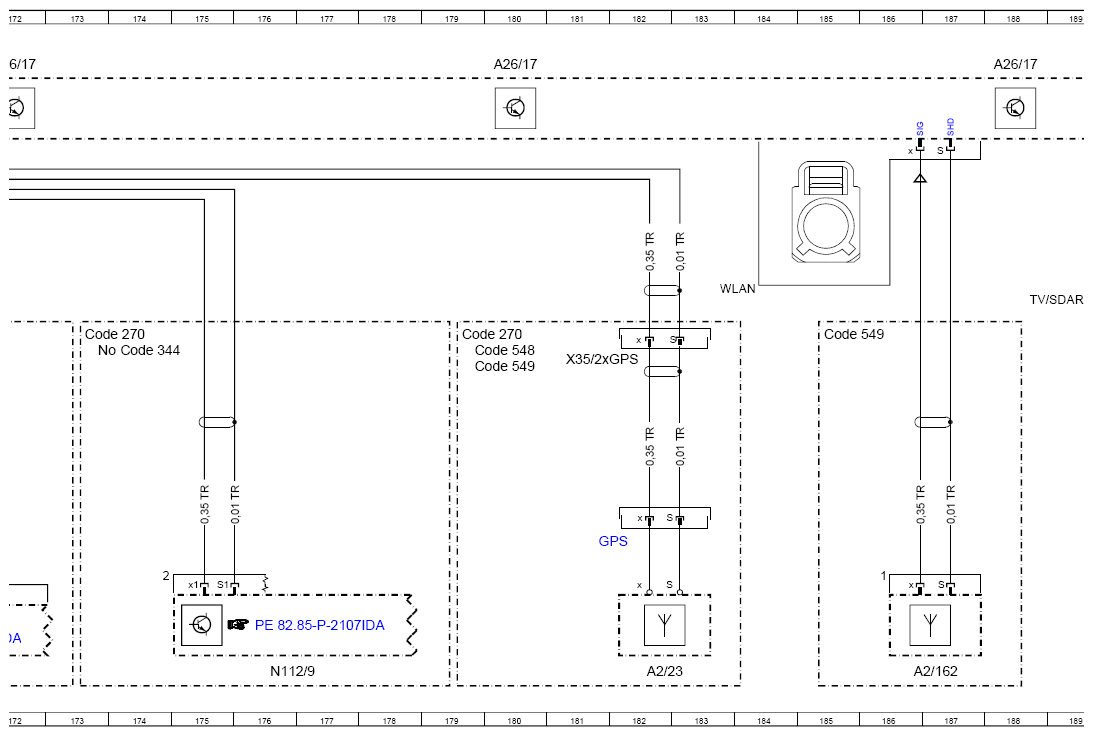

| A2/23 | GPS antenna | 182L |
| A2/23xGPS | GPS antenna electrical connector | 182L |
| A2/25 | Emergency call system antenna splitter | 171L |
| A2/91 | Bluetooth®/WiFi antenna | 121L |
| A26/17 | Head unit | 4A |
| A26/17 | Head unit | 12A |
| A26/17 | Head unit | 20A |
| A26/17 | Head unit | 28A |
| A26/17 | Head unit | 37A |
| A26/17 | Head unit | 44A |
| A26/17 | Head unit | 52A |
| A26/17 | Head unit | 60A |
| A26/17 | Head unit | 69A |
| A26/17 | Head unit | 75A |
| A26/17 | Head unit | 84A |
| A26/17 | Head unit | 92A |
| A26/17 | Head unit | 100A |
| A26/17 | Head unit | 108A |
| A26/17 | Head unit | 117A |
| A26/17 | Head unit | 124A |
| A26/17 | Head unit | 133A |
| A26/17 | Head unit | 140A |
| A26/17 | Head unit | 148A |
| A26/17 | Head unit | 156A |
| A26/17 | Head unit | 164A |
| A26/17 | Head unit | 172A |
| A26/17 | Head unit | 180A |
| A26/17 | Head unit | 188A |
| A26/17 | Head unit | 208A |
| A26/17 | Head unit | 216A |
| A26/17 | Head unit | 201A |
| A40/16 | Head unit/instrument cluster display cluster | 104L |
| A50/6 | Dedicated Short-Range Communications control unit | 132L |

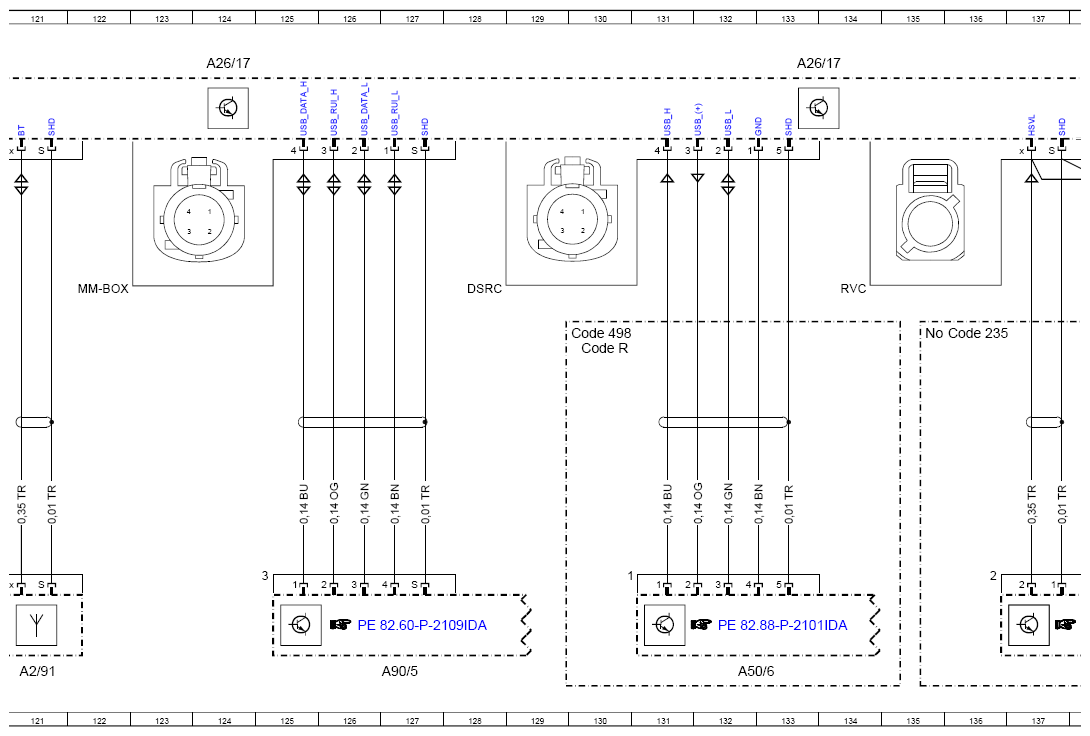

| A90/5 | Multimedia connection unit | 47L |
| A90/5 | Multimedia connection unit | 127L |

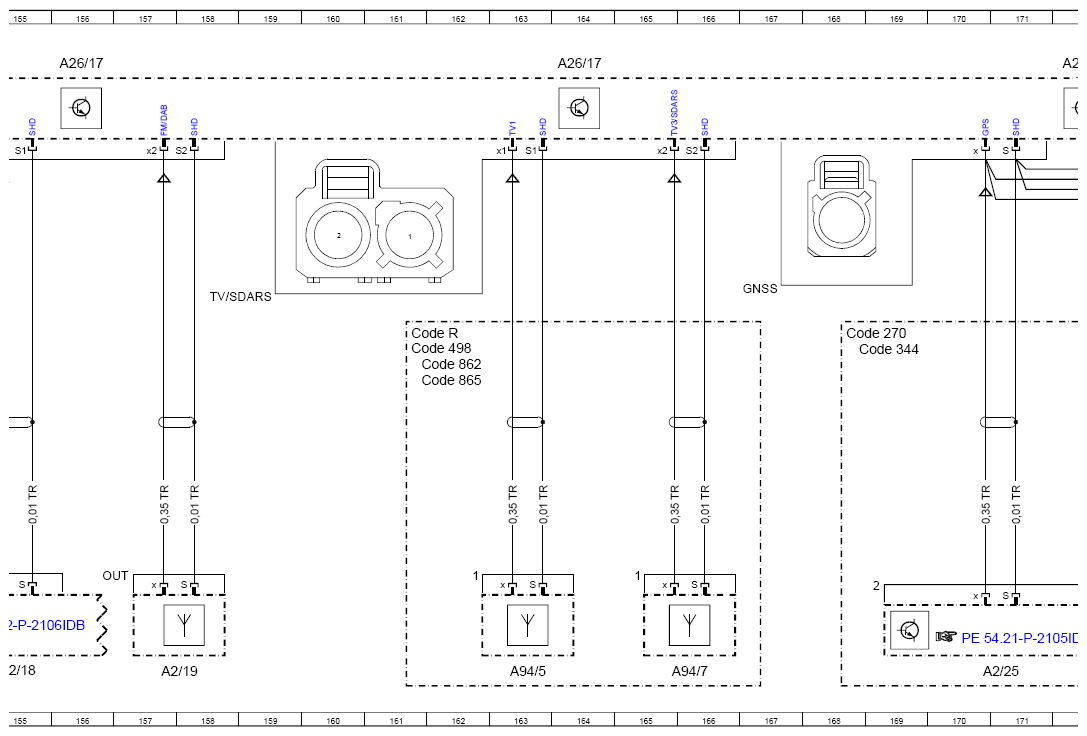

| A94/5 | TV 1 antenna amplifier | 163L |
| A94/7 | TV 3 antenna amplifier | 166L |
| B25/20 | Driver hands-free system microphone | 50L |

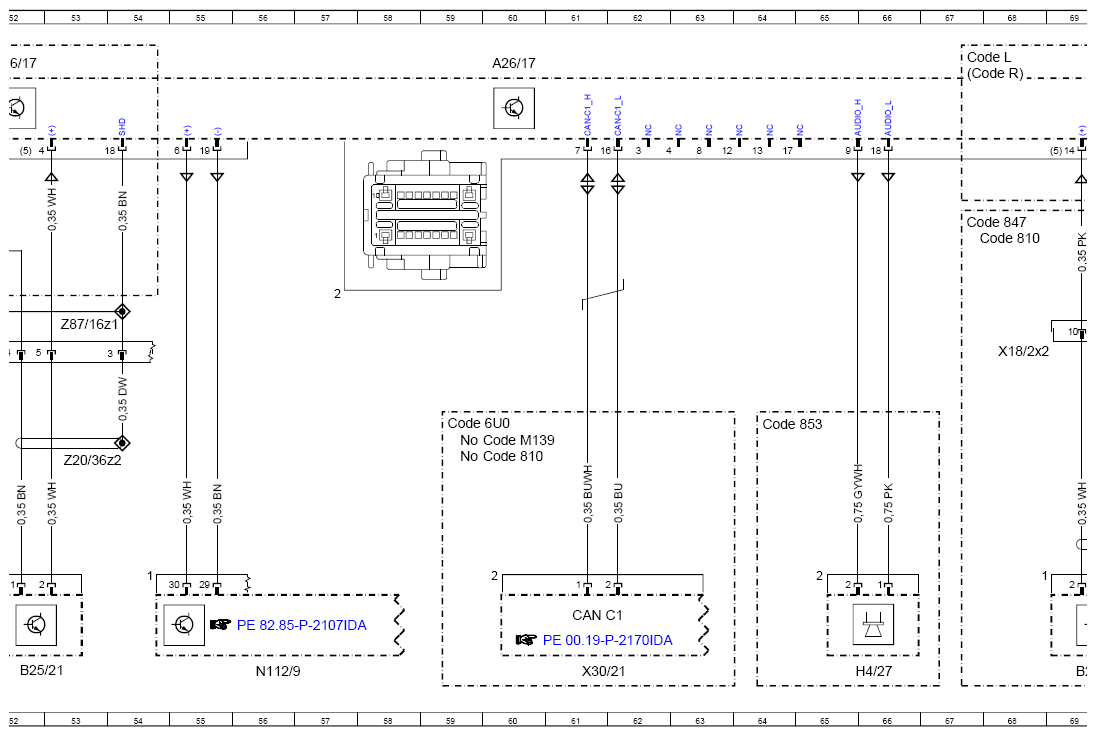

| B25/21 | Front passenger hands-free system microphone | 52L |
| B25/32 | Left rear hands-free system microphone | 71L |
| B25/33 | Right rear hands-free system microphone | 69L |
| B84/14 | Augmented reality camera | 149L |
| CAN A | Telematics CAN | 19K |
| CAN C1 | Drive train CAN | 61K |
| CAN HMI | User interface CAN | 15K |
| Code 235 | Park-Pilot with PARKTRONIC | 141F |
| Code 235 | Park-Pilot with PARKTRONIC | 136F |
| Code 270 | GPS antenna | 179F |
| Code 270 | GPS antenna | 173F |
| Code 270 | GPS antenna | 168F |
| Code 344 | Antenna preinstallation for taxi | 168F |
| Code 344 | Antenna preinstallation for taxi | 174F |
| Code 362 | HERMES LTE | 80G |
| Code 498 | Japan version | 130F |
| Code 498 | Japan version | 161F |
| Code 536 | SIRIUS satellite radio | 190F |
| Code 548 | Connect 20 MID (NTG6) | 179F |
| Code 549 | Connect 20 HIGH (NTG6) | 179F |
| Code 549 | Connect 20 HIGH (NTG6) | 185F |
| Code 6U0 | Engine sound via speakers | 59G |
| Code 810 | Sound system | 22E |
| Code 810 | Sound system | 81G |
| Code 810 | Sound system | 107G |
| Code 810 | Sound system | 107G |
| Code 810 | Sound system | 67D |
| Code 810 | Sound system | 59G |
| Code 847 | 3rd seat row | 67D |
| Code 853 | Mid line sound system | 34G |
| Code 853 | Mid line sound system | 40G |
| Code 853 | Mid line sound system | 64G |
| Code 853 | Mid line sound system | 74G |
| Code 862 | TV preinstallation | 161F |
| Code 865 | TV tuner | 161F |
| Code L | LEFT-HAND DRIVE | 11G |
| Code L | LEFT-HAND DRIVE | 103G |
| Code L | LEFT-HAND DRIVE | 103G |
| Code L | LEFT-HAND DRIVE | 22A |
| Code L | LEFT-HAND DRIVE | 49A |
| Code L | LEFT-HAND DRIVE | 67A |
| Code L | LEFT-HAND DRIVE | 190F |
| Code M016 | Uprated high-performance engine | 74H |
| Code M139 | Inline 4-cylinder SPARK-IGNITION ENGINE M139 - AMG | 74G |
| Code M139 | Inline 4-cylinder SPARK-IGNITION ENGINE M139 - AMG | 107G |
| Code M139 | Inline 4-cylinder SPARK-IGNITION ENGINE M139 - AMG | 59G |
| Code M260 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M260 | 74G |
| Code R | RIGHT-HAND DRIVE | 12G |
| Code R | RIGHT-HAND DRIVE | 161F |
| Code R | RIGHT-HAND DRIVE | 130F |
| Code R | RIGHT-HAND DRIVE | 104G |
| Code R | RIGHT-HAND DRIVE | 104G |
| Code R | RIGHT-HAND DRIVE | 22A |
| Code R | RIGHT-HAND DRIVE | 49A |
| Code R | RIGHT-HAND DRIVE | 67A |
| Code U19 | Augmented Reality | 147F |

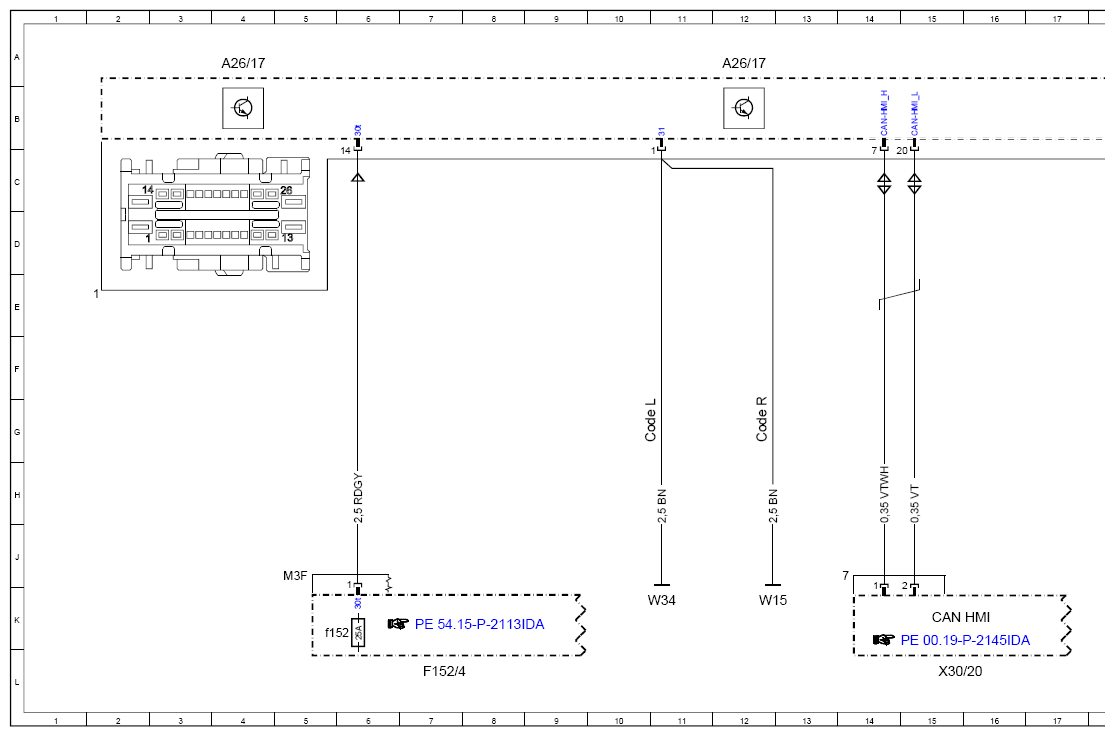

| F152/4 | Vehicle interior fuse and relay module | 7L |
| F152/4f152 | Fuse 152 | 5K |
| H20/1 | Left A-pillar tweeter | 32L |

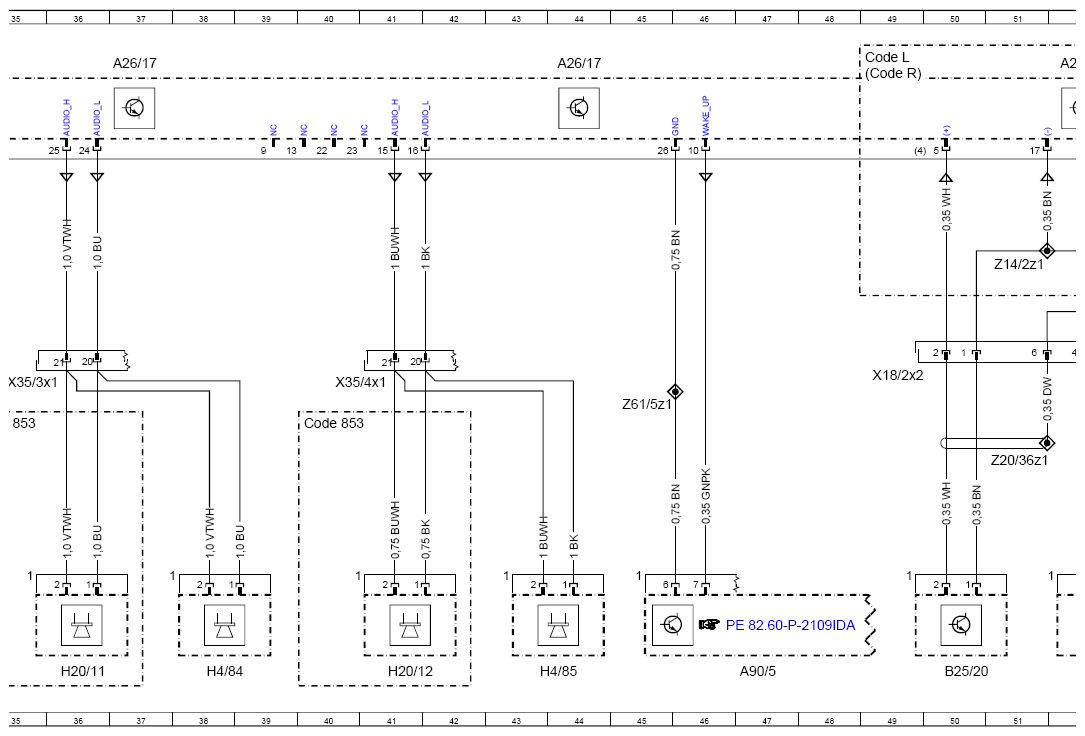

| H20/11 | Left rear door tweeter | 36L |
| H20/12 | Right rear door tweeter | 41L |
| H20/2 | Right A-pillar tweeter | 27L |
| H4/27 | Center instrument panel speaker | 66L |
| H4/82 | Left front door woofer/midrange speaker | 30L |
| H4/83 | Right front door woofer/midrange speaker | 24L |
| H4/84 | Left rear door woofer/midrange speaker | 38L |
| H4/85 | Right rear door woofer/midrange speaker | 44L |
| N112/9 | HERMES control unit | 56L |
| N112/9 | HERMES control unit | 83L |
| N112/9 | HERMES control unit | 176L |
| N133/1 | Instrument cluster control unit | 96L |
| N40/3 | Sound system amplifier control unit | 109L |

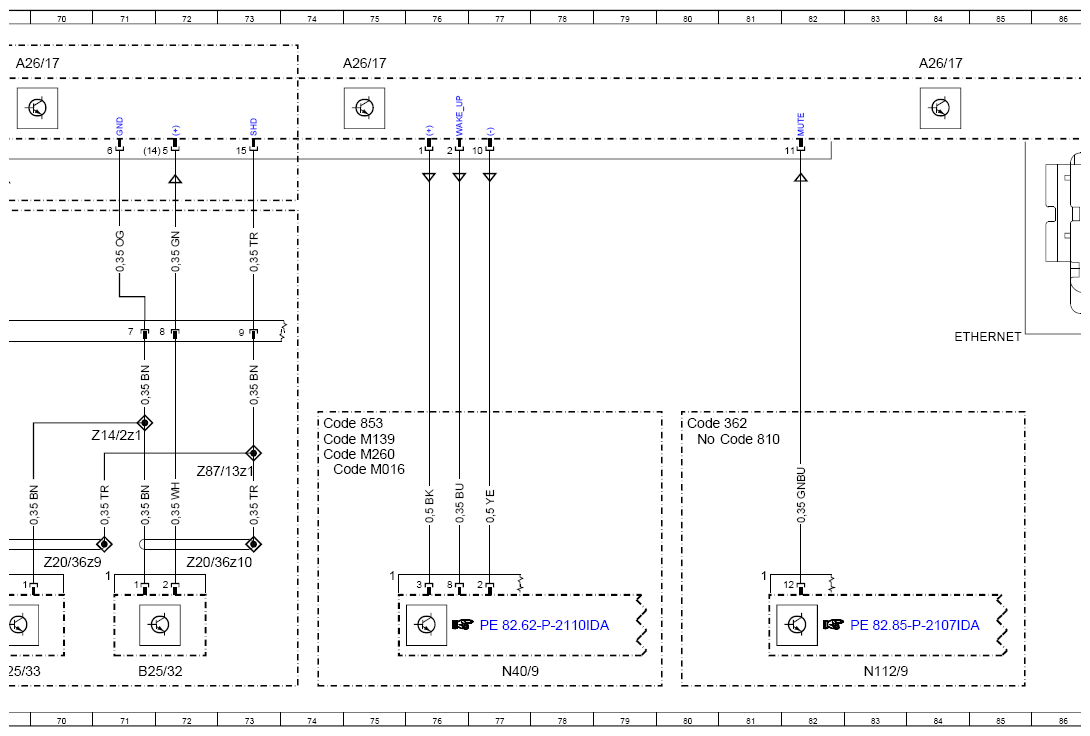

| N40/9 | Woofer amplifier | 77L |

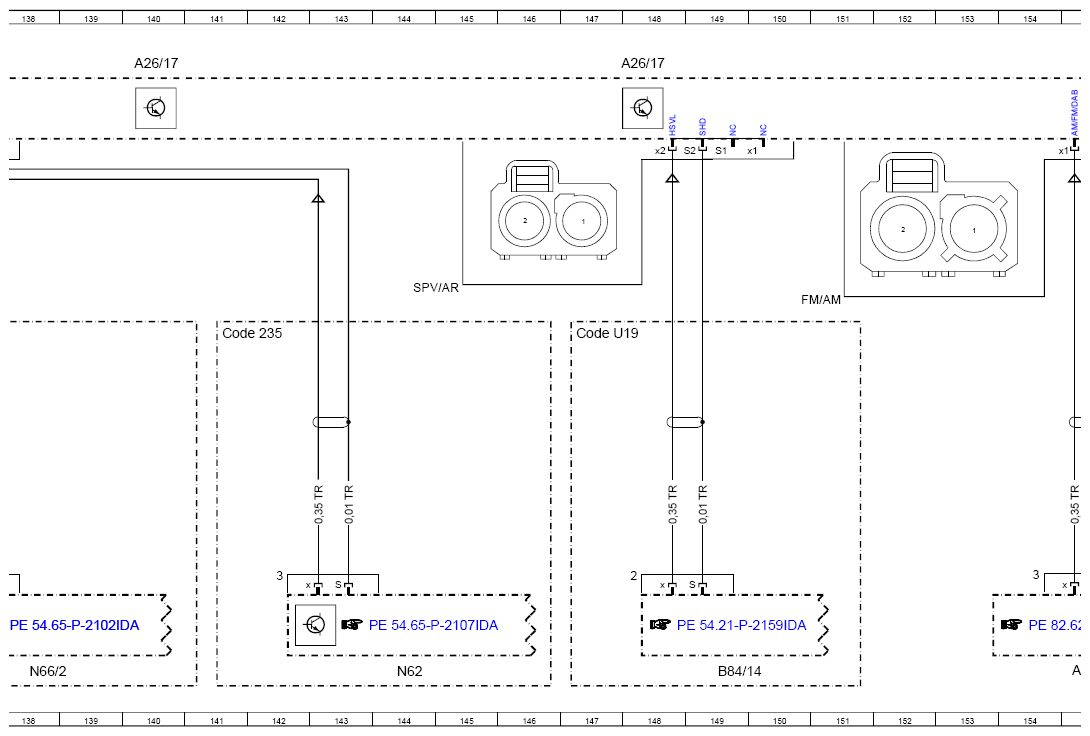

| N62 | Parking system control unit | 144L |
| N66/2 | Backup camera control unit | 138L |
| W15 | Right front footwell ground point | 12K |
| W34 | Left footwell ground point | 11K |

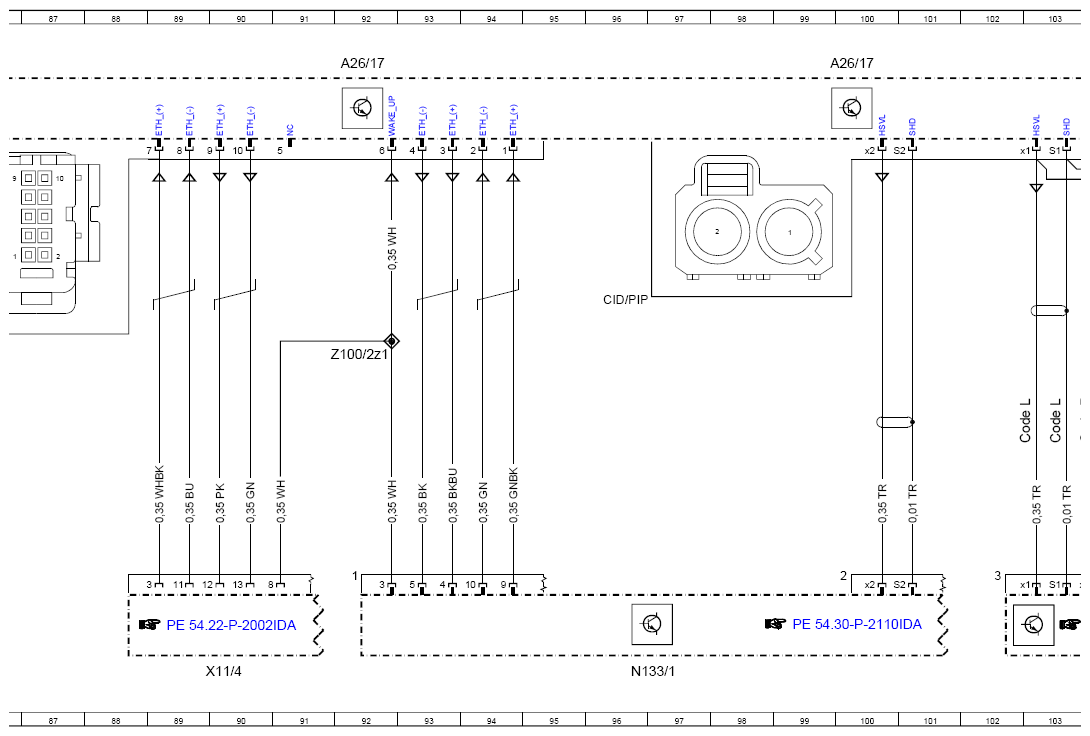

| X11/4 | Diagnostic connector | 90L |
| X18/2x2 | Hands-free system microphone electrical connector | 68F |
| X18/2x2 | Hands-free system microphone electrical connector | 49F |
| X30/20 | User interface CAN (CAN HMI) potential distributor | 15L |
| X30/21 | Drive train CAN (CAN CD potential distributor | 61L |

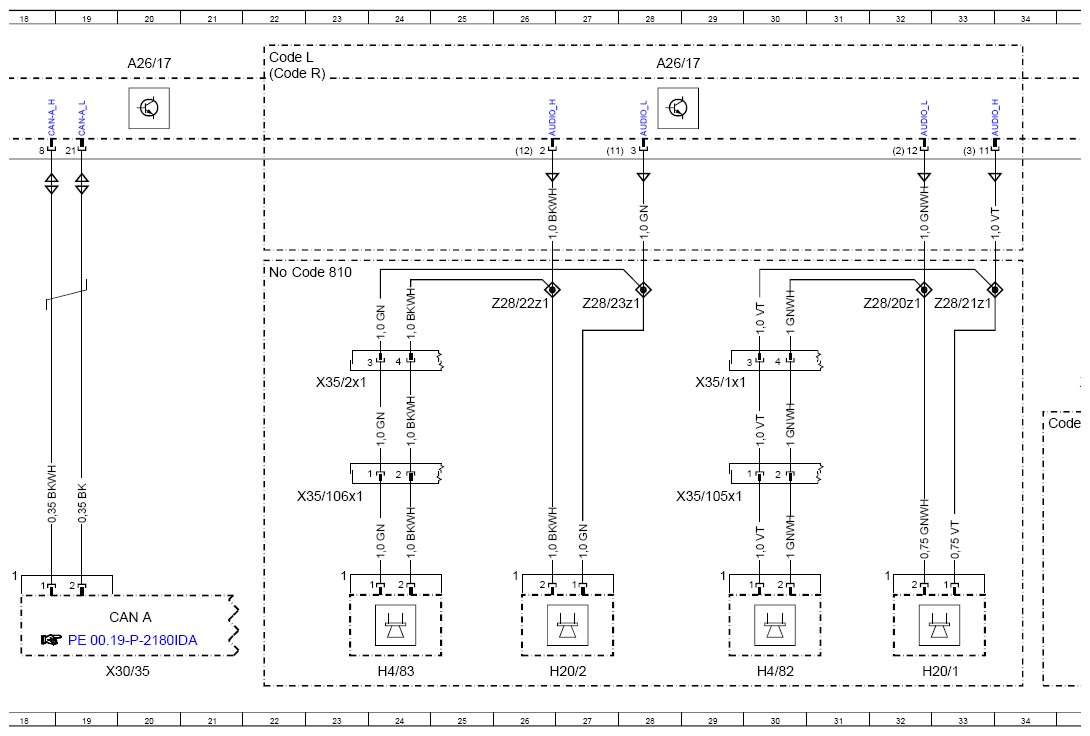

| X30/35 | Telematics CAN potential distributor (CAN A) | 19L |
| X35/105x1 | Driver door module electrical connector | 28H |
| X35/106x1 | Passenger door module electrical connector | 22H |
| X35/1x1 | Driver door electrical connector | 29F |
| X35/2x1 | Front passenger door electrical connector | 23F |
| X35/2xGPS | GPS antenna connector | 181F |
| X35/3x1 | Left rear door electrical connector | 35F |
| X35/4x1 | Right rear door electrical connector | 40F |
| Z100/2z1 | Wake-up signal connector sleeve | 92F |
| Z14/2z1 | Ground connection connector sleeve | 71G |
| Z14/2z1 | Ground connection connector sleeve | 51D |
| Z20/36z1 | Cable shield end sleeve | 51H |
| Z20/36z10 | Cable shield end sleeve | 73J |
| Z20/36z2 | Cable shield end sleeve | 53H |
| Z20/36z9 | Screening end connector sleeve | 70J |
| Z28/20z1 | Audio signal HIGH connector sleeve | 32E |
| Z28/21z1 | Audio signal LOW connector sleeve | 33E |
| Z28/22z1 | Audio signal HIGH connector sleeve | 26E |
| Z28/23z1 | Audio signal LOW connector sleeve | 27E |
| Z61/5z1 | Ground connection connector sleeve | 45G |
| Z87/13z1 | Shielding connector sleeve | 73H |
| Z87/16z1 | Shielding connector sleeve | 53E |
