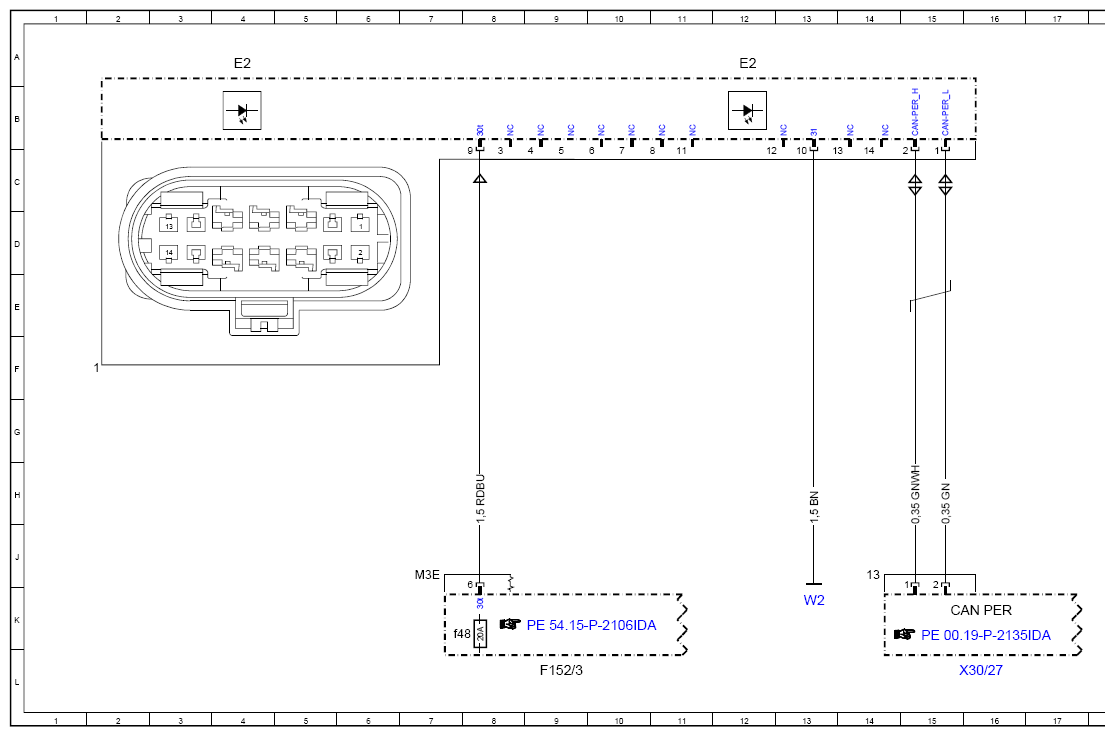

Wiring Diagram Of Exterior Lights - PE82.10-P-2000-97IDD
Model 247
with code 631 (Static LED headlamps, left-hand traffic) Headlamp E2, static
Model 247
with code 632 (Headlamps, LED, static, right-side traffic) Headlamp E2, static
| Code: | Designation: | Position: |
|---|---|---|

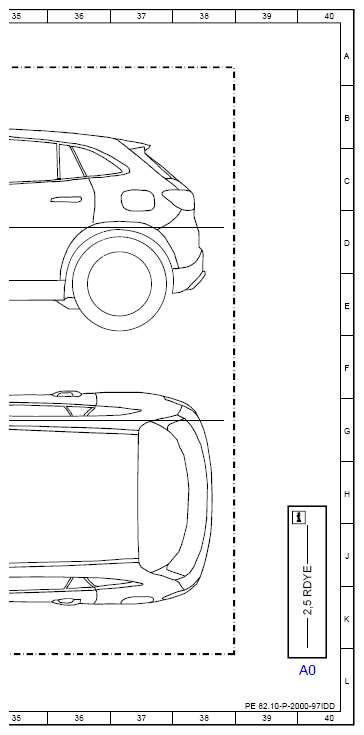

| A0 | Use of wiring diagrams | 40L |
| CAN PER | Peripherals CAN | 15K |

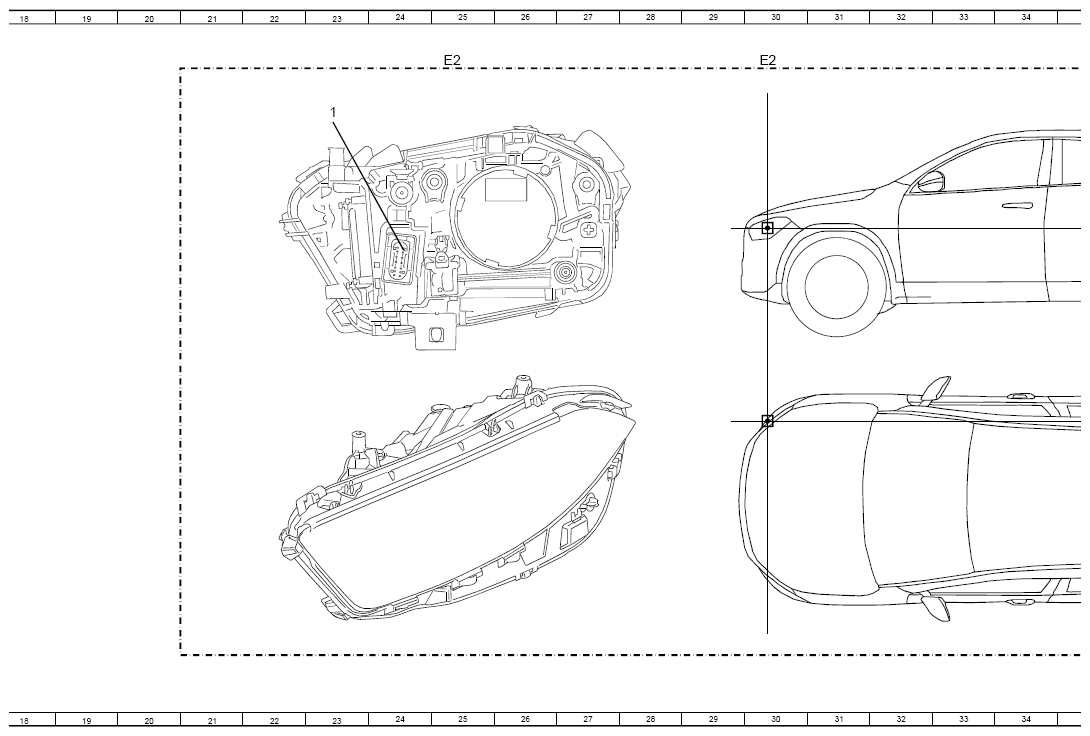

| E2 | Right front lamp unit | 4A |
| E2 | Right front lamp unit | 12A |
| E2 | Right front lamp unit | 25A |
| E2 | Right front lamp unit | 30A |
| F152/3 | Engine compartment fuse and relay module | 9L |
| F152/3f48 | Fuse 48 | 7K |
| W2 | Right front engine compartment ground point | 13K |
| X30/27 | Peripherals CAN (CAN PER) potential distributor electrical connector | 16L |
