Wiring Diagram Of Exterior Lights - PE82.10-P-2000-97IDC
Model 247
with code 631 (Static LED headlamps, left-hand traffic) Headlamp E1, static
Model 247
with code 632 (Headlamps, LED, static, right-side traffic) Headlamp E1, static
| Code: | Designation: | Position: |
|---|---|---|

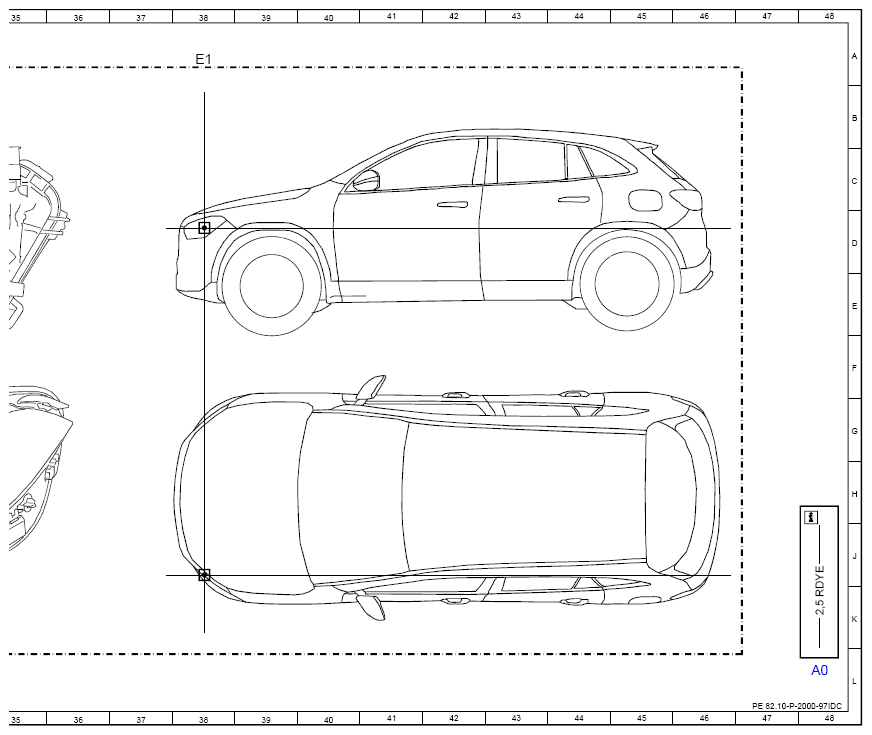

| A0 | Use of wiring diagrams | 48L |

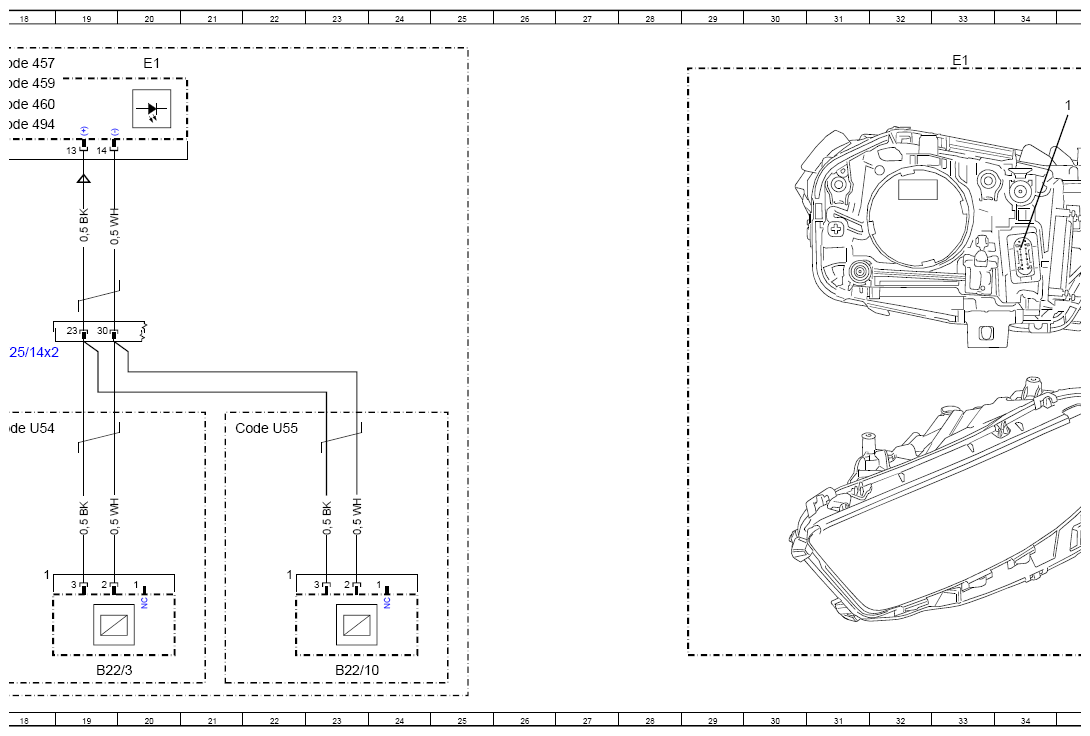

| B22/10 | Right rear level sensor | 23L |
| B22/3 | Rear axle level sensor | 19L |
| CAN PER | Peripherals CAN | 15K |
| Code 457 | Comfort suspension with adjustable damping | 18A |
| Code 459 | Steel suspension with adjustable damping | 18B |
| Code 460 | Canada version | 18B |
| Code 494 | USA version | 18B |
| Code U54 | Torsion-beam axle | 17G |
| Code U55 | Multi-link axle | 21G |

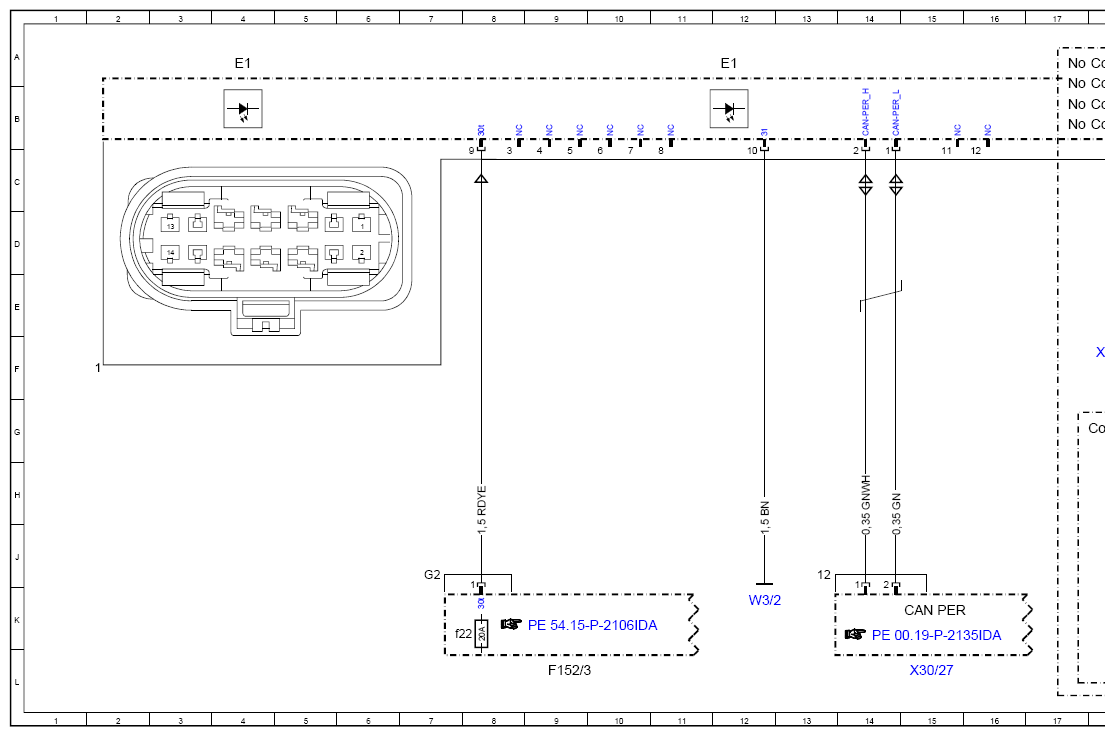

| E1 | Left front lamp unit | 4A |
| E1 | Left front lamp unit | 12A |
| E1 | Left front lamp unit | 20A |
| E1 | Left front lamp unit | 33A |
| E1 | Left front lamp unit | 38A |
| F152/3 | Engine compartment fuse and relay module | 9L |
| F152/3f22 | Fuse 22 | 7K |
| W3/2 | Left front wheel arch ground point | 12K |
| X25/14x2 | Right engine compartment/vehicle interior electrical connector | 18F |
| X30/27 | Peripherals CAN (CAN PER) potential distributor electrical connector | 15L |
