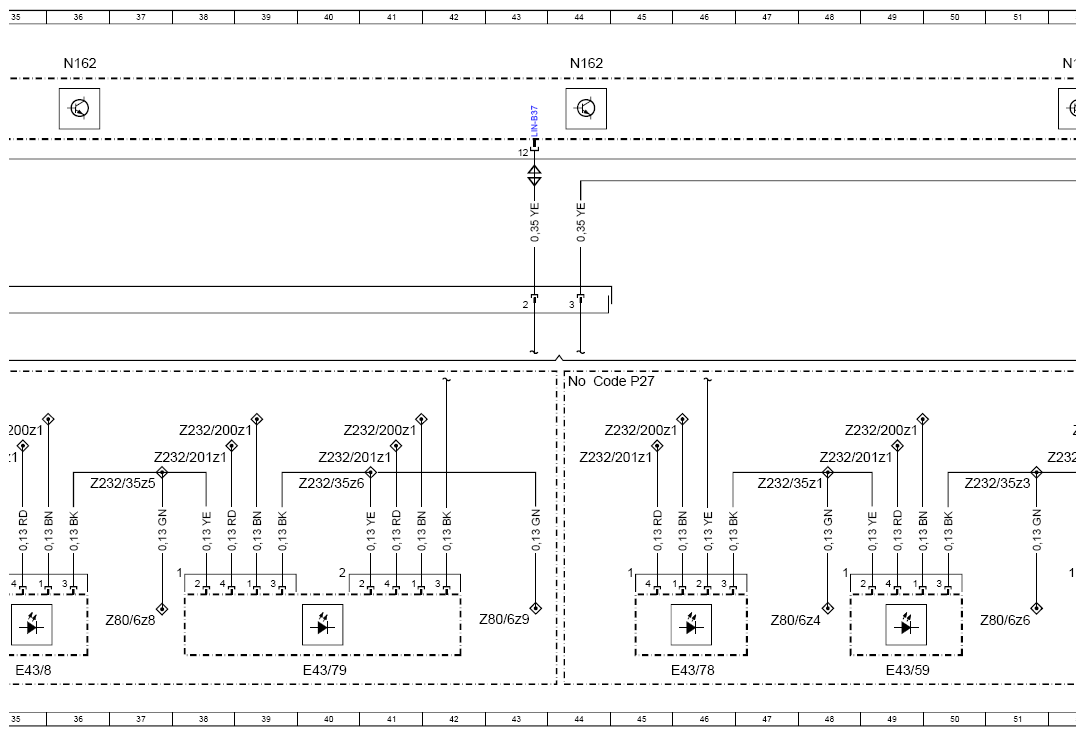

Wiring Diagram Of Ambiance Illumination Control Unit - PE82.20-P-2101-97IDA
Model 247 with code 877 (Ambient lighting)
Control unit N162
| Code: | Designation: | Position: |
|---|---|---|

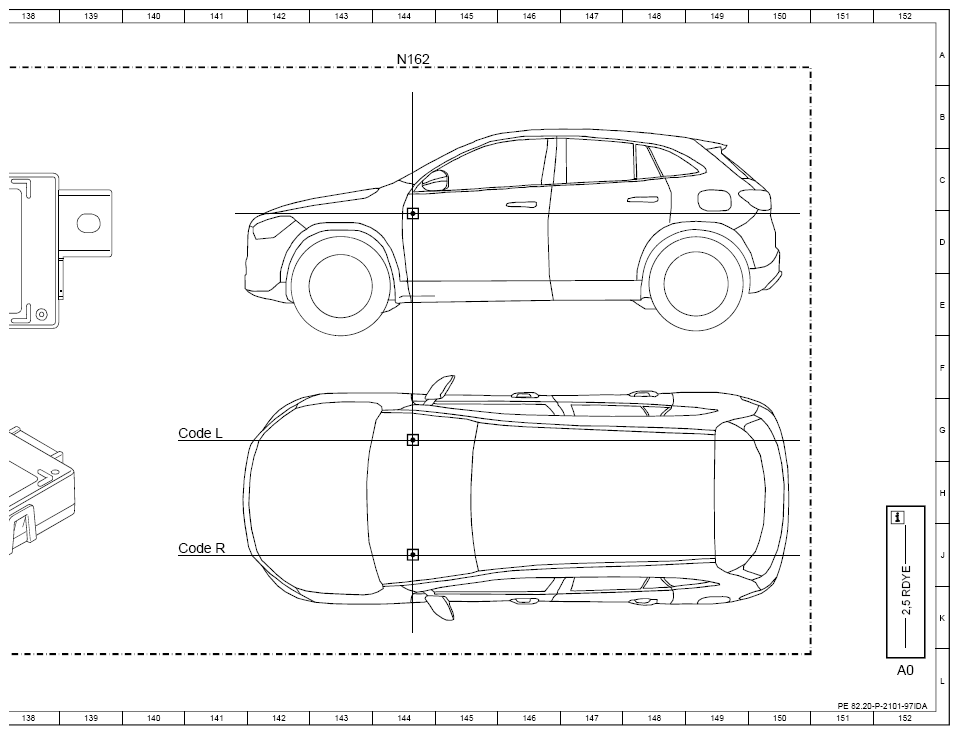

| A0 | Use of wiring diagrams | 152L |
| Code L | LEFT-HAND DRIVE | 140G |
| Code L | LEFT-HAND DRIVE | 8E |
| Code P27 | STYLE PACKAGE | 20F |
| Code P27 | STYLE PACKAGE | 44F |
| Code R | RIGHT-HAND DRIVE | 140J |
| Code R | RIGHT-HAND DRIVE | 8F |
| E17/57 | Left rear door handle ambiance illumination | 87L |
| E17/58 | Right rear door handle ambiance illumination | 92L |
| E20/18 | Center console cup holder ambiance illumination | 99L |
| E23/3 | Left rear door stowage compartment illumination | 87L |
| E23/4 | Right rear door stowage compartment illumination | 92L |

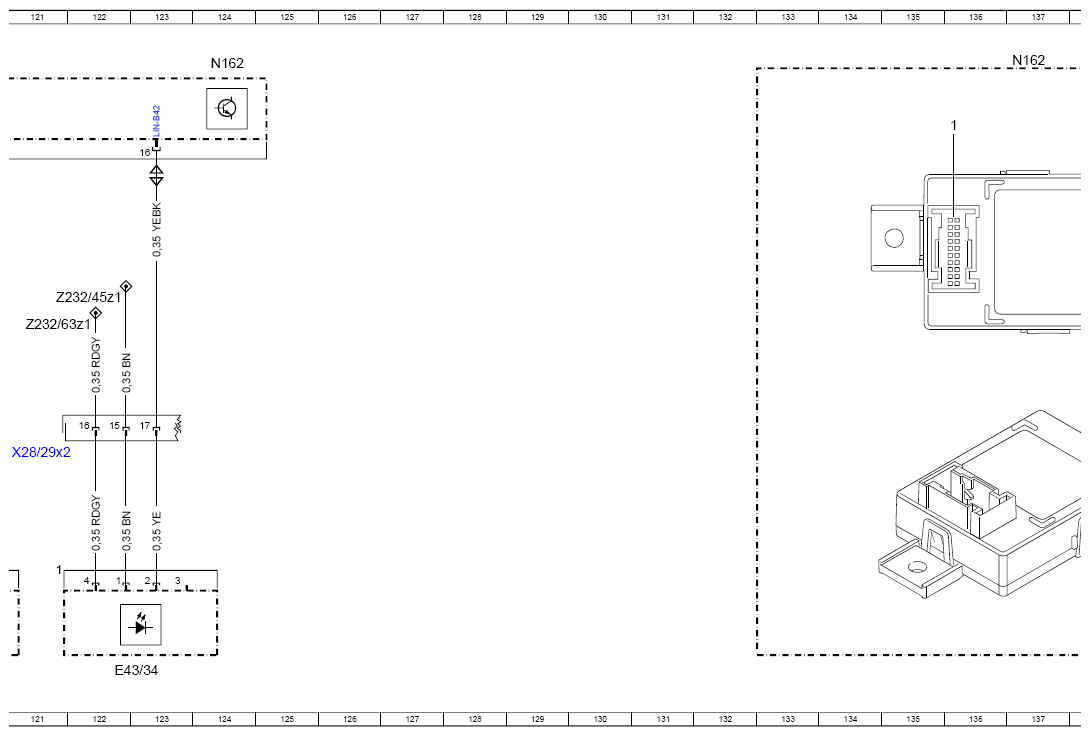

| E43/34 | Left rear footwell ambiance illumination | 122L |
| E43/35 | Right rear footwell ambiance illumination | 119L |

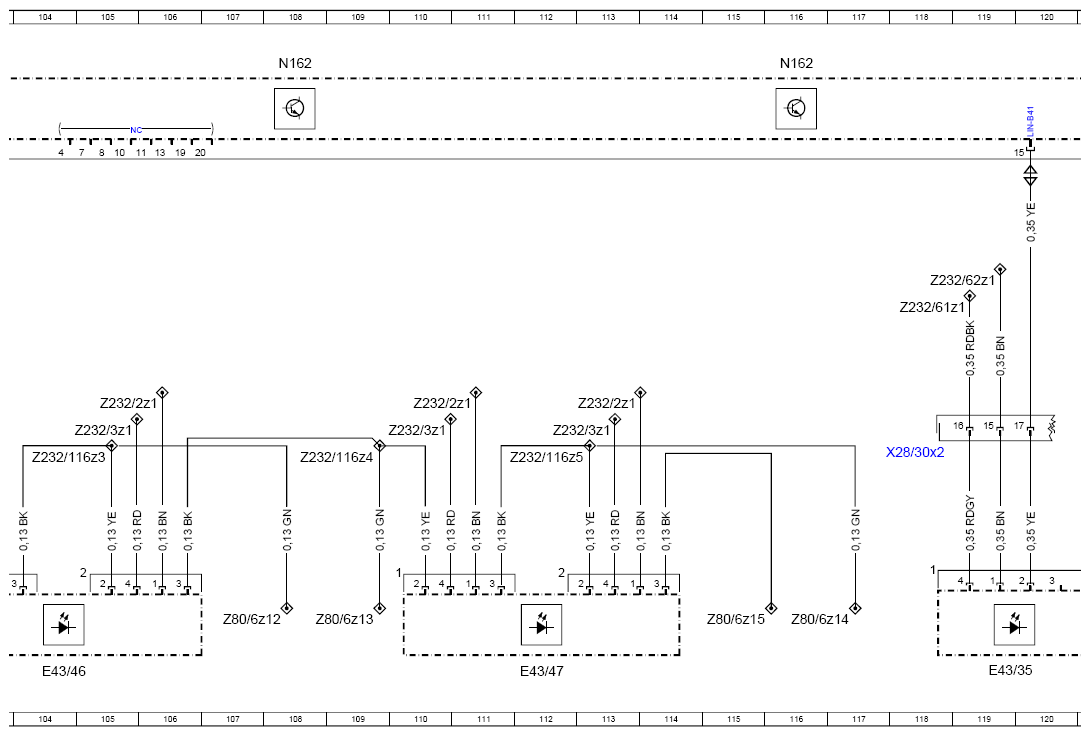

| E43/46 | Left center console ambiance illumination | 104L |
| E43/47 | Right center console ambiance illumination | 112L |
| E43/59 | Driver side air vent ambiance illumination | 28L |
| E43/59 | Driver side air vent ambiance illumination | 49L |
| E43/60 | Front passenger side air vent ambiance illumination | 32L |
| E43/60 | Front passenger side air vent ambiance illumination | 53L |

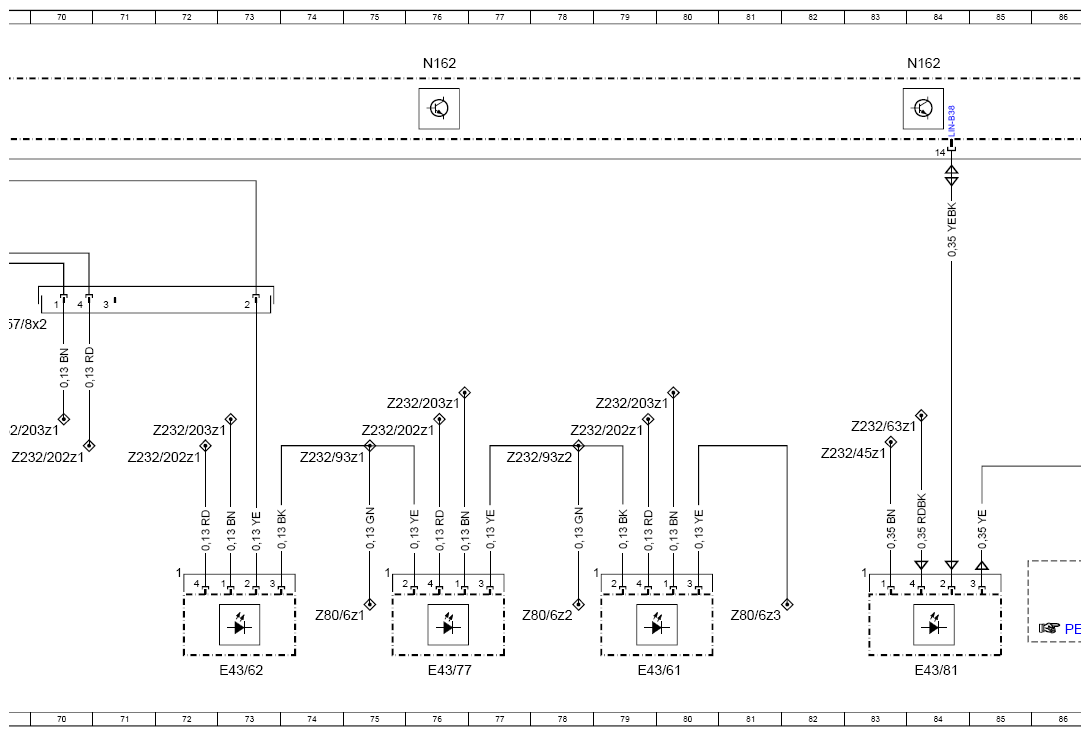

| E43/61 | Left center air vent ambiance illumination | 79L |
| E43/62 | Right center air vent ambiance illumination | 73L |

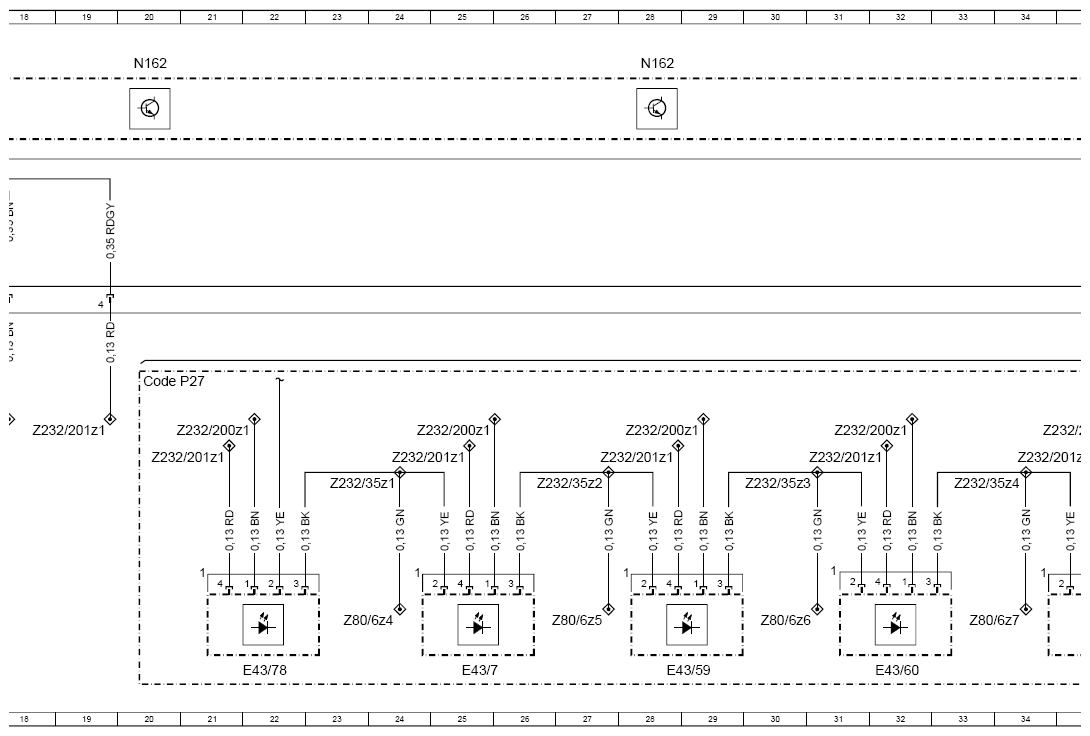

| E43/7 | Upper driver-side instrument panel ambiance illumination | 25L |
| E43/77 | Center center air vent ambiance illumination | 76L |
| E43/78 | Lower driver-side instrument panel ambiance illumination | 22L |
| E43/78 | Lower driver-side instrument panel ambiance illumination | 46L |

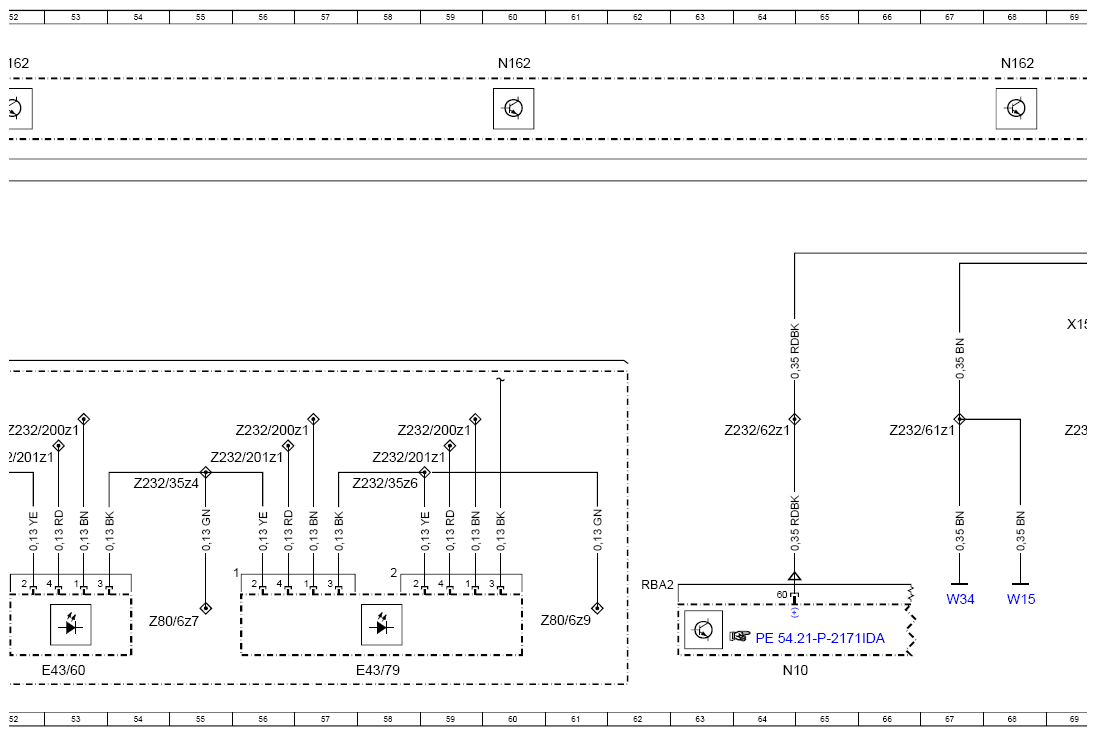

| E43/79 | Lower passenger-side instrument panel ambiance illumination | 40L |
| E43/79 | Lower passenger-side instrument panel ambiance illumination | 58L |
| E43/8 | Upper passenger-side instrument panel ambiance illumination | 35L |
| E43/81 | Left front footwell ambiance illumination | 84L |
| E43/82 | Right front footwell ambiance illumination | 90L |

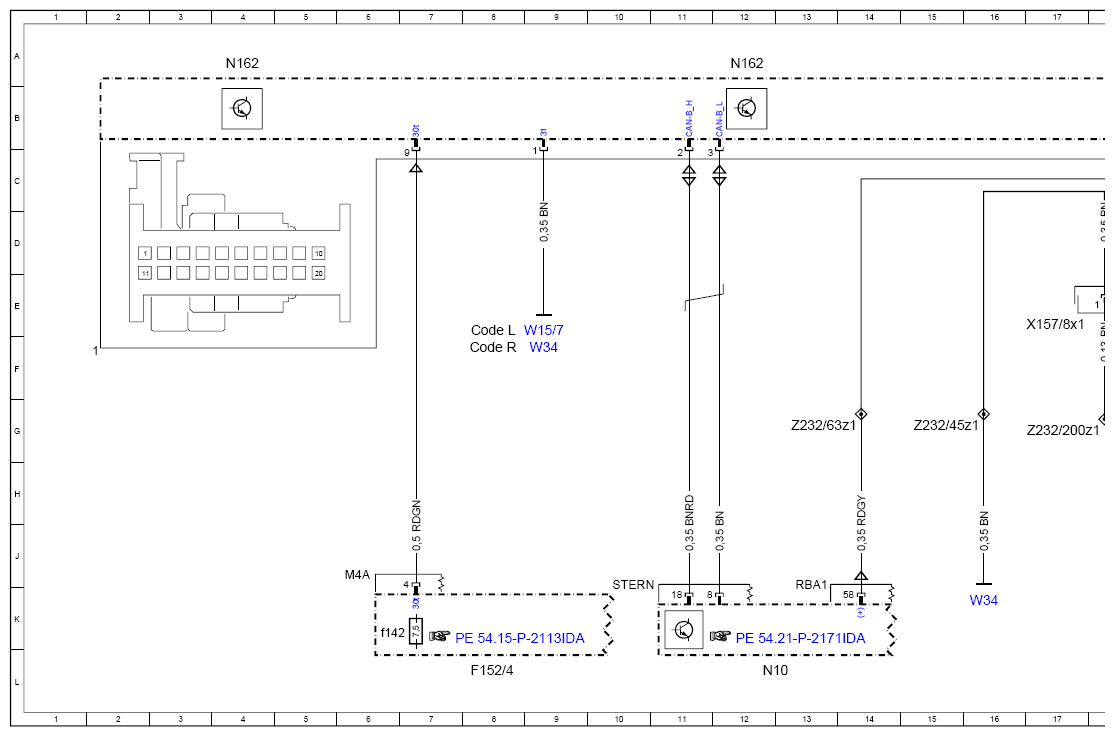

| F152/4 | Vehicle interior fuse and relay module | 8L |
| F152/4f142 | Fuse 142 | - |

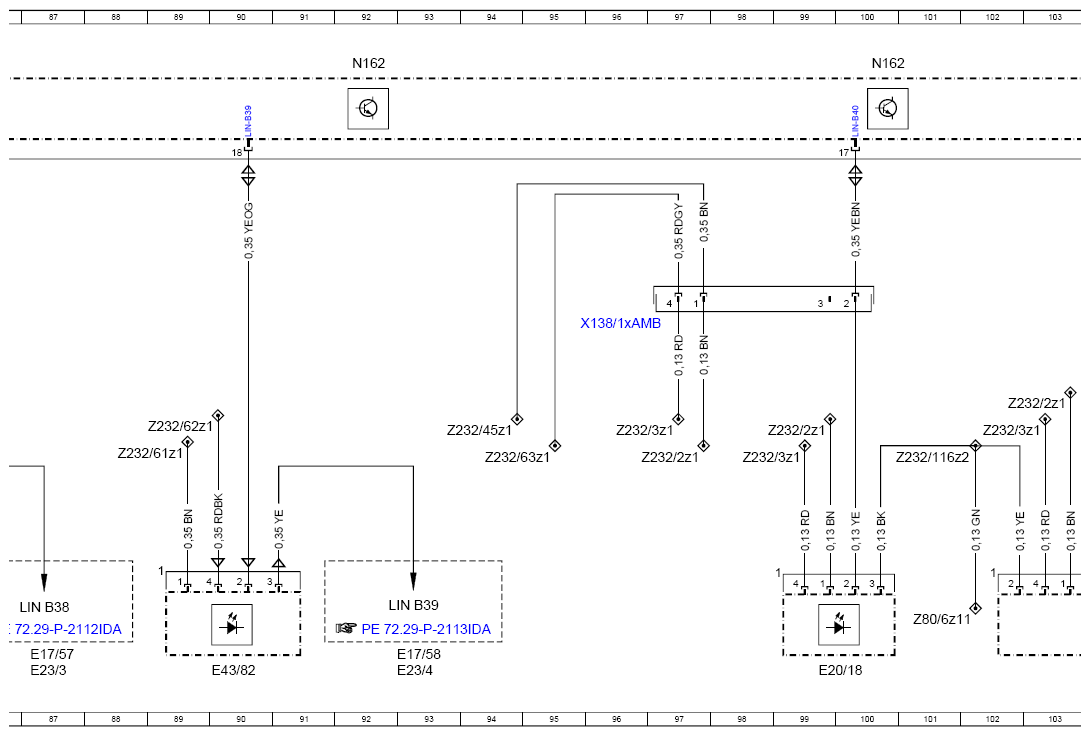

| LIN B38 | Left vehicle interior ambiance illumination LIN | 87K |
| LIN B39 | Right vehicle interior ambiance illumination LIN | 93K |
| N10 | Central control module | 12L |
| N10 | Central control module | 64L |
| N162 | Ambiance illumination control unit | 4A |
| N162 | Ambiance illumination control unit | 12A |
| N162 | Ambiance illumination control unit | 20A |
| N162 | Ambiance illumination control unit | 28A |
| N162 | Ambiance illumination control unit | 36A |
| N162 | Ambiance illumination control unit | 44A |
| N162 | Ambiance illumination control unit | 52A |
| N162 | Ambiance illumination control unit | 60A |
| N162 | Ambiance illumination control unit | 68A |
| N162 | Ambiance illumination control unit | 76A |
| N162 | Ambiance illumination control unit | 84A |
| N162 | Ambiance illumination control unit | 92A |
| N162 | Ambiance illumination control unit | 100A |
| N162 | Ambiance illumination control unit | 108A |
| N162 | Ambiance illumination control unit | 116A |
| N162 | Ambiance illumination control unit | 124A |
| N162 | Ambiance illumination control unit | 137A |
| N162 | Ambiance illumination control unit | 144A |
| W15 | Right front footwell ground point | 68K |
| W15/7 | Right front footwell ground point | 9E |
| W34 | Left footwell ground point | 16K |
| W34 | Left footwell ground point | 67K |
| W34 | Left footwell ground point | 9F |
| X138/1xAMB | Center console electrical connector | 96E |
| X157/8x1 | Cockpit ambiance illumination electrical connector | 17E |
| X157/8x2 | Cockpit ambiance illumination electrical connector | 69E |
| X28/29x2 | Frame floor assembly/driver seat electrical connector | 121G |
| X28/30x2 | Frame floor assembly/front passenger seat electrical connector | 118G |
| Z232/116z2 | LIN B40 end sleeve | 101G |
| Z232/116z3 | LIN B40 end sleeve | 104G |
| Z232/116z4 | LIN B40 end sleeve | 109G |
| Z232/116z5 | LIN B40 end sleeve | 112G |
| Z232/200z1 | Ground connection connector sleeve | 21G |
| Z232/200z1 | Ground connection connector sleeve | 25G |
| Z232/200z1 | Ground connection connector sleeve | 28G |
| Z232/200z1 | Ground connection connector sleeve | 32G |
| Z232/200z1 | Ground connection connector sleeve | 35G |
| Z232/200z1 | Ground connection connector sleeve | 38G |
| Z232/200z1 | Ground connection connector sleeve | 41G |
| Z232/200z1 | Ground connection connector sleeve | 45G |
| Z232/200z1 | Ground connection connector sleeve | 49G |
| Z232/200z1 | Ground connection connector sleeve | 52G |
| Z232/200z1 | Ground connection connector sleeve | 56G |
| Z232/200z1 | Ground connection connector sleeve | 59G |
| Z232/200z1 | Ground connection connector sleeve | 17G |
| Z232/201z1 | Voltage supply connector sleeve | 21G |
| Z232/201z1 | Voltage supply connector sleeve | 24G |
| Z232/201z1 | Voltage supply connector sleeve | 28G |
| Z232/201z1 | Voltage supply connector sleeve | 31G |
| Z232/201z1 | Voltage supply connector sleeve | 34G |
| Z232/201z1 | Voltage supply connector sleeve | 38G |
| Z232/201z1 | Voltage supply connector sleeve | 40G |
| Z232/201z1 | Voltage supply connector sleeve | 45G |
| Z232/201z1 | Voltage supply connector sleeve | 48G |
| Z232/201z1 | Voltage supply connector sleeve | 52G |
| Z232/201z1 | Voltage supply connector sleeve | 56G |
| Z232/201z1 | Voltage supply connector sleeve | 58G |
| Z232/201z1 | Voltage supply connector sleeve | 19G |
| Z232/202z1 | Voltage supply connector sleeve | 72G |
| Z232/202z1 | Voltage supply connector sleeve | 75G |
| Z232/202z1 | Voltage supply connector sleeve | 79G |
| Z232/202z1 | Voltage supply connector sleeve | 70G |
| Z232/203z1 | Ground connection connector sleeve | 72G |
| Z232/203z1 | Ground connection connector sleeve | 76G |
| Z232/203z1 | Ground connection connector sleeve | 79G |
| Z232/203z1 | Ground connection connector sleeve | 69G |
| Z232/2z1 | Ground connection connector sleeve | 99G |
| Z232/2z1 | Ground connection connector sleeve | 103G |
| Z232/2z1 | Ground connection connector sleeve | 105G |
| Z232/2z1 | Ground connection connector sleeve | 110G |
| Z232/2z1 | Ground connection connector sleeve | 113G |
| Z232/2z1 | Ground connection connector sleeve | 97G |
| Z232/35z1 | LIN B37 end sleeve | 23H |
| Z232/35z1 | LIN B37 end sleeve | 47H |
| Z232/35z2 | LIN B37 end sleeve | 27H |
| Z232/35z3 | LIN B37 end sleeve | 30H |
| Z232/35z3 | LIN B37 end sleeve | 51H |
| Z232/35z4 | LIN B37 end sleeve | 33H |
| Z232/35z4 | LIN B37 end sleeve | 54H |
| Z232/35z5 | LIN B37 end sleeve | 37H |
| Z232/35z6 | LIN B37 end sleeve | 40H |
| Z232/35z6 | LIN B37 end sleeve | 58H |
| Z232/3z1 | Voltage supply connector sleeve | 98G |
| Z232/3z1 | Voltage supply connector sleeve | 102G |
| Z232/3z1 | Voltage supply connector sleeve | 105G |
| Z232/3z1 | Voltage supply connector sleeve | 110G |
| Z232/3z1 | Voltage supply connector sleeve | 113G |
| Z232/3z1 | Voltage supply connector sleeve | 96G |
| Z232/45z1 | Ground connection connector sleeve | 15G |
| Z232/45z1 | Ground connection connector sleeve | 83G |
| Z232/45z1 | Ground connection connector sleeve | 94G |
| Z232/45z1 | Ground connection connector sleeve | 122E |
| Z232/61z1 | Ground connection connector sleeve | 67G |
| Z232/61z1 | Ground connection connector sleeve | 89G |
| Z232/61z1 | Ground connection connector sleeve | 118E |
| Z232/62z1 | Voltage supply connector sleeve | 64G |
| Z232/62z1 | Voltage supply connector sleeve | 89G |
| Z232/62z1 | Voltage supply connector sleeve | 119E |
| Z232/63z1 | Voltage supply connector sleeve | 13G |
| Z232/63z1 | Voltage supply connector sleeve | 83G |
| Z232/63z1 | Voltage supply connector sleeve | 94G |
| Z232/63z1 | Voltage supply connector sleeve | 121E |
| Z232/93z1 | LIN B37 end sleeve | 74G |
| Z232/93z2 | LIN B37 end sleeve | 78G |
| Z80/6z1 | LIN B37 end sleeve | 74K |
| Z80/6z11 | LIN B40 end sleeve | 101K |
| Z80/6z12 | LIN B40 end sleeve | 107K |
| Z80/6z13 | LIN B40 end sleeve | 109K |
| Z80/6z14 | LIN B40 end sleeve | 116K |
| Z80/6z15 | LIN B40 end sleeve | 115K |
| Z80/6z2 | LIN B37 end sleeve | 78K |
| Z80/6z3 | LIN B37 end sleeve | 81K |
| Z80/6z4 | LIN B37 end sleeve | 24K |
| Z80/6z4 | LIN B37 end sleeve | 47K |
| Z80/6z5 | LIN B37 end sleeve | 27K |
| Z80/6z6 | LIN B37 end sleeve | 30K |
| Z80/6z6 | LIN B37 end sleeve | 51K |
| Z80/6z7 | LIN B37 end sleeve | 34K |
| Z80/6z7 | LIN B37 end sleeve | 55K |
| Z80/6z8 | LIN B37 end sleeve | 37K |
| Z80/6z9 | LIN B37 end sleeve | 43K |
| Z80/6z9 | LIN B37 end sleeve | 61K |
