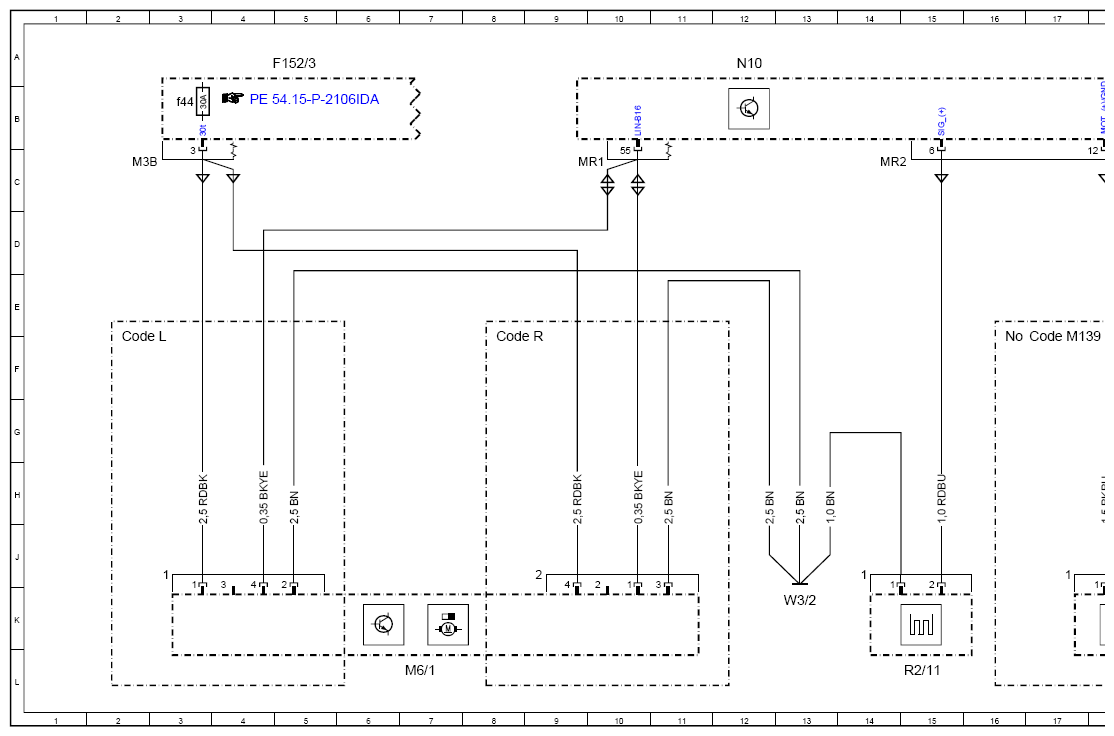

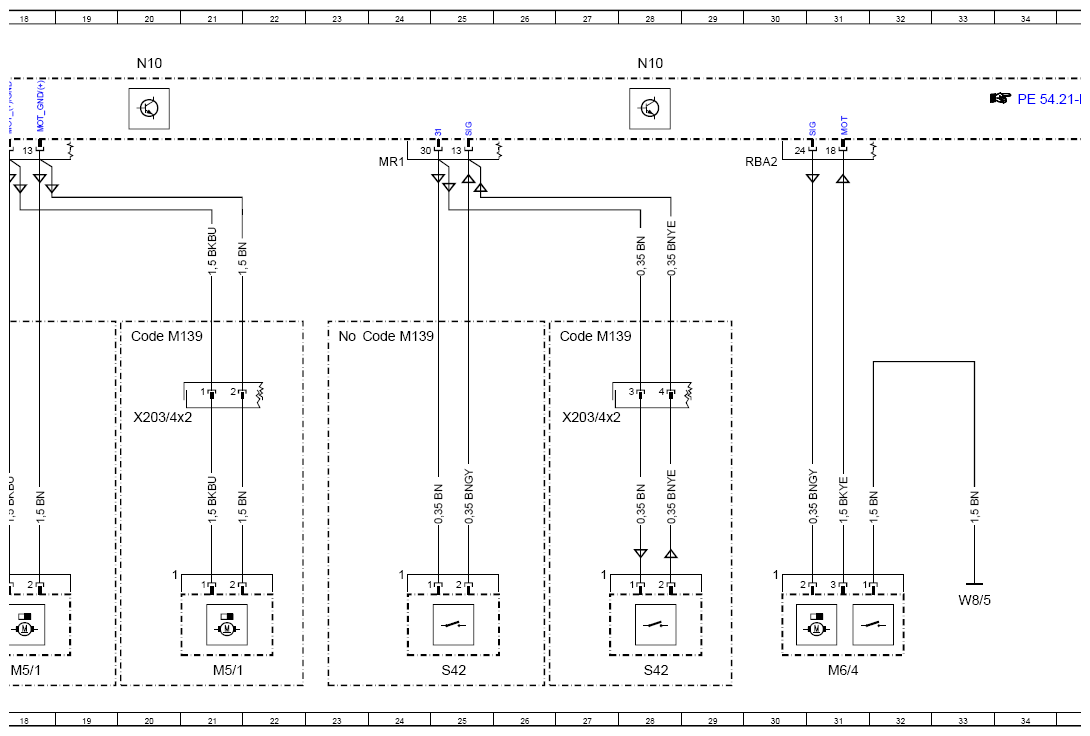

Wiring Diagram For Windshield Wiper System - PE82.30-P-2003-97IDA
Model 247
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 40L |
| Code L | LEFT-HAND DRIVE | 2F |
| Code M139 | Inline 4-cylinder SPARK-IGNITION ENGINE M139 - AMG | 27F |
| Code M139 | Inline 4-cylinder SPARK-IGNITION ENGINE M139 - AMG | 23F |
| Code M139 | Inline 4-cylinder SPARK-IGNITION ENGINE M139 - AMG | 20F |
| Code M139 | Inline 4-cylinder SPARK-IGNITION ENGINE M139 - AMG | 17F |
| Code R | RIGHT-HAND DRIVE | 8F |
| F152/3 | Engine compartment fuse and relay module | 5A |
| F152/3f44 | Fuse 44 | 3B |
| M5/1 | Windshield washer system pump | 18L |
| M5/1 | Windshield washer system pump | 21L |
| M6/1 | Wiper motor | 7L |
| M6/4 | Tail gate wiper motor | 31L |
| N10 | Central control module | 12A |
| N10 | Central control module | 20A |
| N10 | Central control module | 28A |
| N10 | Central control module | 36A |
| R2/11 | Spray nozzle hose heater | 15L |
| S42 | Windshield washer fluid level indicator switch | 25L |
| S42 | Windshield washer fluid level indicator switch | 28L |
| W3/2 | Left front wheel arch ground point | 13K |
| W8/5 | Right tailgate ground point | 33K |
| X203/4x2 | Windshield washer system (AMG) fill level sensor electrical connector | 27G |
| X203/4x2 | Windshield washer system (AMG) fill level sensor electrical connector | 20G |
