Wiring Diagram For Antennas - PE82.62-P-2106-97IDA
Model 247 Telephone antenna, A2/109

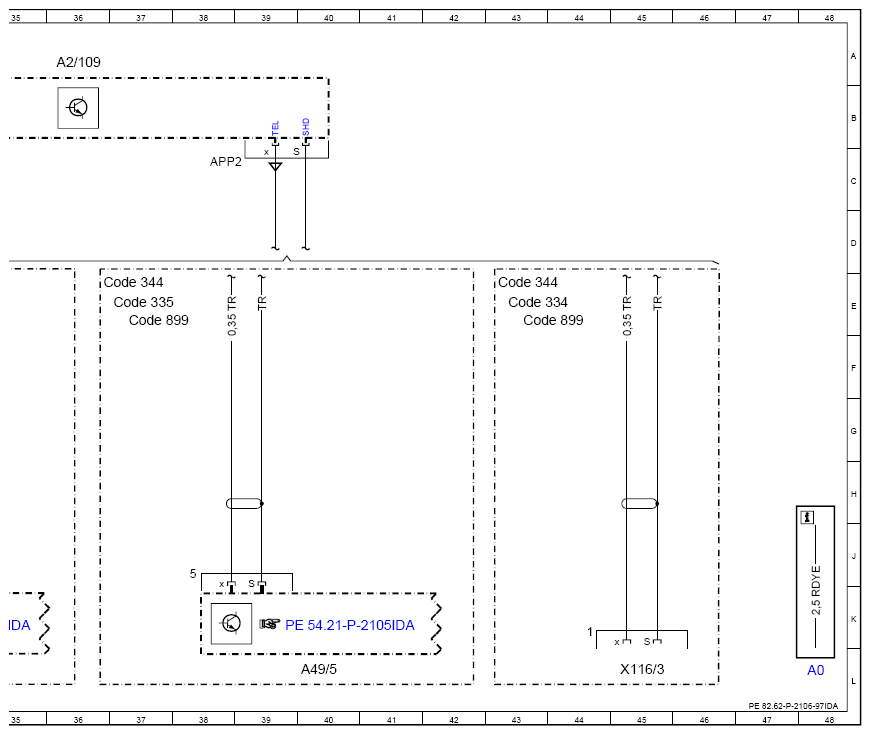

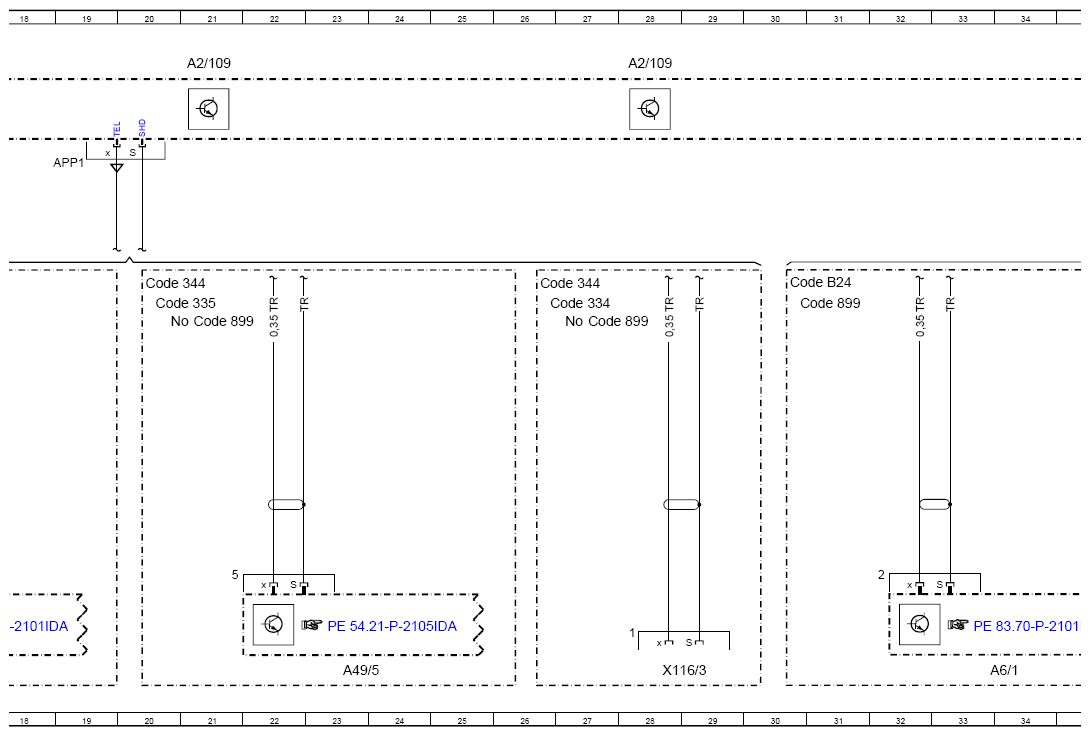

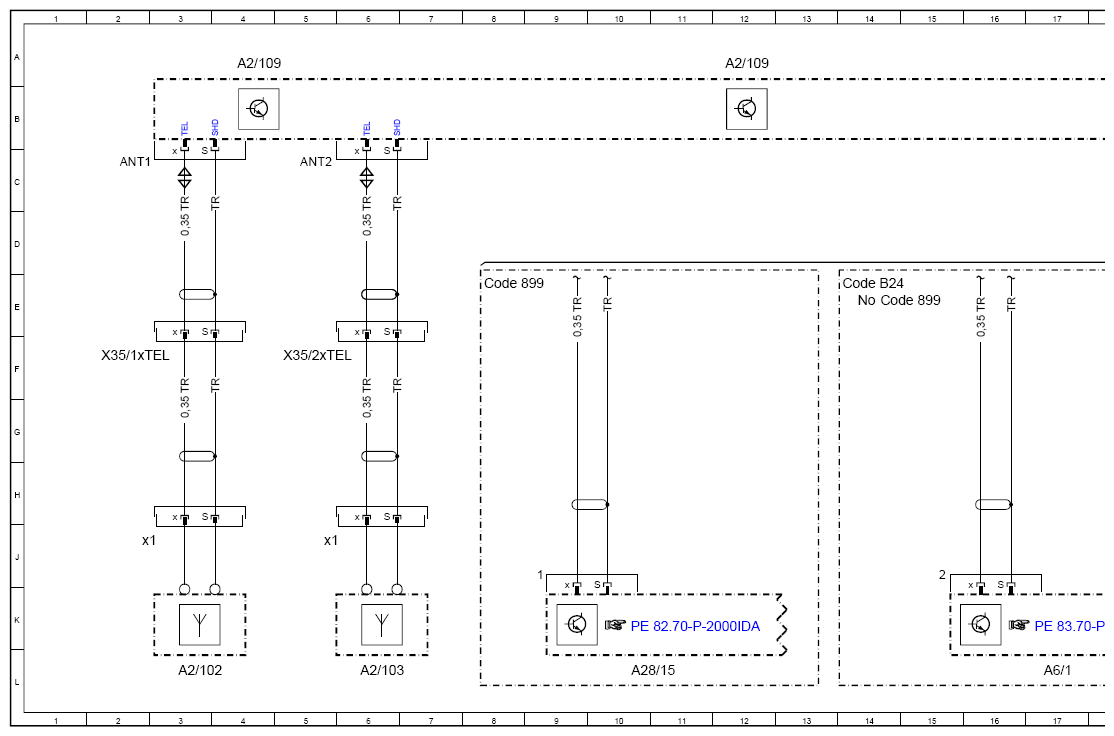

| Code: | Designation: | Position |
|---|---|---|
| A0 | Use of wiring diagrams | 48L |
| A2/102 | Driver-side telephone antenna | 3L |
| A2/102x1 | Driver's side telephone antenna electrical connector | 3L |
| A2/103 | Passenger-side telephone antenna | 6L |
| A2/103x1 | Front passenger side telephone antenna electrical connector | 6L |
| A2/109 | Telephone antenna splitter | 4A |
| A2/109 | Telephone antenna splitter | 12A |
| A2/109 | Telephone antenna splitter | 21A |
| A2/109 | Telephone antenna splitter | 28A |
| A2/109 | Telephone antenna splitter | 36A |
| A28/15 | Cellular telephone system antenna amplifier/compensator | 10L |
| A49/5 | Radio data transmission two-way radio | 23L |
| A49/5 | Radio data transmission two-way radio | 40L |
| A6/1 | Stationary heater radio remote control receiver | 17L |
| A6/1 | Stationary heater radio remote control receiver | 34L |
| Code 334 | Two-way radio bracket in glove compartment | 26E |
| Code 334 | Two-way radio bracket in glove compartment | 43E |
| Code 335 | Two-way radio bracket in trunk | 20E |
| Code 335 | Two-way radio bracket in trunk | 37E |
| Code 344 | Antenna preinstallation for taxi | 20E |
| Code 344 | Antenna preinstallation for taxi | 26E |
| Code 344 | Antenna preinstallation for taxi | 36E |
| Code 344 | Antenna preinstallation for taxi | 43E |
| Code 899 | Wireless phone charging at front and antenna | 8E |
| Code 899 | Wireless phone charging at front and antenna | 14E |
| Code 899 | Wireless phone charging at front and antenna | 30E |
| Code 899 | Wireless phone charging at front and antenna | 21E |
| Code 899 | Wireless phone charging at front and antenna | 27E |
| Code 899 | Wireless phone charging at front and antenna | 37E |
| Code 899 | Wireless phone charging at front and antenna | 43E |
| Code B24 | Remote control for stationary heater | 14E |
| Code B24 | Remote control for stationary heater | 30E |
| X116/3 | GPS data flow electrical connector | 28L |
| X116/3 | GPS data flow electrical connector | 45L |
| X35/1xTEL | Driver door electrical connector | 2F |
| X35/2xTEL | Front passenger door electrical connector | 5F |
